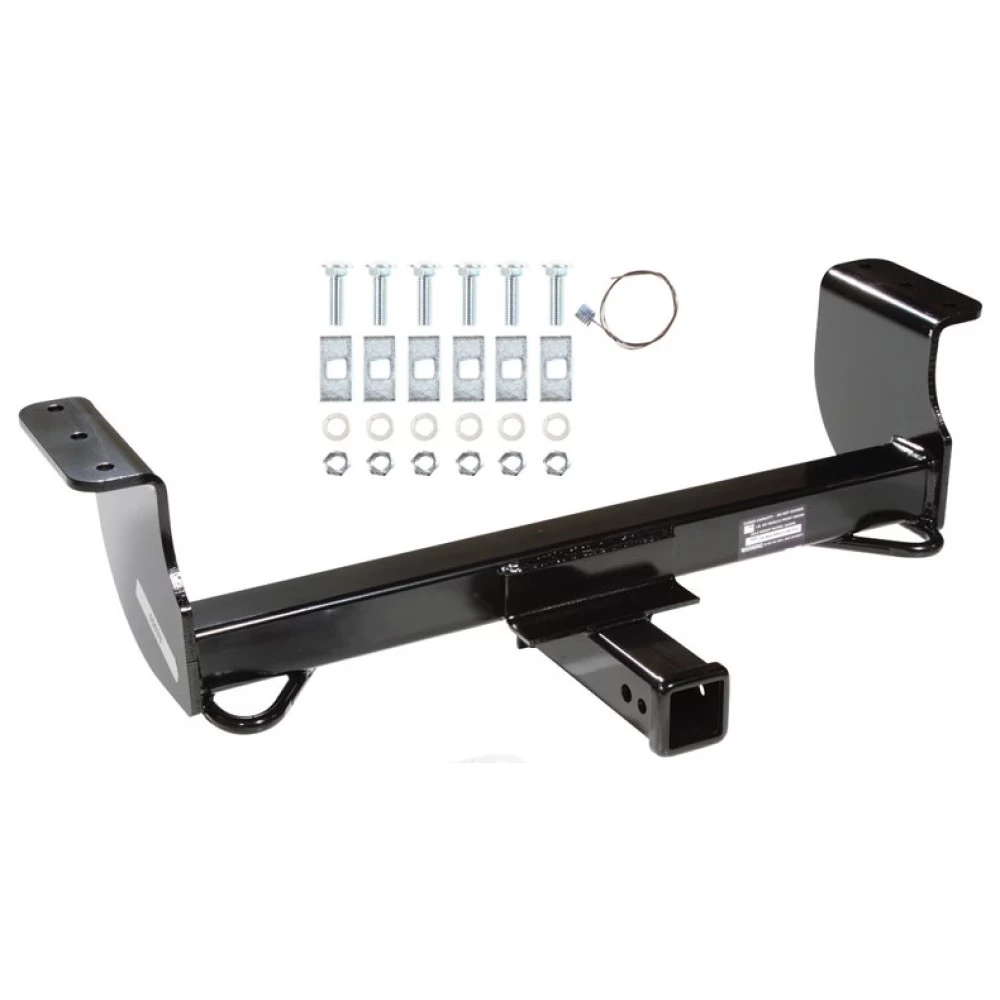

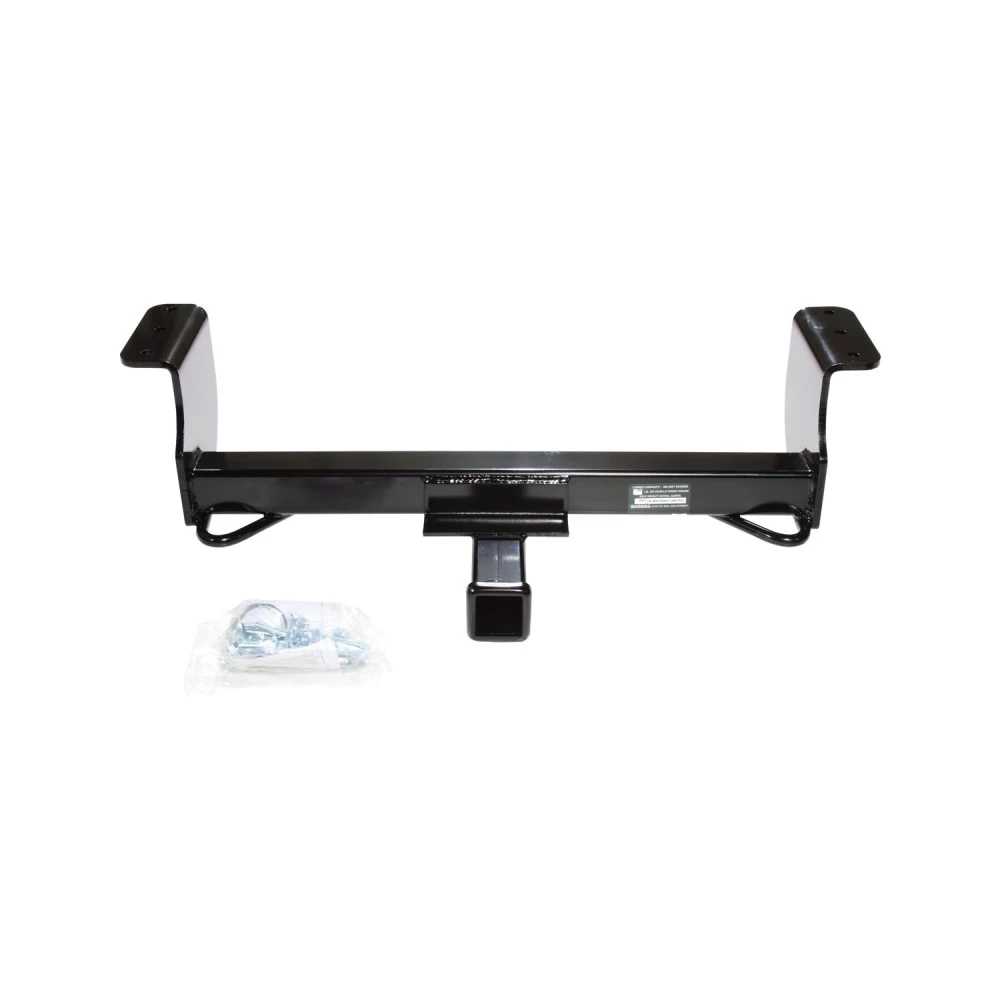

Front Mount Trailer Tow Hitch For 02‑05 Dodge Ram 1500
Model: 650332002 - 2005 Dodge, Ram 1500, All Styles
Trailer Hitch Specs:
| Part Number | 65033 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 2002 2003 2004 2005
$282 87 $441.69 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$441.69 $282 87
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 65033
- UPC: 742512650334
- Includes: Front Mount Hitch Receiver
Compatibility Chart
Description
2002 - 2005 Dodge, Ram 1500, All Styles
Trailer Hitch Specs:
| Part Number | 65033 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 2002 2003 2004 2005
Get Expert Help
Front Mount Trailer Tow Hitch For 02-05 Dodge Ram 1500 Install Notes
Installation Instructions for Dodge Ram 1500 (Front Mounted Receiver)
Part Numbers:
- 65033
Tools Required:
- 3/4" Wrench
- Torque Wrench
Step-by-Step Instructions:
-
Install Carriage Bolts and Spacers:
- Feed the 1/2"-13 x 1-3/4" carriage bolts and 1” x 2” x 1/4” spacers through the access holes into position using the provided pull wire tools.
-
Position the Receiver:
- Raise the receiver into position against the frame rail.
-
Install Lock Washers and Hex Nuts:
- Secure the receiver using the supplied 1/2” lock washers and 1/2”-13 hex nuts.
- Tighten hardware finger-tight before final adjustments.
-
Torque All Fasteners:
- Torque all 1/2" Grade 5 fasteners to 75 ft-lbs (102 N-m) using a torque wrench.

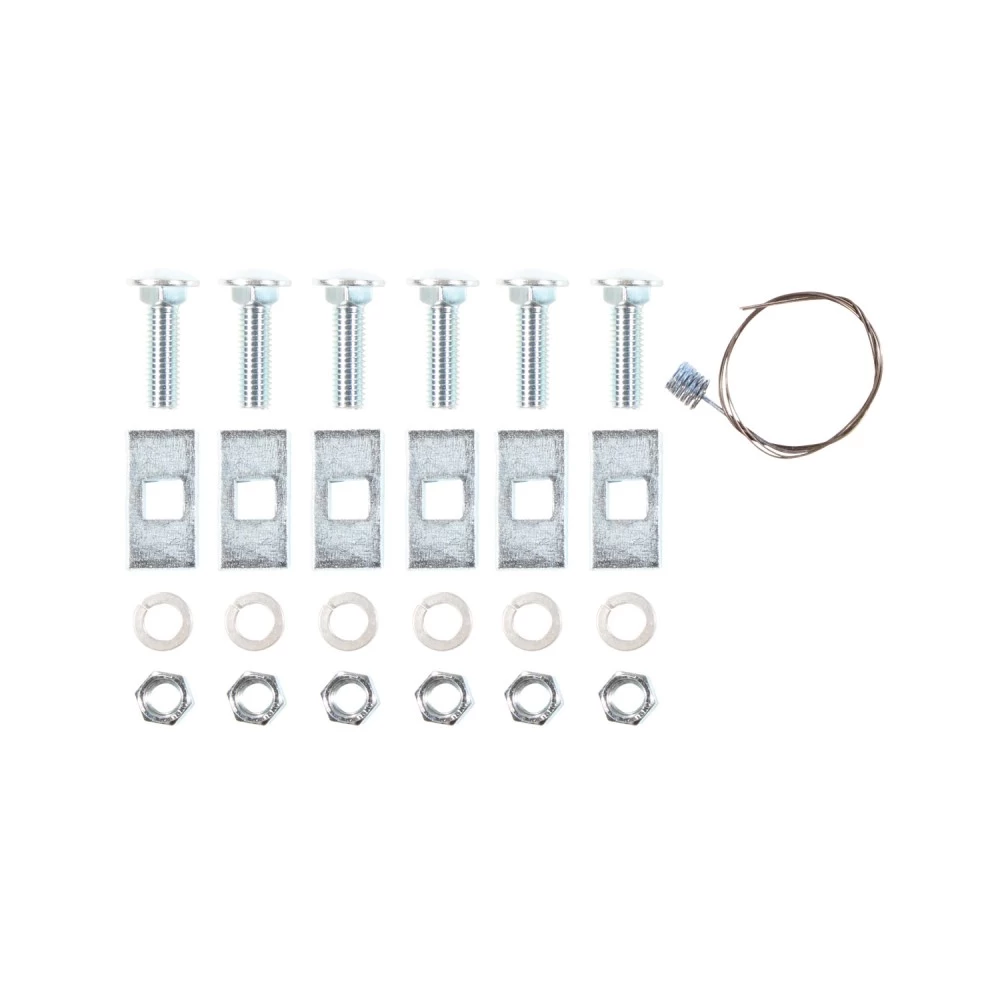

Hardware List:
- (6) 1/2"-13 x 1-3/4" Carriage Bolts
- (6) 1/2" Lock Washers
- (6) 1/2"-13 Hex Nuts
- (6) 1” x 2” x 1/4” Spacers
- (2) 1/2” Pull Wire Tools
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in body panels to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Observe all safety precautions, including wearing eye protection when working beneath the vehicle.
- Do NOT cut access or attachment holes with a torch.
- This product complies with SAE J684 and VESC Regulation V-5.
End of Instructions
Installation Instructions for Dodge Ram 1500 (Front Mounted Receiver)
Part Numbers:
- 65033
Tools Required:
- 3/4" Wrench
- Torque Wrench
Step-by-Step Instructions:
-
Install Carriage Bolts and Spacers:
- Feed the 1/2"-13 x 1-3/4" carriage bolts and 1” x 2” x 1/4” spacers through the access holes into position using the provided pull wire tools.
-
Position the Receiver:
- Raise the receiver into position against the frame rail.
-
Install Lock Washers and Hex Nuts:
- Secure the receiver using the supplied 1/2” lock washers and 1/2”-13 hex nuts.
- Tighten hardware finger-tight before final adjustments.
-
Torque All Fasteners:
- Torque all 1/2" Grade 5 fasteners to 75 ft-lbs (102 N-m) using a torque wrench.
Hardware List:
- (6) 1/2"-13 x 1-3/4" Carriage Bolts
- (6) 1/2" Lock Washers
- (6) 1/2"-13 Hex Nuts
- (6) 1” x 2” x 1/4” Spacers
- (2) 1/2” Pull Wire Tools
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in body panels to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
