Trailer Tow Hitch For 04‑08 Acura TL 1‑1/4" Receiver Class 1 w/ Draw Bar Kit

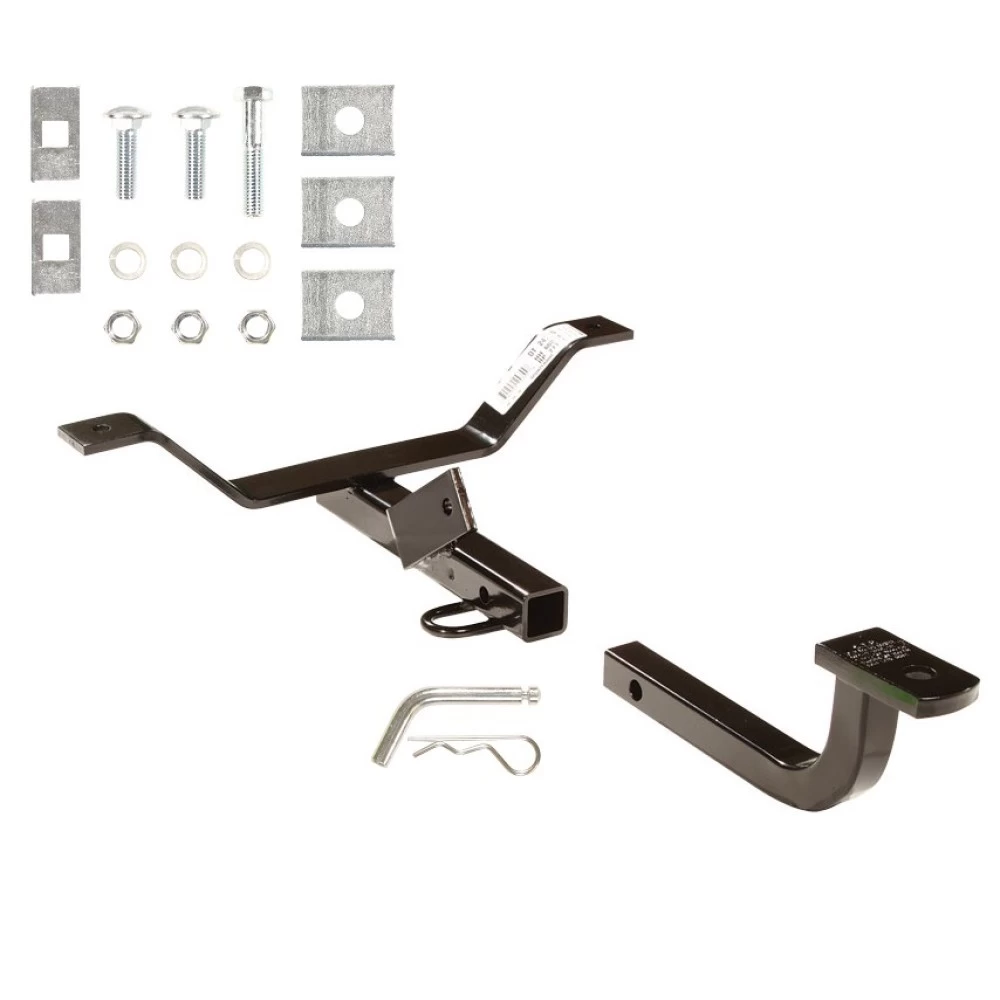

Model: 247550Custom Fit Trailer Hitch

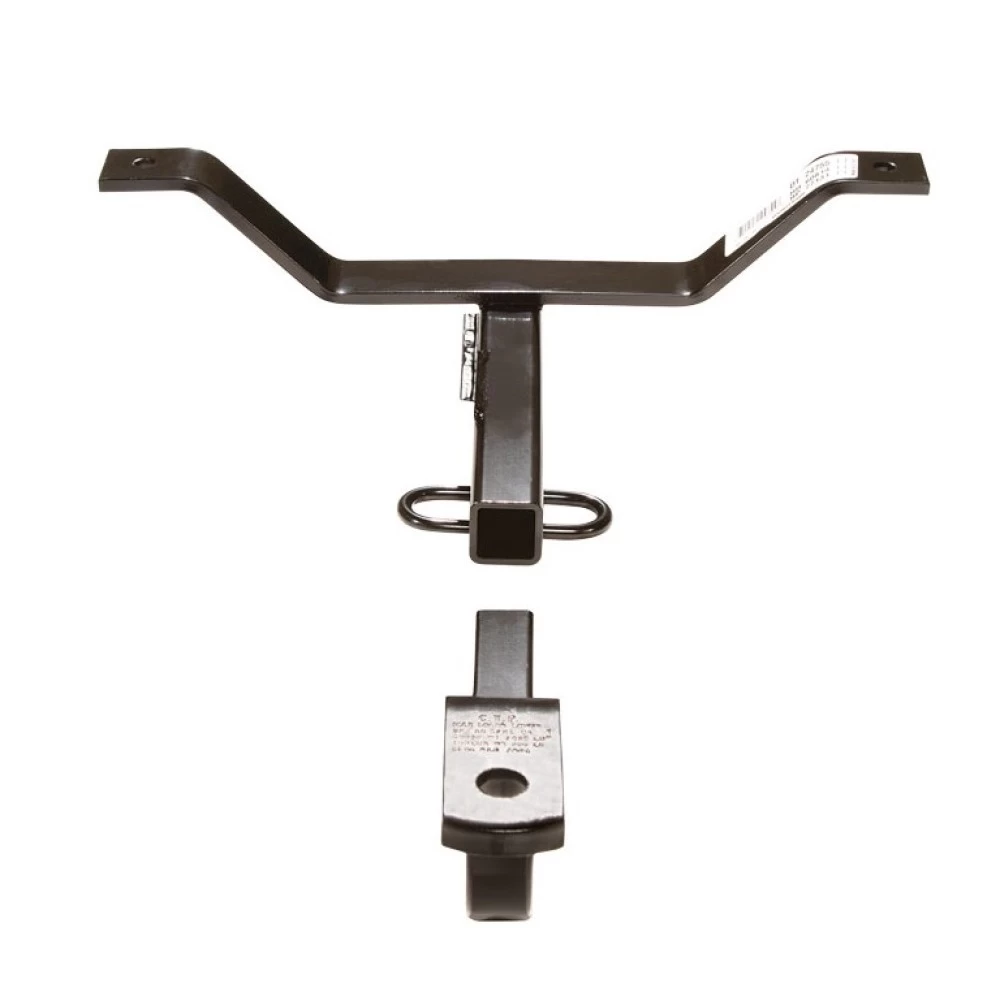

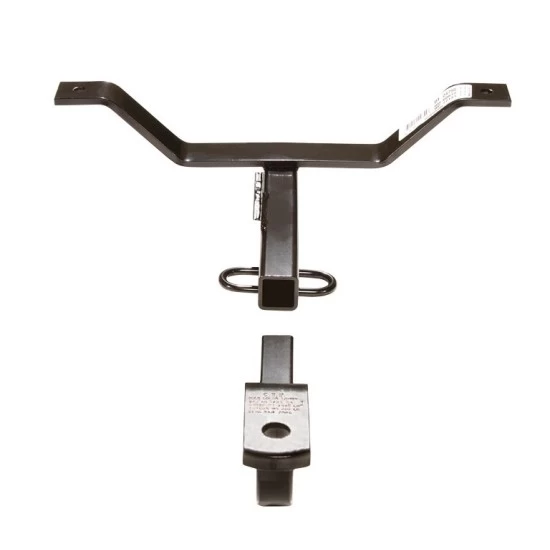

Draw-Bar w/ Pin/Clip

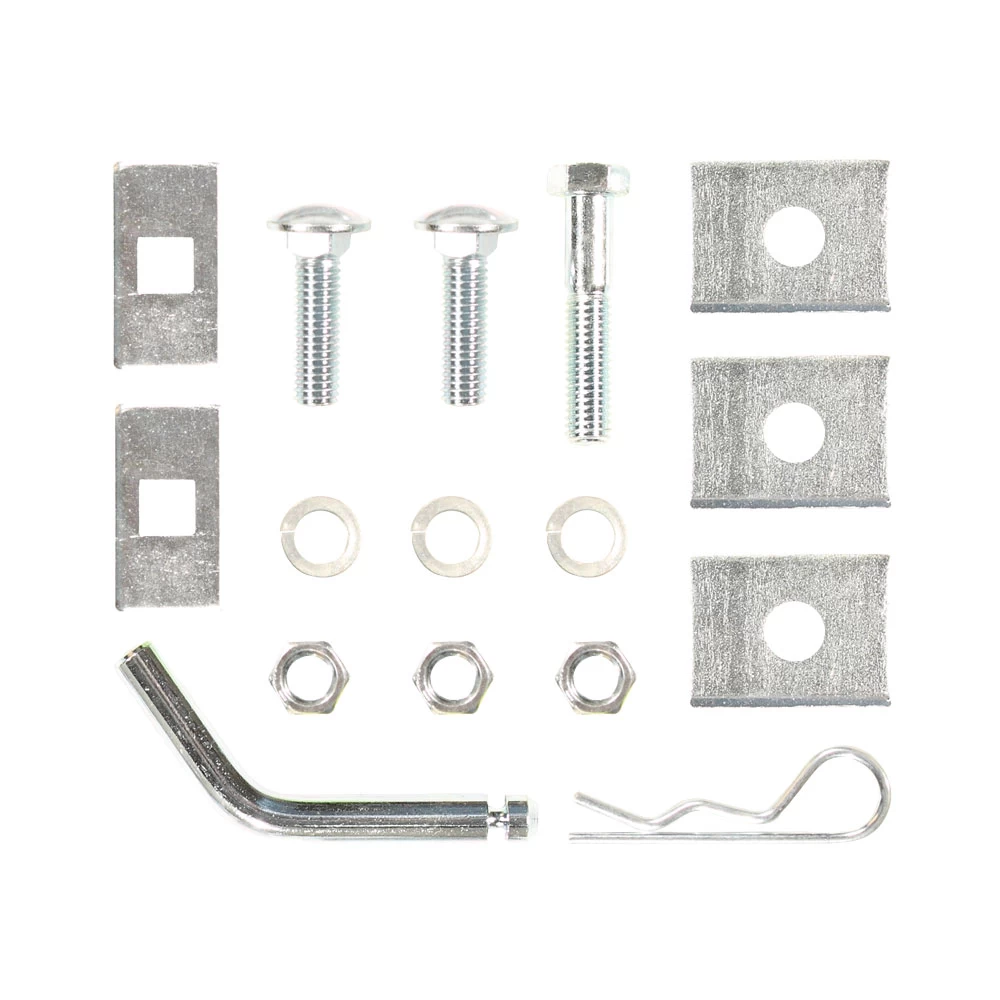

Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2004 - 2008 Acura, TL, All Styles
Trailer Hitch Specs:
| Part Number | 247550 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 2004 2005 2006 2007 2008
$168 88 $301.34 44% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$301.34 $168 88
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $42.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 247550
- UPC: 016118136661
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2004 - 2008 Acura, TL, All Styles
Trailer Hitch Specs:
| Part Number | 247550 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 2004 2005 2006 2007 2008
Get Expert Help
Trailer Tow Hitch For 04-08 Acura TL 1-1/4" Receiver Class 1 w/ Draw Bar Kit Install Notes
Installation Instructions for Acura TL
Part Numbers:
- 77131
- 24755
- 60814
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4", 10mm
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the trunk before beginning installation.
-
Remove Plastic Cover:
- Remove the plastic cover under the trunk by detaching four plastic rivets that secure it to the fascia and two hex flange nuts that secure it to the trunk bottom.
- Reinstall the rivets and return the plastic cover and hex flange nuts to the vehicle owner.
-
Attach Hitch to Tow Hook:
- Attach the hitch to the tow hook as shown in Figure 1. Orient spacers with respect to the tow hook as shown in Figures 2 and 3.
-
Drill Holes:
- Using the hitch as a template, drill two 1/2” holes in the trunk pan.
-
Install Fasteners:
- Install the hitch to the trunk pan using the provided carriage bolts, spacers, lock washers, and nuts as illustrated in Figure 1.
-
Seal Holes:
- Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.
-
Reinstall Spare Tire:
- Place the spare tire back into the trunk.
-
Tighten Fasteners:
- Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (1) Hex Bolt: 1/2”-13 x 2-1/2”
- (3) Hex Nuts: 1/2”
- (3) Spacers: 1/4” x 1-1/2” x 2”
- (2) Carriage Bolts: 1/2”-13 x 1-3/4”
- (3) Lock Washers: 1/2”
- (2) Spacers: 1/4” x 1” x 2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
