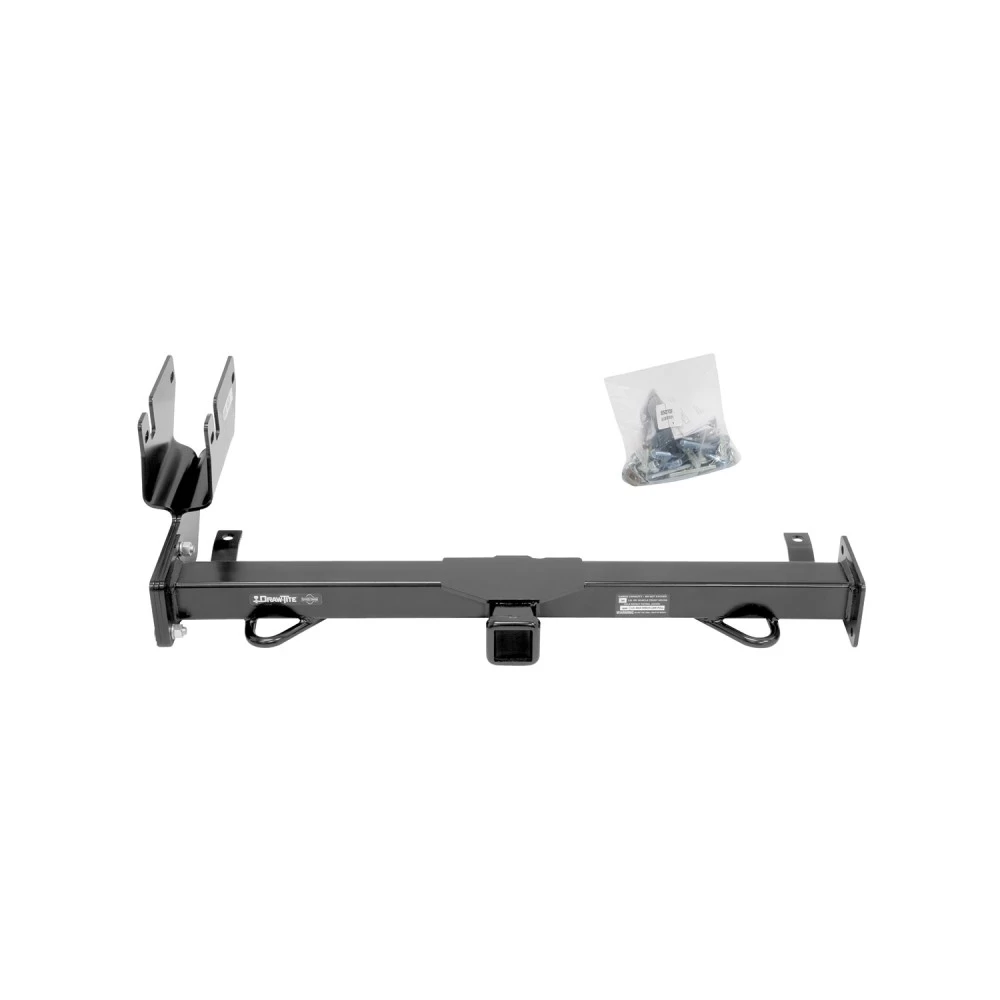

Installation Instructions for Toyota Tacoma (Front Mounted Receiver)

Part Numbers:

• 65070
• CQT65070

Tools Required:

• 10mm Socket
• 12mm Socket
• 17mm Socket
• 3/4” Socket
• Ratchet
• Torque Wrench
• Tin Snips (for trimming the splash guard, if needed)
• Safety Glasses

Step-by-Step Instructions:

2016 and Newer Models:

1. Remove the Lower Air Dam:

   • Remove the (11) fasteners securing the air dam using a 10mm socket.
   • Return the air dam to the vehicle owner.

2. Remove the Tow Loop (If Present):

   • Remove the M12 bolts securing the tow loop using a 17mm socket.

3. Pull Back Inner Splash Guard:

   • Temporarily remove the fasteners holding the splash guard to the bumper fascia to allow access for bolting the hitch side brackets in place.

4. Trim the Splash Guard (If Needed):

   • Trim the lower portion of the splash guard to provide clearance for the hitch side brackets. Refer to Figure 4 for guidance.

All Models:

1. Remove End Caps and Skid Shield:

   • Remove (2) M12 bolts securing the front bumper beam end caps and return them to the customer.
   • For easier access, remove the skid shield (if present) by removing the (4) M8 bolts.

2. Insert Bolts and Spacers into the Frame:

   • Insert the 4” bolts (Item 5) with the spacers (Item 4) through the existing holes inside the vehicle frame.

3. Install Carriage Bolts in Bumper Beam:

   • Place the 1.50” carriage bolts with spacers (Item 2) into the existing holes in the bumper beam where the end caps were removed.

4. Attach Side Brackets:

   • Hang the hitch side brackets onto the 4” bolts installed in Step 2.
   • Place a 1/2” conical washer (teeth side toward hitch) and a 1/2” hex nut onto each bolt. Tighten finger-tight for now.

5. Install Center Section of Hitch:

   • Raise the center section of the hitch into position between the side brackets.
   • Loosely attach the center section using the 1.25” carriage bolts, lock washers, and hex nuts as shown.

6. Secure the Straps to the Bumper Beam:

   • Attach the center section straps to the 1.50” carriage bolts installed in Step 3.

7. Tighten All Fasteners in Sequence:

   • Tighten the center section to the side brackets first.
   • Tighten the straps to the bumper beam next.
   • Finally, tighten the side brackets to the vehicle frame.
   • Torque all 1/2” fasteners to 75 lb-ft (102 N-m).

8. Reinstall the Skid Shield:

   • Reattach the skid shield that was removed in Step 1.

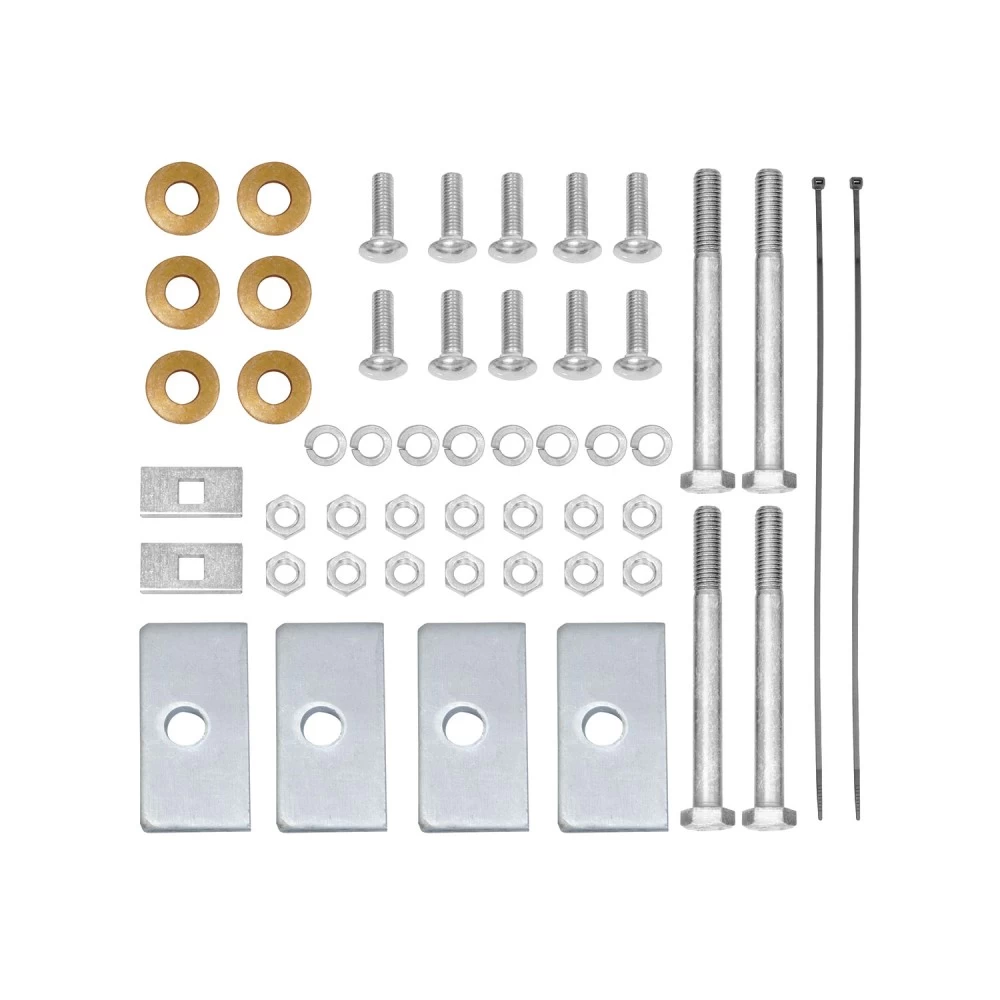

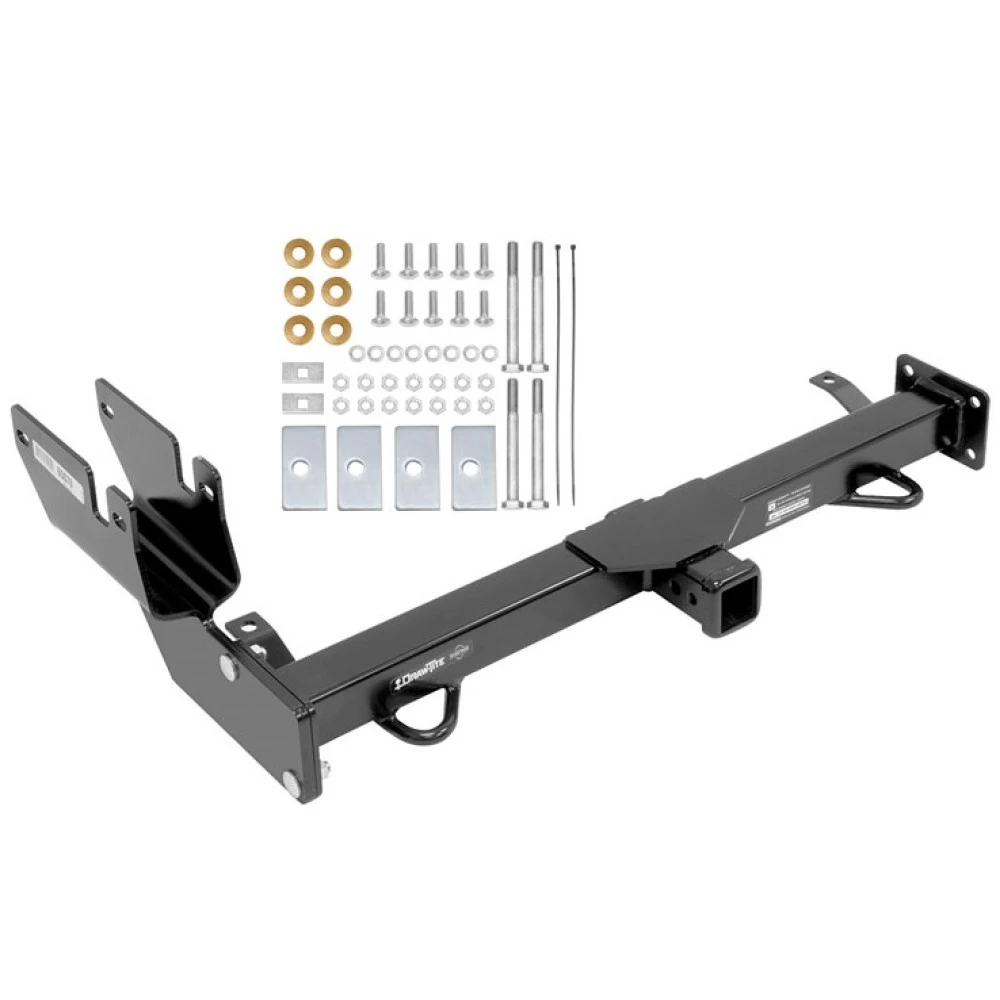

Hardware List:

• (2) 1/2”-13 x 1.50” Carriage Bolts (GR5)
• (2) Spacers (.250 x 1.0 x 2.0)
• (6) 1/2” Conical Washers
• (4) Spacers (.250 x 1.50 x 3.00)
• (4) 1/2”-13 x 4.00” Bolts (GR5)
• (8) 1/2”-13 x 1.25” Carriage Bolts (GR5)
• (8) 1/2” Lock Washers
• (14) 1/2”-13 Hex Nuts

Safety Notes:

• Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
• If the hitch is removed, plug all holes in the frame to prevent water and exhaust fumes from entering the vehicle.
• Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
• Maximum Cargo Capacity: 500 lbs.
• Maximum Winch Line Pull: 9,000 lbs.

Manufacturer Notes:

• Always wear eye protection when working under the vehicle.
• Do NOT use a torch to cut access or mounting holes.
• This product complies with SAE J684 and VESC Regulation V-5 safety standards.

End of Instructions

Installation Instructions for Front Mounted Receiver

Part Numbers:

• 65070
• CQT65070

Tools Required:

• 10mm Socket
• 12mm Socket
• 17mm Socket
• 3/4” Socket
• Ratchet
• Torque Wrench
• Tin Snips (for trimming the splash guard, if needed)
• Safety Glasses

Step-by-Step Instructions:

2016 and Newer Models:

1. Remove the Lower Air Dam:

   • Remove the (11) fasteners securing the air dam using a 10mm socket.
   • Return the air dam to the vehicle owner.

2. Remove the Tow Loop (If Present):

   • Remove the M12 bolts securing the tow loop using a 17mm socket.

3. Pull Back Inner Splash Guard:

   • Temporarily remove the fasteners holding the splash guard to the bumper fascia to allow access for bolting the hitch side brackets in place.

4. Trim the Splash Guard (If Needed):

   • Trim the lower portion of the splash guard to provide clearance for the hitch side brackets. Refer to Figure 4 for guidance.

All Models:

1. Remove End Caps and Skid Shield:

   • Remove (2) M12 bolts securing the front bumper beam end caps and return them to the customer.
   • For easier access, remove the skid shield (if present) by removing the (4) M8 bolts.

2. Insert Bolts and Spacers into the Frame:

   • Insert the 4” bolts (Item 5) with the spacers (Item 4) through the existing holes inside the vehicle frame.

3. Install Carriage Bolts in Bumper Beam:

   • Place the 1.50” carriage bolts with spacers (Item 2) into the existing holes in the bumper beam where the end caps were removed.

4. Attach Side Brackets:

   • Hang the hitch side brackets onto the 4” bolts installed in Step 2.
   • Place a 1/2” conical washer (teeth side toward hitch) and a 1/2” hex nut onto each bolt. Tighten finger-tight for now.

5. Install Center Section of Hitch:

   • Raise the center section of the hitch into position between the side brackets.
   • Loosely attach the center section using the 1.25” carriage bolts, lock washers, and hex nuts as shown.

6. Secure the Straps to the Bumper Beam:

   • Attach the center section straps to the 1.50” carriage bolts installed in Step 3.

7. Tighten All Fasteners in Sequence:

   • Tighten the center section to the side brackets first.
   • Tighten the straps to the bumper beam next.
   • Finally, tighten the side brackets to the vehicle frame.
   • Torque all 1/2” fasteners to 75 lb-ft (102 N-m).

8. Reinstall the Skid Shield:

   • Reattach the skid shield that was removed in Step 1.

Hardware List:

• (2) 1/2”-13 x 1.50” Carriage Bolts (GR5)
• (2) Spacers (.250 x 1.0 x 2.0)
• (6) 1/2” Conical Washers
• (4) Spacers (.250 x 1.50 x 3.00)
• (4) 1/2”-13 x 4.00” Bolts (GR5)
• (8) 1/2”-13 x 1.25” Carriage Bolts (GR5)
• (8) 1/2” Lock Washers
• (14) 1/2”-13 Hex Nuts

Safety Notes:

• Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
• If the hitch is removed, plug all holes in the frame to prevent water and exhaust fumes from entering the vehicle.
• Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
• Maximum Cargo Capacity: 500 lbs.
• Maximum Winch Line Pull: 9,000 lbs.

Manufacturer Notes:

• Always wear eye protection when working under the vehicle.
• Do NOT use a torch to cut access or mounting holes.
• This product complies with SAE J684 and VESC Regulation V-5 safety standards.
