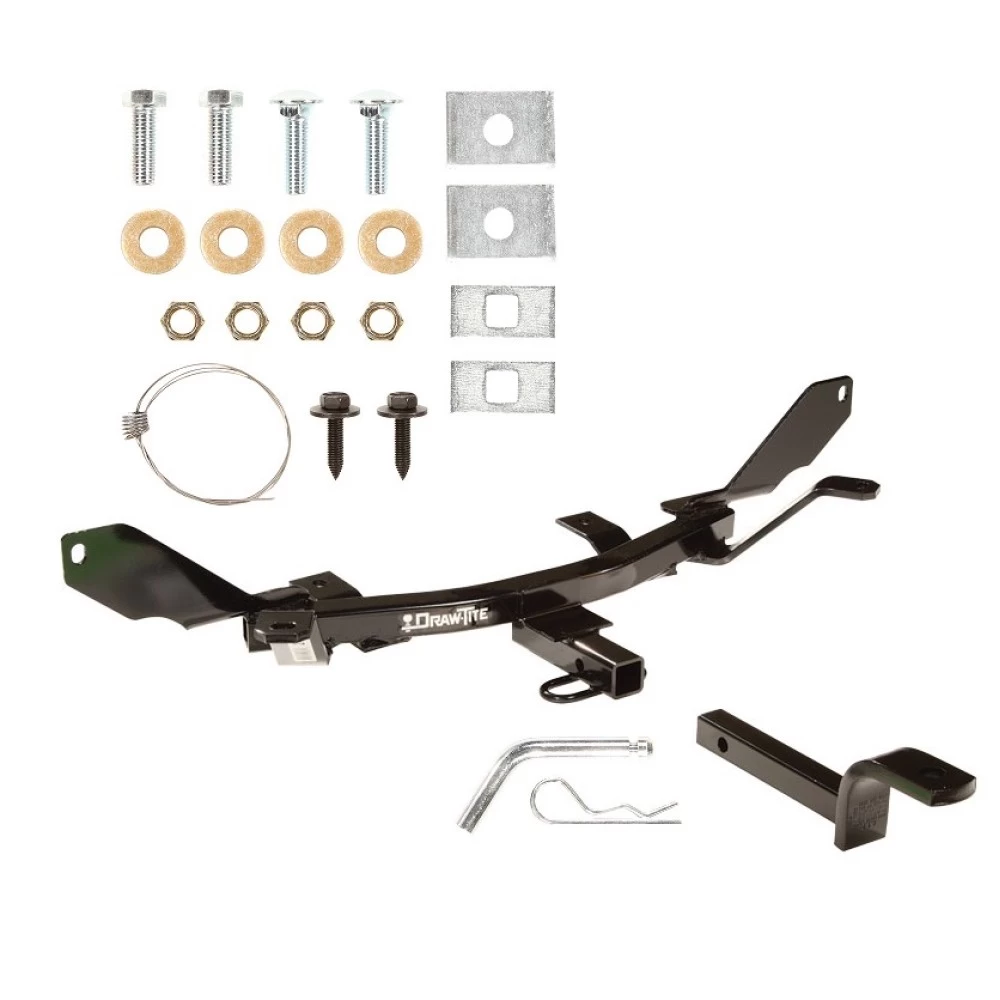

Trailer Tow Hitch For 03‑09 Mazda 6 Fusion MKZ Zephyr Receiver w/ Draw Bar Kit
Model: 247750Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2003 - 2008 Mazda, 6, 4 Dr. Sedan
2004 - 2008 Mazda, 6, 5 Dr. Hatchback
2006 - 2009 Ford, Fusion, All Styles
2006 Lincoln, Zephyr, All Styles
2006 - 2009 Mercury, Milan, All Styles
2007 - 2009 Lincoln, MKZ, All Styles
Trailer Hitch Specs:
| Part Number | 247750 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 2003 2004 2005 2006 2007 2008
$240 58 $413.31 42% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$413.31 $240 58
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 247750
- UPC: 016118136791
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2003 - 2008 Mazda, 6, 4 Dr. Sedan
2004 - 2008 Mazda, 6, 5 Dr. Hatchback
2006 - 2009 Ford, Fusion, All Styles
2006 Lincoln, Zephyr, All Styles
2006 - 2009 Mercury, Milan, All Styles
2007 - 2009 Lincoln, MKZ, All Styles
Trailer Hitch Specs:
| Part Number | 247750 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 2003 2004 2005 2006 2007 2008
Get Expert Help
Trailer Tow Hitch For 03-09 Mazda 6 Fusion MKZ Zephyr Receiver w/ Draw Bar Kit Install Notes
Installation Instructions for Mazda 6 Sedan & 5-Door, Ford Fusion, Mercury Milan, Lincoln Zephyr, and Lincoln MKZ
Part Numbers:
- 77152
- 24775
- 60846
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull Wire (Provided)
- Wrenches: 12mm, 13mm, 3/4"
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Muffler:
- Remove three (3) rubber isolator hangers: two near the muffler end and one forward of the rear axle.
- Remove two (2) rubber plugs from the trunk pan if present.
-
Remove Existing Fasteners:
- Remove the 8mm bolts located inside the frame rail on the bulkhead on both sides of the vehicle. Discard these bolts.
-
Position Hitch:
- Slide the hitch above the tailpipes, ensuring the inner bumper straps slide under the fascia.
- Install the M8 bolts loosely through the upright brackets.
-
Prepare Bumper Slots:
- If the vehicle bumper has slots aligning with the holes in the inner bumper strap, proceed to Step 5.
- Otherwise, use the hitch’s inner bumper straps as a template to drill two (2) 1/2” holes in the bumper.
-
Install Carriage Bolt and Block:
- Fishwire the carriage bolt and block through the inner bumper structure and carefully pull the fastener through the slot or drilled hole in the bumper and hitch.
- Install the conical toothed washer and nut.
Torque Specifications:
- Tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Tighten all M8 fasteners to 25 Lb.-Ft. (34 N*M).
-
Install Hex Bolt and Block:
- Insert the hex bolt and block through the trunk pan holes if present. If not, remove the spare tire and use the hitch as a template to drill two (2) 1/2” holes in the trunk pan. Install the fasteners as shown.
Torque Specifications:
- Tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Seal Holes:
- Seal all trunk pan holes to prevent water or exhaust fumes from entering.
-
Reinstall Muffler:
- Attach the muffler to the three (3) rubber isolator hangers.
-
Reinstall Spare Tire:
- Place the spare tire back in the trunk.
Hardware List:
- (2) Hex Bolts: 1/2”-13 x 1-1/2” GR5
- (4) Conical Toothed Washers: 1/2”
- (2) Carriage Bolts: 1/2”-13 GR5
- (2) Blocks: 1/4” x 1” x 2”
- (2) M8 x 1.25 x 35mm CL9.8 Bolts
- (2) Blocks: 3/16” x 1-1/2” x 2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3592 (or 3594 for Mazda 6 only)
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Installation Instructions for Various Vehicles
Part Numbers:
- 77152
- 24775
- 60846
Wiring Access Location:
- PC3, PC4
Tools Required:
- Pull Wire (Provided)
- Wrenches: 12mm, 13mm, 3/4"
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Muffler:
- Remove three (3) rubber isolator hangers: two near the muffler end and one forward of the rear axle.
- Remove two (2) rubber plugs from the trunk pan if present.
-
Remove Existing Fasteners:
- Remove the 8mm bolts located inside the frame rail on the bulkhead on both sides of the vehicle. Discard these bolts.
-
Position Hitch:
- Slide the hitch above the tailpipes, ensuring the inner bumper straps slide under the fascia.
- Install the M8 bolts loosely through the upright brackets.
-
Prepare Bumper Slots:
- If the vehicle bumper has slots aligning with the holes in the inner bumper strap, proceed to Step 5.
- Otherwise, use the hitch’s inner bumper straps as a template to drill two (2) 1/2” holes in the bumper.
-
Install Carriage Bolt and Block:
- Fishwire the carriage bolt and block through the inner bumper structure and carefully pull the fastener through the slot or drilled hole in the bumper and hitch.
- Install the conical toothed washer and nut.
Torque Specifications:
- Tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
- Tighten all M8 fasteners to 25 Lb.-Ft. (34 N*M).
-
Install Hex Bolt and Block:
- Insert the hex bolt and block through the trunk pan holes if present. If not, remove the spare tire and use the hitch as a template to drill two (2) 1/2” holes in the trunk pan. Install the fasteners as shown.
Torque Specifications:
- Tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Seal Holes:
- Seal all trunk pan holes to prevent water or exhaust fumes from entering.
-
Reinstall Muffler:
- Attach the muffler to the three (3) rubber isolator hangers.
-
Reinstall Spare Tire:
- Place the spare tire back in the trunk.
Hardware List:
- (2) Hex Bolts: 1/2”-13 x 1-1/2” GR5
- (4) Conical Toothed Washers: 1/2”
- (2) Carriage Bolts: 1/2”-13 GR5
- (2) Blocks: 1/4” x 1” x 2”
- (2) M8 x 1.25 x 35mm CL9.8 Bolts
- (2) Blocks: 3/16” x 1-1/2” x 2”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3592 (or 3594 for specific vehicles)
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
