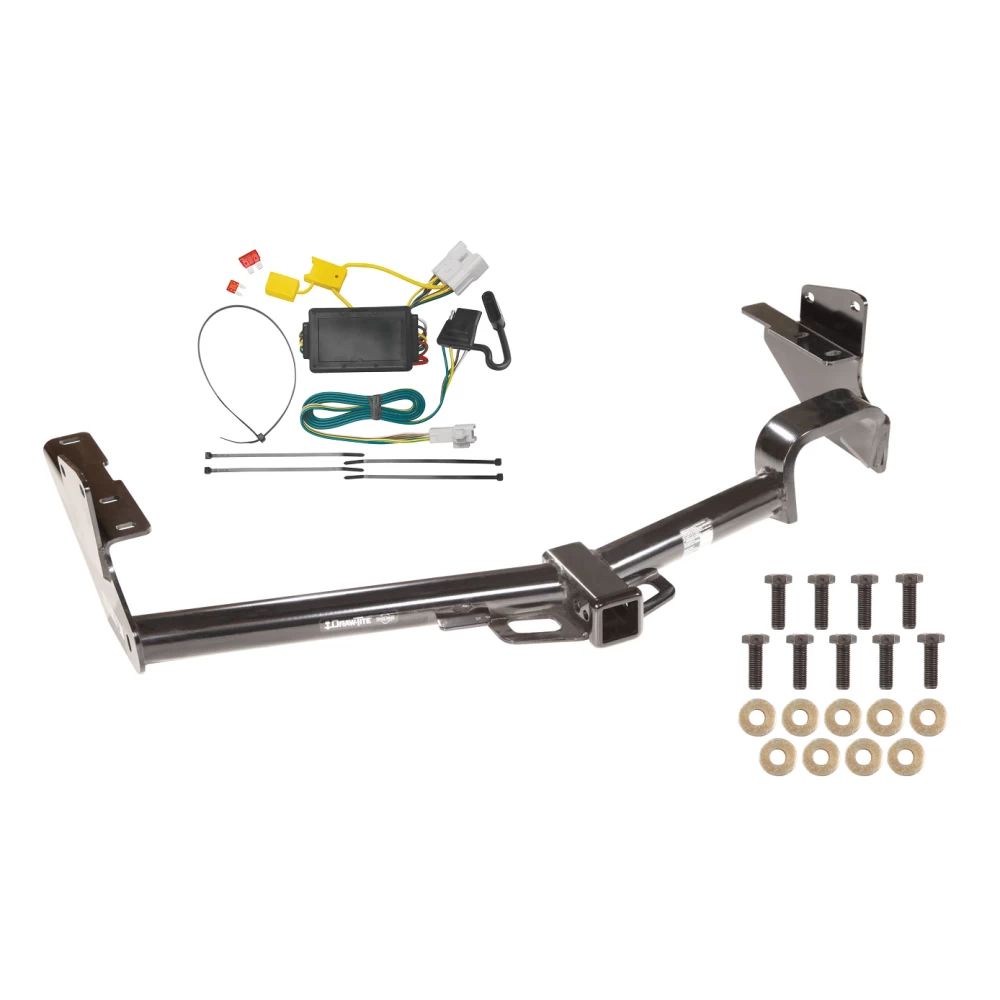

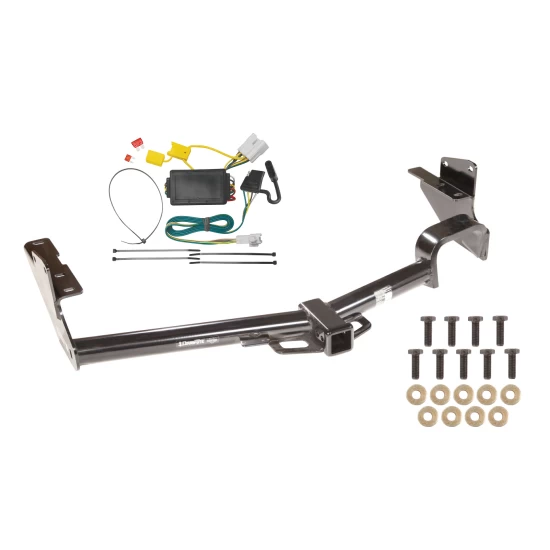

Trailer Tow Hitch For 08‑13 Toyota Highlander w/ Wiring Harness Kit
Model: 75726 118449Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2008 - 2013 Toyota Highlander All Styles
Trailer Hitch Specs:
| Part Number | 75726 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 750/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

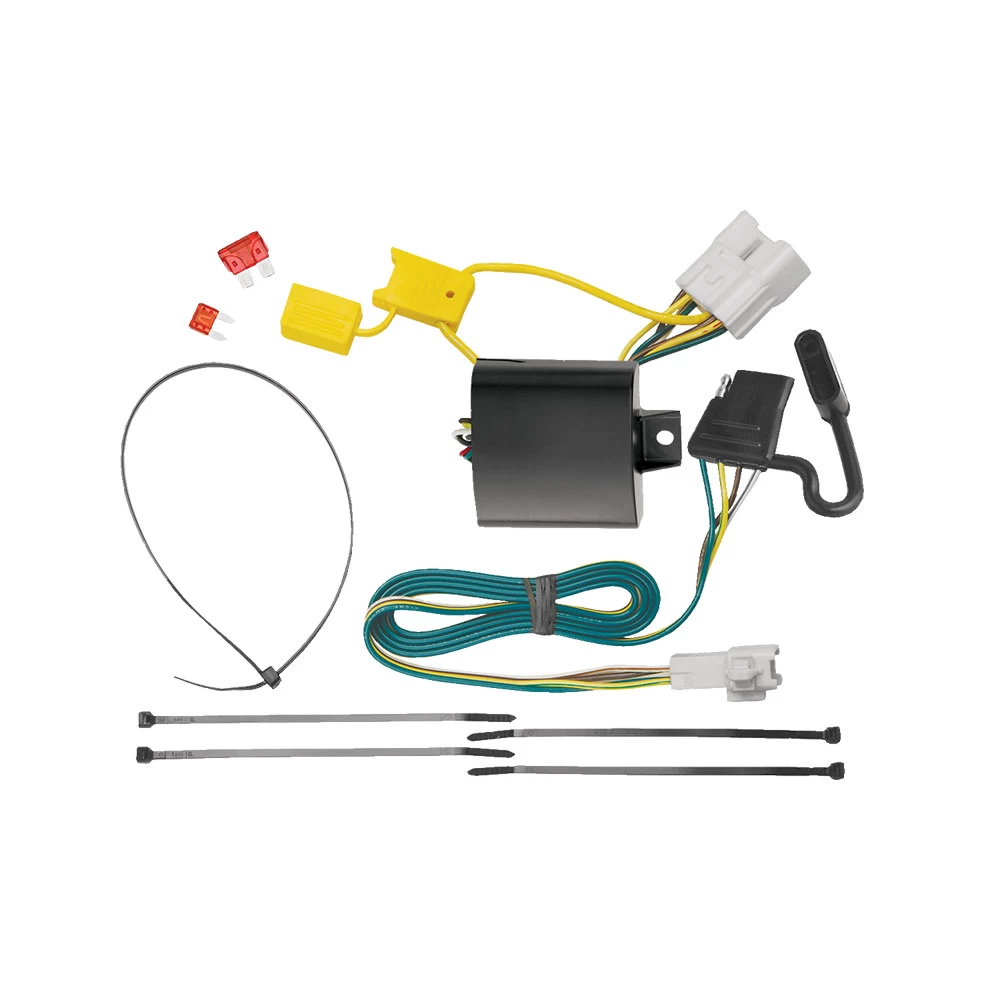

Wiring Kit Specs:
| Part Number | 118449 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 08 09 10 11 12 13 2008 2009 2010 2011 2012 2013
$283 87 $430.34 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$430.34 $283 87
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75726 118449
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2008 - 2013 Toyota Highlander All Styles
Trailer Hitch Specs:
| Part Number | 75726 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 750/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118449 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 08 09 10 11 12 13 2008 2009 2010 2011 2012 2013
Get Expert Help
Trailer Tow Hitch For 08-13 Toyota Highlander w/ Wiring Harness Kit Install Notes
Installation Instructions for Toyota Highlander
Part Numbers:
- 75726
- 87615
- 44670
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 10mm, 12mm, 14mm, 17mm
- Screwdrivers: Small flathead, Phillips head
- 6” socket extension
Step-by-Step Instructions:
- If present, remove plastic appearance panels covering the driver’s and/or passenger’s side frame rails. Remove the plastic rivets fastening the fascia tabs to the appearance panel. Use a small screwdriver to remove the center of the rivet. The passenger’s side panel can be reinstalled; return the driver’s side panel and fasteners to the vehicle owner.
- Remove tow hooks from each frame rail and return hooks and fasteners to the vehicle owner.
- Remove plastic and rubber plugs from the bottom and outside of the frame rails and return them to the owner.
- Raise the hitch over the exhaust tip as shown. Be cautious not to pinch the hoses on the outside of the passenger side frame rail or scratch the fascia. Lower the exhaust if additional clearance is needed. Remove excess caulking from rails if necessary.
- Align the hitch with the existing weldnuts in the frame and install fasteners to the bottom of the frame rails without fully tightening. Note: The hitch will contact a fascia tab on the passenger side at the exhaust bridge.
- Install the remaining fasteners into the weldnuts on the outside of the frame rail. Be careful not to pinch the hoses.
- Torque all fasteners to the specified torque values.
- Reinstall the vehicle exhaust if removed.
- Reinstall the passenger-side appearance panel.
Hardware List:
- Qty (9): Hex Bolt – M10 x 1.25 x 30mm CL10.9
- Qty (9): Conical Toothed Washer – 3/8”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing / Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 750 lbs (341 kg)
Manufacturer Notes:
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
- Heating and cooling hoses are located in the passenger side frame rail area; handle with care to avoid pinching.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75726
- 87615
- 44670
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 10mm, 12mm, 14mm, 17mm
- Screwdrivers: Small flathead, Phillips head
- 6” socket extension
Step-by-Step Instructions:
- If present, remove plastic appearance panels covering the driver’s and/or passenger’s side frame rails. Remove the plastic rivets fastening the fascia tabs to the appearance panel. Use a small screwdriver to remove the center of the rivet. The passenger’s side panel can be reinstalled; return the driver’s side panel and fasteners to the vehicle owner.
- Remove tow hooks from each frame rail and return hooks and fasteners to the vehicle owner.
- Remove plastic and rubber plugs from the bottom and outside of the frame rails and return them to the owner.
- Raise the hitch over the exhaust tip as shown. Be cautious not to pinch the hoses on the outside of the passenger side frame rail or scratch the fascia. Lower the exhaust if additional clearance is needed. Remove excess caulking from rails if necessary.
- Align the hitch with the existing weldnuts in the frame and install fasteners to the bottom of the frame rails without fully tightening. Note: The hitch will contact a fascia tab on the passenger side at the exhaust bridge.
- Install the remaining fasteners into the weldnuts on the outside of the frame rail. Be careful not to pinch the hoses.
- Torque all fasteners to the specified torque values.
- Reinstall the vehicle exhaust if removed.
- Reinstall the passenger-side appearance panel.
Hardware List:
- Qty (9): Hex Bolt – M10 x 1.25 x 30mm CL10.9
- Qty (9): Conical Toothed Washer – 3/8”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing / Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
- Max Tongue Weight: 750 lbs (341 kg)
Manufacturer Notes:
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N·m) using a torque wrench.
- Heating and cooling hoses are located in the passenger side frame rail area; handle with care to avoid pinching.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Toyota Highlander
Part Numbers:
- 118449
Tools Required:
- Test Probe
- Trim Panel Remover
Step-by-Step Instructions:
2008-2013 Toyota Highlander:
-
Locate the 10-Pin Tow Plug:
- Under the dashboard on the driver’s side, locate the 10-pin tow plug between the emergency brake pedal and the brake pedal.
- Ensure the mating surfaces of the vehicle harness connectors match the 10-pin tow plug adapter ends.
-
Connect the 10-Pin Tow Plug Adapter:
- Insert the 10-pin tow plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure the connectors are fully inserted.
-
Mount the Black Box:
- Route the converter over to the driver’s side kick panel area.
- Locate the opening between the vehicle body and the emergency brake pedal bracket and mount the black box in this area using the provided double-sided tape.
- Secure the remainder of the wiring harness using the provided cable ties to prevent damage or rattling.
-
Access the Rear Cargo Area:
- Open the rear tailgate. On the driver’s side, remove access panels, the threshold, trunk floor panels, and trays.
- Set aside all items removed carefully.
-
Locate the Factory 4-Pin Tow Harness Connector:
- On the driver’s side, locate the 4-pin tow harness connector.
- Ensure the mating surfaces of the connectors match the tow plug adapter ends. All connector surfaces should be clean and free of dirt.
-
Connect the 4-Pin Tow Plug Adapter:
- Insert the 4-pin tow plug adapter into the mating connector and lock it into place.
2014-Current Toyota Highlander:
-
Access the Rear Cargo Area:
- Open the rear tailgate and remove the access panels, threshold, trunk floor panels, and trays.
-
Locate and Connect the 10-Pin Connector:
- Behind the rear interior trim panel on the driver’s side, locate the 10-pin connector.
- Insert the 10-pin tow plug adapter and lock it into place.
-
Locate and Connect the 4-Pin Connector:
- Locate the 4-pin tow connector behind the rear interior trim panel on the driver’s side.
- Insert the 4-pin tow plug adapter and lock it into place.
-
Mount the Black Box:
- Find a flat surface in an out-of-the-way location on the driver’s side.
- Mount the T-Connector black converter box using the provided double-sided tape.
Final Steps for All Models:
-
Reassemble the Cargo Area:
- Reposition the trays, trunk floor panels, access panels, and threshold.
-
Insert the Fuse:
- Open the hood and locate the fuse panel on the driver’s side.
- Insert the provided 10-amp fuse into the towing fuse slot as specified in the owner’s manual.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer to verify functionality.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- All connections must be complete for the T-Connector to function properly.
- Do not exceed the towing manufacturer’s ratings or unit specifications.
- Follow all installation instructions carefully.
Manufacturer Notes:
- Store the 4-flat connector in the trunk or rear cargo area when not in use.
- Refer to the vehicle owner’s manual for additional guidance.
Installation Instructions for T-Connector Adapter for Toyota Highlander
Part Numbers:
- 118449
Tools Required:
- Test Probe
- Trim Panel Remover
Step-by-Step Instructions:
2008-2013 Toyota Highlander:
-
Locate the 10-Pin Tow Plug:
- Under the dashboard on the driver’s side, locate the 10-pin tow plug between the emergency brake pedal and the brake pedal.
- Ensure the mating surfaces of the vehicle harness connectors match the 10-pin tow plug adapter ends.
-
Connect the 10-Pin Tow Plug Adapter:
- Insert the 10-pin tow plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure the connectors are fully inserted.
-
Mount the Black Box:
- Route the converter over to the driver’s side kick panel area.
- Locate the opening between the vehicle body and the emergency brake pedal bracket and mount the black box in this area using the provided double-sided tape.
- Secure the remainder of the wiring harness using the provided cable ties to prevent damage or rattling.
-
Access the Rear Cargo Area:
- Open the rear tailgate. On the driver’s side, remove access panels, the threshold, trunk floor panels, and trays.
- Set aside all items removed carefully.
-
Locate the Factory 4-Pin Tow Harness Connector:
- On the driver’s side, locate the 4-pin tow harness connector.
- Ensure the mating surfaces of the connectors match the tow plug adapter ends. All connector surfaces should be clean and free of dirt.
-
Connect the 4-Pin Tow Plug Adapter:
- Insert the 4-pin tow plug adapter into the mating connector and lock it into place.
2014-Current Toyota Highlander:
-
Access the Rear Cargo Area:
- Open the rear tailgate and remove the access panels, threshold, trunk floor panels, and trays.
-
Locate and Connect the 10-Pin Connector:
- Behind the rear interior trim panel on the driver’s side, locate the 10-pin connector.
- Insert the 10-pin tow plug adapter and lock it into place.
-
Locate and Connect the 4-Pin Connector:
- Locate the 4-pin tow connector behind the rear interior trim panel on the driver’s side.
- Insert the 4-pin tow plug adapter and lock it into place.
-
Mount the Black Box:
- Find a flat surface in an out-of-the-way location on the driver’s side.
- Mount the T-Connector black converter box using the provided double-sided tape.
Final Steps for All Models:
-
Reassemble the Cargo Area:
- Reposition the trays, trunk floor panels, access panels, and threshold.
-
Insert the Fuse:
- Open the hood and locate the fuse panel on the driver’s side.
- Insert the provided 10-amp fuse into the towing fuse slot as specified in the owner’s manual.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer to verify functionality.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- All connections must be complete for the T-Connector to function properly.
- Do not exceed the towing manufacturer’s ratings or unit specifications.
- Follow all installation instructions carefully.
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Store the 4-flat connector in the trunk or rear cargo area when not in use.
- Refer to the vehicle owner’s manual for additional guidance.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
