For 1986-1996 Ford Aerostar 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Prodigy P3 Brake Controller By Tekonsha
Model: 119178 85343 20506 7012A 90195-207961This Bundle Fits The Following Vehicles:

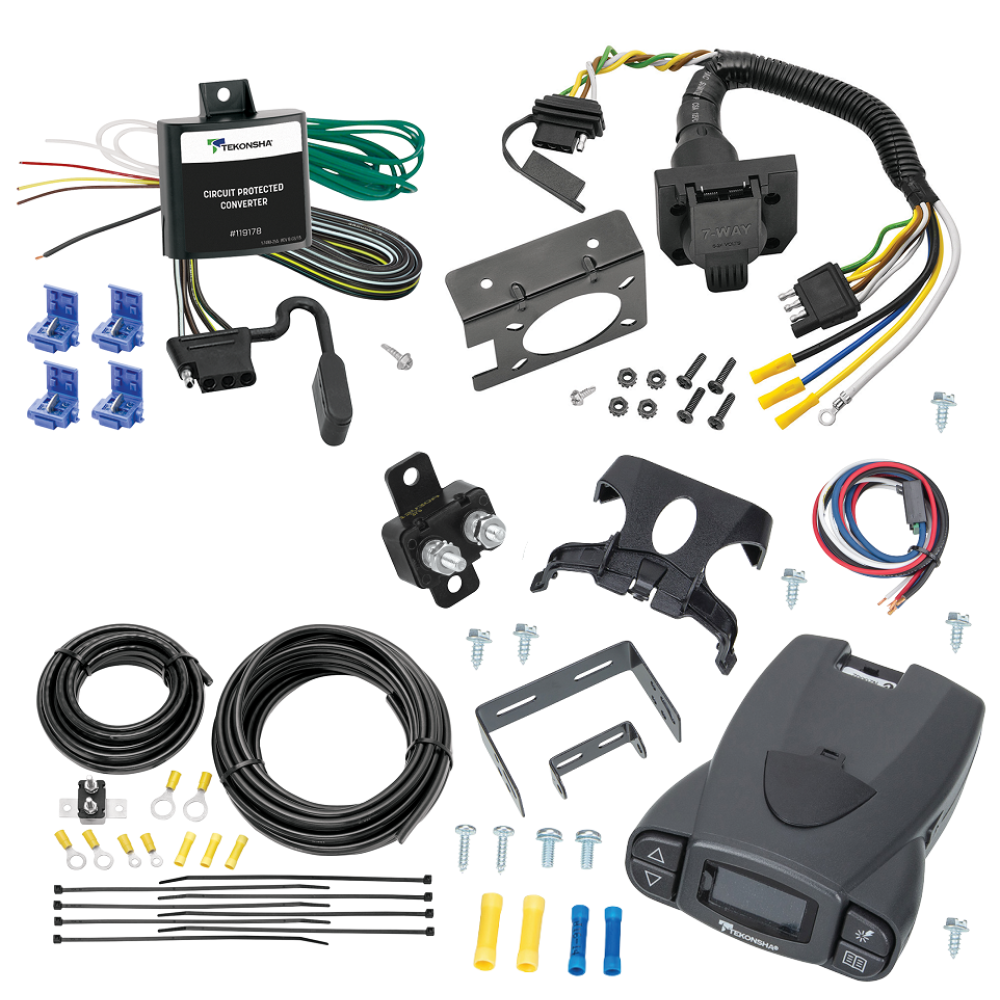

This Bundle Includes the Following Parts:
- 7-Way RV Wiring
- Tekonsha Prodigy P3 Brake Control
List of Fitment Years:
1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
Taillight Converter with Integrated Circuit Protection Manufactured by: Tekonsha
- This unit rated for up to 2.1 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
- Adapts import and domestic vehicles with separate turn and stop lights (3 wire system to standard trailer taillight wiring (2 wire system)
- Will work with either LED/Incandescent bulbs (vehicle & trailer)
- Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
- Designed not to send feedback through the vehicle circuits
- All solid-state components in potted encapsulation
- Will not work with vehicles with low-side switch
- Includes integrated protective cover
Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower
- REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector
- The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector
- Provide versatility in going from 4-way flat to 7-Way round blade
- Sealed connection increases protection against moisture & corrosion
- Low profile design provides factory installed appearance
- Built with heavy duty rugged materials
- Included 4-Flat dust cover and heavy duty spring on 7-Way connector
- Butt connectors pre attached for quicker wiring
- Mounting bracket included
- Mounting hardware included
Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready
Includes all necessary parts required to completely install all brake controls. No other parts are necessary.
Circuit Breaker, 30 Amp Manufactured by: Tekonsha
Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.
Prodigy P3® Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
- Integrated Plug-N-Play port for 2-plug adapters.
- Snap-in mounting clip allows user to remove and store the control when not in use.
- Electric trailer brake control for up to 4 braking axles.
- Limited Lifetime Warranty
