Product Details
- Brand: Curt
- Model: 11128 55372-CH3507

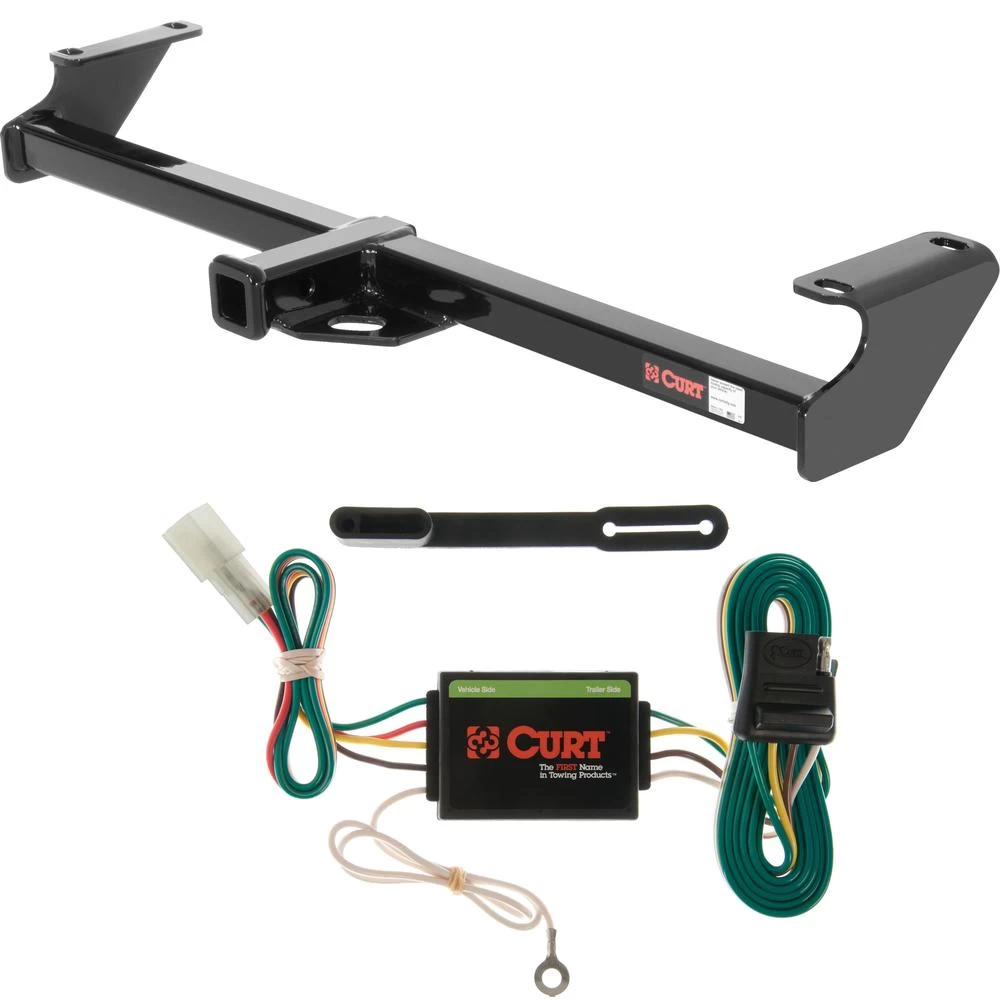

- Includes: Class 1 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
Description
Get Expert Help
For 1989-1995 Suzuki Sidekick Trailer Hitch + Wiring 4 Pin Fits All Models Curt 11128 55372 1-1/4 Tow Receiver Install Notes

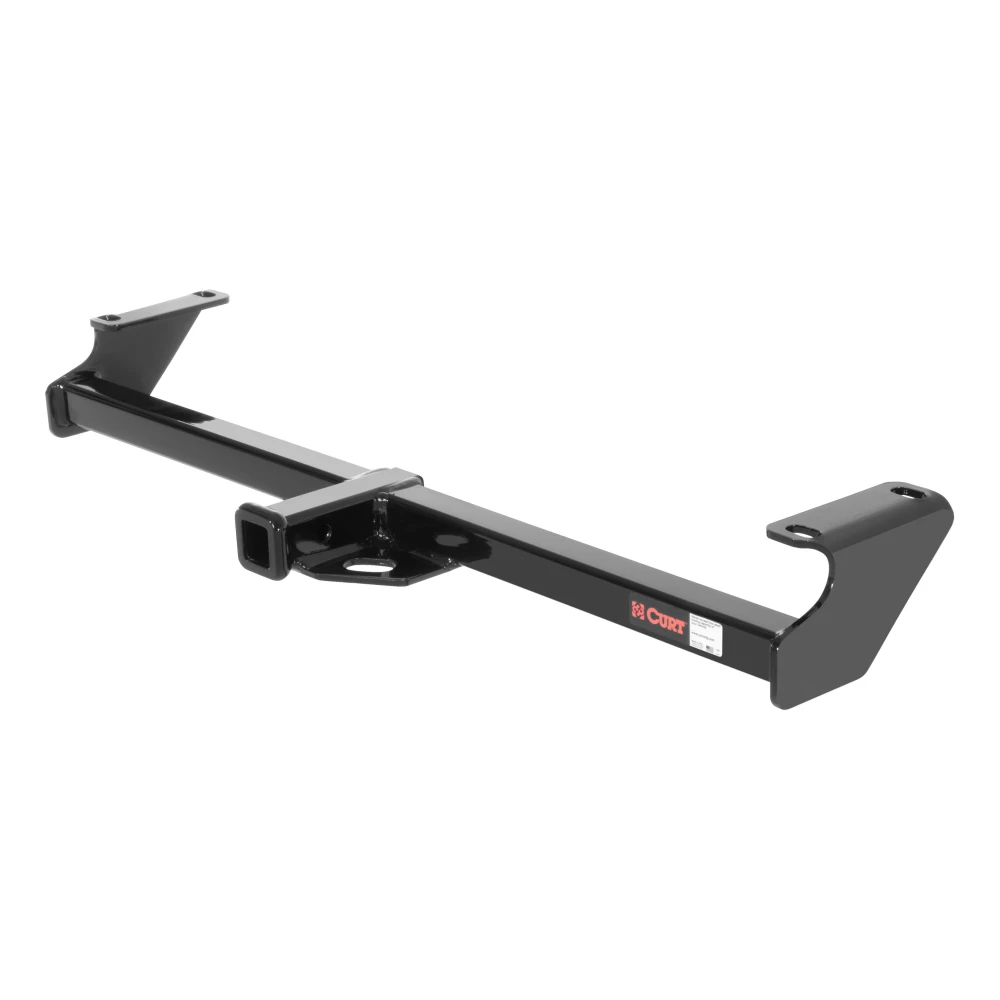

Installation Instructions for 89-98 Chevy & Geo Tracker and 89-98 Suzuki Sidekick
Part Numbers:
- 11128
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
Step-by-Step Instructions:
-
Remove Rear Impact Bar (if present):
- Remove the rear impact bar from the vehicle frame by unscrewing two bolts on each side.
- Return the impact bar and bolts to the vehicle owner for safekeeping in case the hitch is removed later.
-
Position the Hitch:
- Position the hitch under the vehicle frame and align it with the existing weld nuts as shown in the diagram.
-
Suzuki X90 Specific Step:
- For Suzuki X90 applications, place spacers between the hitch and the frame to clear the tow hook on the passenger side.
-
Install Fasteners:
- Attach the hitch using the provided hardware and existing weld nuts.
-
Torque Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
Hardware List:
- HHCS, M12 x 1.25 x 40, CL10.9, YZ: Qty 4 (Part No. 10-10277)
- Washer, Flat, 1/2, YZ: Qty 4 (Part No. 30-00133)
- Washer, Lock, 1/2, YZ: Qty 4 (Part No. 30-00153)
- .250 x 1.38 x 1.50" Round Hole Spacer: Qty 1 (Part No. CM-SP25)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads applied to this product must be supported by auxiliary stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Hitch Weight: 60 lbs
- Installation Time:
- Professional: 23 minutes
- Novice (DIY): 30 minutes
- Drilling Required: No
Manufacturer Notes:
- Designed for use with ball mount #D-21 / 45521.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for Vehicle
Part Numbers:
- 11128
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
Step-by-Step Instructions:
-
Remove Rear Impact Bar (if present):
- Remove the rear impact bar from the vehicle frame by unscrewing two bolts on each side.
- Return the impact bar and bolts to the vehicle owner for safekeeping in case the hitch is removed later.
-
Position the Hitch:
- Position the hitch under the vehicle frame and align it with the existing weld nuts as shown in the diagram.
-
Suzuki X90 Specific Step:
- For Suzuki X90 applications, place spacers between the hitch and the frame to clear the tow hook on the passenger side.
-
Install Fasteners:
- Attach the hitch using the provided hardware and existing weld nuts.
-
Torque Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
Hardware List:
- HHCS, M12 x 1.25 x 40, CL10.9, YZ: Qty 4
- Washer, Flat, 1/2, YZ: Qty 4
- Washer, Lock, 1/2, YZ: Qty 4
- .250 x 1.38 x 1.50" Round Hole Spacer: Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads applied to this product must be supported by auxiliary stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Hitch Weight: 60 lbs
- Installation Time:
- Professional: 23 minutes
- Novice (DIY): 30 minutes
- Drilling Required: No
Important Notice:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
- For warranty information, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Designed for use with ball mount #D-21 / 45521.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warranty covers defects in material and workmanship at the time of purchase.

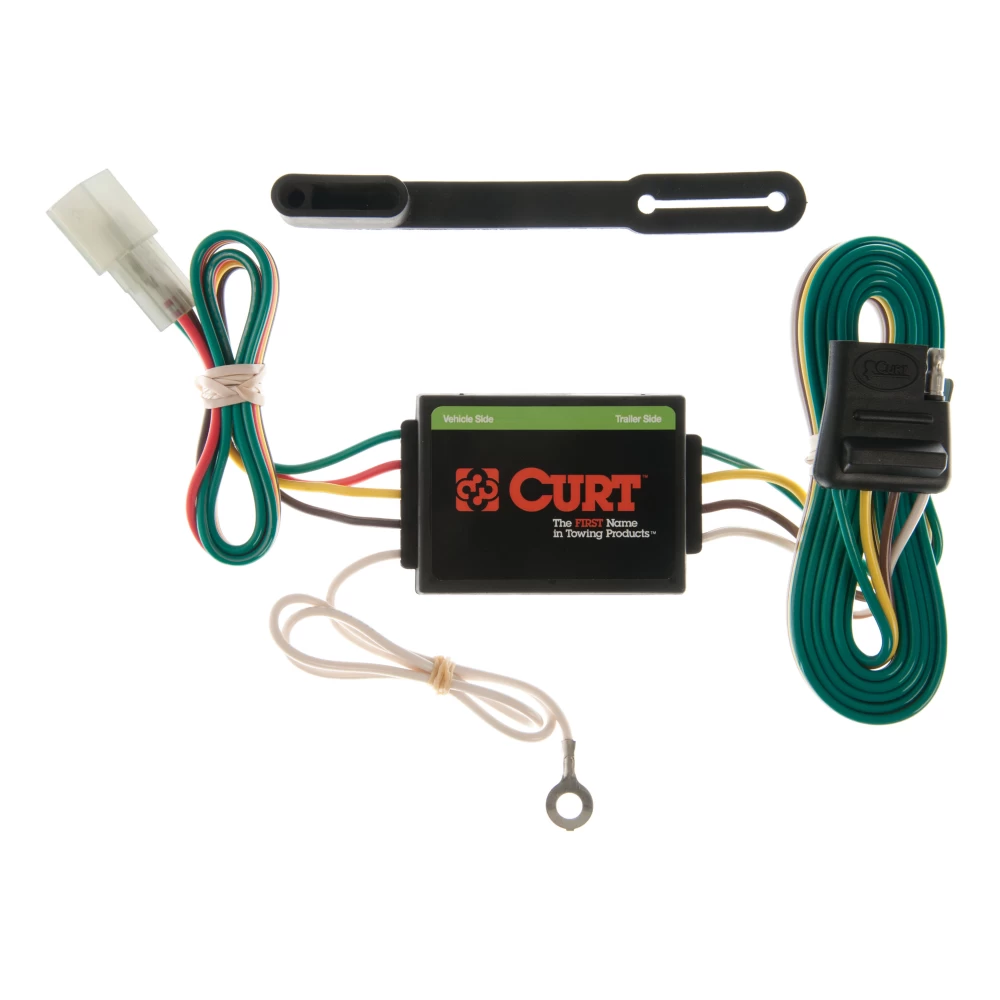

Installation Instructions for Chevrolet Tracker, Suzuki Grand Vitara, Suzuki Vitara, and Suzuki XL-7
Part Number:
- 55372
Tools Required:
- None
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Step-by-Step Instructions:
For Suzuki Vitara, Grand Vitara, and Chevrolet Tracker:
-
Locate the Vehicle's Taillight Wiring Harness Connector:
- Inside the driver-side tire jack compartment, locate the vehicle's taillight wiring harness connector.
-
Prepare the Vehicle Connector:
- Find the 6-pin connector taped to the vehicle wiring harness.
- Remove the tape securing the vehicle connector.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring harness into the vehicle's 6-pin connector.
- Ensure the connector is fully inserted with the locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
For Suzuki XL-7:
-
Access the Storage Compartment:
- Open the vehicle's tailgate.
- Remove the four screws securing the storage compartment to the floor.
- Lift the back of the storage compartment first to remove it.
-
Detach the Left Inner Trim Panel:
- Remove the two plastic push clips from the bottom rear edge of the left inner trim panel.
- Pull the rear edge of the left trim panel away from the body.
-
Locate the Taillight Wiring Harness Connector:
- Pull back the left trim panel to find the vehicle's taillight wiring harness connector under the rear blower motor.
- The connector will resemble the one on the custom wiring harness.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring harness into the vehicle's connector.
- Ensure the connector is fully inserted with the locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
- Caution: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Installation Instructions for Vehicle Models (Generic)
Part Number:
- 55372
Tools Required:
- None
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Step-by-Step Instructions:
For Vehicle Models A, B, and C:
-
Locate the Vehicle's Taillight Wiring Harness Connector:
- Inside the driver-side tire jack compartment, locate the vehicle's taillight wiring harness connector.
-
Prepare the Vehicle Connector:
- Find the 6-pin connector taped to the vehicle wiring harness.
- Remove the tape securing the vehicle connector.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring harness into the vehicle's 6-pin connector.
- Ensure the connector is fully inserted with the locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
For Vehicle Model D:
-
Access the Storage Compartment:
- Open the vehicle's tailgate.
- Remove the four screws securing the storage compartment to the floor.
- Lift the back of the storage compartment first to remove it.
-
Detach the Left Inner Trim Panel:
- Remove the two plastic push clips from the bottom rear edge of the left inner trim panel.
- Pull the rear edge of the left trim panel away from the body.
-
Locate the Taillight Wiring Harness Connector:
- Pull back the left trim panel to find the vehicle's taillight wiring harness connector under the rear blower motor.
- The connector will resemble the one on the custom wiring harness.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring harness into the vehicle's connector.
- Ensure the connector is fully inserted with the locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
- Caution: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered by a limited warranty for a period of [insert duration]. This warranty covers [insert coverage details].
For complete warranty instructions, please download the full installation PDF.
