Product Details

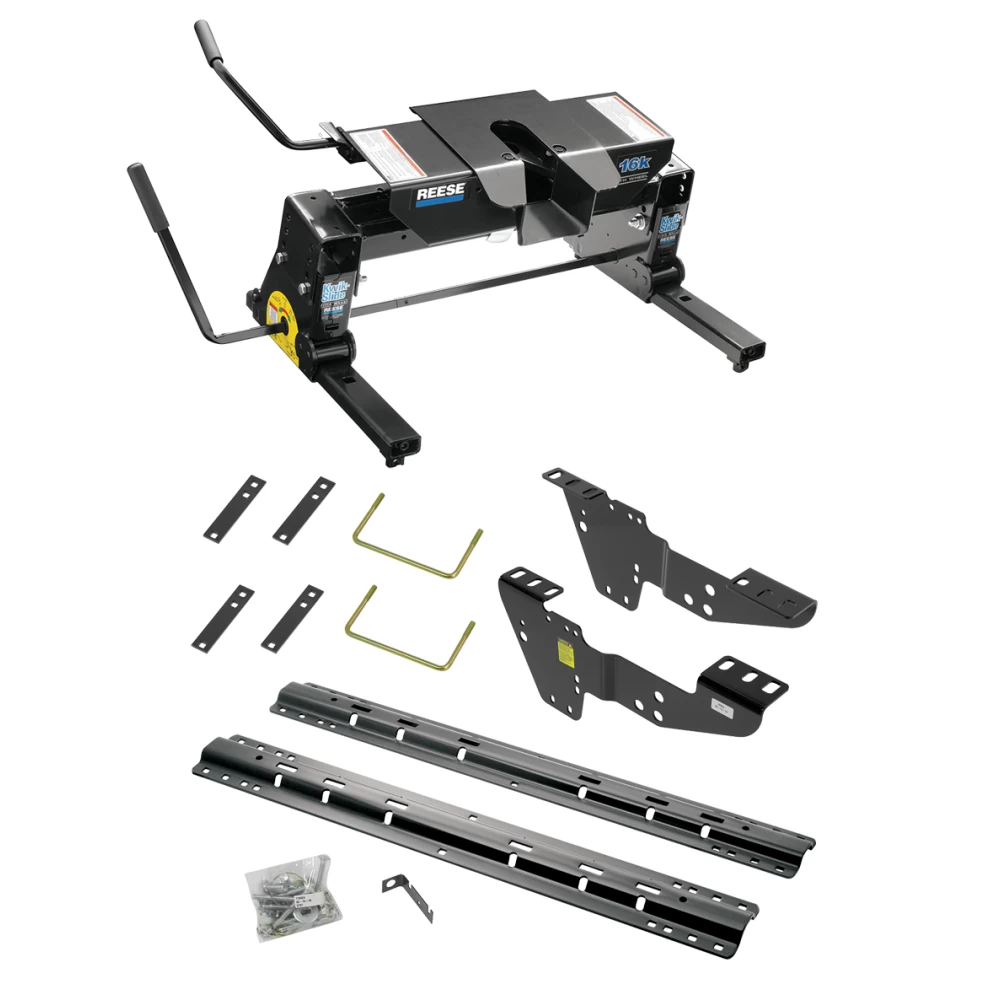

- Brand: Reese
- Model: 50064-58 30051-19-N
- Includes: Fifth Wheel Hitch Mounting System Custom Install Kit, Fifth Wheel Hitch 16K
Compatibility Chart
Description
Get Expert Help
For 1999-2004 GMC Sierra 2500 Custom Industry Standard Above Bed Rail Kit + 16K Fifth Wheel + Square Slider (For 6-1/2' or Shorter Bed Models) By Reese Install Notes
Installation Instructions for Part #50064-58
Chevrolet/GMC 1500/2500/3500 Custom Quick Install Mounting Kit with Base Rail Kit
Part Numbers:

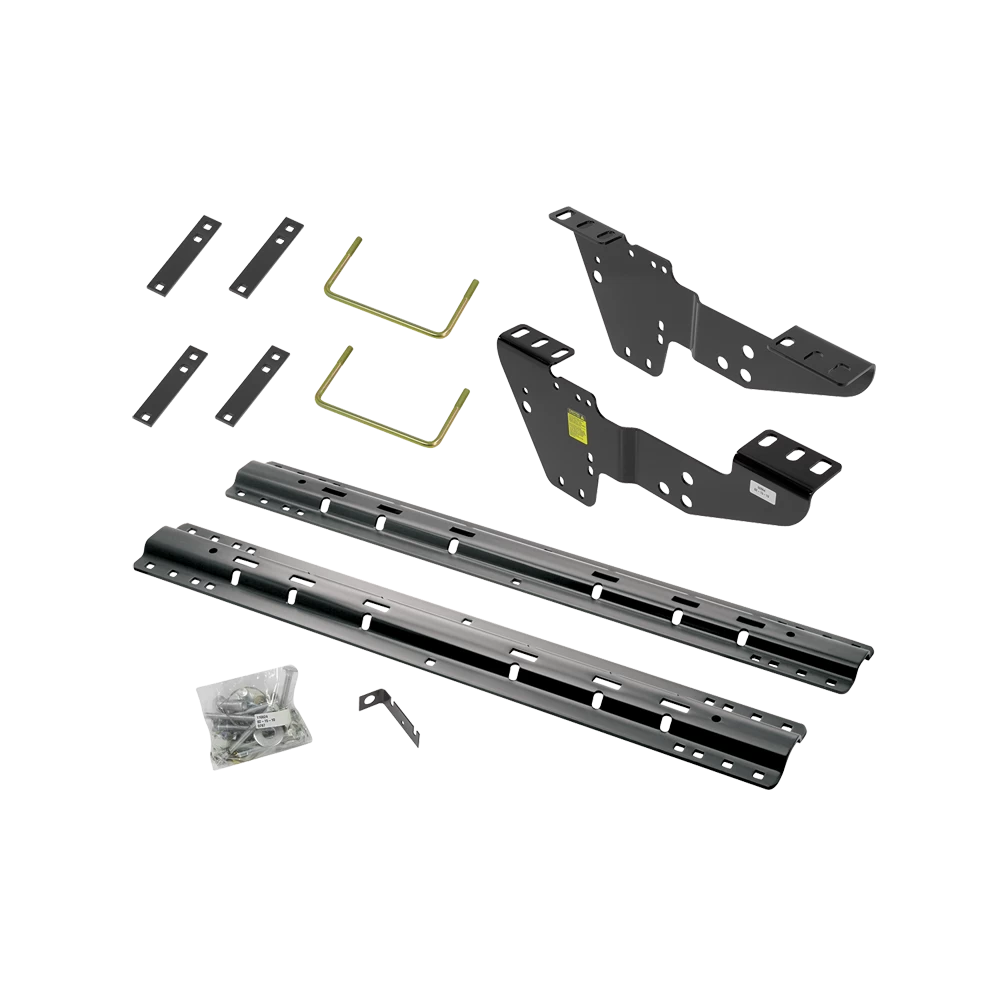

- 50064: Custom Quick Install Bracket Kit
- 58058: Base Rail Kit
Tools Required:
- Wrenches: 3/4”, 7/8”, 15/16”, 1-1/8”
- Drill Bits: 1/8”, 9/16”, 11/16”, 3/4”
- Other Tools: Center Punch, Measuring Tape, Torque Wrench
Hardware List:
50064 Bracket Kit
- (4) Frame Brackets
- (4) 3/4” x 2” Hex Bolts
- (4) 3/4” Lock Washers
- (4) 3/4” Hex Nuts
- (6) 3/4” Flat Washers
- (10) 1/2”-13 x 2” Carriage Bolts
- (8) 1/4” x 1-1/2” x 2” Offset Spacer Blocks
- (8) U-Shaped Blocks
- (4) 1/2”-13 x 4.5” Carriage Bolts
- (2) 5/8”-11 x 1.75” Button Head Bolts
- (2) 5/8” Hex Nuts
- (2) Pull Wires (1/2”)
58058 Base Rail Kit
- (2) Base Rails
- (10) 1/2”-13 x 2” Carriage Bolts
- (10) 1/2”-13 Hex Nuts
- (10) 1/2” Conical Washers
- (10) U-Shaped Blocks
Step-by-Step Instructions:
Step 1: Prepare the Truck
- Lower and remove the spare tire for additional working space.
- Remove the passenger side exhaust heat shield for access.
- On trucks with factory trailer brake controllers (2007+):
- Relocate the electrical plug on the inside of the driver’s side frame rail using the supplied angle bracket.
Step 2: Position the Rear Mounting Rail
- Place the rear base rail into the truck bed.
- Measure the correct distance from the rear edge of the truck bed to the rear edge of the rail:
- Short Bed (5’8” or 6’6”): 26-1/4”
- Long Bed (8’0”): 28-3/16”
- Ensure the rail is centered between the truck bed weld seams.
Step 3: Mark and Drill Rear Rail Holes
- Use a center punch to mark the bolt hole locations through the rail’s pre-drilled holes.
- Drill 1/8” pilot holes at the marked positions.
- Temporarily position the rear frame brackets to confirm alignment with the pilot holes.
- Enlarge the holes to 9/16” for the carriage bolts.
- Paint any bare metal to prevent rust.
Step 4: Install Rear Frame Brackets
- Attach the rear frame brackets to the truck frame using:
- 3/4” x 2” hex bolts, 3/4” flat washers, 3/4” lock washers, and 3/4” nuts.
- Use spacer blocks as needed to fill any gaps between the bracket and the truck frame.
Step 5: Secure the Rear Base Rail
- Reposition the rear rail over the drilled holes.
- Insert 1/2”-13 x 2” carriage bolts through the rail and truck bed.
- Place U-shaped blocks into bed corrugations to prevent crushing.
- Under the truck bed, attach the carriage bolts using:
- 1/2” conical washers and 1/2”-13 hex nuts.
- Hand tighten all hardware.
Step 6: Position the Front Mounting Rail
- Insert the 5th wheel hitch, slider, or gooseneck into the rear base rail.
- Position the front rail in the truck bed by aligning the hitch tabs with the front mounting rail slots.
- Ensure the rail is centered between the truck bed weld seams.
Step 7: Mark and Drill Front Rail Holes
- Mark the bolt hole locations for the front rail using the center punch.
- Drill 1/8” pilot holes and confirm alignment with the front frame brackets.
- Enlarge the holes to 9/16”.
Step 8: Install Front Frame Brackets
- Attach the front brackets to the truck frame using the same hardware sequence as in Step 4.
Step 9: Secure the Front Base Rail
- Reposition the front rail over the drilled holes.
- Insert 1/2”-13 x 2” carriage bolts through the rail and truck bed.
- Use U-shaped blocks and spacer blocks to ensure metal-to-metal contact.
- Secure the bolts underneath with 1/2” conical washers and 1/2”-13 hex nuts.
Step 10: Final Torque of Hardware
- Starting with the base rails, torque all hardware to the following specifications:
- 1/2” Carriage Bolts: 75 ft-lbs
- 3/4” Hex Bolts: 260 ft-lbs
- Tighten all frame bracket hardware and ensure proper alignment.
Step 11: Reinstall Components
- Reattach the electrical plug using the angle bracket.
- Reinstall the exhaust heat shield and the spare tire.
Safety Notes:
- Do not install mounting rails over plastic bed liners. Cut the liner to allow for metal-to-metal contact.
- Spray-in liners are acceptable if properly cured.
- Always verify trailer-to-truck clearance at the cab and bumper before towing.
Specifications:
- Maximum Tongue Weight: 4,500 lbs (2,040 kg)
- Maximum Gross Trailer Weight: 18,000 lbs (8,160 kg)
- Compliance: SAE J-684
Warning: Double-check all bolts for proper torque before towing. Failure to do so may result in injury or damage.
Installation Instructions for Part #50064-58
Chevrolet/GMC 1500/2500/3500 Custom Quick Install Mounting Kit with Base Rail Kit
Part Numbers:
- 50064: Custom Quick Install Bracket Kit
- 58058: Base Rail Kit
Tools Required:
- Wrenches: 3/4”, 7/8”, 15/16”, 1-1/8”
- Drill Bits: 1/8”, 9/16”, 11/16”, 3/4”
- Other Tools: Center Punch, Measuring Tape, Torque Wrench
Hardware List:
50064 Bracket Kit
- (4) Frame Brackets
- (4) 3/4” x 2” Hex Bolts
- (4) 3/4” Lock Washers
- (4) 3/4” Hex Nuts
- (6) 3/4” Flat Washers
- (10) 1/2”-13 x 2” Carriage Bolts
- (8) 1/4” x 1-1/2” x 2” Offset Spacer Blocks
- (8) U-Shaped Blocks
- (4) 1/2”-13 x 4.5” Carriage Bolts
- (2) 5/8”-11 x 1.75” Button Head Bolts
- (2) 5/8” Hex Nuts
- (2) Pull Wires (1/2”)
58058 Base Rail Kit
- (2) Base Rails
- (10) 1/2”-13 x 2” Carriage Bolts
- (10) 1/2”-13 Hex Nuts
- (10) 1/2” Conical Washers
- (10) U-Shaped Blocks
Step-by-Step Instructions:
Step 1: Prepare the Truck
- Lower and remove the spare tire for additional working space.
- Remove the passenger side exhaust heat shield for access.
- On trucks with factory trailer brake controllers (2007+):
- Relocate the electrical plug on the inside of the driver’s side frame rail using the supplied angle bracket.
Step 2: Position the Rear Mounting Rail
- Place the rear base rail into the truck bed.
- Measure the correct distance from the rear edge of the truck bed to the rear edge of the rail:
- Short Bed (5’8” or 6’6”): 26-1/4”
- Long Bed (8’0”): 28-3/16”
- Ensure the rail is centered between the truck bed weld seams.
Step 3: Mark and Drill Rear Rail Holes
- Use a center punch to mark the bolt hole locations through the rail’s pre-drilled holes.
- Drill 1/8” pilot holes at the marked positions.
- Temporarily position the rear frame brackets to confirm alignment with the pilot holes.
- Enlarge the holes to 9/16” for the carriage bolts.
- Paint any bare metal to prevent rust.
Step 4: Install Rear Frame Brackets
- Attach the rear frame brackets to the truck frame using:
- 3/4” x 2” hex bolts, 3/4” flat washers, 3/4” lock washers, and 3/4” nuts.
- Use spacer blocks as needed to fill any gaps between the bracket and the truck frame.
Step 5: Secure the Rear Base Rail
- Reposition the rear rail over the drilled holes.
- Insert 1/2”-13 x 2” carriage bolts through the rail and truck bed.
- Place U-shaped blocks into bed corrugations to prevent crushing.
- Under the truck bed, attach the carriage bolts using:
- 1/2” conical washers and 1/2”-13 hex nuts.
- Hand tighten all hardware.
Step 6: Position the Front Mounting Rail
- Insert the 5th wheel hitch, slider, or gooseneck into the rear base rail.
- Position the front rail in the truck bed by aligning the hitch tabs with the front mounting rail slots.
- Ensure the rail is centered between the truck bed weld seams.
Step 7: Mark and Drill Front Rail Holes
- Mark the bolt hole locations for the front rail using the center punch.
- Drill 1/8” pilot holes and confirm alignment with the front frame brackets.
- Enlarge the holes to 9/16”.
Step 8: Install Front Frame Brackets
- Attach the front brackets to the truck frame using the same hardware sequence as in Step 4.
Step 9: Secure the Front Base Rail
- Reposition the front rail over the drilled holes.
- Insert 1/2”-13 x 2” carriage bolts through the rail and truck bed.
- Use U-shaped blocks and spacer blocks to ensure metal-to-metal contact.
- Secure the bolts underneath with 1/2” conical washers and 1/2”-13 hex nuts.
Step 10: Final Torque of Hardware
- Starting with the base rails, torque all hardware to the following specifications:
- 1/2” Carriage Bolts: 75 ft-lbs
- 3/4” Hex Bolts: 260 ft-lbs
- Tighten all frame bracket hardware and ensure proper alignment.
Step 11: Reinstall Components
- Reattach the electrical plug using the angle bracket.
- Reinstall the exhaust heat shield and the spare tire.
Safety Notes:
- Do not install mounting rails over plastic bed liners. Cut the liner to allow for metal-to-metal contact.
- Spray-in liners are acceptable if properly cured.
- Always verify trailer-to-truck clearance at the cab and bumper before towing.
Specifications:
- Maximum Tongue Weight: 4,500 lbs (2,040 kg)
- Maximum Gross Trailer Weight: 18,000 lbs (8,160 kg)
- Compliance: SAE J-684
Warning: Double-check all bolts for proper torque before towing. Failure to do so may result in injury or damage.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

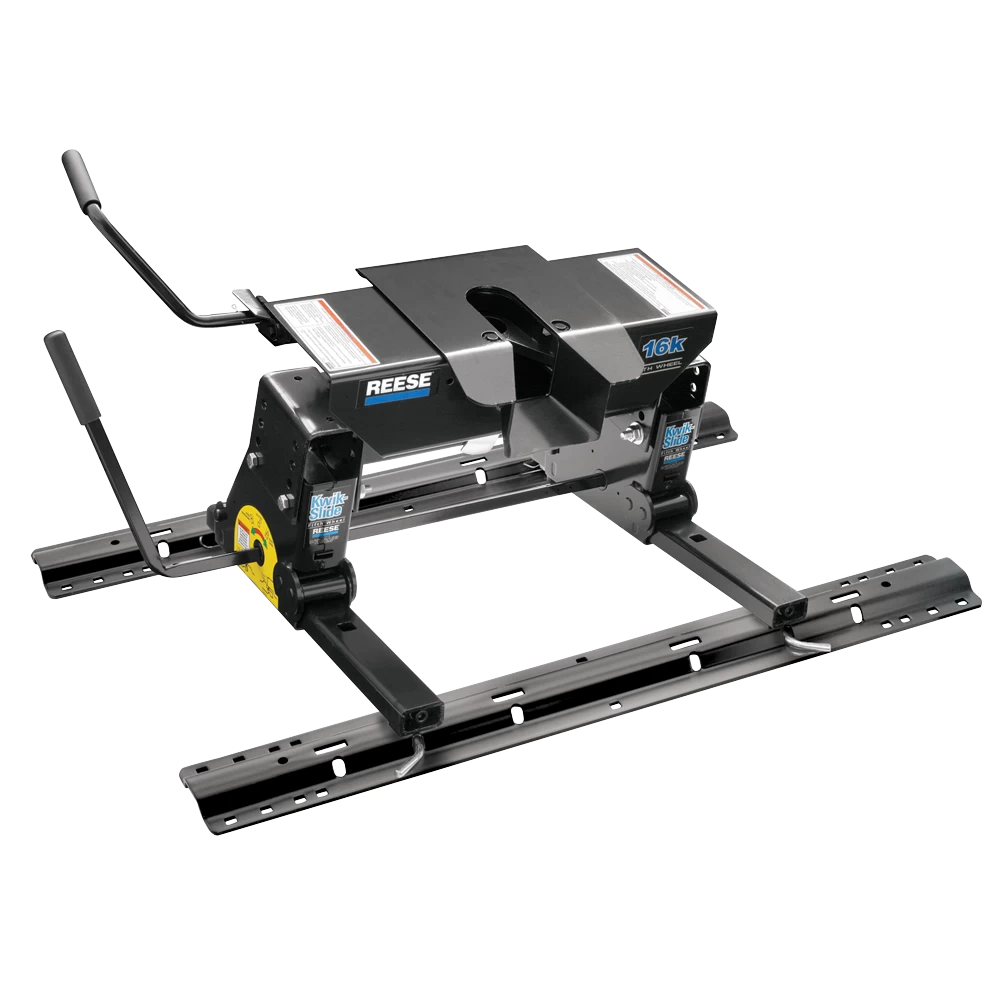

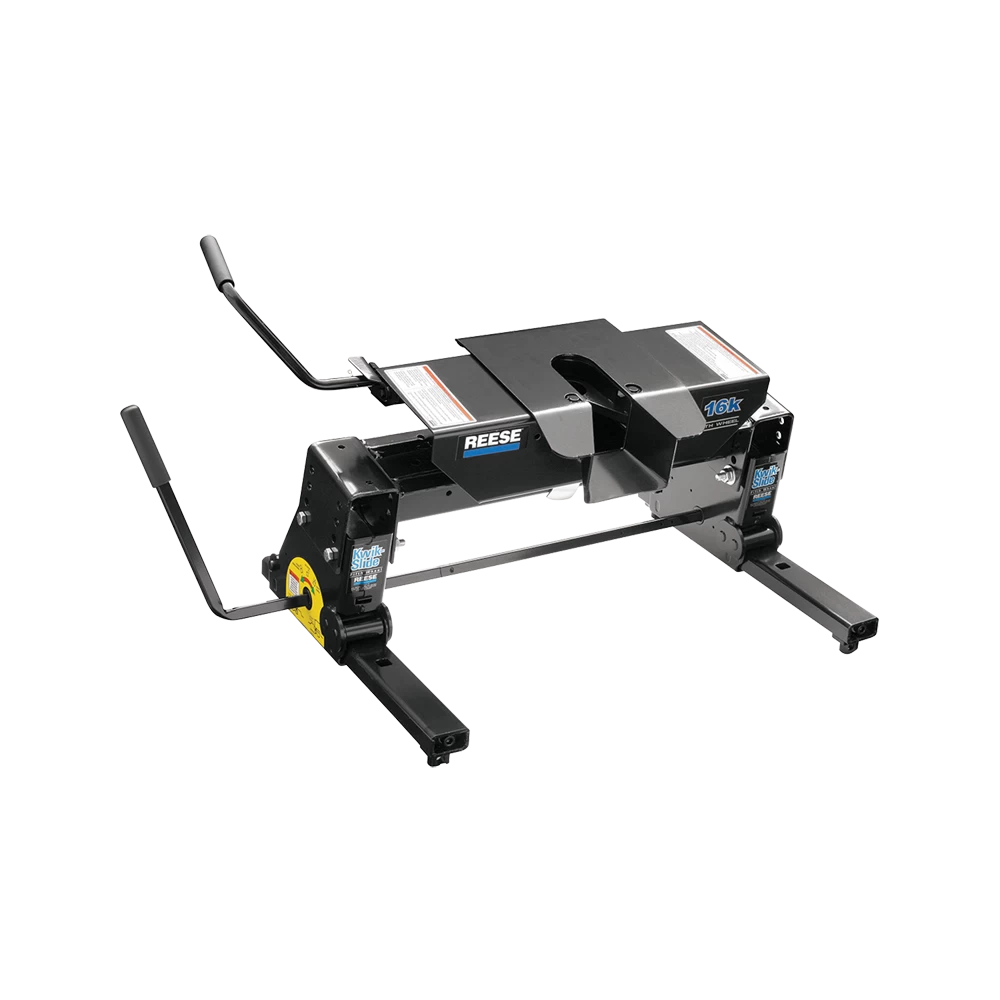

Installation Instructions for 16K Fifth Wheel Hitch with Kwik-Slide
Part Numbers:
- 30051 (Combines 30047 and 30048)
Tools Required:
- Torque Wrench
- 1/2" Socket and Wrench
- 3/8" Socket and Wrench
- White Lithium Grease (Spray Recommended)
- Tape Measure
- Marking Pencil
Step-by-Step Instructions:
Step 1: Guidelines for Matching Tow Vehicle and Trailer
- Ensure the gross trailer weight (including cargo and water tanks) does not exceed 16,000 lbs.
- Verify the kingpin weight is between 15-25% of the trailer weight and does not exceed 4,000 lbs.
- Use a SAE 2-inch kingpin with your fifth wheel hitch.
- For short-bed trucks (6-8 ft.), ensure the trailer has an extended pin box or add a Kwik-Slide (Part # 30048) for low-speed maneuverability. Always monitor clearance to avoid truck and trailer damage during turns.
Step 2: Install Base Rails and Mounting Hardware
- Place the base rails across the truck bed as specified in the rail mounting kit instructions (Part # 30035).
- Ensure the rails are positioned parallel, with centerlines spaced 21.94 inches apart. Check diagonal measurements to verify alignment.
- Install spacers and bolt plates beneath the bed to fill corrugations.
- Attach the mounting brackets to the truck frame and torque all bolts to the specifications in the rail mounting kit instructions.
Step 3: Assemble the Fifth Wheel Hitch
- Attach the legs to the base rails, securing with long pull pins and retaining clips.
- Install the head support to the legs, adjusting the height as needed (13-17 inches) using the 1/2-13 x 4.5-inch bolts and lock nuts. Torque bolts to 75 lb.-ft..
- Lubricate the skid plate with chassis grease or use a 10-inch plastic lube plate no thicker than 3/16 inch.
Step 4: Install the Kwik-Slide Mechanism
- Grease the leaf springs on the Kwik-Slide with white lithium grease.
- Position the Kwik-Slide in the base rails, ensuring the pull pin spring clips are outside the base rail slots. This allows full sliding functionality.
- Loosely attach the hitch head support to the Kwik-Slide at the desired height, staggering the hardware.
- Install and secure the handle assembly and indicator pin on the Kwik-Slide.
Step 5: Hitching Procedure
- Block the trailer wheels on both sides.
- Adjust the trailer height with the landing gear so the bottom of the kingpin is 1/2 to 1 inch below the hitch skid plate.
- Rotate the handle latch out of the groove to open the jaws.
- Slowly back the truck so the kingpin enters the hitch. The jaws will automatically close around the kingpin.
- Verify the kingpin is seated properly with no gap between the kingpin and the hitch skid plate.
Step 6: Maneuvering with the Kwik-Slide
- Move the handle forward to unlock the Kwik-Slide.
- Use the truck to carefully slide the hitch 10 inches rearward to the maneuvering position for low-speed operations, such as backing into a tight spot.
- Perform a pull test to ensure the Kwik-Slide is securely locked in the maneuvering position.
- After maneuvering, return the hitch to the towing position by sliding it forward until the latch locks. Repeat the pull test before towing.
Step 7: Unhitching Procedure
- Block the trailer wheels and ensure the landing gear is on firm ground.
- Disconnect the power and breakaway switch cables.
- Rotate the latch to open the jaws and pull the handle fully to release the kingpin.
- Drive the truck forward slowly to separate from the trailer.
Hardware List:
Base Hitch Components:
- (4x) Long Pull Pins
- (4x) Retaining Clips
- (2x) Legs
- (1x) Head Support
- (4x) 1/2-13 x 4.5" Bolts
- (4x) 1/2" Lock Nuts
- (1x) SAE 2-Inch Kingpin
Kwik-Slide Components:
- (1x) Kwik-Slide Assembly
- (1x) Handle Assembly with Indicator Pin
- (1x) Leaf Spring
- (1x) Roller Mechanism
- (2x) Pivot Pins
- (2x) Rubber Stoppers
- Additional mounting hardware as per rail kit.
Safety Notes:
- WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching, unhitching, or operating the Kwik-Slide.
- Never tow at high speeds with the Kwik-Slide in the maneuvering position.
- Regularly inspect and re-torque all bolts to ensure the hitch is secure.
- Avoid placing your body between the truck and trailer unless the wheels are blocked, the landing gear is down, and the truck is stationary with the emergency brake engaged.
Specifications:
- Gross Trailer Weight (GTW): 16,000 lbs
- Maximum Kingpin Weight: 4,000 lbs
- Recommended Torque:
- 1/2" Bolts: 75 lb.-ft.
- Kwik-Slide Bolts: 85 lb.-ft.
- Compliance: Designed for recreational fifth-wheel trailers only.
Installation Instructions for 16K Fifth Wheel Hitch with Kwik-Slide
Part Numbers:
- 30051 (Combines 30047 and 30048)
Tools Required:
- Torque Wrench
- 1/2" Socket and Wrench
- 3/8" Socket and Wrench
- White Lithium Grease (Spray Recommended)
- Tape Measure
- Marking Pencil
Step-by-Step Instructions:
Step 1: Guidelines for Matching Tow Vehicle and Trailer
- Ensure the gross trailer weight (including cargo and water tanks) does not exceed 16,000 lbs.
- Verify the kingpin weight is between 15-25% of the trailer weight and does not exceed 4,000 lbs.
- Use a SAE 2-inch kingpin with your fifth wheel hitch.
- For short-bed trucks (6-8 ft.), ensure the trailer has an extended pin box or add a Kwik-Slide (Part # 30048) for low-speed maneuverability. Always monitor clearance to avoid truck and trailer damage during turns.
Step 2: Install Base Rails and Mounting Hardware
- Place the base rails across the truck bed as specified in the rail mounting kit instructions (Part # 30035).
- Ensure the rails are positioned parallel, with centerlines spaced 21.94 inches apart. Check diagonal measurements to verify alignment.
- Install spacers and bolt plates beneath the bed to fill corrugations.
- Attach the mounting brackets to the truck frame and torque all bolts to the specifications in the rail mounting kit instructions.
Step 3: Assemble the Fifth Wheel Hitch
- Attach the legs to the base rails, securing with long pull pins and retaining clips.
- Install the head support to the legs, adjusting the height as needed (13-17 inches) using the 1/2-13 x 4.5-inch bolts and lock nuts. Torque bolts to 75 lb.-ft..
- Lubricate the skid plate with chassis grease or use a 10-inch plastic lube plate no thicker than 3/16 inch.
Step 4: Install the Kwik-Slide Mechanism
- Grease the leaf springs on the Kwik-Slide with white lithium grease.
- Position the Kwik-Slide in the base rails, ensuring the pull pin spring clips are outside the base rail slots. This allows full sliding functionality.
- Loosely attach the hitch head support to the Kwik-Slide at the desired height, staggering the hardware.
- Install and secure the handle assembly and indicator pin on the Kwik-Slide.
Step 5: Hitching Procedure
- Block the trailer wheels on both sides.
- Adjust the trailer height with the landing gear so the bottom of the kingpin is 1/2 to 1 inch below the hitch skid plate.
- Rotate the handle latch out of the groove to open the jaws.
- Slowly back the truck so the kingpin enters the hitch. The jaws will automatically close around the kingpin.
- Verify the kingpin is seated properly with no gap between the kingpin and the hitch skid plate.
Step 6: Maneuvering with the Kwik-Slide
- Move the handle forward to unlock the Kwik-Slide.
- Use the truck to carefully slide the hitch 10 inches rearward to the maneuvering position for low-speed operations, such as backing into a tight spot.
- Perform a pull test to ensure the Kwik-Slide is securely locked in the maneuvering position.
- After maneuvering, return the hitch to the towing position by sliding it forward until the latch locks. Repeat the pull test before towing.
Step 7: Unhitching Procedure
- Block the trailer wheels and ensure the landing gear is on firm ground.
- Disconnect the power and breakaway switch cables.
- Rotate the latch to open the jaws and pull the handle fully to release the kingpin.
- Drive the truck forward slowly to separate from the trailer.
Hardware List:
Base Hitch Components:
- (4x) Long Pull Pins
- (4x) Retaining Clips
- (2x) Legs
- (1x) Head Support
- (4x) 1/2-13 x 4.5" Bolts
- (4x) 1/2" Lock Nuts
- (1x) SAE 2-Inch Kingpin
Kwik-Slide Components:
- (1x) Kwik-Slide Assembly
- (1x) Handle Assembly with Indicator Pin
- (1x) Leaf Spring
- (1x) Roller Mechanism
- (2x) Pivot Pins
- (2x) Rubber Stoppers
- Additional mounting hardware as per rail kit.
Safety Notes:
- WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching, unhitching, or operating the Kwik-Slide.
- Never tow at high speeds with the Kwik-Slide in the maneuvering position.
- Regularly inspect and re-torque all bolts to ensure the hitch is secure.
- Avoid placing your body between the truck and trailer unless the wheels are blocked, the landing gear is down, and the truck is stationary with the emergency brake engaged.
Specifications:
- Gross Trailer Weight (GTW): 16,000 lbs
- Maximum Kingpin Weight: 4,000 lbs
- Recommended Torque:
- 1/2" Bolts: 75 lb.-ft.
- Kwik-Slide Bolts: 85 lb.-ft.
- Compliance: Designed for recreational fifth-wheel trailers only.
Additional Information:
-
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
-
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty duration and coverage details are provided in the full installation PDF. For complete warranty instructions, please download the full installation PDF.
