For 1999‑2004 Honda Odyssey Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13068 55336 2 inch Tow Receiver
Model: 13068 55336-CH2296This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
1999 - 2004 Honda Odyssey All Models

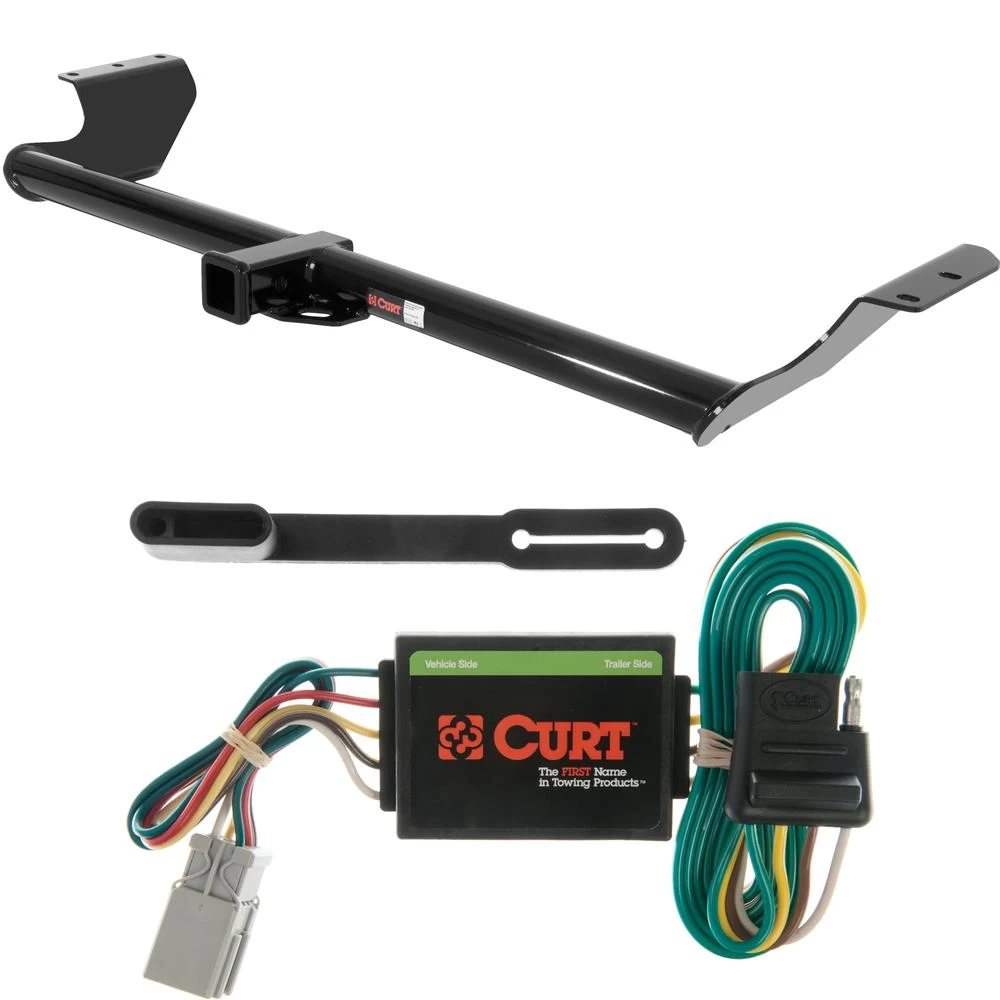

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Custom Wiring Connector, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
1999, 2000, 2001, 2002, 2003, 2004

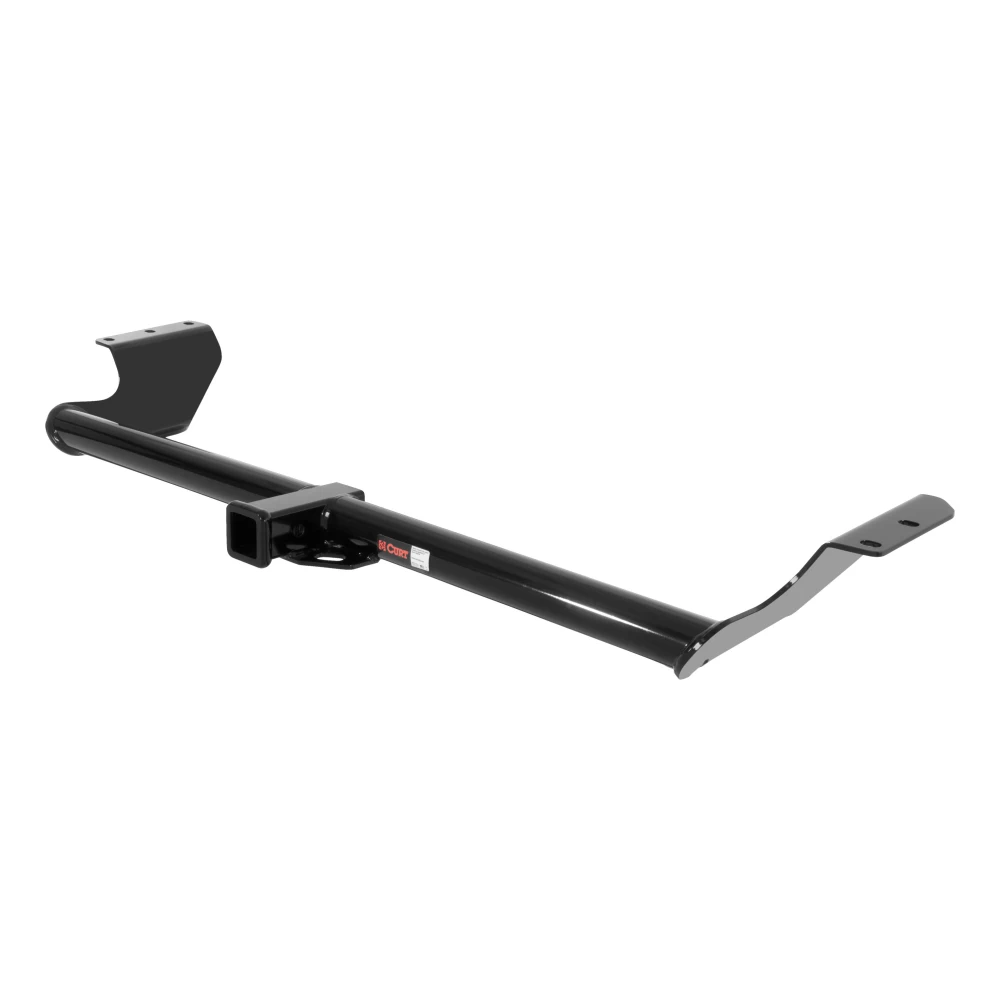

CURT 13068 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Honda Odyssey (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 350 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 500 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 500 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
CURT 55336 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.
This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Honda Accord, CRV, Element, Odyssey, Pilot and Prelude, Acura Integra, CL, RL, TL and MDX and Isuzu Oasis (to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..
Features:
- Plugs into existing OEM vehicle socket to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$206 37 $340.90 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Each may be shipped from a separate location, and therefore, may arrive at different times
Verify Fitment
$340.90 $206 37
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13068 55336-CH2296
- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Get Expert Help
For 1999-2004 Honda Odyssey Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13068 55336 2 inch Tow Receiver Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 13068
Tools Required:
- Torque wrench
- Ratchet
- 9" socket extension
- 10mm socket
- 11/16" socket
- 19mm socket
- Screwdriver
Step-by-Step Instructions:
-
Remove Plastic Fascia (Driver-Side Frame Rail):
- If present, remove 5 fasteners securing the plastic fascia covering the driver-side frame rail.
- Return the fascia and fasteners to the vehicle owner.
Optional: Trim and reattach the fascia after hitch installation.
-
Clean the Weldnuts:
- Locate the 2 weldnuts near the end of each frame rail.
- Clean the weldnuts of debris or rust to ensure bolts thread easily.
- Use compressed air or lubricant to remove debris. For heavy debris, use a wire brush (avoid damaging threads).
-
Raise the Hitch into Position:
- Slide the passenger-side plate of the hitch over the exhaust first.
- Align the hitch with the frame rails.
-
Install Hardware (Passenger Side):
- Secure the hitch using the provided M12-1.25 x 35mm bolts and 1/2" conical-toothed washers into the existing weldnuts.
-
Fishwire Hardware (Driver Side):
- Use the 7/16" fishwire tool to guide a 7/16-14 x 1-1/2" carriage bolt and square hole spacer through the access hole in the driver-side frame rail.
- Secure the bolt using a 7/16" serrated-flange nut.
Fishwire Technique:- Thread the fishwire through the hitch mounting hole and out the access hole.
- Slide the spacer onto the wire, then thread the carriage bolt into the coil end.
- Pull the fishwire to guide the hardware into position.
-
Torque Fasteners:
- Torque all M12 bolts to 86 ft-lbs.
- Torque all 7/16" hardware to 70 ft-lbs.
Hardware List:
- Hex Bolt, M12 x 1.25 x 35mm, Class 10.9, YZ: Qty 4
- Conical Toothed Washer, 1/2", YZ: Qty 4
- Carriage Bolt, 7/16-14 x 1-1/2", Grade 8, YZ: Qty 1
- Square Hole Spacer, .250 x 7/8 x 2-1/4", YZ: Qty 1
- Serrated Flange Nut, 7/16-14, YZ: Qty 1
- 7/16" Fishwire Tool: Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 45 minutes
- Drilling Required: No
- Fishwire Hardware: Yes
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Acura CL Series, Acura Integra, Acura MDX, Acura RL Series, Acura TL Series, Honda Accord, Honda CR-V, Honda Element, Honda Odyssey, Honda Pilot, Honda Prelude, and Isuzu Oasis
Part Number:
- 55336
Tools Required:
- Panel trim removal tool
- Phillips screwdriver
- Flat blade screwdriver
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 5.0 amps total
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Access the Vehicle's Taillight Wiring Connector:
- The location of the taillight wiring connector varies by vehicle model:
- Passenger Cars:
- Open the trunk and remove the plastic screw securing the passenger side trunk liner.
- Pull back the felt liner to locate the vehicle's taillight wiring connector, which will resemble the custom wiring connector.
- 1996-1999 Isuzu Oasis & 1995-1998 Honda Odyssey:
- Remove the rear access panel inside the van, behind the driver side taillight, to find the wiring connector.
- 1999-2004 Honda Odyssey:
- Open the trunk and remove the driver side cargo bracket screw.
- Pull back the trim panel to locate the wiring connector.
- 1997-2001 Honda CR-V:
- Remove the three screws securing the rear driver side speaker and cover.
- Remove the speaker and cover to find the wiring connector, which is secured to the speaker wires.
- 2002-2006 Honda CR-V:
- Open the trunk and remove the cargo door on the floor.
- Remove the storage container, rear threshold, driver side cargo bracket screw, and cargo screw on the driver side trim panel.
- Unscrew the cargo bracket from the vehicle floor.
- Carefully pry the trim panel away to reveal the wiring connector taped near the vehicle floor.
- Acura MDX:
- Open the trunk and remove the cargo door on the floor.
- Remove the headrests from their storage location.
- Locate and remove two clips inside the storage area on the threshold.
- Carefully pry the threshold to remove it.
- The wiring connector is inside the cargo area, on the driver side, attached to the threshold plate.
- Honda Pilot:
- Open the trunk and carefully pry the driver side threshold to locate the wiring connector.
- Honda Element:
- Open the trunk and remove the cargo door on the floor.
- Remove the screws holding the spring-loaded hinge cover and set it aside.
- Carefully remove the three plastic clips holding the passenger side trim panel to the floor.
- Remove the five screws securing the passenger side trim panel.
- Remove the cargo net bracket and carefully pull back the trim panel, avoiding damage to tabs or clips.
- Passenger Cars:
- The location of the taillight wiring connector varies by vehicle model:
-
Prepare the Vehicle Connector:
- Locate the vehicle harness connectors.
- Carefully remove any tape securing the connectors, ensuring not to damage the locking tabs.
- Inspect the connectors for dirt and debris; clean if necessary.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector (Honda CR-V Only):
- Route the custom wiring connector's 4-flat plug from under the trim panel along the carpet edge.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Installation Instructions
Part Number:
- 55336
Tools Required:
- Panel trim removal tool
- Phillips screwdriver
- Flat blade screwdriver
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 5.0 amps total
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Access the Vehicle's Taillight Wiring Connector:
- The location of the taillight wiring connector varies by vehicle model:
- Passenger Cars:
- Open the trunk and remove the plastic screw securing the passenger side trunk liner.
- Pull back the felt liner to locate the vehicle's taillight wiring connector, which will resemble the custom wiring connector.
- 1996-1999 Isuzu Oasis & 1995-1998 Honda Odyssey:
- Remove the rear access panel inside the van, behind the driver side taillight, to find the wiring connector.
- 1999-2004 Honda Odyssey:
- Open the trunk and remove the driver side cargo bracket screw.
- Pull back the trim panel to locate the wiring connector.
- 1997-2001 Honda CR-V:
- Remove the three screws securing the rear driver side speaker and cover.
- Remove the speaker and cover to find the wiring connector, which is secured to the speaker wires.
- 2002-2006 Honda CR-V:
- Open the trunk and remove the cargo door on the floor.
- Remove the storage container, rear threshold, driver side cargo bracket screw, and cargo screw on the driver side trim panel.
- Unscrew the cargo bracket from the vehicle floor.
- Carefully pry the trim panel away to reveal the wiring connector taped near the vehicle floor.
- Acura MDX:
- Open the trunk and remove the cargo door on the floor.
- Remove the headrests from their storage location.
- Locate and remove two clips inside the storage area on the threshold.
- Carefully pry the threshold to remove it.
- The wiring connector is inside the cargo area, on the driver side, attached to the threshold plate.
- Honda Pilot:
- Open the trunk and carefully pry the driver side threshold to locate the wiring connector.
- Honda Element:
- Open the trunk and remove the cargo door on the floor.
- Remove the screws holding the spring-loaded hinge cover and set it aside.
- Carefully remove the three plastic clips holding the passenger side trim panel to the floor.
- Remove the five screws securing the passenger side trim panel.
- Remove the cargo net bracket and carefully pull back the trim panel, avoiding damage to tabs or clips.
- Passenger Cars:
- The location of the taillight wiring connector varies by vehicle model:
-
Prepare the Vehicle Connector:
- Locate the vehicle harness connectors.
- Carefully remove any tape securing the connectors, ensuring not to damage the locking tabs.
- Inspect the connectors for dirt and debris; clean if necessary.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector (Honda CR-V Only):
- Route the custom wiring connector's 4-flat plug from under the trim panel along the carpet edge.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
