For 1999‑2002 GMC Sierra 1500 Trailer Hitch Fits All Models Curt 15323 2 inch Tow Receiver
Model: 15323-CH2008This Trailer Tow Hitch Fits The Following Vehicles:
1999 - 2002 GMC Sierra 1500 All Models
This Trailer Tow Hitch Includes the Following Parts:
- Xtra Duty Class 5 Hitch, 2" (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
1999, 2000, 2001, 2002

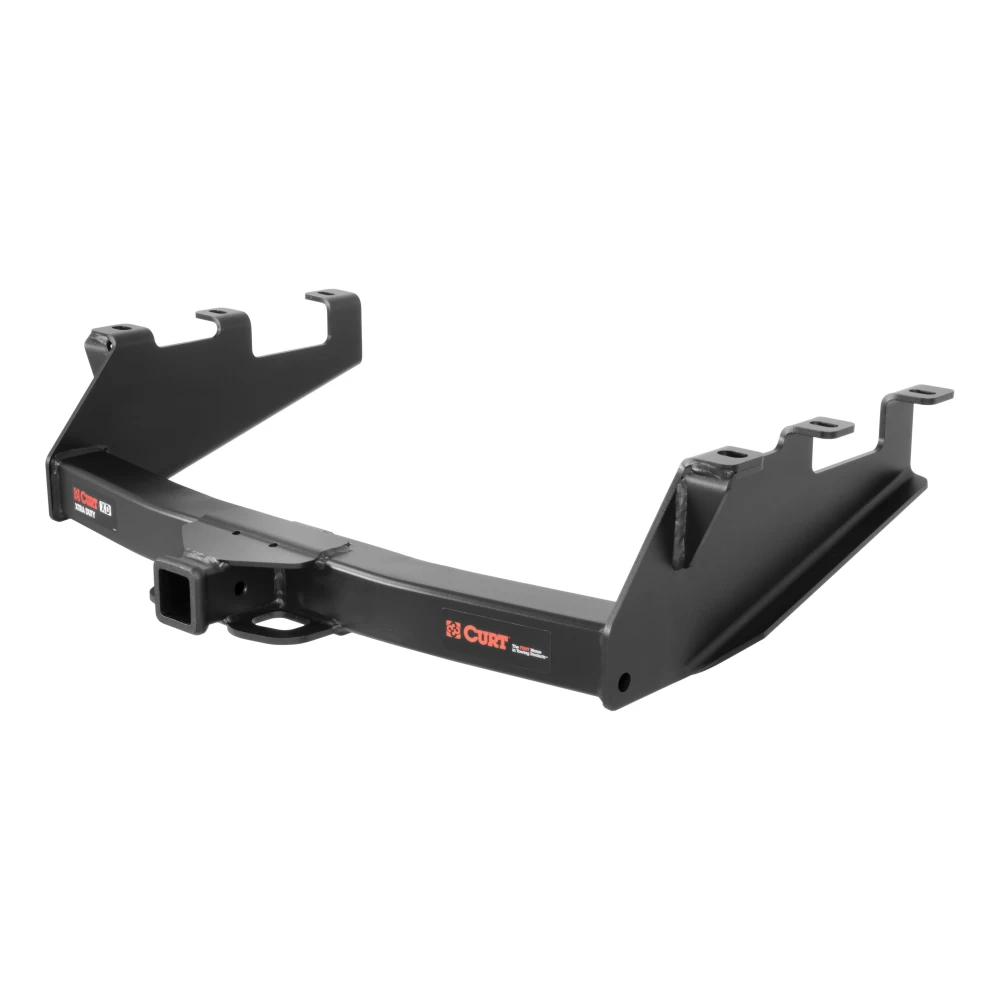

CURT 15323 Xtra Duty Class 5 Trailer Hitch, 2-In Receiver
Manufactured by: Curt
When we came to the limits of towing capacity, we wanted to know what else was out there What could we discover off the beaten path? So, we kept going CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate.
They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component) This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs.

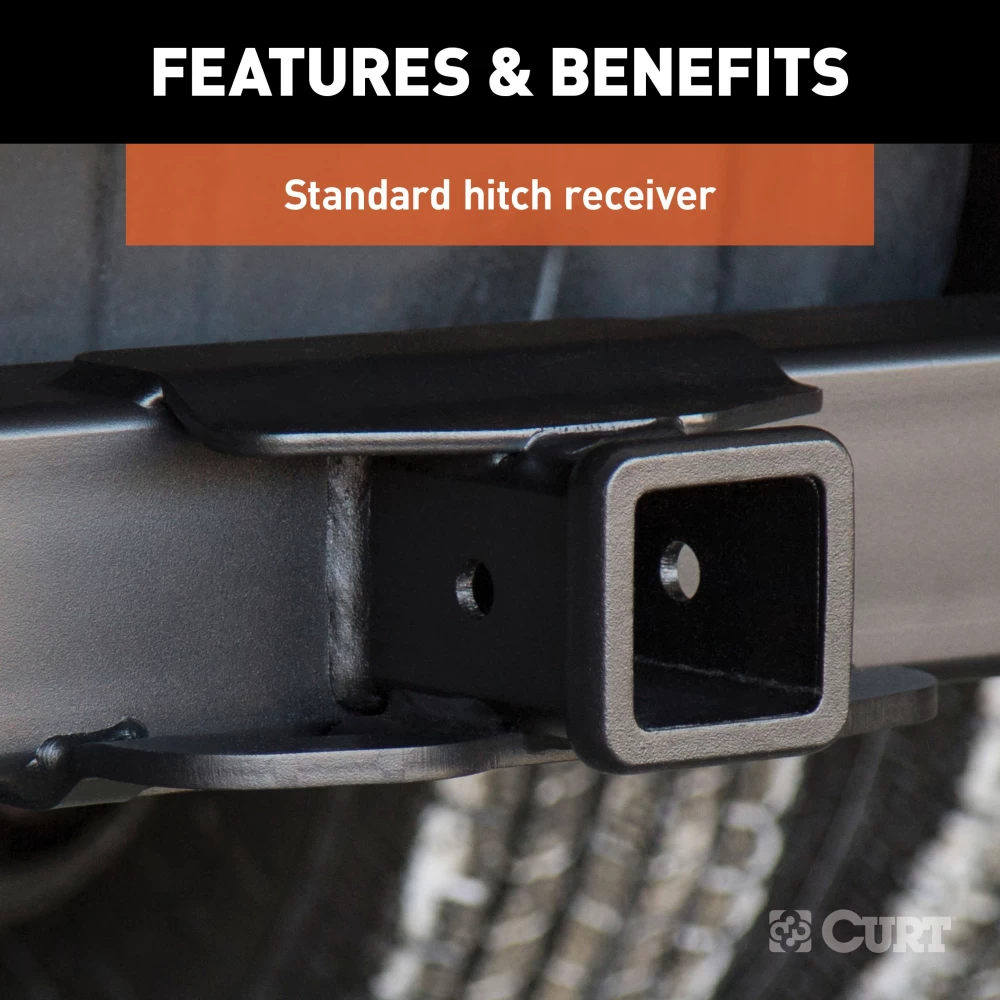

and an extra-high tongue weight capacity of 2,400 lbs It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount It is designed to be a custom-fit trailer hitch for certain years of the Chevy Silverado 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 and GMC Sierra 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 (to verify compatibility with your vehicle, see application info).
For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch It is rated for 17,000 lbs WD and 2,400 lbs.
WDTW In our drive to create a more powerful hitch, CURT has not neglected the finer details Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish.
To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat They come with grade-8 mounting hardware for solid installation..

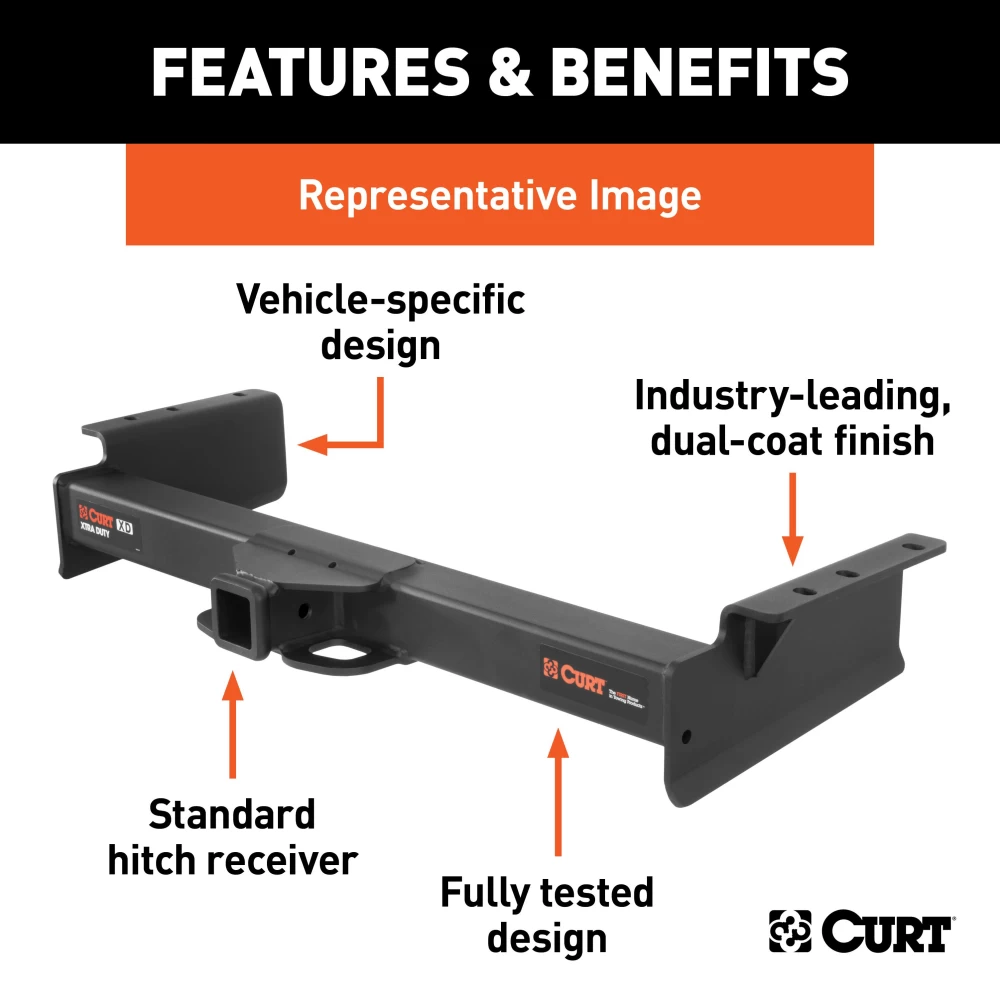

Features:
- Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
- Compatible with weight distribution hitch (17,000 lbs. WD / 2,400 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit

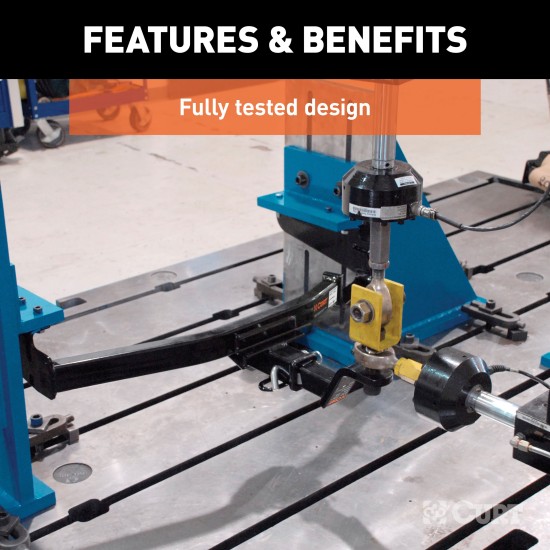

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Constructed with a large, powerful main body
- Protected by a highly durable carbide powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Features wide safety chain openings for heavy-duty hooks
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$342 21 $540.95 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$540.95 $342 21
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $85.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 15323-CH2008
- Includes: Xtra Duty Class 5 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 1999-2002 GMC Sierra 1500 Trailer Hitch Fits All Models Curt 15323 2 inch Tow Receiver Install Notes
Installation Instructions for Chevrolet Silverado 1500 / GMC Sierra 1500 (2014 and Newer)
Part Numbers:
- 15323
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
- 22mm socket
- 12" extension
Step-by-Step Instructions:
-
Temporarily Lower Spare Tire:
- Lower the spare tire to provide room for installation.
-
Remove Factory Light Duty Hitch (2014 and Newer Models Only):
- Remove the factory-installed light-duty bumper hitch: a. Remove the (2) M8 bolts connecting the center hitch tabs to the bumper; return to the owner. b. Remove the (2) M14 x 80mm bolts and (2) M14 nuts securing the hitch to the frame rails; return to the owner. c. Remove and retain (2) M14 x 45mm bolts securing the rear of the hitch to the weldnuts in the frame rails. d. Remove and retain (4) M12 nuts and (2) M12 x 40mm stud plates securing the hitch to the frame sides. e. Remove the hitch completely and return to the owner. f. Reinstall the stud plates and nuts removed in Step 2d and torque to 52 ft-lbs.
-
Install the Hitch:
- Remove (1) M14 bumper bracket bolt from each frame rail (completed in Step 2c).
- Raise the hitch into position, aligning the rear-most holes in the hitch with the holes where the bumper bracket bolts were removed.
- Secure the hitch using the existing M14 bumper bracket bolts.
-
Install Forward and Center Hardware:
- Place a 1/2"-13 x 1 3/4" carriage bolt and CM-SP1 spacer into the forward-most hole of the frame and hitch (each side).
Secure with a 1/2"-13 hex flange nut. - Place a 1/2"-13 x 1 3/4" carriage bolt and CM-SP4 spacer into the center hole of the frame and hitch (each side).
Secure with a 1/2"-13 hex flange nut.
- Place a 1/2"-13 x 1 3/4" carriage bolt and CM-SP1 spacer into the forward-most hole of the frame and hitch (each side).
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 ft-lbs.
- Torque all M14 hardware to 103 ft-lbs.
-
Reinstall Spare Tire:
- Return the spare tire to its original position.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8, YZ: Qty 4
- Flange Nut, 1/2-13 UNC, Grade 8, YZ: Qty 4
- Square Hole Spacer, .250 x 1.50 x 2.00" (CM-SP1): Qty 2
- Square Hole Spacer, .250 x 1.50 x 3.00" (CM-SP4): Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 16,000 lbs (trailer weight), 2,400 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 17,000 lbs (trailer weight), 2,400 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 60 minutes
- Novice (DIY): 62 minutes
- Drilling Required: No
- Lower Spare Tire: Required
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for Chevrolet Silverado 1500 / GMC Sierra 1500 (2014 and Newer)
Part Numbers:
- 15323
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
- 22mm socket
- 12" extension
Step-by-Step Instructions:
-
Temporarily Lower Spare Tire:
- Lower the spare tire to provide room for installation.
-
Remove Factory Light Duty Hitch (2014 and Newer Models Only):
- Remove the factory-installed light-duty bumper hitch:
a. Remove the (2) M8 bolts connecting the center hitch tabs to the bumper; return to the owner.
b. Remove the (2) M14 x 80mm bolts and (2) M14 nuts securing the hitch to the frame rails; return to the owner.
c. Remove and retain (2) M14 x 45mm bolts securing the rear of the hitch to the weldnuts in the frame rails.
d. Remove and retain (4) M12 nuts and (2) M12 x 40mm stud plates securing the hitch to the frame sides.
e. Remove the hitch completely and return to the owner.
f. Reinstall the stud plates and nuts removed in Step 2d and torque to 52 ft-lbs.
- Remove the factory-installed light-duty bumper hitch:
a. Remove the (2) M8 bolts connecting the center hitch tabs to the bumper; return to the owner.
-
Install the Hitch:
- Remove (1) M14 bumper bracket bolt from each frame rail (completed in Step 2c).
- Raise the hitch into position, aligning the rear-most holes in the hitch with the holes where the bumper bracket bolts were removed.
- Secure the hitch using the existing M14 bumper bracket bolts.
-
Install Forward and Center Hardware:
- Place a 1/2"-13 x 1 3/4" carriage bolt and square hole spacer into the forward-most hole of the frame and hitch (each side).
Secure with a 1/2"-13 hex flange nut. - Place a 1/2"-13 x 1 3/4" carriage bolt and square hole spacer into the center hole of the frame and hitch (each side).
Secure with a 1/2"-13 hex flange nut.
- Place a 1/2"-13 x 1 3/4" carriage bolt and square hole spacer into the forward-most hole of the frame and hitch (each side).
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 ft-lbs.
- Torque all M14 hardware to 103 ft-lbs.
-
Reinstall Spare Tire:
- Return the spare tire to its original position.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8: Qty 4
- Flange Nut, 1/2-13 UNC, Grade 8: Qty 4
- Square Hole Spacer, .250 x 1.50 x 2.00": Qty 2
- Square Hole Spacer, .250 x 1.50 x 3.00": Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 16,000 lbs (trailer weight), 2,400 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 17,000 lbs (trailer weight), 2,400 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 60 minutes
- Novice (DIY): 62 minutes
- Drilling Required: No
- Lower Spare Tire: Required
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF. Warranty coverage includes defects in material and workmanship but excludes alterations, misuse, or improper installation.
