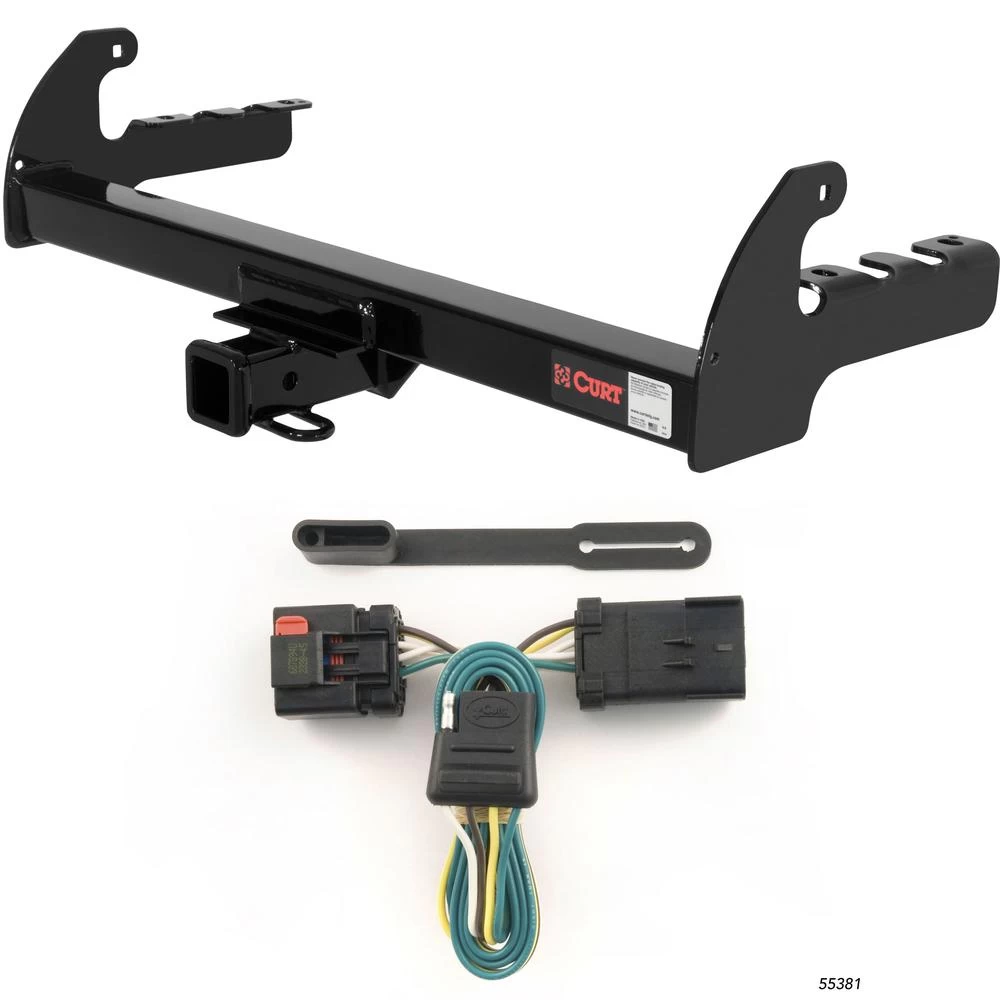

For 2000‑2004 Dodge Dakota Trailer Hitch + Wiring 4 Pin Fits w/ Tow Prep Package Curt 13280 55381 2 inch Tow Receiver
Model: 13280 55381-CH789This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2000 - 2004 Dodge Dakota w/ Tow Prep Package
This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Drilling Required)
- Custom Wiring, 4-Flat (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2000, 2001, 2002, 2003, 2004

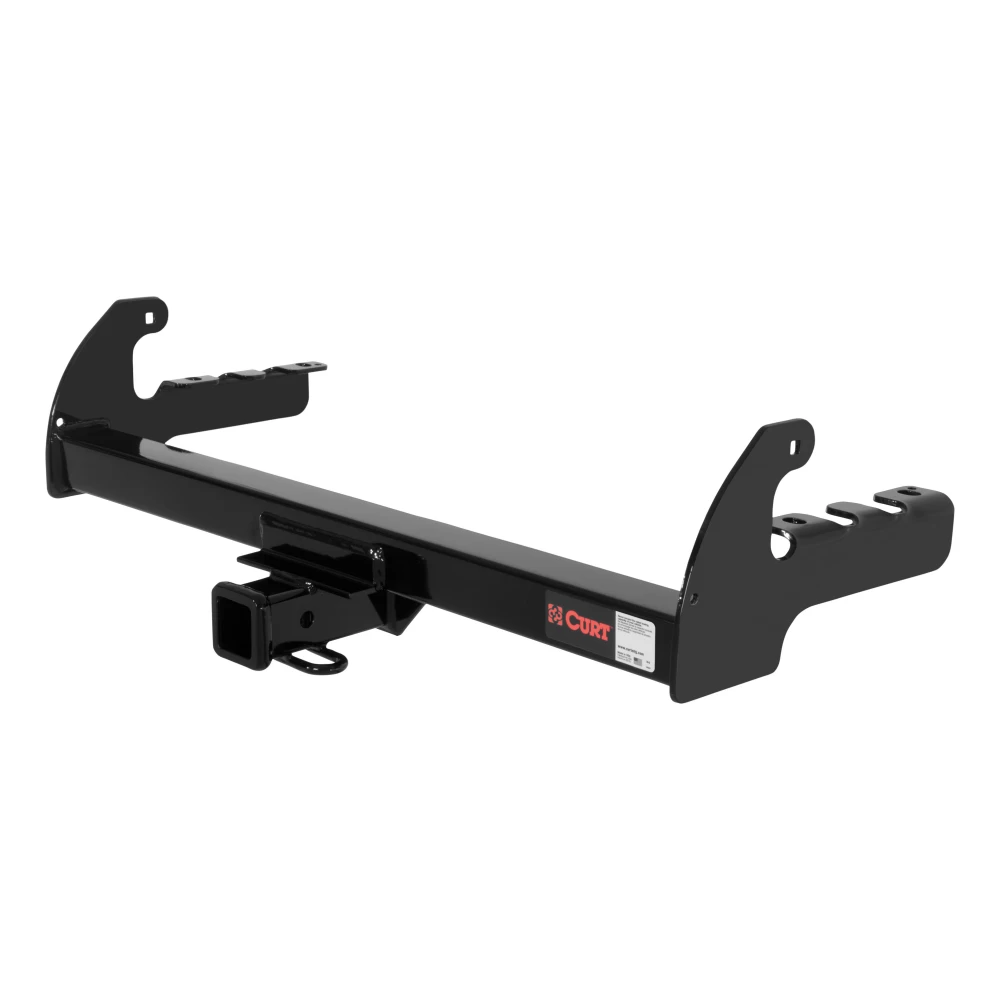

CURT 13280 Class 3 Trailer Hitch, 2-Inch Receiver, Square Tube Frame
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Dodge Dakota (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 5,000 lbs GTW and 500 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs WD and 800 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 5,000 lbs. gross trailer weight and 500 lbs. tongue weight
- Compatible with weight distribution hitch (8,000 lbs. WD / 800 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
CURT 55381 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Dodge Ram 2500, 1500 Van, 2500 Van, Dodge Sprinter 2500 and 3500, Jeep Commander, Grand Cherokee and Liberty and Mitsubishi Raider (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$237 64 $393.90 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$393.90 $237 64
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Each may be shipped from a separate location, and therefore, may arrive at different times
Product Details
- Brand: Curt
- Model: 13280 55381-CH789
- Includes: Class 3 Trailer Tow Hitch, Custom Wiring
Compatibility Chart
Description
Each may be shipped from a separate location, and therefore, may arrive at different times
Get Expert Help
For 2000-2004 Dodge Dakota Trailer Hitch + Wiring 4 Pin Fits w/ Tow Prep Package Curt 13280 55381 2 inch Tow Receiver Install Notes
Installation Instructions for 87-04 Dodge Dakota Pickup (2WD & 4WD, 2 & 4 Door)
Part Numbers:
- 13280
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Drill with 1/2" bit
- Cutting tool (if needed for bolt plate)
Step-by-Step Instructions:
-
Remove the rearmost bolt at the end of the frame rail on both sides.
- Note: On some models, the rearmost bolts are connected with a plate. Remove and cut the plate midway between the bolts. Discard the rearmost section and reinstall the other bolt.
-
Position the hitch on the vehicle and install the 7/16" fasteners loosely.
-
For Different Year Models:
- 1995 and Earlier Models: Using the side bracket of the receiver as a template, drill two (2) holes into the bottom of the frame rail with a 1/2" bit. Repeat on the other side.
- 1996 Models: Using the side bracket of the receiver as a template, drill the forward attachment hole into the bottom of the frame rail with a 1/2" bit. Repeat on the other side.
- 1997 and Later Models: Align the hitch with the existing holes in the frame.
-
Install the remaining 1/2" fasteners as shown in the diagram.
-
Torque all hardware to the following specifications:
- 1/2" fasteners: 110 lb-ft.
- 7/16" fasteners: 70 lb-ft.
-
Exhaust Hanger: The exhaust hanger may need to be repositioned for proper clearance.
Additional Notes:
- Drilling is required for some models.
- Cutting may be required to remove the existing bolt plate.
Hardware List:
- Bolt, Carriage, 1/2-13 UNC, 1-3/4, Grade 8, YZ: Qty 4 (Part No. 10-10272)
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 4 (Part No. 20-00062)
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2 (Part No. CM-SP14)
- Bolt, Carriage, 7/16-14 UNC, 1-1/2, Grade 8, YZ: Qty 2 (Part No. 10-10282)
- Nut, Ser-Flange, 7/16-14 UNC, Grade 8, YZ: Qty 2 (Part No. 20-00103)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 8,000 lbs (trailer weight), 800 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 36 minutes
- Novice (DIY): 50 minutes
- Drilling is required for certain models.
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 87-04 Dodge Dakota Pickup (2WD & 4WD, 2 & 4 Door)
Part Numbers:
- 13280
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Drill with 1/2" bit
- Cutting tool (if needed for bolt plate)
Step-by-Step Instructions:
-
Remove Rearmost Bolt:
- Remove the rearmost bolt at the end of the frame rail on both sides.
- Note: On some models, the rearmost bolts are connected with a plate. Remove and cut the plate midway between the bolts. Discard the rearmost section and reinstall the other bolt.
-
Position the Hitch:
- Position the hitch on the vehicle and install the 7/16" fasteners loosely.
-
Drill Frame Rail Holes (If Applicable):
- 1995 and Earlier Models: Using the side bracket of the receiver as a template, drill two (2) holes into the bottom of the frame rail with a 1/2" bit. Repeat on the other side.
- 1996 Models: Using the side bracket of the receiver as a template, drill the forward attachment hole into the bottom of the frame rail with a 1/2" bit. Repeat on the other side.
- 1997 and Later Models: Align the hitch with the existing holes in the frame.
-
Install Remaining Fasteners:
- Install the remaining 1/2" fasteners as shown in the diagram.
-
Torque Fasteners:
- Torque all hardware to the following specifications:
- 1/2" fasteners: 110 lb-ft.
- 7/16" fasteners: 70 lb-ft.
- Torque all hardware to the following specifications:
-
Adjust Exhaust Hanger:
- Reposition the exhaust hanger as needed for proper clearance.
Additional Notes:
- Drilling is required for some models.
- Cutting may be required to remove the existing bolt plate.
Hardware List:
- Bolt, Carriage, 1/2-13 UNC, 1-3/4, Grade 8, YZ: Qty 4
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 4
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2
- Bolt, Carriage, 7/16-14 UNC, 1-1/2, Grade 8, YZ: Qty 2
- Nut, Ser-Flange, 7/16-14 UNC, Grade 8, YZ: Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 8,000 lbs (trailer weight), 800 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 36 minutes
- Novice (DIY): 50 minutes
- Drilling is required for certain models.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Need Assistance?
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Chrysler, Dodge, Freightliner, Jeep, and Mitsubishi Vehicles with Factory 7-Way
Part Number:
- 55381
Applicable Models:
- Chrysler Aspen
- Chrysler Pacifica
- Dodge Dakota
- Dodge Durango
- Dodge Ram 1500, 2500, 3500
- Dodge Ram Van 1500, 2500, 3500
- Dodge Sprinter 2500, 3500
- Freightliner Sprinter 2500, 3500
- Jeep Commander
- Jeep Grand Cherokee
- Jeep Liberty
- Mitsubishi Raider
Note: All vehicles must be equipped with a factory 7-way connector.
Wiring Access Locations:
-
SUVs, Mini & Full-Sized Vans:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S5: Behind driver side rear bumper
- S6: Behind center of rear bumper
-
Pickup Trucks:
- T1: Behind driver side taillight housing
- T2: Behind passenger side taillight housing
- T3: Behind driver side rear bumper
- T5: Behind passenger side rear bumper
Step-by-Step Instructions:
-
Locate the Vehicle's Taillight Wiring Harness:
- Under the driver side bumper, find the vehicle's taillight wiring harness connectors.
- These connectors will resemble those on the custom wiring harness.
-
Remove the Factory 7-Way Connector:
- Unscrew or unbolt the mounting hardware securing the factory 7-way connector to its bracket.
- Carefully remove the 7-way connector from the bracket.
-
Disconnect the 7-Way Connector:
- Gently press the red locking tab sideways to unlock the connector.
- Separate the 7-way connector from the vehicle's wiring harness, taking care not to damage the locking tabs.
- Ensure all mating surfaces are clean and free of dirt; clean if necessary.
-
Install the Custom Wiring Harness:
- Insert the custom wiring harness between the separated connectors.
- Ensure connectors are fully inserted with locking tabs secured.
- Push the red locking tabs back to their original positions.
-
Reassemble Components:
- Reinstall all items removed during the installation.
- Attach the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Before drilling, check for any items hidden behind or under surfaces to avoid damage or personal injury.
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to prevent contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for Chrysler, Dodge, Freightliner, Jeep, and Mitsubishi Vehicles with Factory 7-Way
Part Number:
- 55381
Applicable Models:
- Chrysler Aspen
- Chrysler Pacifica
- Dodge Dakota
- Dodge Durango
- Dodge Ram 1500, 2500, 3500
- Dodge Ram Van 1500, 2500, 3500
- Dodge Sprinter 2500, 3500
- Freightliner Sprinter 2500, 3500
- Jeep Commander
- Jeep Grand Cherokee
- Jeep Liberty
- Mitsubishi Raider
Note: All vehicles must be equipped with a factory 7-way connector.
Wiring Access Locations:
-
SUVs, Mini & Full-Sized Vans:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S5: Behind driver side rear bumper
- S6: Behind center of rear bumper
-
Pickup Trucks:
- T1: Behind driver side taillight housing
- T2: Behind passenger side taillight housing
- T3: Behind driver side rear bumper
- T5: Behind passenger side rear bumper
Step-by-Step Instructions:
-
Locate the Vehicle's Taillight Wiring Harness:
- Under the driver side bumper, find the vehicle's taillight wiring harness connectors.
- These connectors will resemble those on the custom wiring harness.
-
Remove the Factory 7-Way Connector:
- Unscrew or unbolt the mounting hardware securing the factory 7-way connector to its bracket.
- Carefully remove the 7-way connector from the bracket.
-
Disconnect the 7-Way Connector:
- Gently press the red locking tab sideways to unlock the connector.
- Separate the 7-way connector from the vehicle's wiring harness, taking care not to damage the locking tabs.
- Ensure all mating surfaces are clean and free of dirt; clean if necessary.
-
Install the Custom Wiring Harness:
- Insert the custom wiring harness between the separated connectors.
- Ensure connectors are fully inserted with locking tabs secured.
- Push the red locking tabs back to their original positions.
-
Reassemble Components:
- Reinstall all items removed during the installation.
- Attach the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Before drilling, check for any items hidden behind or under surfaces to avoid damage or personal injury.
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to prevent contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- Warranty Duration: [Insert warranty period]
- Coverage Details: [Insert coverage details]
- For complete warranty information, please download the full installation PDF.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
