For 2001‑2004 Ford Escape Trailer Hitch Fits w/ factory Tow Package Curt 13506 2 inch Tow Receiver
Model: 13506-CH1207This Trailer Tow Hitch Fits The Following Vehicles:
2001 - 2004 Ford Escape w/ factory Tow Package
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Drilling Required)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2001, 2002, 2003, 2004

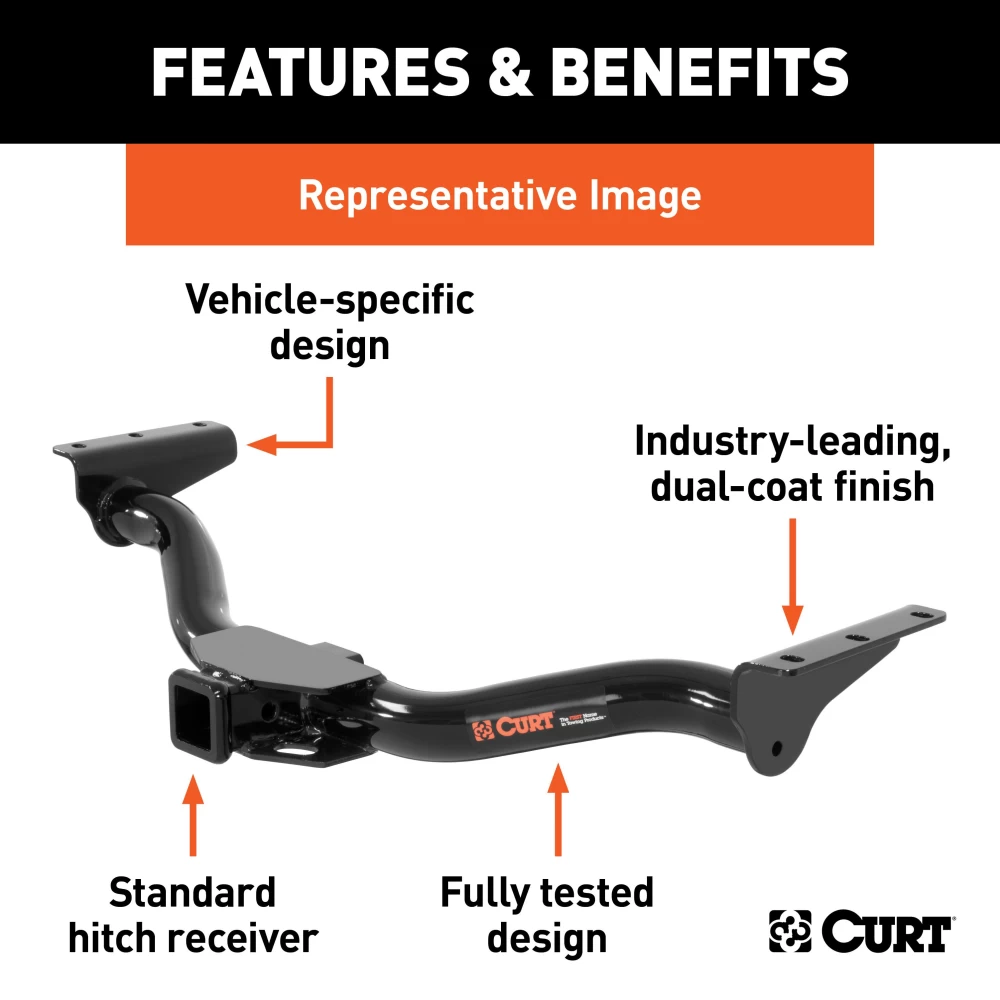

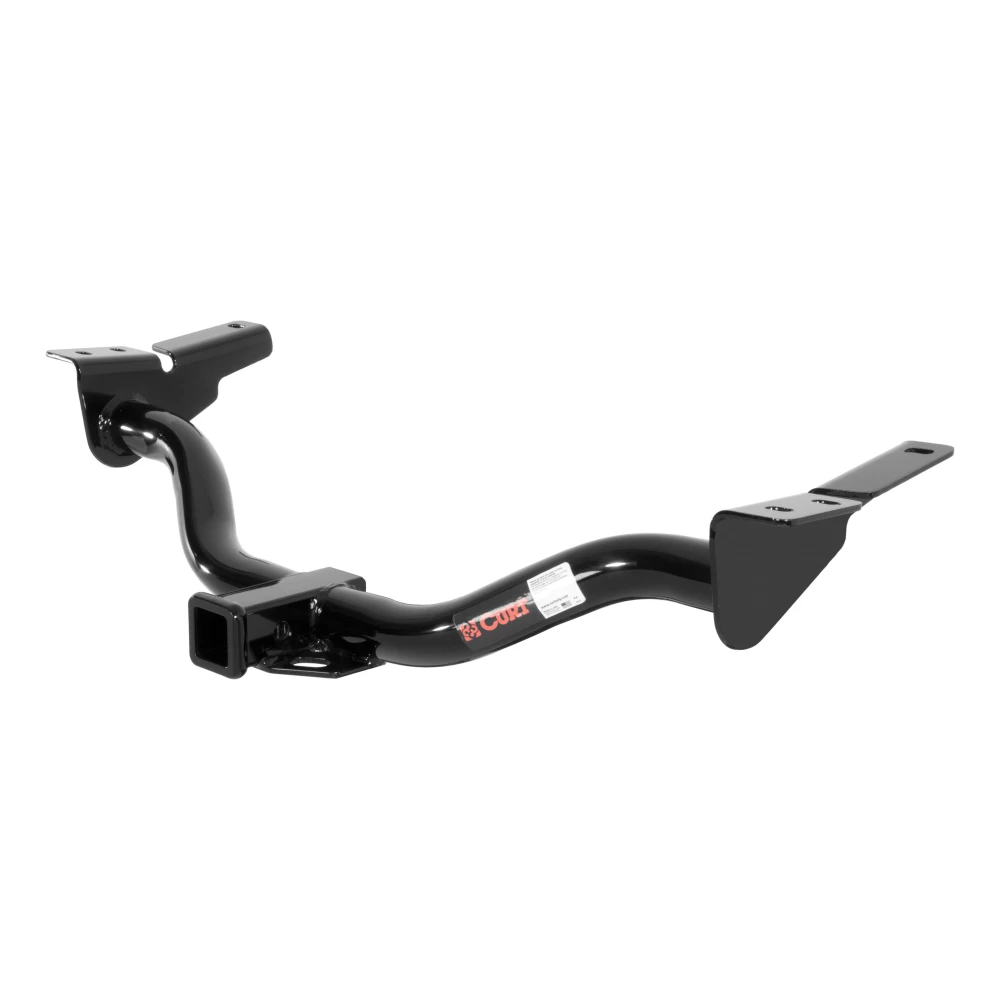

CURT 13506 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Mazda Tribute and Ford Escape (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 350 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 500 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 500 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit

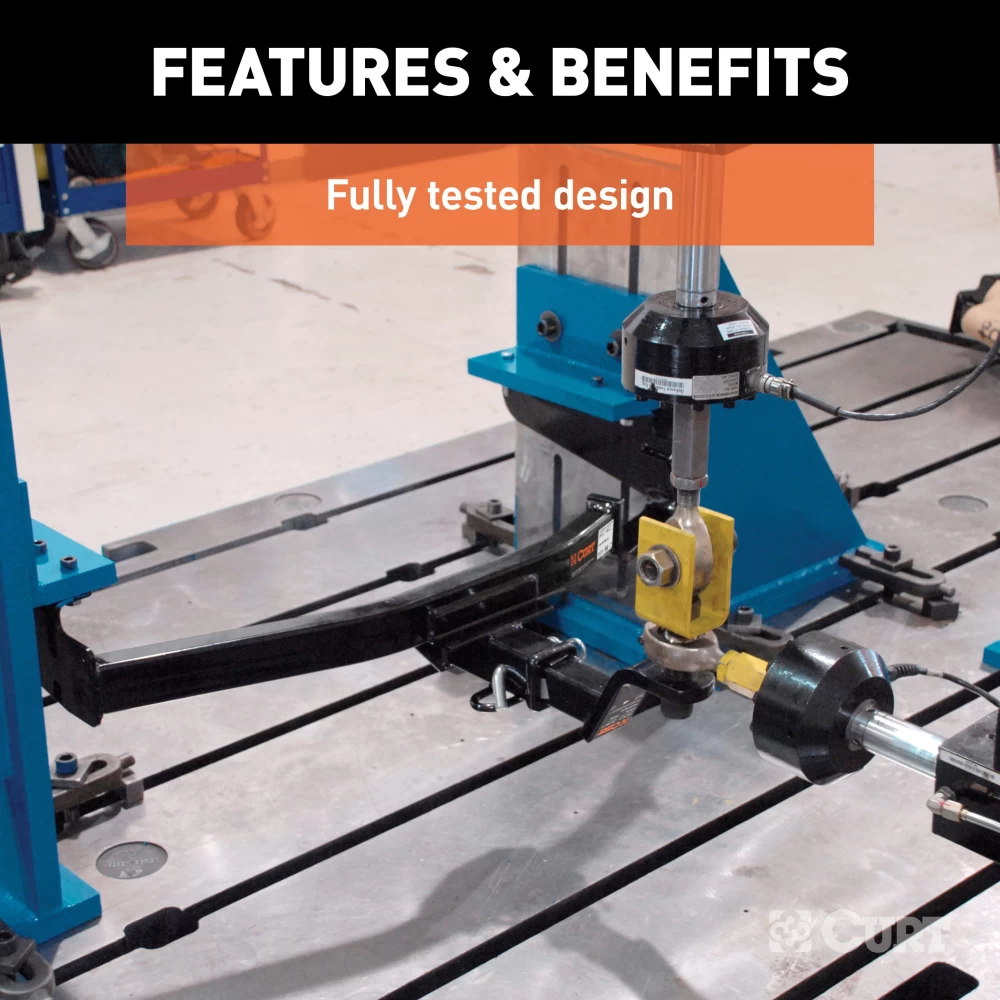

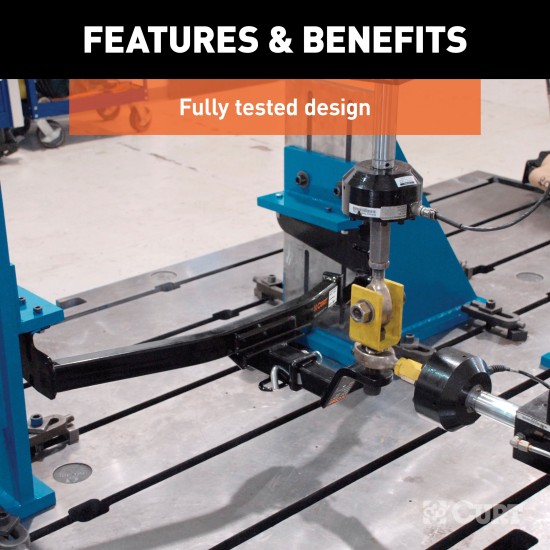

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

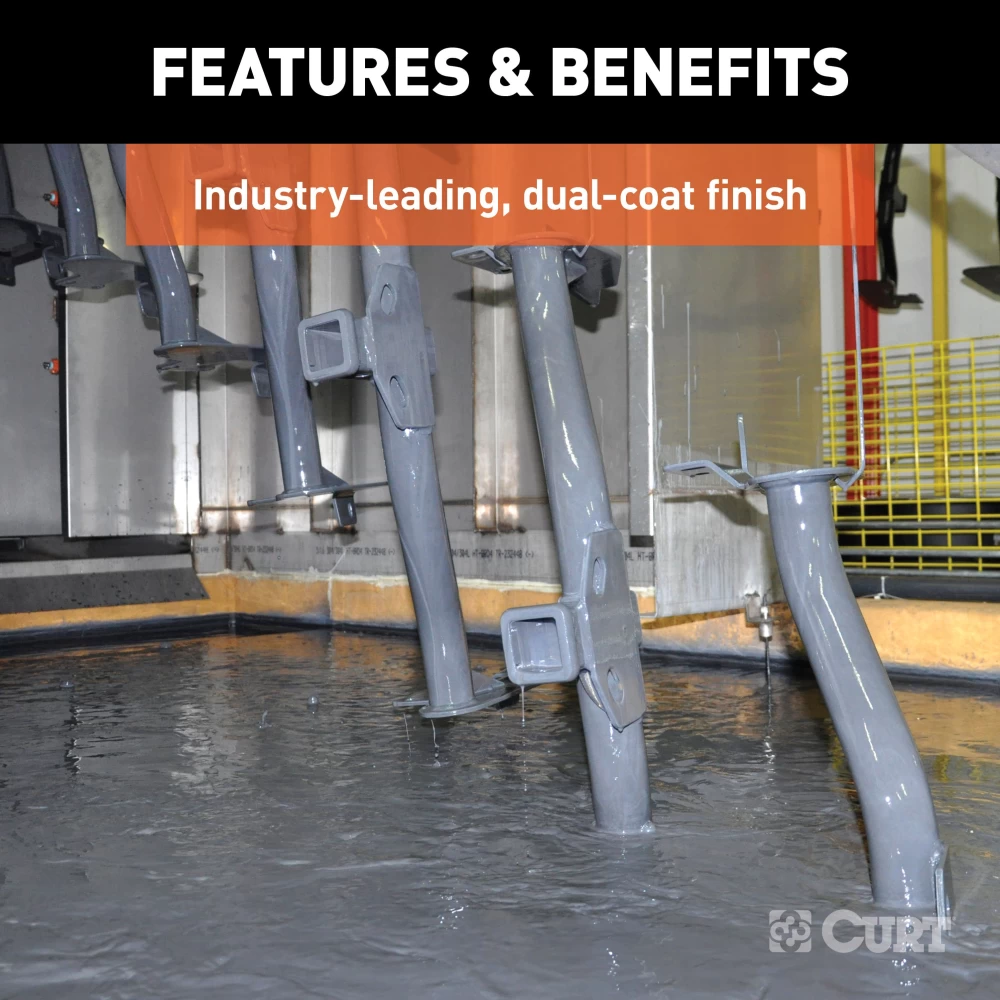

- Co-cured in a rust-resistant liquid A-coat, inside and out

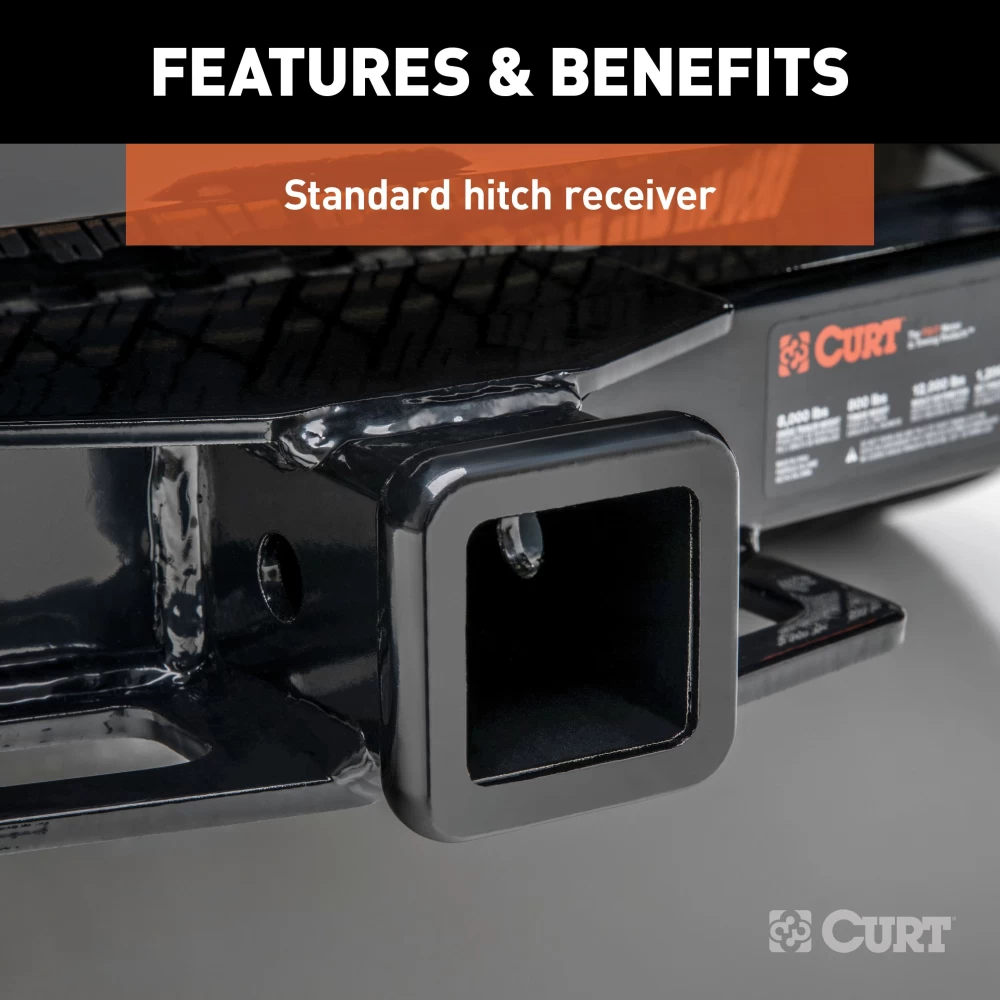

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$227 24 $354.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$354.95 $227 24
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $56.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13506-CH1207
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2001-2004 Ford Escape Trailer Hitch Fits w/ factory Tow Package Curt 13506 2 inch Tow Receiver Install Notes
Installation Instructions for 2001-2004 Ford Escape & Mazda Tribute
Part Numbers:
- 13506
Tools Required:
- Torque wrench
- Ratchet
- Drill
- 7/16" drill bit
- 10mm socket
- 3/4" socket
- 7/16" fishwire tool (provided)
Step-by-Step Instructions:
-
Remove Heat Shield (2002 and Earlier Models):
- Remove the heat shield using a 10mm socket. Set it aside for reinstallation.
-
Vehicles with Frame Weld Nuts:
- Raise the hitch into position and secure it using the M12 hex bolts and washers provided.
- Use the hitch as a template to mark and drill the center holes into the frame using a 7/16" drill bit.
- Install the 7/16-14 carriage bolts and CM-SP2 spacers through the drilled holes.
-
Vehicles Without Frame Weld Nuts:
- Fishwire the 7/16-14 carriage bolts and CM-SP2 square hole spacers through the existing access holes into position using the provided fishwire tool.
- Raise the hitch into place and secure it using the 7/16-14 serrated flange nuts.
-
Reinstall the Heat Shield:
- Trim the heat shield as necessary to allow clearance for the hitch.
- Reinstall the heat shield using the existing fasteners, except over the hitch bracket, where the provided M6 hex bolt and flat washer should be used.
- Torque the M6 bolt to 9 lb-ft.
-
Torque Fasteners:
- Torque all M12 fasteners to 79 lb-ft.
- Torque all 7/16" fasteners to 70 lb-ft.
Hardware List:
- Hex Bolt, M12 x 1.75 x 45, Class 10.9, YZ: Qty 4 (Part No. 10-10459)
- Carriage Bolt, 7/16-14 x 1-3/4, Grade 8, YZ: Qty 2 (Part No. 10-10314)
- Hex Flange Nut, 7/16-14, Grade 8, YZ: Qty 2 (Part No. 20-00172)
- Square Hole Spacer, .250 x .88 x 2.25" (CM-SP2): Qty 2
- Conical Washer, 1/2, YZ: Qty 4 (Part No. 30-00149)
- Flat Washer, M6, YZ: Qty 1 (Part No. 30-00188)
- Hex Bolt, M6-1.00 x 20, YZ: Qty 1 (Part No. 10-10483)
- 7/16" Fishwire Tool: Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: 31 lbs
- Installation Time:
- Professional: 40 minutes
- Novice (DIY): 80 minutes
- Drilling Required: On some vehicles
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Vehicle Applications:
- Fits 2001-2004 Ford Escape
- Fits 2001-2004 Mazda Tribute
Revision History:
- 7/2/2020: Initial version released.
Installation Instructions for 2001-2004 Ford Escape & Mazda Tribute
Part Numbers:
- 13506
Tools Required:
- Torque wrench
- Ratchet
- Drill
- 7/16" drill bit
- 10mm socket
- 3/4" socket
- 7/16" fishwire tool (provided)
Step-by-Step Instructions:
1. Remove Heat Shield (2002 and Earlier Models):
- Remove the heat shield using a 10mm socket. Set it aside for reinstallation.
2. Vehicles with Frame Weld Nuts:
- Raise the hitch into position and secure it using the M12 hex bolts and washers provided.
- Use the hitch as a template to mark and drill the center holes into the frame using a 7/16" drill bit.
- Install the 7/16-14 carriage bolts and CM-SP2 spacers through the drilled holes.
3. Vehicles Without Frame Weld Nuts:
- Fishwire the 7/16-14 carriage bolts and CM-SP2 square hole spacers through the existing access holes into position using the provided fishwire tool.
- Raise the hitch into place and secure it using the 7/16-14 serrated flange nuts.
4. Reinstall the Heat Shield:
- Trim the heat shield as necessary to allow clearance for the hitch.
- Reinstall the heat shield using the existing fasteners, except over the hitch bracket, where the provided M6 hex bolt and flat washer should be used.
- Torque the M6 bolt to 9 lb-ft.
5. Torque Fasteners:
- Torque all M12 fasteners to 79 lb-ft.
- Torque all 7/16" fasteners to 70 lb-ft.
Hardware List:
| Qty | Description | Part Number |
|---|---|---|
| 4 | Hex Bolt, M12 x 1.75 x 45, Class 10.9, YZ | 10-10459 |
| 2 | Carriage Bolt, 7/16-14 x 1-3/4, Grade 8, YZ | 10-10314 |
| 2 | Hex Flange Nut, 7/16-14, Grade 8, YZ | 20-00172 |
| 2 | Square Hole Spacer, .250 x .88 x 2.25" (CM-SP2) | - |
| 4 | Conical Washer, 1/2, YZ | 30-00149 |
| 1 | Flat Washer, M6, YZ | 30-00188 |
| 1 | Hex Bolt, M6-1.00 x 20, YZ | 10-10483 |
| 1 | 7/16" Fishwire Tool | - |
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: 31 lbs
- Installation Time:
- Professional: 40 minutes
- Novice (DIY): 80 minutes
- Drilling Required: On some vehicles
Important Notice:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Vehicle Applications:
- Fits 2001-2004 Ford Escape
- Fits 2001-2004 Mazda Tribute
Warranty Information:
- Warranty coverage details and duration apply as specified.
- For complete warranty instructions, please download the full installation PDF.
Revision History:
- 7/2/2020: Initial version released.
