For 2003‑2004 VW Passat Trailer Hitch Fits W8 Curt 11164 1‑1/4 Tow Receiver
Model: 11164-CH3720This Trailer Tow Hitch Fits The Following Vehicles:
2003 - 2004 Volkswagen Passat W8
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Hitch, 1-1/4" Receiver (Drilling Required)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2003, 2004

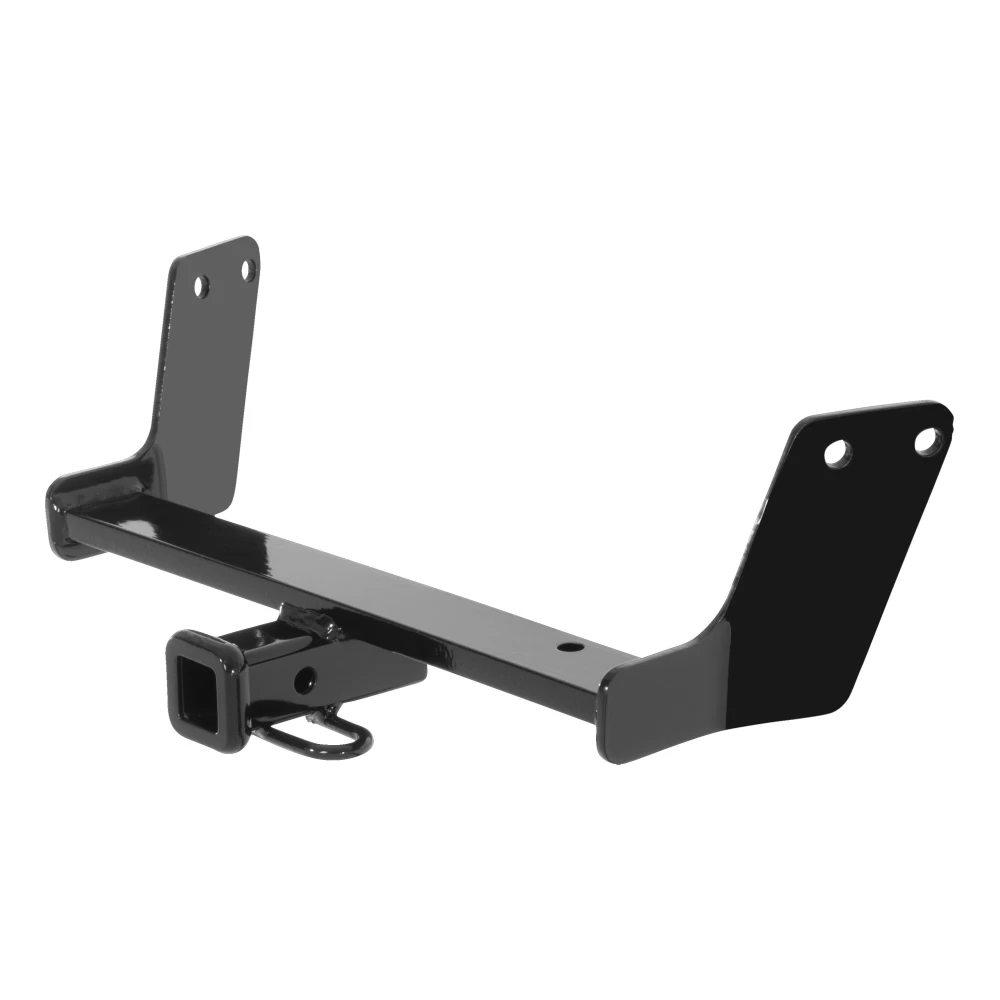

CURT 11164 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Audi A4, A4 Quattro, S4 and Volkswagen Passat (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.
TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..
Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight

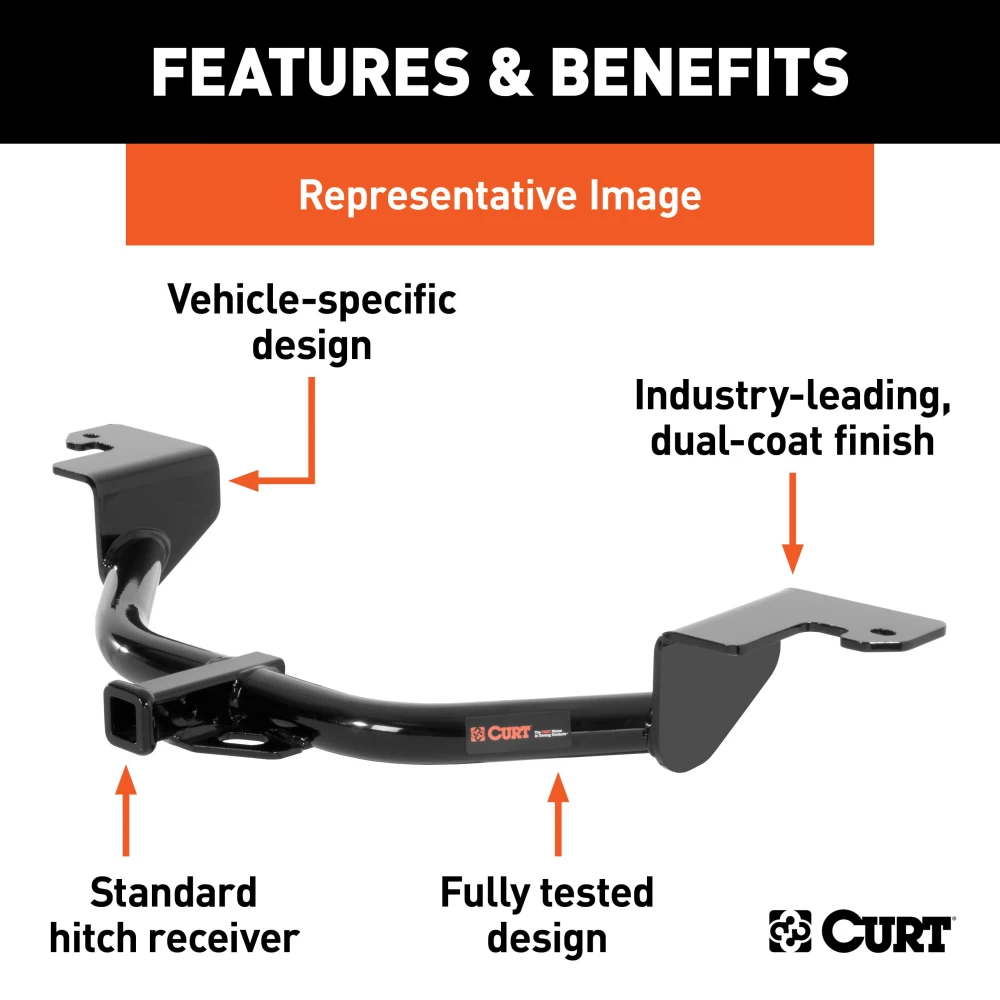

- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

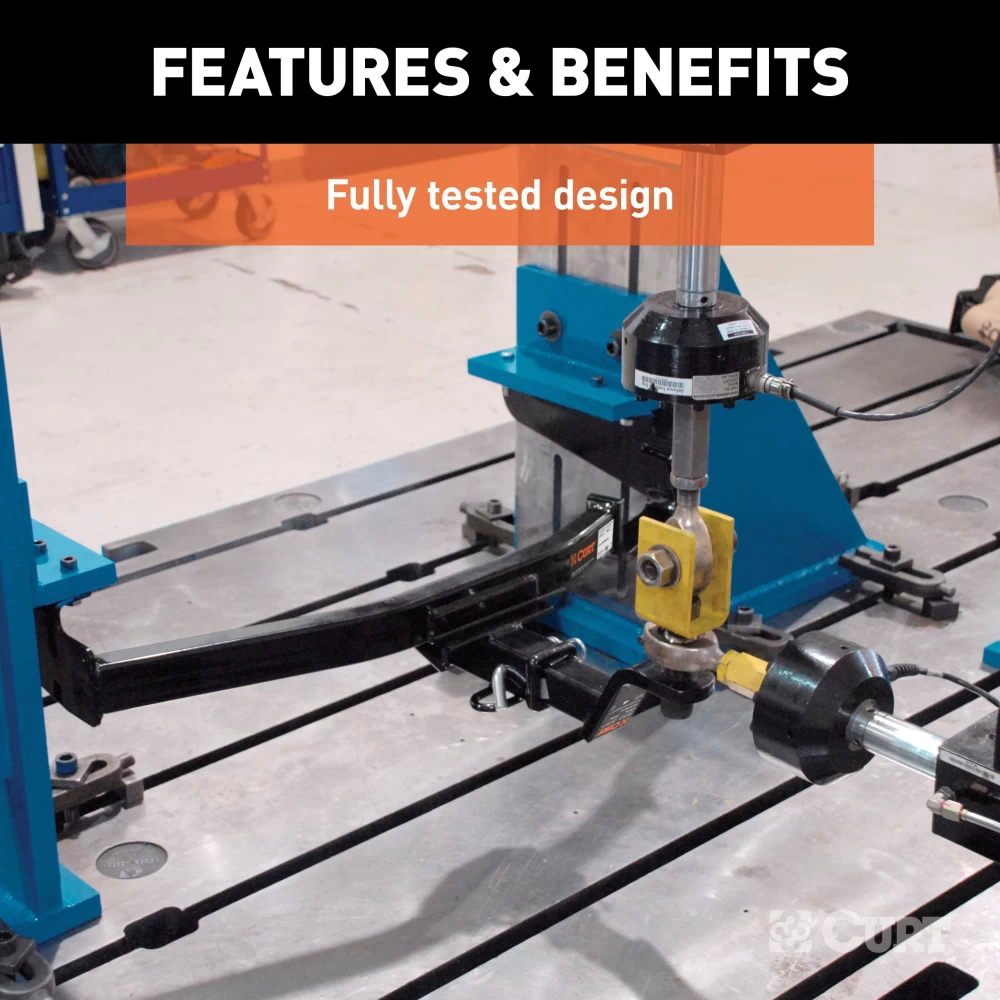

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

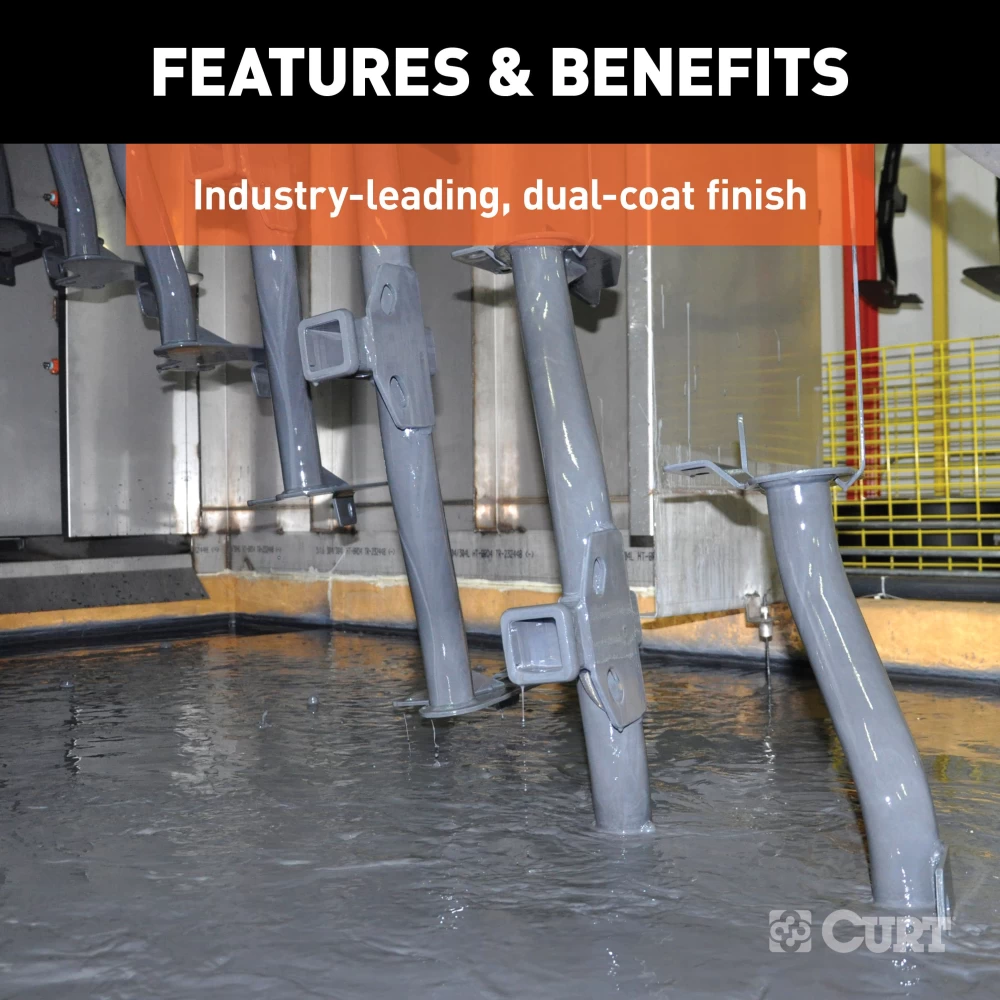

- Co-cured in a rust-resistant liquid A-coat, inside and out

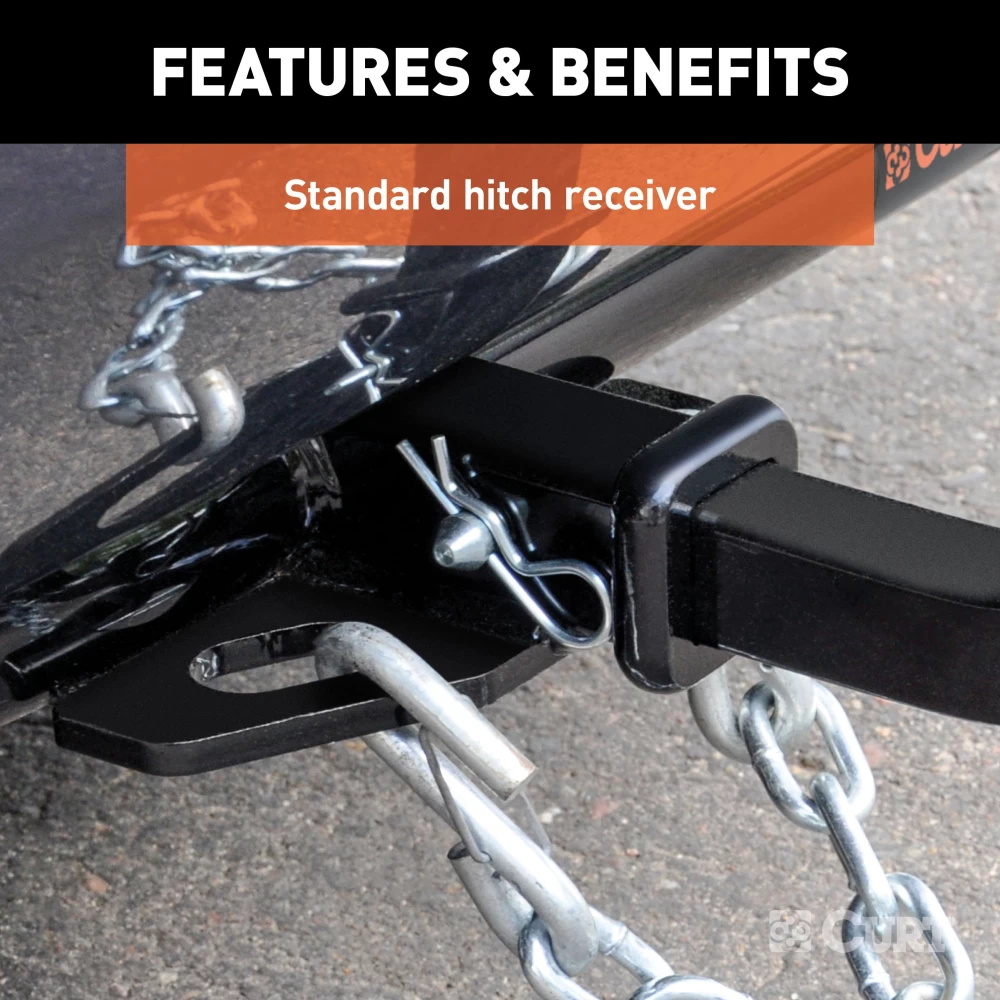

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$327 99 $497.95 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$497.95 $327 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $81.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11164-CH3720
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2003-2004 VW Passat Trailer Hitch Fits W8 Curt 11164 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2002-2006 Audi A4 Avant / 2004-2008 Audi S4 Sedan / 2003-2005 Volkswagen Passat (W8)
Part Numbers:
- 11164 / 249414 / 247414
Tools Required:
- Torque wrench
- Ratchet
- Drill
- 3/8" drill bit
- Socket set
Step-by-Step Instructions:
-
Prepare Vehicle:
- Temporarily remove the spare tire to clear the tire well for drilling.
-
Position the Hitch:
- Place the hitch into position on top of the tow loop, ensuring the side plates rest against the sides of the tire well.
- Install the 7/16" fasteners using the provided SP51 spacer under the tow loop.
- Snug the fasteners but do not fully tighten.
-
Mark Drilling Locations:
- Adjust the hitch to ensure it is level and square with the car.
- Mark the tire well in two places on each side for drilling.
-
Drill Holes for Fasteners:
- Remove the hitch and drill holes for the 3/8" bolts using a 3/8" drill bit.
-
Reinstall Hitch and Hardware:
- Reposition the hitch on the vehicle and install all fasteners.
- Place the provided large fender washers inside the tire well opposite the hitch for reinforcement.
-
Torque Fasteners:
- Torque all 7/16" fasteners to 70 ft-lbs.
- Torque all 3/8" fasteners to 45 ft-lbs.
-
Reinstall Spare Tire:
- Reinstall the spare tire into its original position.
Hardware List:
- Hex Bolt, 3/8-16 x 1-1/2, Grade 8, YZ: Qty 4 (Part No. 10-10234)
- Hex Bolt, 7/16-14 x 2-1/2, Grade 8, YZ: Qty 2 (Part No. 10-10442)
- Hex Nut, 7/16-14, Grade 8, YZ: Qty 2 (Part No. 20-00147)
- Hex Nut, 3/8-16, Grade 8, YZ: Qty 4 (Part No. 20-00166)
- Lock Washer, 3/8, YZ: Qty 4 (Part No. 30-00130)
- Lock Washer, 7/16, YZ: Qty 2 (Part No. 30-00184)
- Flat Fender Washer, 3/8, CZ: Qty 4 (Part No. 30-00205)
- Round Hole Spacer, .188 x 1.50 x 3.00 (CM-SP34): Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Important: All non-trailer loads must be supported by auxiliary stabilizing straps.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 20 minutes
- Novice (DIY): 40 minutes
- Drilling Required: Yes
- Spare Tire: Temporarily remove for installation
- Trimming: Lower fascia trimming may be required
Manufacturer Notes:
- Designed for use with Ball Mount #D-55010 / 45510.
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Vehicle Applications:
- Fits 2002-2006 Audi A4 Avant
- Fits 2004-2008 Audi S4 Sedan
- Fits 2003-2005 Volkswagen Passat (W8)
Revision History:
- 11/06/2020: Initial version released.
Installation Instructions for 2002-2006 Audi A4 Avant / 2004-2008 Audi S4 Sedan / 2003-2005 Volkswagen Passat (W8)
Part Numbers:
- 11164 / 249414 / 247414
Tools Required:
- Torque wrench
- Ratchet
- Drill
- 3/8" drill bit
- Socket set
Step-by-Step Instructions:
-
Prepare Vehicle:
- Temporarily remove the spare tire to clear the tire well for drilling.
-
Position the Hitch:
- Place the hitch into position on top of the tow loop, ensuring the side plates rest against the sides of the tire well.
- Install the 7/16" fasteners using the provided SP51 spacer under the tow loop.
- Snug the fasteners but do not fully tighten.
-
Mark Drilling Locations:
- Adjust the hitch to ensure it is level and square with the car.
- Mark the tire well in two places on each side for drilling.
-
Drill Holes for Fasteners:
- Remove the hitch and drill holes for the 3/8" bolts using a 3/8" drill bit.
-
Reinstall Hitch and Hardware:
- Reposition the hitch on the vehicle and install all fasteners.
- Place the provided large fender washers inside the tire well opposite the hitch for reinforcement.
-
Torque Fasteners:
- Torque all 7/16" fasteners to 70 ft-lbs.
- Torque all 3/8" fasteners to 45 ft-lbs.
-
Reinstall Spare Tire:
- Reinstall the spare tire into its original position.
Hardware List:
- Hex Bolt, 3/8-16 x 1-1/2, Grade 8: Qty 4
- Hex Bolt, 7/16-14 x 2-1/2, Grade 8: Qty 2
- Hex Nut, 7/16-14, Grade 8: Qty 2
- Hex Nut, 3/8-16, Grade 8: Qty 4
- Lock Washer, 3/8: Qty 4
- Lock Washer, 7/16: Qty 2
- Flat Fender Washer, 3/8: Qty 4
- Round Hole Spacer, .188 x 1.50 x 3.00 (CM-SP34): Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Important: All non-trailer loads must be supported by auxiliary stabilizing straps.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 20 minutes
- Novice (DIY): 40 minutes
- Drilling Required: Yes
- Spare Tire: Temporarily remove for installation
- Trimming: Lower fascia trimming may be required
For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Coverage: Limited Lifetime Warranty
- For complete warranty instructions, please download the full installation PDF.
Warning: All non-trailer loads must be supported by auxiliary stabilizing straps to maintain warranty coverage.
