For 2005‑2024 Nissan Frontier 7 Pin Trailer Wiring RV 7 Way Trailer Plug By Tekonsha
Model: 118266 20212-523998This Bundle Fits The Following Vehicles:
2005-2024 Nissan Frontier

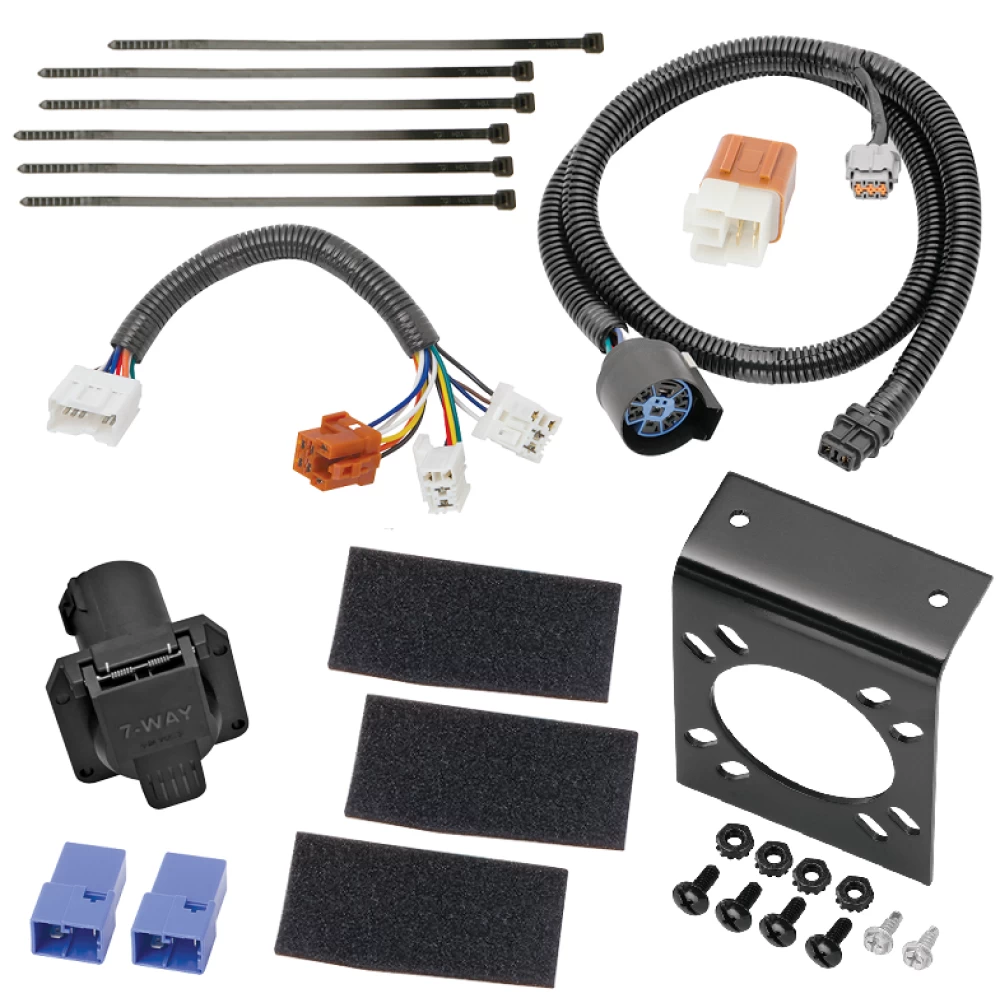

This Bundle Includes the Following Parts:
7-Way RV Wiring
List of fitment years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

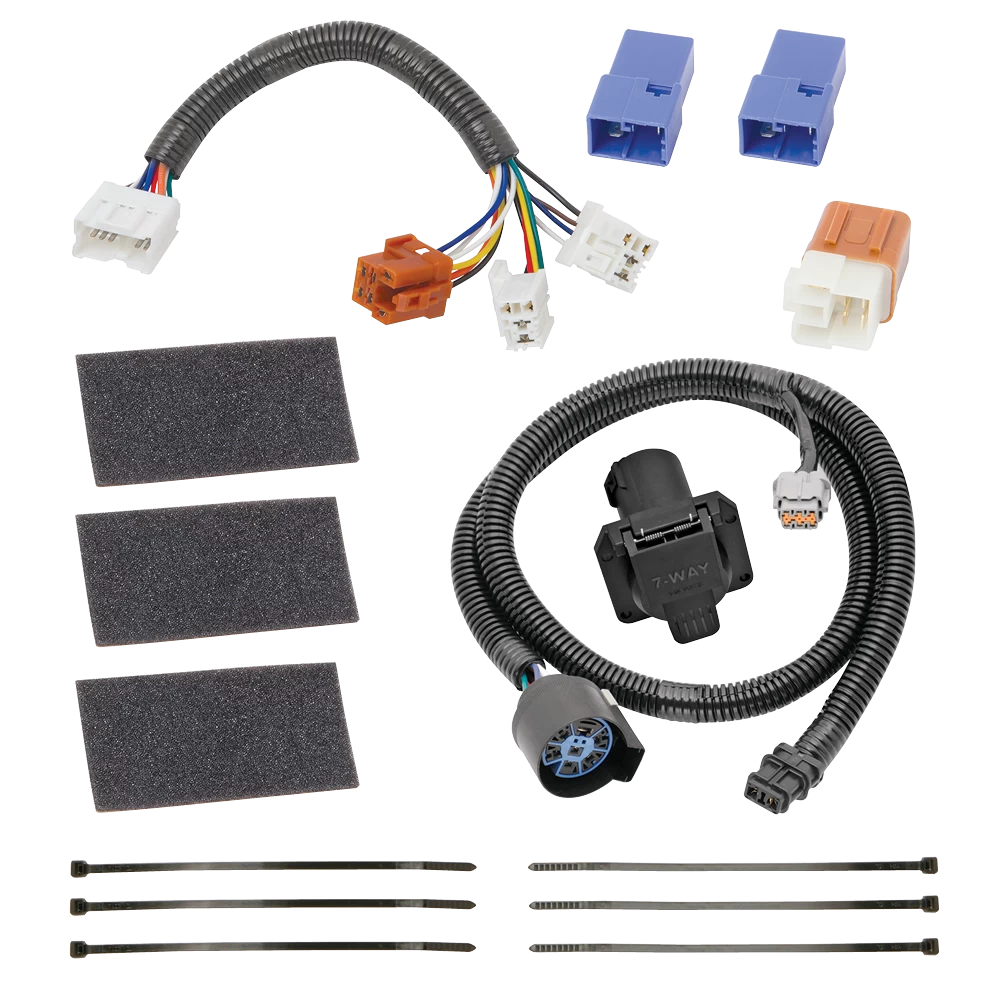

Tow Harness, 7-Way Manufactured by: Tekonsha
T-One Connectors require no splicing of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.
- Exact replacement for damaged factory wiring harnesses
- Installs in seconds on vehicles not factory pre-wired
- Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
- Connects directly to standard factory connector
- Attractive point-of-purchase packaging
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
$80 04 $161.31 50% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$161.31 $80 04
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $20.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118266 20212-523998
- Includes: Tow Custom Harness, Mounting Bracket
Compatibility Chart
Description
Get Expert Help
For 2005-2024 Nissan Frontier 7 Pin Trailer Wiring RV 7 Way Trailer Plug By Tekonsha Install Notes
Installation Instructions for T-One® T-Connector for Nissan Pathfinder, Xterra, Frontier, and Equator
Part Numbers:
- 118266
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation:
-
Insert Relays:
- Insert the relays (included) into the relay and fuse harness.
- Note: Using relays other than those provided can result in malfunction or damage to the vehicle or trailer.
-
Locate the Vehicle's 12-Pin Jumper Plug:
- Find the jumper plug inside the vehicle cabin, on the passenger side, behind the kick panel.
-
Remove the Passenger Side Kick Panel:
- Use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards and then toward the rear of the vehicle.
- Remove the kick panel to access the 12-pin jumper plug.
-
Connect the Jumper Harness:
- Insert the jumper harness into the vehicle’s 12-pin connector and lock it in place.
- Secure the jumper harness using the provided cable ties and foam tape to prevent damage or rattling.
-
Reinstall Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation:
-
Locate the Vehicle Tow Plugs:
- Underneath the vehicle, locate the tow plugs near the driver’s side rear tire.
- Remove the protective caps from the tow plugs.
-
Connect the T-Connector:
- Attach the T-Connector to the vehicle’s mating connector.
- Ensure connectors are fully inserted with locking tabs in place.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
- Mount the 7-way socket in an accessible location using a bracket or electrical box (not included).
- Secure the remainder of the T-Connector harness with the provided cable ties.
-
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 20 amps
- Max. trailer brakes: 3 axles/6 brakes (18 amps)
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Always wear safety glasses and use appropriate precautions during installation.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118266
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation:
-
Insert Relays:
- Insert the relays (included) into the relay and fuse harness.
- Note: Using relays other than those provided can result in malfunction or damage to the vehicle or trailer.
-
Locate the Vehicle's 12-Pin Jumper Plug:
- Find the jumper plug inside the vehicle cabin, on the passenger side, behind the kick panel.
-
Remove the Passenger Side Kick Panel:
- Use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards and then toward the rear of the vehicle.
- Remove the kick panel to access the 12-pin jumper plug.
-
Connect the Jumper Harness:
- Insert the jumper harness into the vehicle’s 12-pin connector and lock it in place.
- Secure the jumper harness using the provided cable ties and foam tape to prevent damage or rattling.
-
Reinstall Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation:
-
Locate the Vehicle Tow Plugs:
- Underneath the vehicle, locate the tow plugs near the driver’s side rear tire.
- Remove the protective caps from the tow plugs.
-
Connect the T-Connector:
- Attach the T-Connector to the vehicle’s mating connector.
- Ensure connectors are fully inserted with locking tabs in place.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
- Mount the 7-way socket in an accessible location using a bracket or electrical box (not included).
- Secure the remainder of the T-Connector harness with the provided cable ties.
-
Test the Installation:
- Verify all connections are complete.
- Test the installation using a test light or trailer.
- Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 20 amps
- Max. trailer brakes: 3 axles/6 brakes (18 amps)
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Always wear safety glasses and use appropriate precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
