Product Details
- Brand: Tekonsha
- Model: 8507120 3050-671

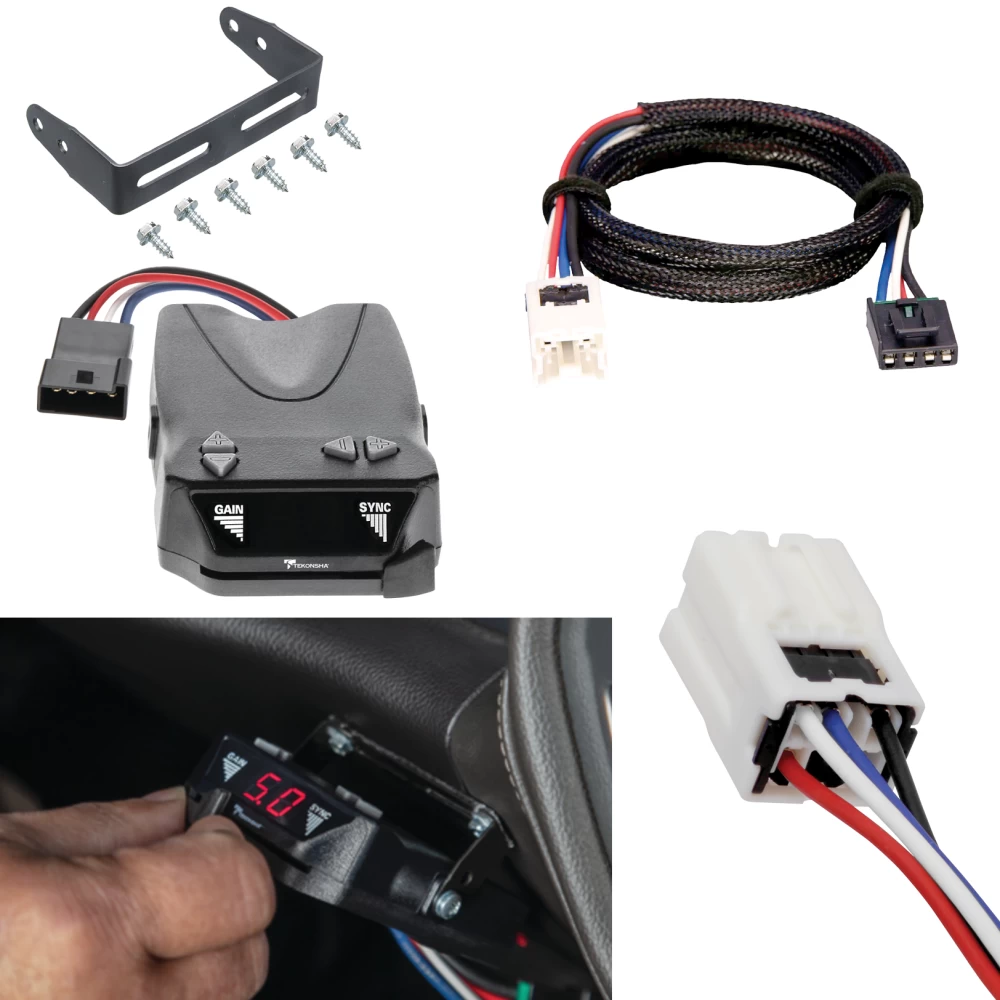

- Includes: Brakeman IV Time-Delay Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Description
Get Expert Help
For 2005-2015 Nissan Xterra Tekonsha Brakeman IV Brake Control + Plug & Play BC Adapter By Tekonsha Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 305000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Brake Control Harness
- The electric brake control harness is located:
- Underneath and to the left of the steering column.
- It is typically taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the plug on the adapter.
Step 2: Plug in the Brake Control Adapter
- Plug the brake control adapter into the vehicle’s 6-pin electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions for:
- Wiring the adapter to the brake controller, and
- Mounting the brake controller securely.
Step 3: Finalize the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller as directed.
- Perform all test procedures as outlined by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles Without an OEM Trailer Tow Package:
- Additional fuses and relays may be required to complete the output and battery feed circuits.
- Refer to the vehicle owner’s manual for fuse and relay locations.
Safety Warnings:
- Overloading Circuits May Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller instruction sheet for further details.
Wiring Overview:
- Fused Battery Feed: Supplies power to the brake controller.
- Stop Lamp Switch (Input): Provides braking signal from the vehicle.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Ground: Ensures proper grounding for the system.
Final Notes:
- Periodically inspect all connections and wires for signs of damage or wear.
- Ensure the system operates correctly before towing.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 305000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Brake Control Harness
- The electric brake control harness is located:
- Underneath and to the left of the steering column.
- It is typically taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the plug on the adapter.
Step 2: Plug in the Brake Control Adapter
- Plug the brake control adapter into the vehicle’s 6-pin electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions for:
- Wiring the adapter to the brake controller, and
- Mounting the brake controller securely.
Step 3: Finalize the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller as directed.
- Perform all test procedures as outlined by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles Without an OEM Trailer Tow Package:
- Additional fuses and relays may be required to complete the output and battery feed circuits.
- Refer to the vehicle owner’s manual for fuse and relay locations.
Safety Warnings:
- Overloading Circuits May Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller instruction sheet for further details.
Wiring Overview:
- Fused Battery Feed: Supplies power to the brake controller.
- Stop Lamp Switch (Input): Provides braking signal from the vehicle.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Ground: Ensures proper grounding for the system.
Final Notes:
- Periodically inspect all connections and wires for signs of damage or wear.
- Ensure the system operates correctly before towing.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation and Operation Instructions for Electronic Brake Control
Part Numbers:
- Included Brake Control Unit: Part Number N8507120
Tools Required:
- Drill with 1/8" bit.
- Screwdriver or 1/4" nut driver.
- Wire connector crimp tool.
- Probe-type circuit tester.
- Assorted end wrenches.
- Wire cutter/stripper.
Safety Notes:
- Ensure the area behind the panel is clear before drilling.
- Follow all instructions to prevent damage to the unit or injury during installation.
- Avoid using RF-generating devices closer than 12 inches to the brake control.
- Always verify proper electrical connections.
Hardware List:
- Brake Control Unit.
- Mounting Bracket.
- (4) Mounting Screws.
- Additional Materials Required:
- 10 Ga. wire.
- 30 Amp auto-reset circuit breaker.
- Assorted ring terminal & butt connectors.
- 4" cable ties (6-10).
Installation Instructions:
Mounting the Unit:
- Choose a Suitable Location:
- Ensure a secure, solid surface.
- Ensure the unit is within easy reach of the driver.
- Verify the area behind the panel is clear.
- Mark and Drill Holes:
- Use the bracket as a template to mark hole locations.
- Drill two 1/8" diameter holes.
- Attach the Bracket:
- Secure the bracket using two self-tapping screws provided.
- Avoid over-tightening to prevent damage to the holes.
- Mount the Brake Control Unit:
- Attach the control unit to the bracket with the remaining screws.
Wiring and Connections:
- Black Wire: Connect to the vehicle's power supply.
- Red Wire: Connect to the stoplight signal.
- White Wire: Connect to the vehicle's ground.
- Blue Wire: Connect to the trailer brakes.
Initial Setup:
- With the trailer connected, press and hold the brake pedal.
- Adjust the Output (Gain) Control to approximately 2.0 using the digital display.
- Adjust the Sync Control to a setting of 4°.
- Test the brake application by driving in an open area and using the manual slide control.
Sync and Output (Gain) Adjustments:
- Sync Control: Adjust the aggressiveness of trailer braking.
- Sync settings range from 0° (least aggressive) to 9° (most aggressive).
- Output (Gain) Control: Adjust the maximum power delivered to the brakes.
- Output ranges from 0 to 10, with 10 being maximum braking power.
Testing and Fine-Tuning:
- Conduct a test drive at low speeds in a clear area.
- Use the Manual Slide Control to apply trailer brakes and adjust the Gain as needed.
- Verify smooth stops without jerking or locking the brakes.
- Adjust Sync settings for road conditions and driver preferences.
Maintenance:
- Regularly inspect all connections and wires for damage or wear.
- Keep the unit clean and free of debris.
- Periodically check and tighten all mounting screws.
Troubleshooting Guide:
Condition | Probable Cause | Solution |
---|---|---|
No trailer brakes. | No power or incorrect wiring. | Check power and ground connections. |
Weak trailer braking. | Low Output (Gain) setting. | Increase the Gain setting. |
Brakes lock when applied. | High Output (Gain) setting. | Decrease the Gain setting. |
Display shows "OL" when active. | Short in the blue wire circuit. | Locate and correct the short. |
Display shows "Er". | Internal brake control issue. | Refer to the full installation PDF for guidance. |
Warranty Information:
- Limited Lifetime Warranty:
- Covers defects in materials and workmanship.
- Excludes damage caused by misuse or improper installation.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help.
You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
