Product Details
- Brand: Curt
- Model: 56329 57672 51500 58361-CW2961

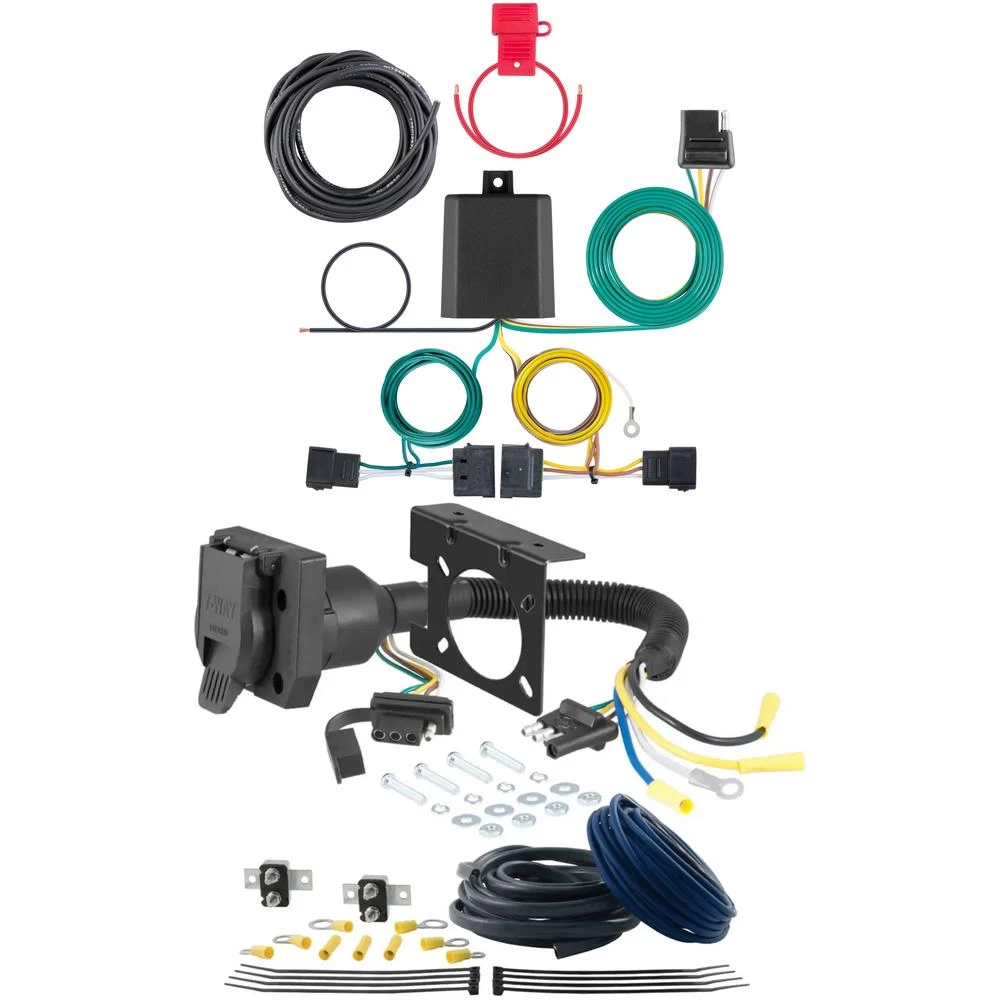

- Includes: Custom Wiring, Dual-Output Electrical Adapter, Trailer Brake Controller Wiring Kit, 30-Amp Universal Circuit Breaker
Compatibility Chart
Description
Get Expert Help
For 2005-2011 Mercury Mariner Trailer Wiring 7 Way Trailer Wiring Plug w/ Bracket Fits All Models Curt Install Notes
Installation Instructions for Ford Edge, Ford Escape, Ford Freestar, Lincoln MKX, Mazda Tribute, and Mercury Mariner
Part Number:
- 56329
Tools Required:
- 10mm socket
- Ratchet
Wiring Access Locations:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Step-by-Step Instructions:
-
Disconnect the Negative Battery Terminal:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove the Driver Side Taillight Assembly:
- Open the vehicle's tailgate.
- Remove the two Phillips screws securing the driver side taillight assembly.
- Gently pull out the taillight assembly, taking care not to damage the alignment tabs.
-
Access the Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the removed taillight assembly.
- These connectors will resemble those on the custom wiring harness.
-
Route the Wiring Harness (Driver Side):
- From underneath the vehicle, locate the access hole leading to the taillight wiring harness under the taillight.
- Route the custom wiring harness end with the yellow wire up through this body opening to the driver side taillight housing.
-
Connect the Wiring Harness (Driver Side):
- Separate the vehicle's connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Route the Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side, behind the removed scuff panels.
- Repeat steps 4 and 5 on the passenger side using the harness end with the green wire.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to avoid contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: For more information, refer to the vehicle owner's manual or contact the vehicle manufacturer.
Installation Instructions for Ford Edge, Ford Escape, Ford Freestar, Lincoln MKX, Mazda Tribute, and Mercury Mariner
Part Number:
- 56329
Tools Required:
- 10mm socket
- Ratchet
Wiring Access Locations:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Step-by-Step Instructions:
-
Disconnect the Negative Battery Terminal:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove the Driver Side Taillight Assembly:
- Open the vehicle's tailgate.
- Remove the two Phillips screws securing the driver side taillight assembly.
- Gently pull out the taillight assembly, taking care not to damage the alignment tabs.
-
Access the Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the removed taillight assembly.
- These connectors will resemble those on the custom wiring harness.
-
Route the Wiring Harness (Driver Side):
- From underneath the vehicle, locate the access hole leading to the taillight wiring harness under the taillight.
- Route the custom wiring harness end with the yellow wire up through this body opening to the driver side taillight housing.
-
Connect the Wiring Harness (Driver Side):
- Separate the vehicle's connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Route the Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side, behind the removed scuff panels.
- Repeat steps 4 and 5 on the passenger side using the harness end with the green wire.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to avoid contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: For more information, refer to the vehicle owner's manual or contact the vehicle manufacturer.
Important Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
