For 2005‑2006 Jeep Grand Cherokee 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Prodigy P2 Brake Controller By Tekonsha
Model: 118394 85343 20506 7012A 90885-451267This Bundle Fits The Following Vehicles:
- 2005-2006 Jeep Grand Cherokee

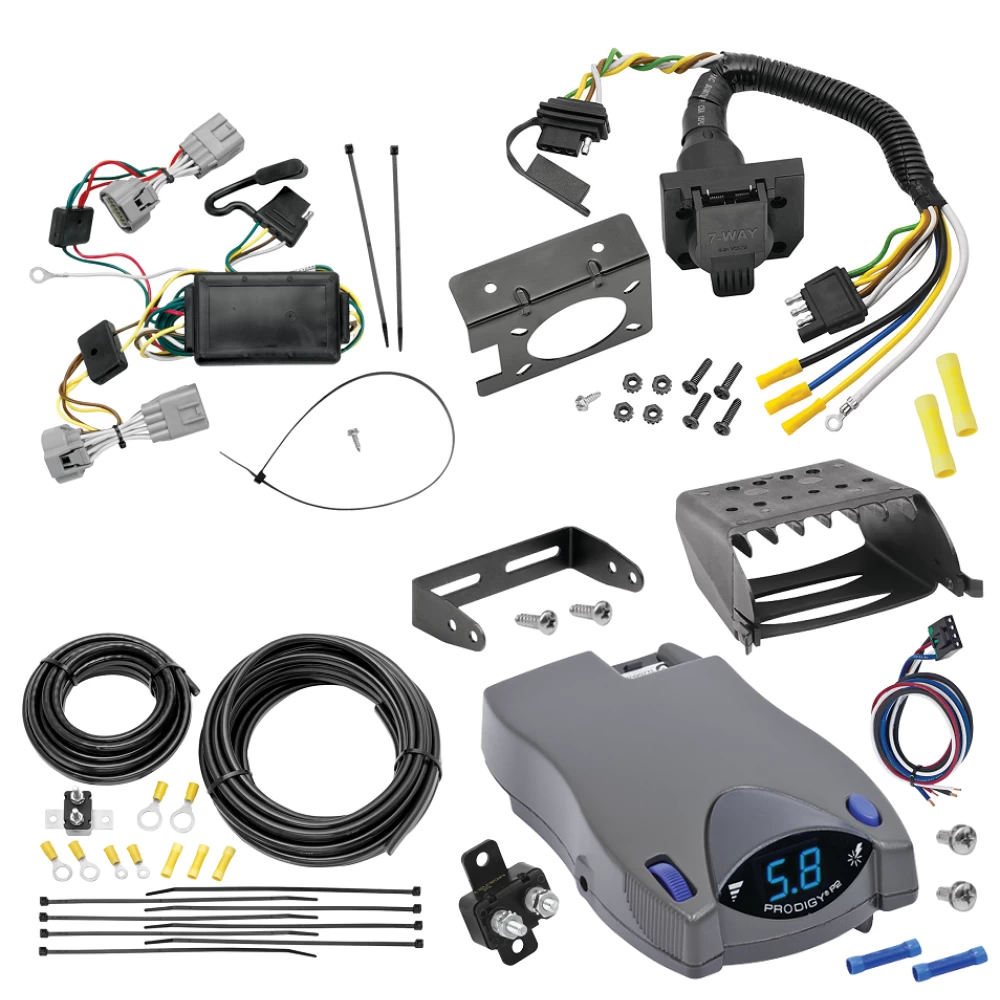

This Bundle Includes the Following Parts:
- 7-Way RV Wiring
- Tekonsha Prodigy P2 Brake Control
List of Fitment Years:
- 2005, 2006

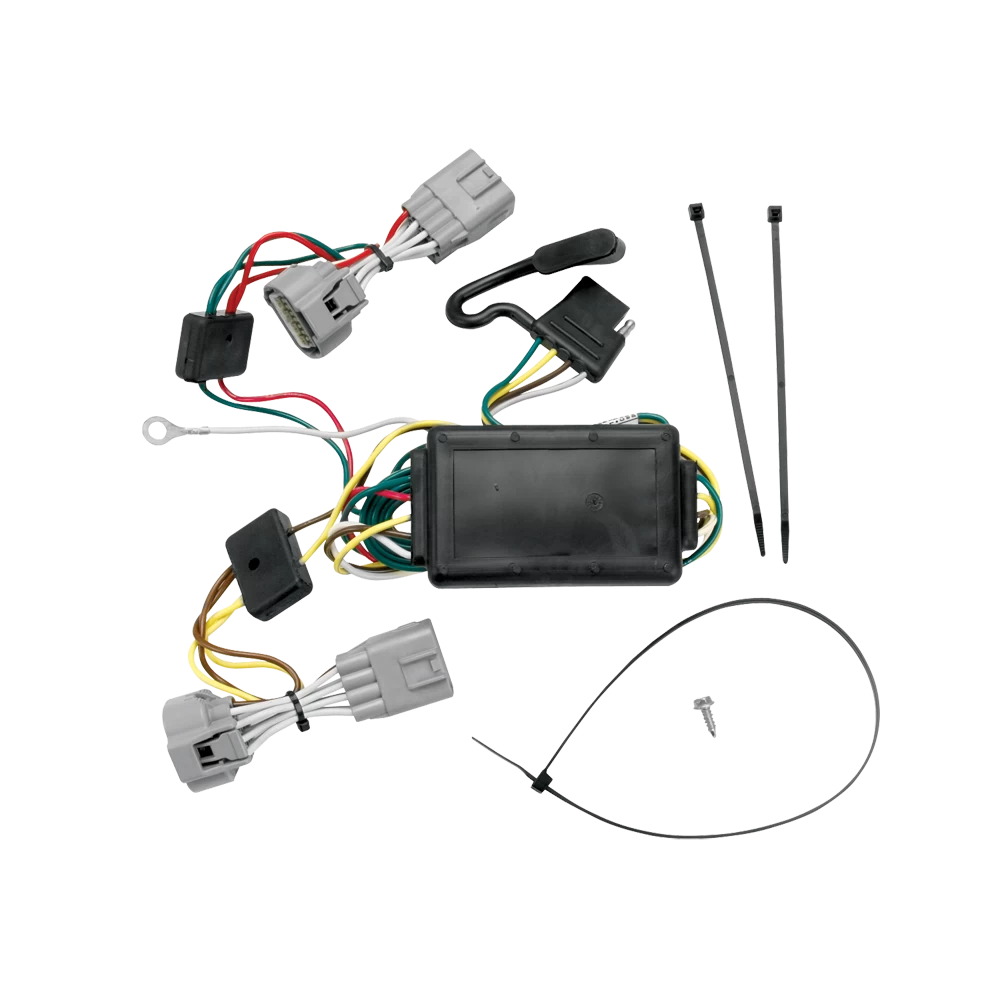

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected Converter
Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
- 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
- Stop/Turn Circuit Capacity Of 2.1 Amps
- Taillight Circuit Capacity Of 5 Amps
- Solid, Weatherproof, One-Piece Construction
- No Cutting, Splicing, Or Taping Of Vehicle Wires
- Includes Converter Where Needed
Wiring Adapter, 7-Way Flat to 4-Way Flat
Manufactured by: Reese Towpower
REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.
- Provide versatility in going from 4 way flat to 7-Way round blade
- Sealed connection increases protection against moisture & corrosion
- Low profile design provides factory installed appearance
- Built with heavy duty rugged materials
- Included 4-Flat dust cover and heavy duty spring on 7-Way connector
- Butt connectors pre-attached for quicker wiring
- Mounting bracket included
- Mounting hardware included
Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only
Manufactured by: Tow Ready
Includes all necessary parts required to completely install all brake controls. No other parts are necessary.
Circuit Breaker, 30 Amp
Manufactured by: Tekonsha
Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.
Prodigy® P2 Proportional Brake Controller for Trailers with 1-4 Axles, Grey
Manufactured by: Tekonsha
The Prodigy P2 electric brake controller supplies power to your tow vehicle's brakes proportionally. This means that your trailer brakes at the same time and with the same strength as your vehicle - even in reverse gear. If you have to slam on your truck's brakes, the trailer's brakes respond instantly, too - there's no delay. Therefore your vehicle's brakes aren't overworked from trying to stop the entire load, and they suffer less wear and tear extending the longevity of your brakes compared to time-based controls. The P2 also cuts power to the trailer's brakes when your vehicle is stopped - extending the life of the magnets and brake shoes in the trailer's brake assemblies. Aside from smoother, more efficient braking that results from proportional application of stopping power, the Prodigy P2 also has a boost feature that gives you more initial braking power for those times when you're towing heavier loads. That's when more braking power is needed to stop the trailer at the same time as the tow vehicle. The boost setting sends 13 or 25 percent more power (depending on which setting you choose) back to the trailer brakes, thus compensating for heavier loads. You can boost the power manually at the push of a button as well. The boost feature gets more power to the trailer brakes exactly when you need it most, and your fully loaded rig brakes smoothly and comfortably. This brake controller levels automatically as you drive, so there's no problem using it on steep hills or when towing through the mountains. The self-leveling feature also makes the Prodigy easy to install: Simply mount it in your cab at any vertical angle (it has 360-degree rotation). It's easy to see the display and to access the pivoting manual override lever on the bottom of the unit. The P2's continuous diagnostic check monitors your connection and magnet condition, so you can fix any problems before they land you on the side of the road. This newest version of Tekonsha's popular Prodigy brake controller has reverse battery protection to preserve the unit and accessory systems. And the power-save mode reduces battery drain when the controller isn't in use. The included mounting pocket makes your brake controller portable. Your unit slides out of the pocket mount for easy transfer of the brake controller to another vehicle. After selecting the proper optional (sold separately) harness for your vehicle, one end of the pigtail harness plugs directly into your vehicle, while the other plugs into your P2. Just unplug the unit to move it to another car, truck, or SUV use or simple storage - no hard-wiring required. An instructional DVD that is included with the brake controller's written instructions allows you to take full advantage of all the features.
- Reverse battery protection for both vehicle and breakaway
- Designed to work with electric over hydraulic brake systems
- Numerous mounting options - including 360-degree vertical rotation
- Digital display depicts voltage delivery to trailer during braking
- No level adjustment necessary - it adjusts itself to varying terrain as you drive
- Great for backing into tough spots! Works proportionally in reverse with the ability to disable when not needed
- Produces stops that are in proportion to vehicles deceleration rate
- "Boost" feature gives users the ability to apply more initial trailer braking power when towing heavier trailers
- Continual diagnostics check for proper connection, shorted magnet conditions, and much more
- Quick and easy disconnect feature allows user to remove and store the control when not in use
- Electric trailer brake control for up to 4 braking axles
- Limited lifetime warranty
$306 89 $456.41 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$456.41 $306 89
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $76.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118394 85343 20506 7012A 90885-451267
- Includes: T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Prodigy P2 Proportional Brake Controller for Trailers with 1-4 Axles
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2005-2006 Jeep Grand Cherokee 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Prodigy P2 Brake Controller By Tekonsha Install Notes
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118394
Tools Required:
- T-20 Torx® Bit and Driver
- Drill with a 3/32” Drill Bit
Step-by-Step Instructions:
-
Remove Rear Taillight Assemblies:
- Open the rear tailgate to access the screws holding the taillights in place.
- Use a T-20 Torx® bit to remove the screws.
- Carefully pry the taillight housings rearward away from the vehicle, ensuring the alignment tabs are not broken.
-
Access Wiring and Disconnect Connectors:
- Locate the black housings that match the T-Connector housings.
- Disconnect the wire harness from both taillight sockets.
- Ensure all connector surfaces are clean and free of dirt.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces.
-
Install the T-Connector:
- Beginning on the driver’s side, plug the T-Connector harness containing the yellow wire between the vehicle’s mating connectors.
- Ensure the connectors are fully inserted with locking tabs secured.
-
Route the Wiring Harness:
- Route the harness containing the green wire and the 4-flat connector down through the opening behind the taillight on the driver’s side.
- Route the 4-flat harness to the center of the vehicle and the green wire under the vehicle to the passenger side.
- Bring the green wire up through the opening behind the passenger’s side taillight.
Warning:
- Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other areas that may pinch or break the wire.
-
Install the Passenger Side T-Connector:
- Repeat step 4 on the passenger’s side using the T-Connector harness containing the green wire.
-
Secure the Wiring and Black Box:
- Use the provided cable ties to secure the wiring harness.
- Mount the converter (black box) inside the driver’s side taillight pocket, below the taillight, and between the vehicle body and bumper.
-
Reinstall the Taillights:
- Reinstall both rear taillights, ensuring all connections are complete and wires are not pinched.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer to verify proper functionality.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5.0 amps).
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Test thoroughly after installation to ensure proper functionality.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for T-Connector Adapter
Part Numbers:
- 118394
Tools Required:
- T-20 Torx® Bit and Driver
- Drill with a 3/32” Drill Bit
Step-by-Step Instructions:
-
Remove Rear Taillight Assemblies:
- Open the rear tailgate to access the screws holding the taillights in place.
- Use a T-20 Torx® bit to remove the screws.
- Carefully pry the taillight housings rearward away from the vehicle, ensuring the alignment tabs are not broken.
-
Access Wiring and Disconnect Connectors:
- Locate the black housings that match the T-Connector housings.
- Disconnect the wire harness from both taillight sockets.
- Ensure all connector surfaces are clean and free of dirt.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces.
-
Install the T-Connector:
- Beginning on the driver’s side, plug the T-Connector harness containing the yellow wire between the vehicle’s mating connectors.
- Ensure the connectors are fully inserted with locking tabs secured.
-
Route the Wiring Harness:
- Route the harness containing the green wire and the 4-flat connector down through the opening behind the taillight on the driver’s side.
- Route the 4-flat harness to the center of the vehicle and the green wire under the vehicle to the passenger side.
- Bring the green wire up through the opening behind the passenger’s side taillight.
Warning:
- Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any other areas that may pinch or break the wire.
-
Install the Passenger Side T-Connector:
- Repeat step 4 on the passenger’s side using the T-Connector harness containing the green wire.
-
Secure the Wiring and Black Box:
- Use the provided cable ties to secure the wiring harness.
- Mount the converter (black box) inside the driver’s side taillight pocket, below the taillight, and between the vehicle body and bumper.
-
Reinstall the Taillights:
- Reinstall both rear taillights, ensuring all connections are complete and wires are not pinched.
-
Test the Installation:
- Test the T-Connector installation with a test light or trailer to verify proper functionality.
Specifications:
- Max. Stop/Turn Light: 2.1 amps per side
- Max. Tail Lights: 5.0 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Test thoroughly after installation to ensure proper functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
