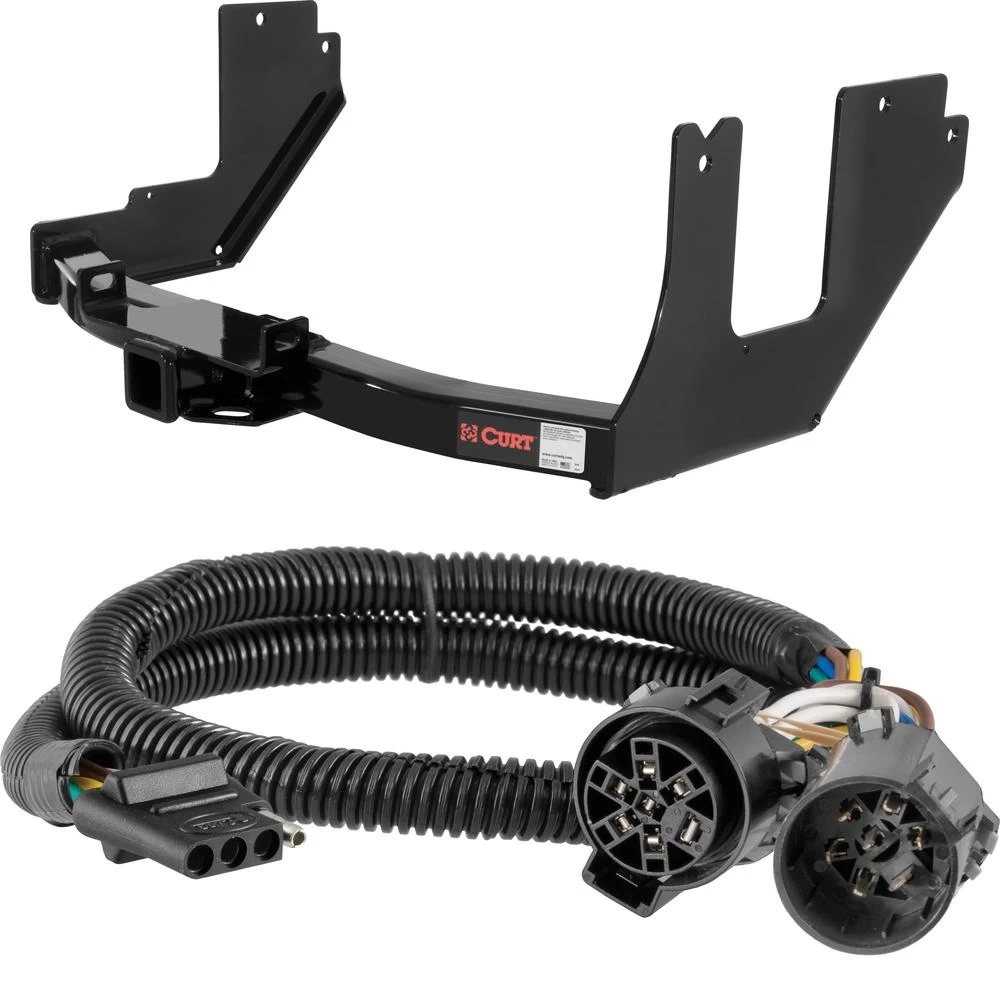

For 2005 Ford F150 Trailer Hitch + Wiring 4 Pin Fits Models w/ Existing USCAR 7‑way Curt 14357 55384 2 inch Tow Receiver
Model: 14357 55384-CH1317This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2005 - 2005 Ford F-150 w/ Existing USCAR 7-way
This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 4 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Replacement OE 4-Way Flat Socket (T's into USCAR)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2005

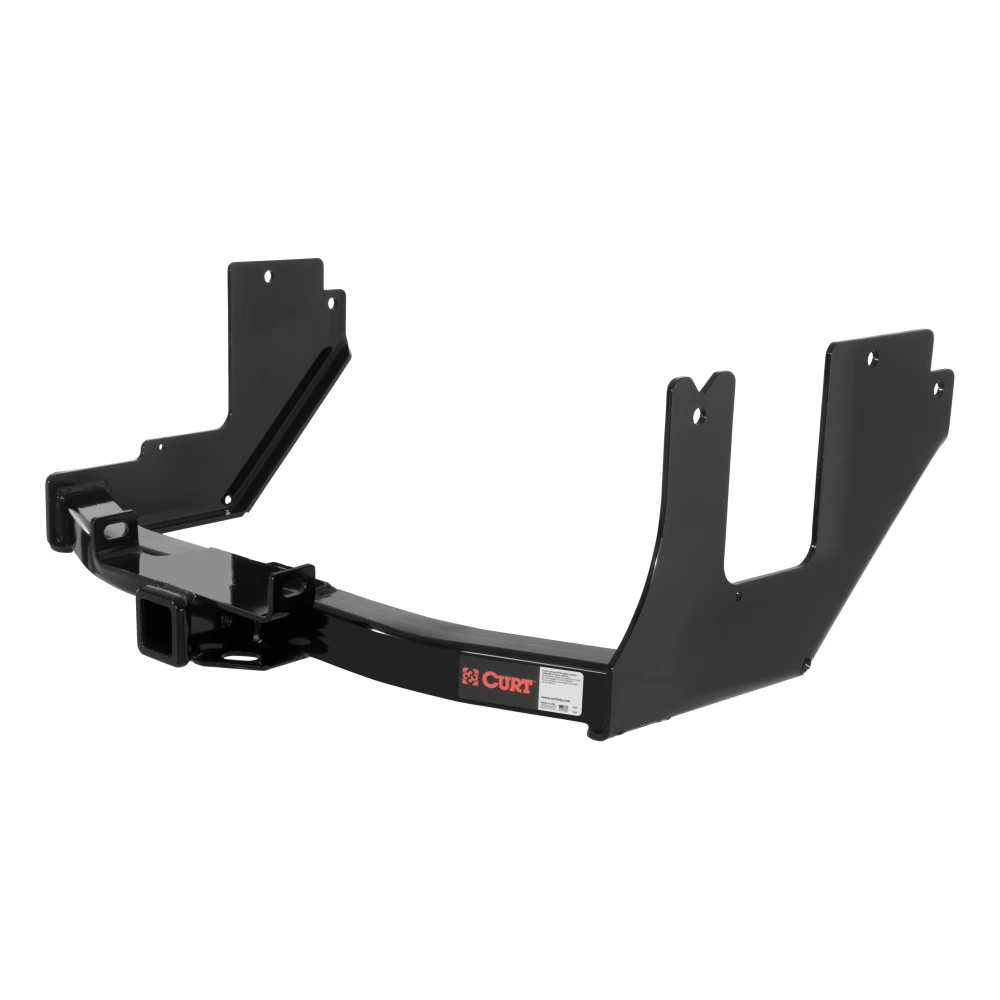

CURT 14357 Class 4 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans.
This particular class 4 hitch fits certain years of the Ford F150 (to verify vehicle compatibility, see application info) It provides a weight carrying capacity of 10,000 lbs GTW and 1,000 lbs.
TW It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs and a WDTW of 1,200 lbs.
CURT class 4 tow hitches are as much suited for work as they are for play With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component) All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation.
From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on To prove it, we test all our hitches in accordance with SAE J684 for safety..
Features:
- Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
- Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
CURT 55384 Replacement Vehicle-Side Custom USCAR 4-Pin Trailer Wiring Harness
Manufactured by: Curt
Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection.
They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring Though this special socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation.
Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit This particular connector provides a 4-way flat socket while retaining use of the existing OEM socket.
It is designed to be a custom wiring option for a variety of vehicles (see application info to verify fitment with your vehicle) It comes with a dust cover to keep the connector socket clean when not in use..
Features:
- Replacement OE 4-Way Flat Socket (T's into USCAR)
- Plugs into USCAR connection to add 4-way flat and retain use of existing socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$379 45 $634.90 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$634.90 $379 45
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $94.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 14357 55384-CH1317
- Includes: Class 4 Trailer Tow Hitch, Replacement OE 4-Way Flat Socket T's into USCAR)
Compatibility Chart
Description
Get Expert Help
For 2005 Ford F150 Trailer Hitch + Wiring 4 Pin Fits Models w/ Existing USCAR 7-way Curt 14357 55384 2 inch Tow Receiver Install Notes
Installation Instructions for 2004-2005 Ford F-150
Part Numbers:
- 14357
Tools Required:
- Torque wrench
- Ratchet
- 5/8" socket
- Fishwire tool (provided)
Step-by-Step Instructions:
-
Lower the Exhaust:
- For ease of installation, lower the exhaust by removing the exhaust hangers from the frame.
-
Raise the Hitch into Position:
- Raise the hitch into position and insert the 5/8" hex bolts and washers through the factory chain loop holes and the hitch top plate.
- Secure these bolts with the provided 5/8" flange nuts. Finger-tighten to hold the hitch in place.
-
Install Rearmost Bolt and Spacer:
- Install the provided 5/8" carriage bolt and square hole spacer into the rearmost hole on the passenger-side frame rail and hitch side plate.
- Secure the bolt with a 5/8" flange nut and finger-tighten.
-
Fishwire Remaining Bolts:
- Use the provided 5/8" fishwire tool to fishwire the remaining 5/8" carriage bolts and spacers through the square access holes in the vehicle frame rails.
- Pull the bolts through the frame and out through the hitch side plate mounting holes.
- Secure the bolts with the provided 5/8" flange nuts.
-
Torque Fasteners:
- Torque all 5/8" fasteners to 210 lb-ft.
-
Reinstall Exhaust:
- Reattach the exhaust hangers removed in Step 1.
Hardware List:
- Hex Bolt, 5/8-11 x 1-1/2, Grade 8: Qty 2
- Carriage Bolt, 5/8-11 x 2, Grade 8: Qty 2
- Hex Flange Nut, 5/8-11, Grade 8: Qty 6
- Flat Washer, 5/8, YZ: Qty 2
- Square Hole Spacer, .375 x 1.25 x 2.50 (CM-SP9): Qty 2
- Fishwire Tool, 5/8" (5/8 FISHWIRE): Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 10,000 lbs (trailer weight), 1,000 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 12,000 lbs (trailer weight), 1,200 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time: 30 minutes
- Drilling Required: No
- Fishwiring Required: Yes
- Lower Exhaust Required: Yes
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Vehicle Applications:
- Fits 2004-2005 Ford F-150 (with or without vibration dampener)
Revision History:
- 10/23/2020: Initial version released.
Installation Instructions for 2004-2005 Ford F-150
Part Numbers:
- 14357
Tools Required:
- Torque Wrench
- Ratchet
- 5/8" Socket
- Fishwire Tool (Provided)
Step-by-Step Instructions:
-
Lower the Exhaust:
- For ease of installation, lower the exhaust by removing the exhaust hangers from the frame.
-
Raise the Hitch into Position:
- Lift the hitch into position and insert the 5/8" hex bolts and washers through the factory chain loop holes and the hitch top plate.
- Secure these bolts with the provided 5/8" flange nuts. Finger-tighten to hold the hitch in place.
-
Install Rearmost Bolt and Spacer:
- Install the provided 5/8" carriage bolt and square hole spacer into the rearmost hole on the passenger-side frame rail and hitch side plate.
- Secure the bolt with a 5/8" flange nut and finger-tighten.
-
Fishwire Remaining Bolts:
- Use the provided 5/8" fishwire tool to fishwire the remaining 5/8" carriage bolts and spacers through the square access holes in the vehicle frame rails.
- Pull the bolts through the frame and out through the hitch side plate mounting holes.
- Secure the bolts with the provided 5/8" flange nuts.
-
Torque Fasteners:
- Torque all 5/8" fasteners to 210 lb-ft.
-
Reinstall Exhaust:
- Reattach the exhaust hangers removed in Step 1.
Hardware List:
- Hex Bolt, 5/8-11 x 1-1/2, Grade 8: Qty 2
- Carriage Bolt, 5/8-11 x 2, Grade 8: Qty 2
- Hex Flange Nut, 5/8-11, Grade 8: Qty 6
- Flat Washer, 5/8, YZ: Qty 2
- Square Hole Spacer, .375 x 1.25 x 2.50 (CM-SP9): Qty 2
- Fishwire Tool, 5/8" (5/8 FISHWIRE): Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch):
- 10,000 lbs (Trailer Weight)
- 1,000 lbs (Tongue Weight)
- Gross Load Capacity (Weight Distribution Hitch):
- 12,000 lbs (Trailer Weight)
- 1,200 lbs (Tongue Weight)
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not Specified
- Installation Time: 30 Minutes
- Drilling Required: No
- Fishwiring Required: Yes
- Lower Exhaust Required: Yes
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Vehicle Applications:
- Fits 2004-2005 Ford F-150 (With or Without Vibration Dampener)
End of Instructions
Installation Instructions for Various Vehicle Models
Part Number:
- 55384
Applicable Models:
- Buick Enclave
- Buick Rainier
- Cadillac Escalade (including ESV, EXT, Hybrid)
- Chevrolet Avalanche
- Chevrolet Colorado
- Chevrolet Express
- Chevrolet Silverado (including Hybrid)
- Chevrolet Suburban
- Chevrolet Tahoe (including Hybrid)
- Chevrolet Trailblazer
- Chevrolet Traverse
- Chrysler Aspen
- Dodge RAM (1500, 2500, 3500)
- GMC Acadia
- GMC Canyon
- GMC Envoy
- GMC Sierra
- GMC Yukon (including Denali, XL, XL Denali)
- Hummer H2, H3, H3T
- Infiniti QX56
- Isuzu Ascender
- Kia Borrego
- Nissan Pathfinder Armada
- Nissan Titan
- Oldsmobile Bravada
- Saab 9-7X
- Saturn Outlook
Wiring Access Locations:
- Pickup Trucks (T):
- T3: Behind driver's side rear bumper
- T4: Behind center of rear bumper fascia
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver's side rear access panel
- S4: Behind passenger's side rear access panel
- S5: Behind driver's side rear bumper
- S6: Behind center of rear bumper
- S7: Behind passenger's side rear bumper
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Access the Vehicle's Wiring Harness Connectors:
- Locate the connectors behind the driver's side rear bumper at position T3 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Prepare the Connector Housing:
- Remove and retain the protective cap from the housing.
- Ensure the mating surface is clean and free of rust or dirt.
-
Insert the T-Connector:
- Connect the T-connector housing into the vehicle's housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Secure the Protective Cap:
- Place the previously removed protective cap onto the remaining plug end.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way Connector:
- Find the factory 7-way attached to the hitch, behind the center of the rear bumper at position T4 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Separate the Factory Socket:
- Disconnect the factory socket from the 7-way connector.
-
Insert the T-Connector:
- Connect the T-connector between the factory housing and the 7-way housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can lead to loss of warranty, overheating, and potential fire hazards.
Note: After installation, test the function by connecting a test light or properly wired trailer. Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for Various Vehicle Models
Part Number:
- 55384
Applicable Models:
- Buick Enclave
- Buick Rainier
- Cadillac Escalade (including ESV, EXT, Hybrid)
- Chevrolet Avalanche
- Chevrolet Colorado
- Chevrolet Express
- Chevrolet Silverado (including Hybrid)
- Chevrolet Suburban
- Chevrolet Tahoe (including Hybrid)
- Chevrolet Trailblazer
- Chevrolet Traverse
- Chrysler Aspen
- Dodge RAM (1500, 2500, 3500)
- GMC Acadia
- GMC Canyon
- GMC Envoy
- GMC Sierra
- GMC Yukon (including Denali, XL, XL Denali)
- Hummer H2, H3, H3T
- Infiniti QX56
- Isuzu Ascender
- Kia Borrego
- Nissan Pathfinder Armada
- Nissan Titan
- Oldsmobile Bravada
- Saab 9-7X
- Saturn Outlook
Wiring Access Locations:
- Pickup Trucks (T):
- T3: Behind driver's side rear bumper
- T4: Behind center of rear bumper fascia
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver's side rear access panel
- S4: Behind passenger's side rear access panel
- S5: Behind driver's side rear bumper
- S6: Behind center of rear bumper
- S7: Behind passenger's side rear bumper
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Access the Vehicle's Wiring Harness Connectors:
- Locate the connectors behind the driver's side rear bumper at position T3 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Prepare the Connector Housing:
- Remove and retain the protective cap from the housing.
- Ensure the mating surface is clean and free of rust or dirt.
-
Insert the T-Connector:
- Connect the T-connector housing into the vehicle's housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Secure the Protective Cap:
- Place the previously removed protective cap onto the remaining plug end.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way Connector:
- Find the factory 7-way attached to the hitch, behind the center of the rear bumper at position T4 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Separate the Factory Socket:
- Disconnect the factory socket from the 7-way connector.
-
Insert the T-Connector:
- Connect the T-connector between the factory housing and the 7-way housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can lead to loss of warranty, overheating, and potential fire hazards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- Warranty Duration: [Insert warranty period]
- Coverage Details: [Insert coverage details]
- For complete warranty information, please download the full installation PDF.
Note: After installation, test the function by connecting a test light or properly wired trailer. Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
