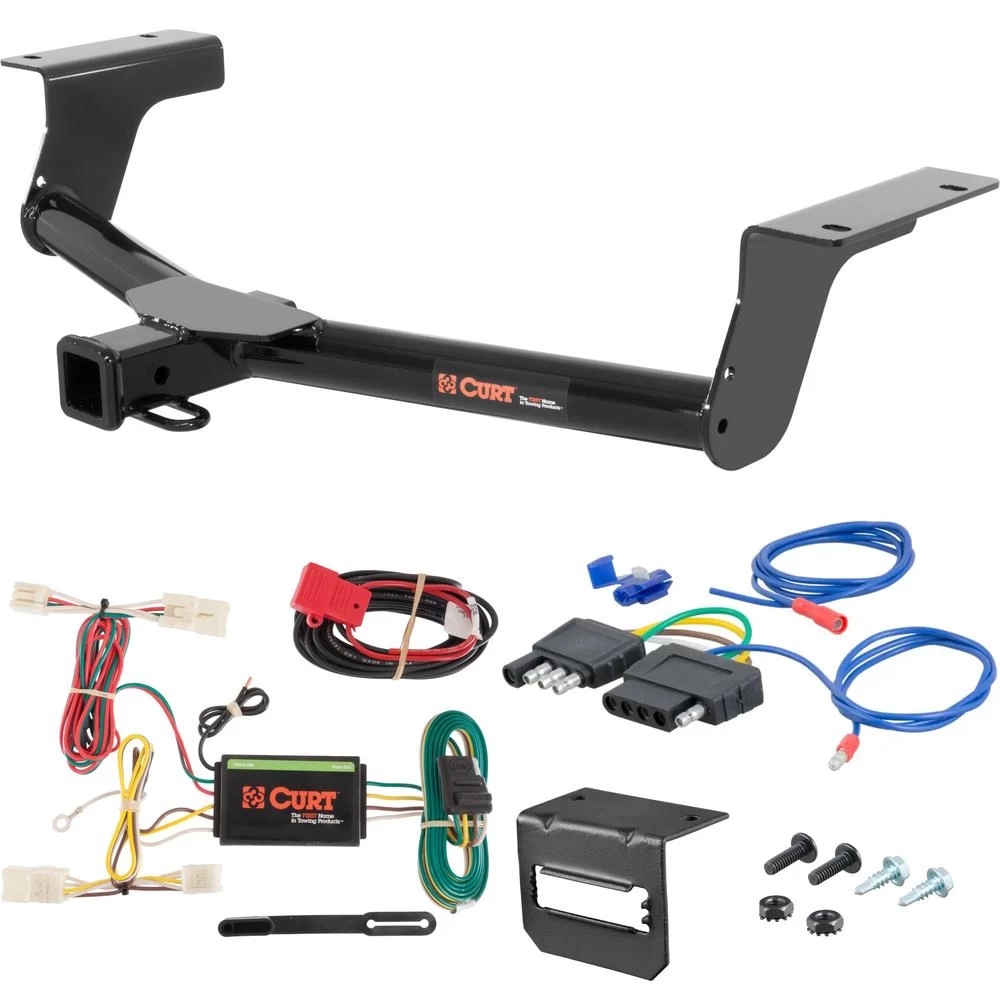

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Harness, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Get Expert Help
For 2006-2012 Toyota RAV4 Trailer Hitch + Wiring 5 Pin Fits All Models Curt 13149 2 inch Tow Receiver Install Notes
Installation Instructions for Toyota RAV4 (Excluding Electric Models)
Part Numbers:
- 13149
Tools Required:
- 17mm Socket
- 19mm Socket
- 8" Socket Extension
- Socket Wrench
- Torque Wrench
- Wire Pipe Brush
Hardware List:
- Hex Bolt: M12x1.25, 35mm, Class 10.9, YZ (Qty: 4)
- Conical Toothed Washer: 1/2", YZ (Qty: 4)
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- Using a 17mm socket and 8" extension, remove the tie-down bracket located on the driver's side frame rail.
- Return the bracket and hardware to the vehicle owner.
-
Lower Rear Exhaust Isolator:
- Temporarily lower the rearmost exhaust isolator for ease of installation.
-
Clean Existing Weld Nuts:
- Use a wire pipe brush to clean any debris or corrosion from the existing weld nuts on the frame rails.
-
Raise Hitch into Position:
- Raise the hitch into position so it aligns with the existing weld nuts on both the driver and passenger-side frame rails.
-
Install Fasteners:
- Secure the hitch using the supplied M12 hex bolts and conical toothed washers.
- Finger tighten all bolts to hold the hitch in place.
-
Torque Fasteners:
- Torque all M12 bolts to 86 lb-ft.
-
Reattach Exhaust:
- Raise the exhaust back into position and reinstall the rubber exhaust isolator.
Panel Trim Instructions (If Applicable):
- If a panel is present, trim it as follows:
- Use the rib as a guide.
- Trim 1.5 inches for hitch clearance.
Safety Notes:
- No Drilling Required: Uses existing weld nuts in the frame.
- Torque Hardware: Ensure all fasteners are torqued to the specified value.
- Periodically inspect the hitch to confirm fasteners remain tight and components are structurally sound.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 3,500 lbs
- Tongue Weight: 525 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 4,000 lbs
- Tongue Weight: 525 lbs
- Hitch Weight: 30 lbs
Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
Manufacturer Notes:
- For installation questions, contact Technical Support at 1-877-287-8634.
- Product Warranty: Curt Manufacturing Inc. guarantees this product to be free from defects in material and workmanship.
Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Installation Instructions for Vehicle Model (Toyota RAV4, Excluding Electric Models)
Part Numbers:
- 13149
Tools Required:
- 17mm Socket
- 19mm Socket
- 8" Socket Extension
- Socket Wrench
- Torque Wrench
- Wire Pipe Brush
Hardware List:
- Hex Bolt: M12x1.25, 35mm, Class 10.9 (Qty: 4)
- Conical Toothed Washer: 1/2" (Qty: 4)
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- Using a 17mm socket and 8" extension, remove the tie-down bracket located on the driver's side frame rail.
- Return the bracket and hardware to the vehicle owner.
-
Lower Rear Exhaust Isolator:
- Temporarily lower the rearmost exhaust isolator for ease of installation.
-
Clean Existing Weld Nuts:
- Use a wire pipe brush to clean any debris or corrosion from the existing weld nuts on the frame rails.
-
Raise Hitch into Position:
- Raise the hitch into position so it aligns with the existing weld nuts on both the driver and passenger-side frame rails.
-
Install Fasteners:
- Secure the hitch using the supplied M12 hex bolts and conical toothed washers.
- Finger tighten all bolts to hold the hitch in place.
-
Torque Fasteners:
- Torque all M12 bolts to 86 lb-ft.
-
Reattach Exhaust:
- Raise the exhaust back into position and reinstall the rubber exhaust isolator.
Panel Trim Instructions (If Applicable):
- If a panel is present, trim it as follows:
- Use the rib as a guide.
- Trim 1.5 inches for hitch clearance.
Safety Notes:
- No Drilling Required: Uses existing weld nuts in the frame.
- Torque Hardware: Ensure all fasteners are torqued to the specified value.
- Periodically inspect the hitch to confirm fasteners remain tight and components are structurally sound.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 3,500 lbs
- Tongue Weight: 525 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 4,000 lbs
- Tongue Weight: 525 lbs
- Hitch Weight: 30 lbs
Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Installation Instructions for Toyota RAV4
Part Number:
- 56165
Wiring Access Locations:
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Tools Required:
- Ratchet
- 10mm socket
- Phillips screwdriver
- Panel trim removal tool
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the vehicle tailgate.
- Remove the rear scuff panel, trunk floor coverings, storage covers, and the privacy screen.
-
Access the Taillight Wiring Connectors:
- On both sides, remove all trim fasteners and slightly pull out on the rear trim panels to locate the vehicle taillight wiring harness connectors. The connectors will be similar to those on the custom wiring harness.
-
Driver Side Installation:
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
- Insert the custom wiring harness end with the yellow wire between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
- Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Passenger Side Installation:
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat steps 3 and 4 on the passenger side using the harness end with the green wire.
-
Route the Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Finalize Installation:
- When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:

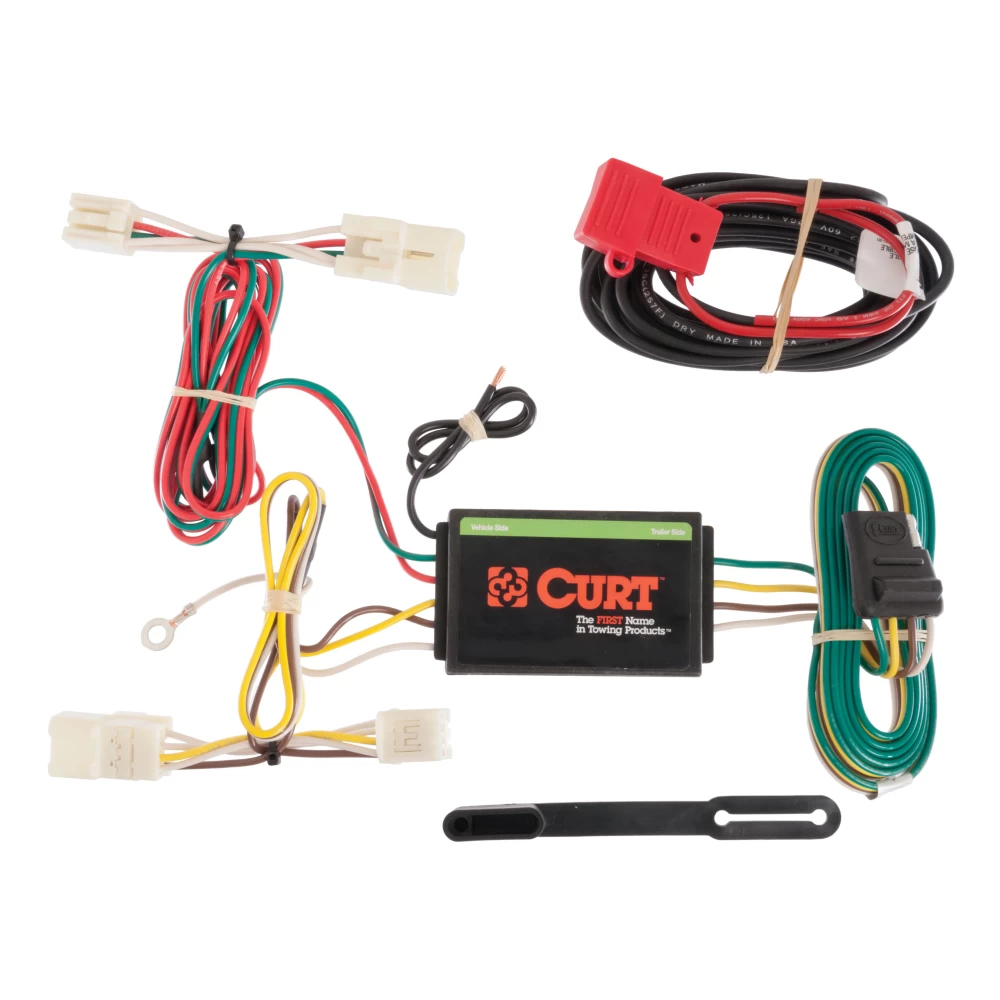

- Custom wiring harness with 4-flat connector
- Black converter box
- Double-sided tape
- White ground wire with ring terminal
- Ground screw
- Cable ties
- 4-flat dust cover
Safety Notes:
- Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
- The battery connection must be fuse-protected, 10-amp max. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
Specifications:
- Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- For more information, refer to the vehicle owner's manual or contact the vehicle manufacturer.
Installation Instructions
Part Number:
- 56165
Wiring Access Locations:
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Tools Required:
- Ratchet
- 10mm socket
- Phillips screwdriver
- Panel trim removal tool
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the vehicle tailgate.
- Remove the rear scuff panel, trunk floor coverings, storage covers, and the privacy screen.
-
Access the Taillight Wiring Connectors:
- On both sides, remove all trim fasteners and slightly pull out on the rear trim panels to locate the vehicle taillight wiring harness connectors. The connectors will be similar to those on the custom wiring harness.
-
Driver Side Installation:
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
- Insert the custom wiring harness end with the yellow wire between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
- Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Passenger Side Installation:
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat steps 3 and 4 on the passenger side using the harness end with the green wire.
-
Route the Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Finalize Installation:
- When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- Custom wiring harness with 4-flat connector
- Black converter box
- Double-sided tape
- White ground wire with ring terminal
- Ground screw
- Cable ties
- 4-flat dust cover
Safety Notes:
- Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
- The battery connection must be fuse-protected, 10-amp max. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
Specifications:
- Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Warranty Information:
- This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
