Product Details
- Brand: Curt
- Model: 12060 56329 57187 58303-CH1213
- Includes: Class 2 Trailer Tow Hitch, Custom Wiring, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Description
Get Expert Help

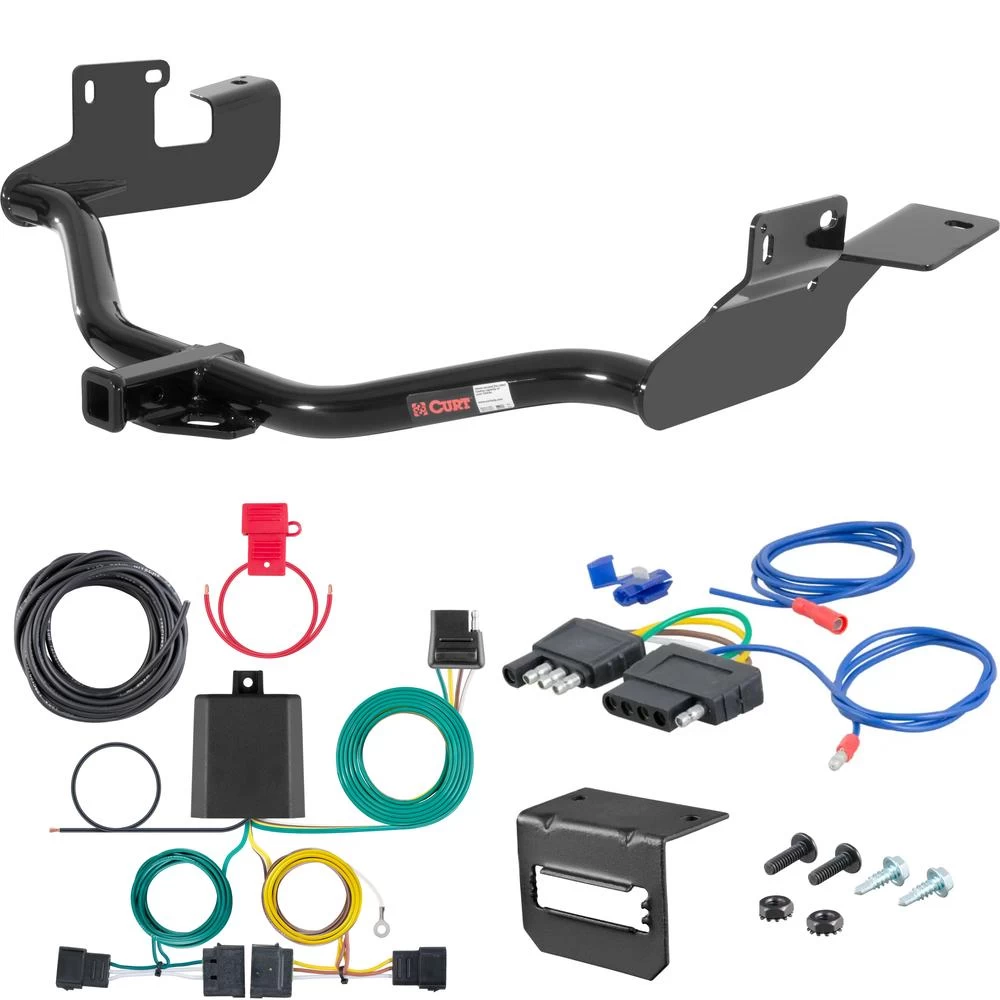

For 2008-2012 Ford Escape Trailer Hitch + Wiring 5 Pin Fits All Models Curt 12060 1-1/4 Tow Receiver Install Notes
Installation Instructions for Ford Escape, Mazda Tribute, Mercury Mariner
Part Numbers:
- 12060
Wiring Access Location:
Not Specified
Tools Required:
- Ratchet
- 3/4" Socket
- Torque Wrench
- Die Grinder with Carbide Bit (if drilling is necessary)
Step-by-Step Instructions:
Notes:
- If there is access to insert the bolt and spacer into the frame rail from the end, drilling is not required.
- Some vehicles have tie-down hooks that allow frame rail access.
- If your vehicle is equipped with an exhaust vibration dampener that interferes with the side plate, bend or pry the dampener away as needed.
-
Fishwire Bolts and Spacers into Frame Rail:
- Use the fishwire tool to pull 1/2" carriage bolts and square hole spacers through the holes in the bottom of the frame rail.
- Note: Drilling an access hole in the frame rail may be required if there is no access from the end.
-
Position Hitch:
- Place the provided spacer on the passenger side bolt.
- Raise the hitch into position and hand tighten the fasteners.
-
Fishwire Remaining Fasteners:
- Fishwire the remaining carriage bolts and square hole spacers into position.
- Secure the bolts with conical tooth washers and hex nuts as shown in the diagram.
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
Hardware List:
- (2) 1/2"-13 UNC Carriage Bolts, 1-3/4"
- (2) 1/2"-13 UNC Hex Nuts
- (2) 1/2" Conical Tooth Washers
- (1) 0.250" x 1.00" x 3.00" Square Hole Spacer
- (1) 0.375" x 1.25" x 2.50" Square Hole Spacer
- (2) 1/2" Fishwire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: All non-trailer loads applied to this product must be supported by 18050 stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Hitch Weight: 32 lbs.
- Professional Install Time: 30 minutes
- Novice (DIY) Install Time: 60 minutes
Manufacturer Notes:
- Drilling may be required.
- Exhaust bracket modification may be necessary.
- Designed for use with Ball Mount #D-55001-55.
- Euro Mount Options Available:
-
45571 (1-7/8" Ball)
-
45572 (2" Ball)
-
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Ford Escape, Mazda Tribute, Mercury Mariner
Part Numbers:
- 12060
Wiring Access Location:
Not Specified
Tools Required:
- Ratchet
- 3/4" Socket
- Torque Wrench
- Die Grinder with Carbide Bit (if drilling is necessary)
Step-by-Step Instructions:
Notes:
- If there is access to insert the bolt and spacer into the frame rail from the end, drilling is not required.
- Some vehicles have tie-down hooks that allow frame rail access.
- If your vehicle is equipped with an exhaust vibration dampener that interferes with the side plate, bend or pry the dampener away as needed.
-
Fishwire Bolts and Spacers into Frame Rail:
- Use the fishwire tool to pull 1/2" carriage bolts and square hole spacers through the holes in the bottom of the frame rail.
- Note: Drilling an access hole in the frame rail may be required if there is no access from the end.
-
Position Hitch:
- Place the provided spacer on the passenger side bolt.
- Raise the hitch into position and hand tighten the fasteners.
-
Fishwire Remaining Fasteners:
- Fishwire the remaining carriage bolts and square hole spacers into position.
- Secure the bolts with conical tooth washers and hex nuts as shown in the diagram.
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
Hardware List:
- (2) 1/2"-13 UNC Carriage Bolts, 1-3/4"
- (2) 1/2"-13 UNC Hex Nuts
- (2) 1/2" Conical Tooth Washers
- (1) 0.250" x 1.00" x 3.00" Square Hole Spacer
- (1) 0.375" x 1.25" x 2.50" Square Hole Spacer
- (2) 1/2" Fishwire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: All non-trailer loads applied to this product must be supported by stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Hitch Weight: 32 lbs.
- Professional Install Time: 30 minutes
- Novice (DIY) Install Time: 60 minutes
Technical Support:
- For technical support and assistance, our team of experts is available to help.
Visit www.trailerjacks.com or call 877-869-6690.
Warranty Information:
- Warranty covers defects in material and workmanship.
- For complete warranty instructions, please download the full installation PDF.
End of Instructions
Installation Instructions for Ford Edge, Ford Escape, Ford Freestar, Lincoln MKX, Mazda Tribute, and Mercury Mariner
Part Number:
- 56329
Tools Required:
- 10mm socket
- Ratchet
Wiring Access Locations:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Step-by-Step Instructions:
-
Disconnect the Negative Battery Terminal:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove the Driver Side Taillight Assembly:
- Open the vehicle's tailgate.
- Remove the two Phillips screws securing the driver side taillight assembly.
- Gently pull out the taillight assembly, taking care not to damage the alignment tabs.
-
Access the Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the removed taillight assembly.
- These connectors will resemble those on the custom wiring harness.
-
Route the Wiring Harness (Driver Side):
- From underneath the vehicle, locate the access hole leading to the taillight wiring harness under the taillight.
- Route the custom wiring harness end with the yellow wire up through this body opening to the driver side taillight housing.
-
Connect the Wiring Harness (Driver Side):
- Separate the vehicle's connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Route the Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side, behind the removed scuff panels.
- Repeat steps 4 and 5 on the passenger side using the harness end with the green wire.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to avoid contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: For more information, refer to the vehicle owner's manual or contact the vehicle manufacturer.
Installation Instructions for Ford Edge, Ford Escape, Ford Freestar, Lincoln MKX, Mazda Tribute, and Mercury Mariner
Part Number:
- 56329
Tools Required:
- 10mm socket
- Ratchet
Wiring Access Locations:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Step-by-Step Instructions:
-
Disconnect the Negative Battery Terminal:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove the Driver Side Taillight Assembly:
- Open the vehicle's tailgate.
- Remove the two Phillips screws securing the driver side taillight assembly.
- Gently pull out the taillight assembly, taking care not to damage the alignment tabs.
-
Access the Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the removed taillight assembly.
- These connectors will resemble those on the custom wiring harness.
-
Route the Wiring Harness (Driver Side):
- From underneath the vehicle, locate the access hole leading to the taillight wiring harness under the taillight.
- Route the custom wiring harness end with the yellow wire up through this body opening to the driver side taillight housing.
-
Connect the Wiring Harness (Driver Side):
- Separate the vehicle's connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Route the Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side, behind the removed scuff panels.
- Repeat steps 4 and 5 on the passenger side using the harness end with the green wire.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to avoid contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: For more information, refer to the vehicle owner's manual or contact the vehicle manufacturer.
Important Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
