For 2010 Ford Mustang Trailer Hitch Fits All Including st&ard GT model Except Cal Special Shelby GT Curt 11048 1‑1/4 Tow Receiver
Model: 11048-CH1791This Trailer Tow Hitch Fits The Following Vehicles:
2010 - 2010 Ford Mustang All Including st&ard GT model Except Cal Special Shelby GT
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2010

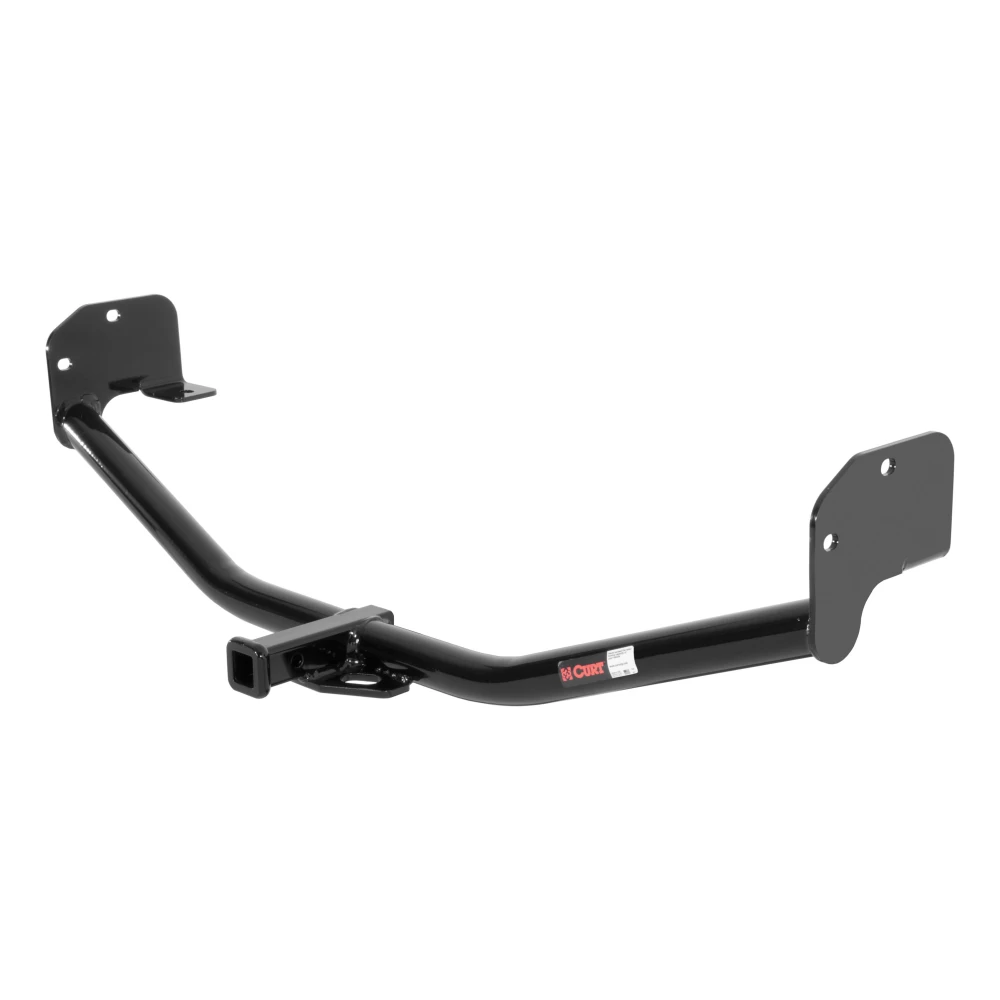

CURT 11048 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Ford Mustang (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.

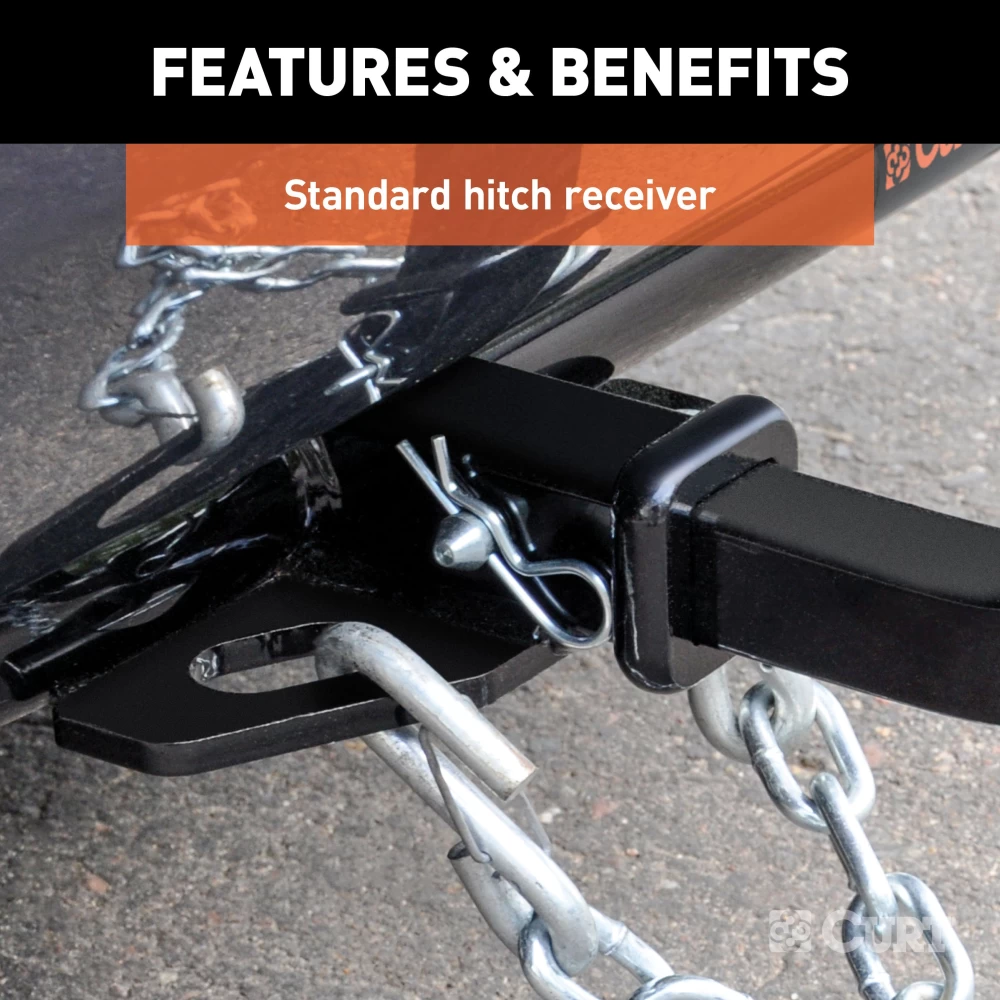

TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..
Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight

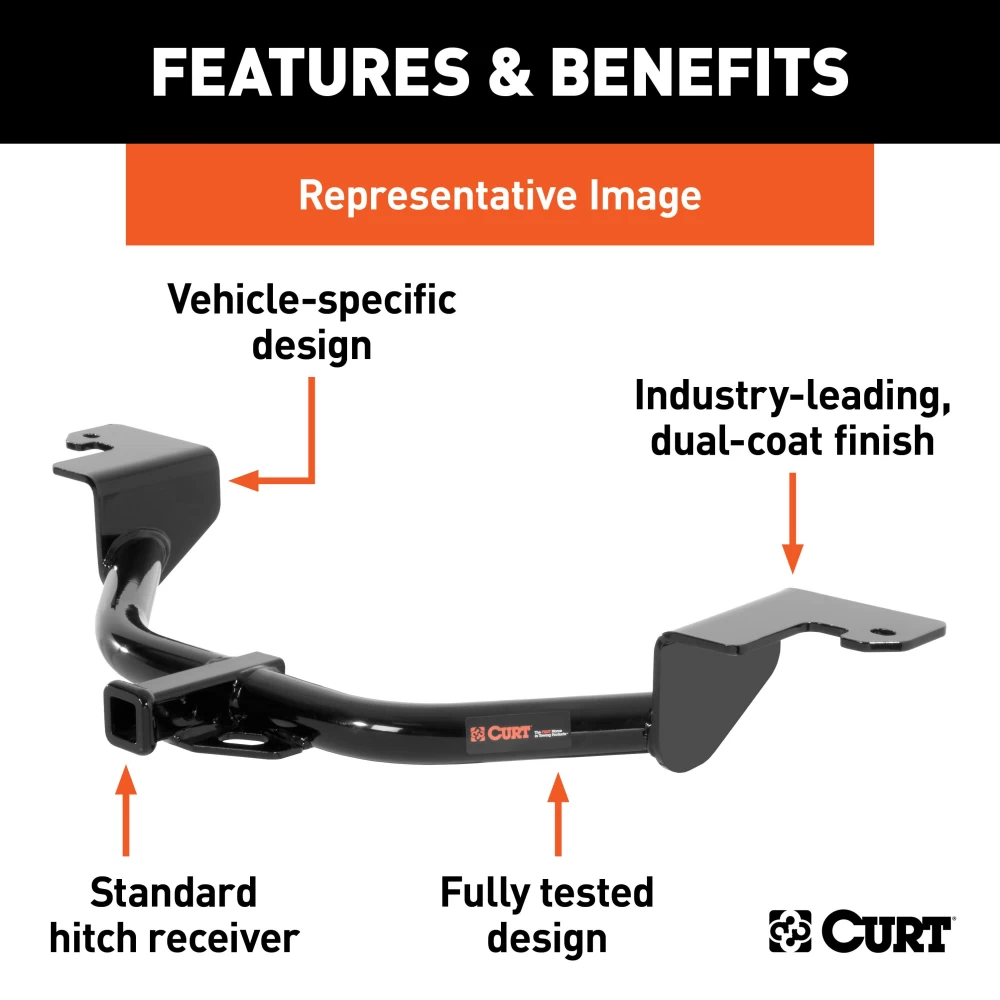

- Engineered with a vehicle-specific design for a custom fit

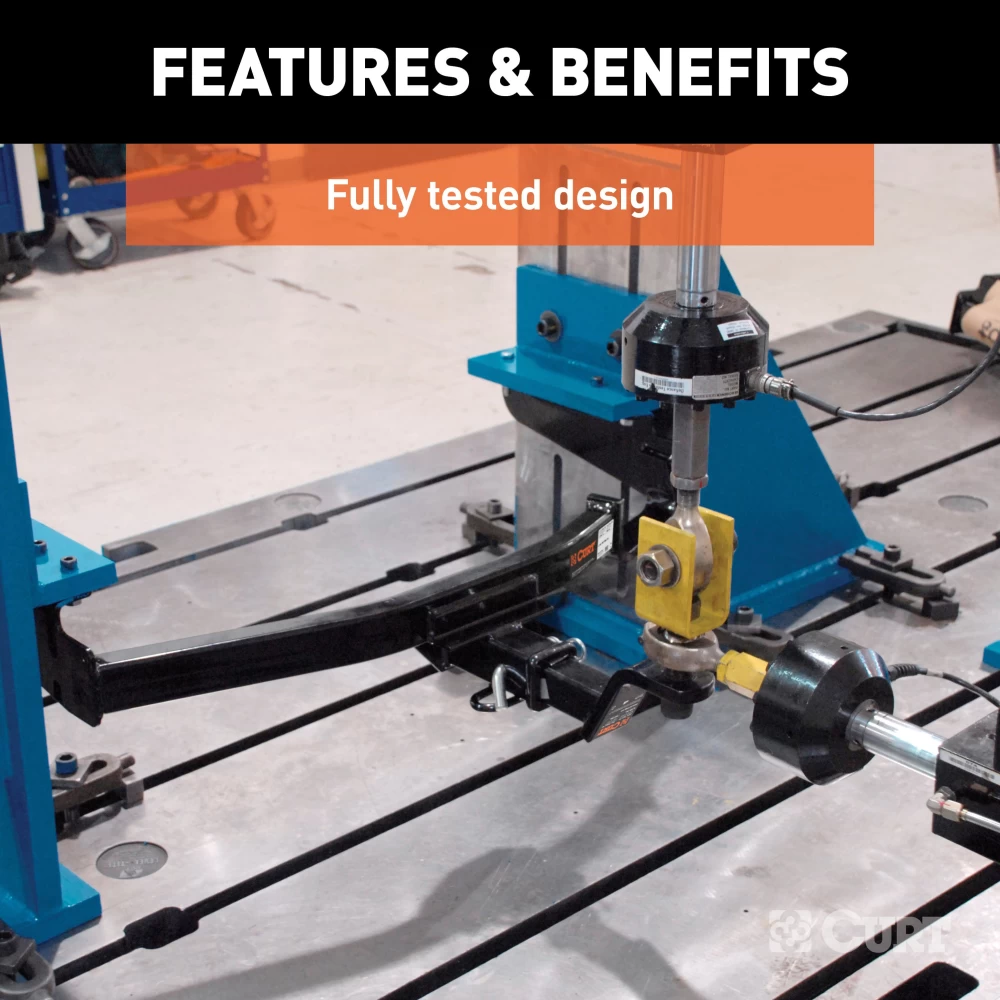

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

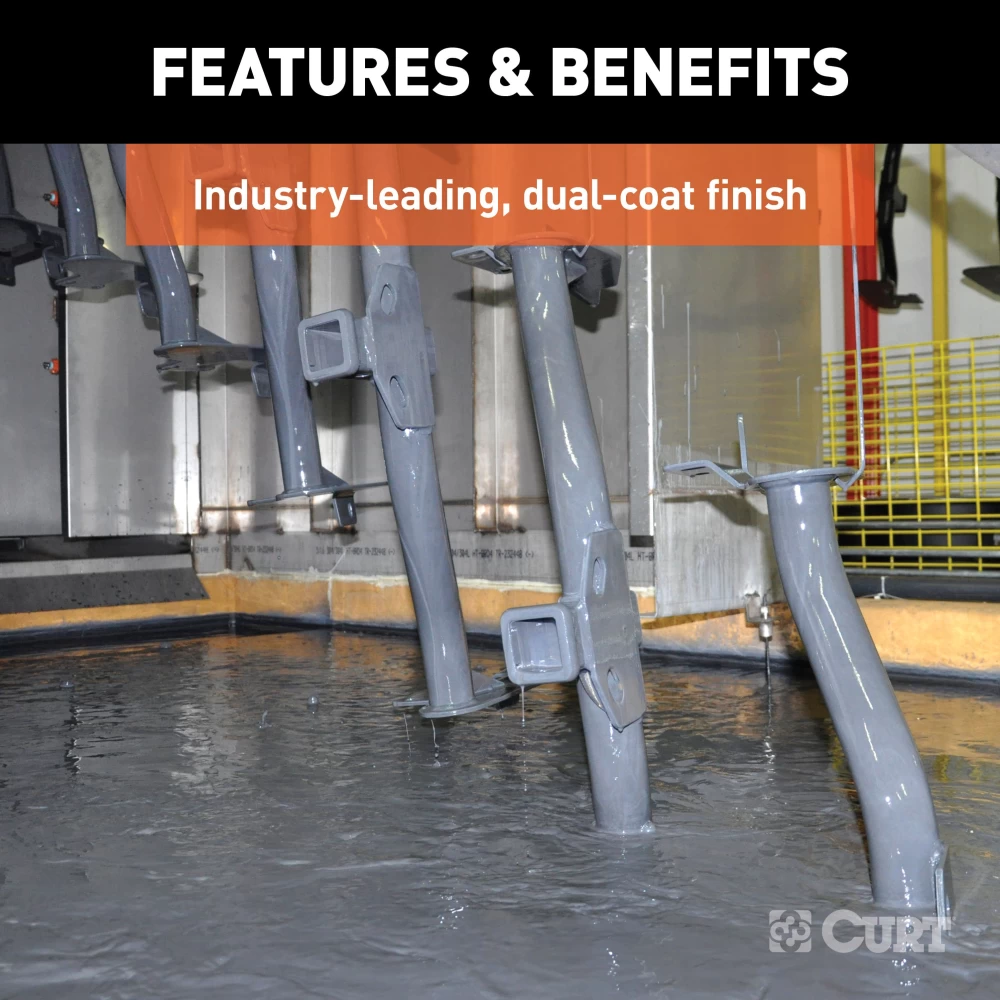

- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$180 98 $280.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$280.95 $180 98
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11048-CH1791
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2010 Ford Mustang Trailer Hitch Fits All Including st&ard GT model Except Cal Special Shelby GT Curt 11048 1-1/4 Tow Receiver Install Notes
Installation Instructions for Ford Mustang Coupe (2010-2011)
Part Numbers:
- 11048
Tools Required:
- Pry Bar
- Ratchet
- Torque Wrench
- 9/16" Socket
- 11/16" Socket
- 13mm Socket
- 15mm Socket
Hardware List:
- Carriage Bolt: 7/16-14 x 1", Grade 8, YZ (Qty: 2)
- Carriage Bolt: 7/16-14 x 1-1/2", Grade 8, YZ (Qty: 2)
- Square Hole Spacer: 0.250 x 0.88 x 2.25" (CM-SP2) (Qty: 4)
- Hex Flange Nut: 7/16-14 UNC, Grade 8, YZ (Qty: 4)
- Carriage Bolt: 3/8-16 x 2", Grade 8, YZ (Qty: 2)
- Square Hole Spacer: 0.250 x 1.00 x 2.00" (CM-SP18) (Qty: 2)
- Round Spacer: 0.500 x 1.25 x 2.50" (CM-SP52) (Qty: 2)
- Hex Flange Nut: 3/8-16 UNC, Grade 8, YZ (Qty: 2)
- Fishwire: 7/16" (Qty: 2), 3/8" (Qty: 2)
Step-by-Step Instructions:
-
Remove Rear Muffler Isolators:
- Remove the rearmost rubber isolators on both mufflers.
-
Lower Exhaust:
- Loosen the exhaust strap behind the mufflers to detach the exhaust pipes.
- Carefully lower the rear muffler section.
- Note: On 2010 models, you may need to remove the forward exhaust hangers for better access.
-
Fishwire Carriage Bolts and Spacers:
- Fishwire the 7/16 x 1" carriage bolts and CM-SP2 spacers through the frame access holes.
- This hardware will fasten to the bottom of the frame rails.
-
Raise Hitch into Position:
- Carefully position the hitch against the frame rails.
- Attach it loosely using the 7/16" hex flange nuts.
- Be careful not to push the carriage bolts back into the frame rails.
-
Install Remaining Hardware:
- Fishwire the remaining 7/16 x 1-1/2" carriage bolts and CM-SP2 spacers into position on both sides.
- Secure with the provided 7/16" hex flange nuts.
-
Exhaust Hanger Relocation (2010 Models Only):
- Fishwire 3/8 x 2" carriage bolts and CM-SP18 spacers through the access hole.
- Place the CM-SP52 round spacer and exhaust hanger onto the bolt.
- Secure using the 3/8" hex flange nuts.
- Repeat for the passenger-side frame rail.
-
Torque Fasteners:
- Torque all 3/8" hardware to 45 ft-lbs.
- Torque all 7/16" hardware to 70 ft-lbs.
-
Reinstall Exhaust:
- Reattach the exhaust pipes and rubber isolators removed earlier.
Safety Notes:
- No Drilling Required: Uses existing frame access holes.
- Exhaust Hanger Relocation: Required on 2010 models for proper fitment.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 2,000 lbs
- Tongue Weight: 200 lbs
- Hitch Weight: 22 lbs
Installation Time:
- Professional: 60 minutes
- Novice (DIY): 120 minutes
Manufacturer Notes:
- Designed for use with Ball Mount #55001 / 45501.
- Euro Mount Option Available:
- #45571 (1-7/8" Ball)
- #45572 (2" Ball)
- For installation questions, contact Technical Support at 1-877-287-8634.
Warning: Periodically check all hardware to ensure it is properly torqued and all components remain secure. Do not exceed the vehicle manufacturer's towing capacity.
Installation Instructions for Ford Mustang Coupe (2010-2011)
Part Numbers:
- 11048
Tools Required:
- Pry Bar
- Ratchet
- Torque Wrench
- 9/16" Socket
- 11/16" Socket
- 13mm Socket
- 15mm Socket
Hardware List:
- Carriage Bolt: 7/16-14 x 1", Grade 8, YZ (Qty: 2)
- Carriage Bolt: 7/16-14 x 1-1/2", Grade 8, YZ (Qty: 2)
- Square Hole Spacer: 0.250 x 0.88 x 2.25" (CM-SP2) (Qty: 4)
- Hex Flange Nut: 7/16-14 UNC, Grade 8, YZ (Qty: 4)
- Carriage Bolt: 3/8-16 x 2", Grade 8, YZ (Qty: 2)
- Square Hole Spacer: 0.250 x 1.00 x 2.00" (CM-SP18) (Qty: 2)
- Round Spacer: 0.500 x 1.25 x 2.50" (CM-SP52) (Qty: 2)
- Hex Flange Nut: 3/8-16 UNC, Grade 8, YZ (Qty: 2)
- Fishwire: 7/16" (Qty: 2), 3/8" (Qty: 2)
Step-by-Step Instructions:
-
Remove Rear Muffler Isolators:
- Remove the rearmost rubber isolators on both mufflers.
-
Lower Exhaust:
- Loosen the exhaust strap behind the mufflers to detach the exhaust pipes.
- Carefully lower the rear muffler section.
- Note: On 2010 models, you may need to remove the forward exhaust hangers for better access.
-
Fishwire Carriage Bolts and Spacers:
- Fishwire the 7/16 x 1" carriage bolts and CM-SP2 spacers through the frame access holes.
- This hardware will fasten to the bottom of the frame rails.
-
Raise Hitch into Position:
- Carefully position the hitch against the frame rails.
- Attach it loosely using the 7/16" hex flange nuts.
- Be careful not to push the carriage bolts back into the frame rails.
-
Install Remaining Hardware:
- Fishwire the remaining 7/16 x 1-1/2" carriage bolts and CM-SP2 spacers into position on both sides.
- Secure with the provided 7/16" hex flange nuts.
-
Exhaust Hanger Relocation (2010 Models Only):
- Fishwire 3/8 x 2" carriage bolts and CM-SP18 spacers through the access hole.
- Place the CM-SP52 round spacer and exhaust hanger onto the bolt.
- Secure using the 3/8" hex flange nuts.
- Repeat for the passenger-side frame rail.
-
Torque Fasteners:
- Torque all 3/8" hardware to 45 ft-lbs.
- Torque all 7/16" hardware to 70 ft-lbs.
-
Reinstall Exhaust:
- Reattach the exhaust pipes and rubber isolators removed earlier.
Safety Notes:
- No Drilling Required: Uses existing frame access holes.
- Exhaust Hanger Relocation: Required on 2010 models for proper fitment.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 2,000 lbs
- Tongue Weight: 200 lbs
- Hitch Weight: 22 lbs
Installation Time:
- Professional: 60 minutes
- Novice (DIY): 120 minutes
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty covering defects in material and workmanship for the specified duration. For complete warranty instructions, please download the full installation PDF.
Warning: Periodically check all hardware to ensure it is properly torqued and all components remain secure. Do not exceed the vehicle manufacturer's towing capacity.
