For 2011‑2019 Mitsubishi Outlander Sport Trailer Wiring 4 Way Fits Models w/ LED Taillights Curt 56127
Model: 56127-CW3029This Wiring 4-Flat Fits The Following Vehicles:
2011 - 2019 Mitsubishi Outlander Sport w/ LED Taillights
This Wiring 4-Flat Includes the Following Parts:

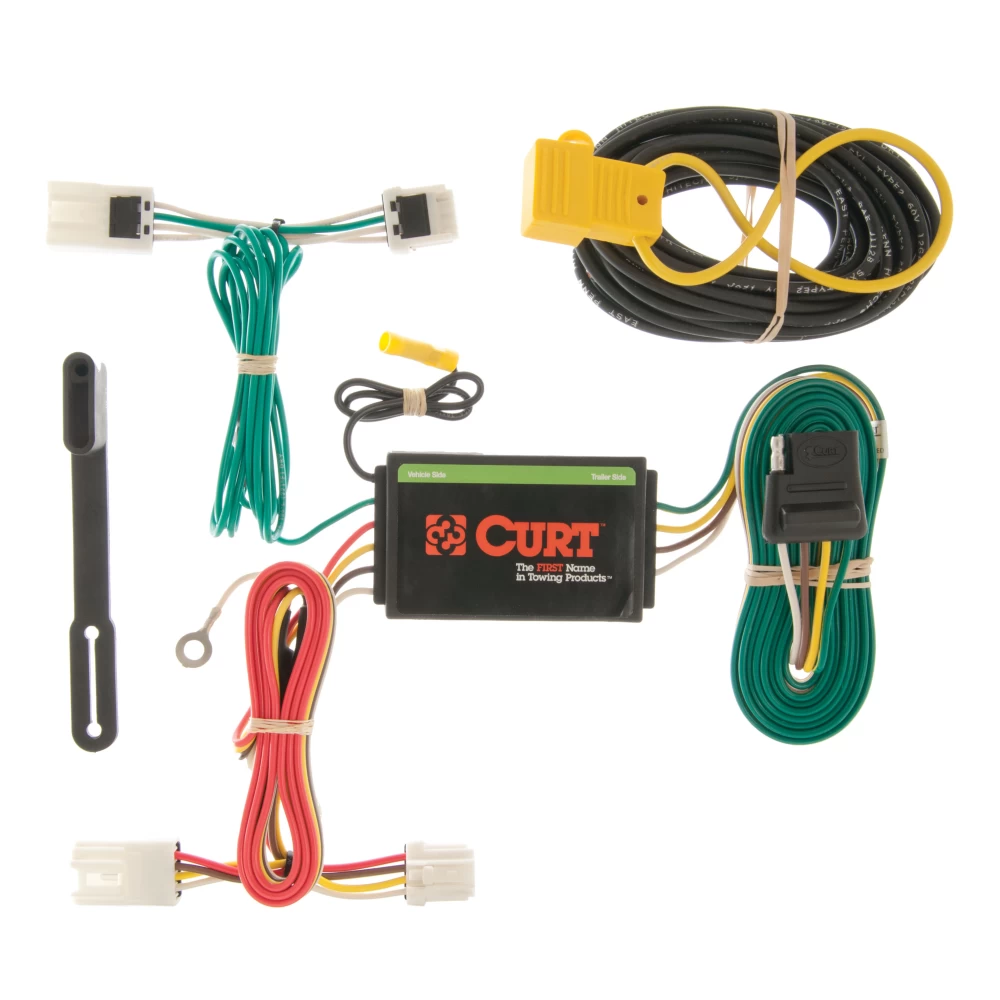

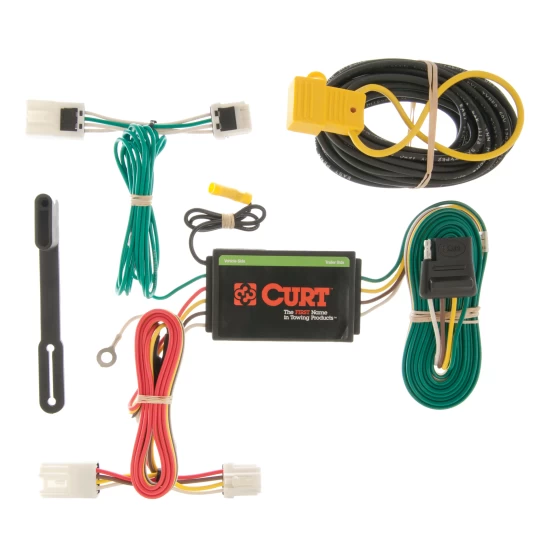

- Custom Wiring, 4-Way Flat Output (Plug & Play)

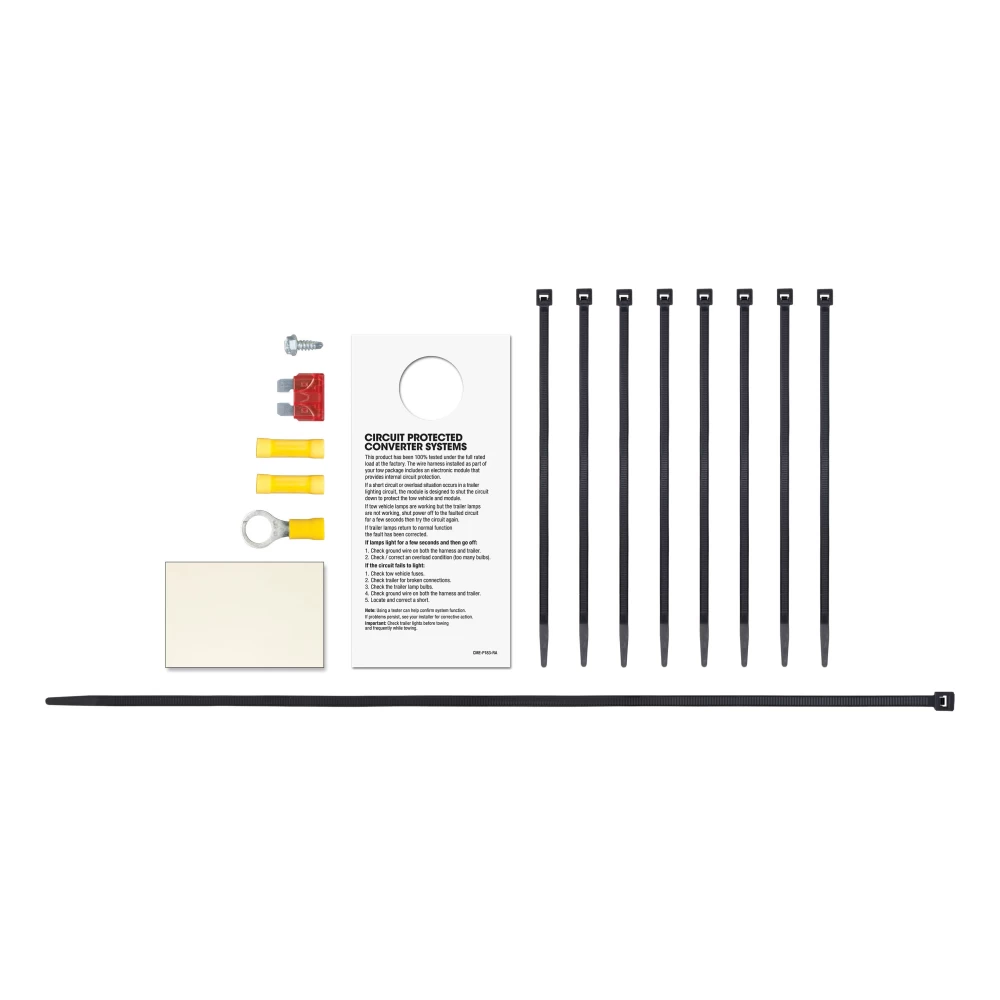

- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
CURT 56127 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mitsubishi RVR, Outlander Sport and Lancer (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:

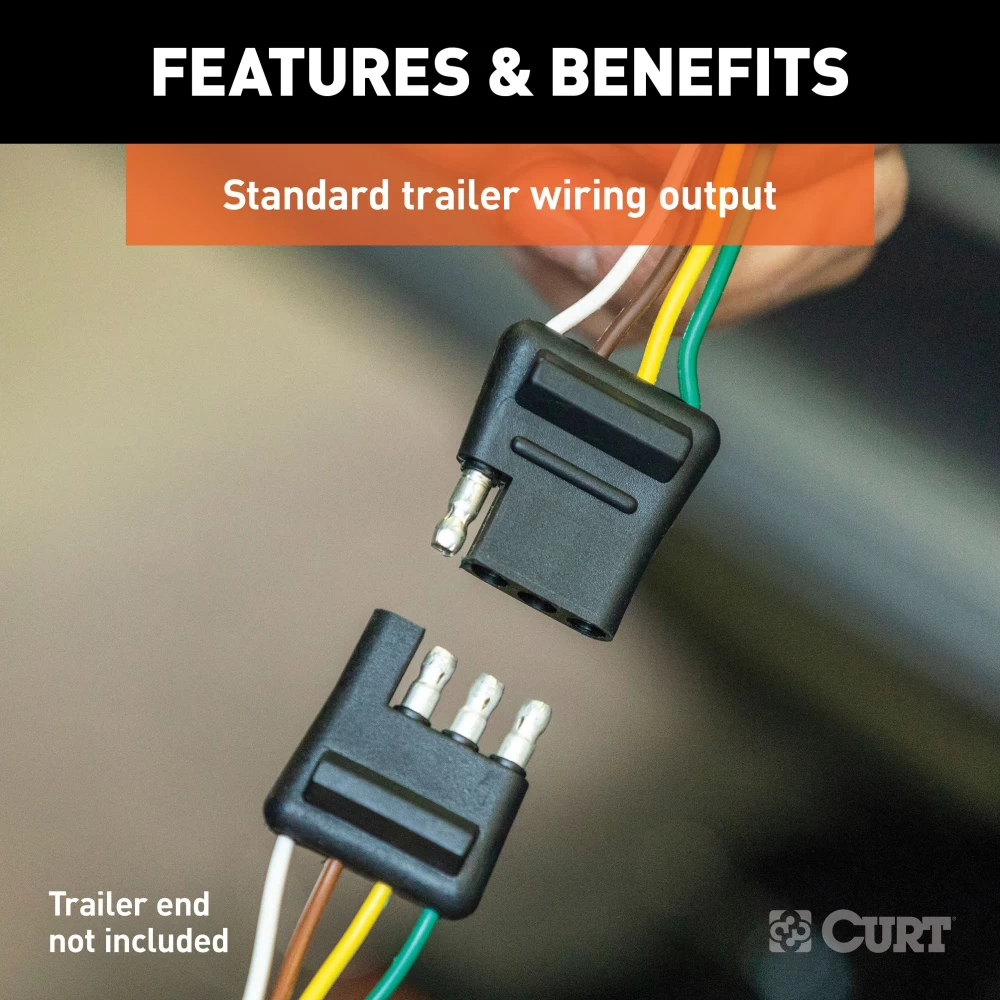

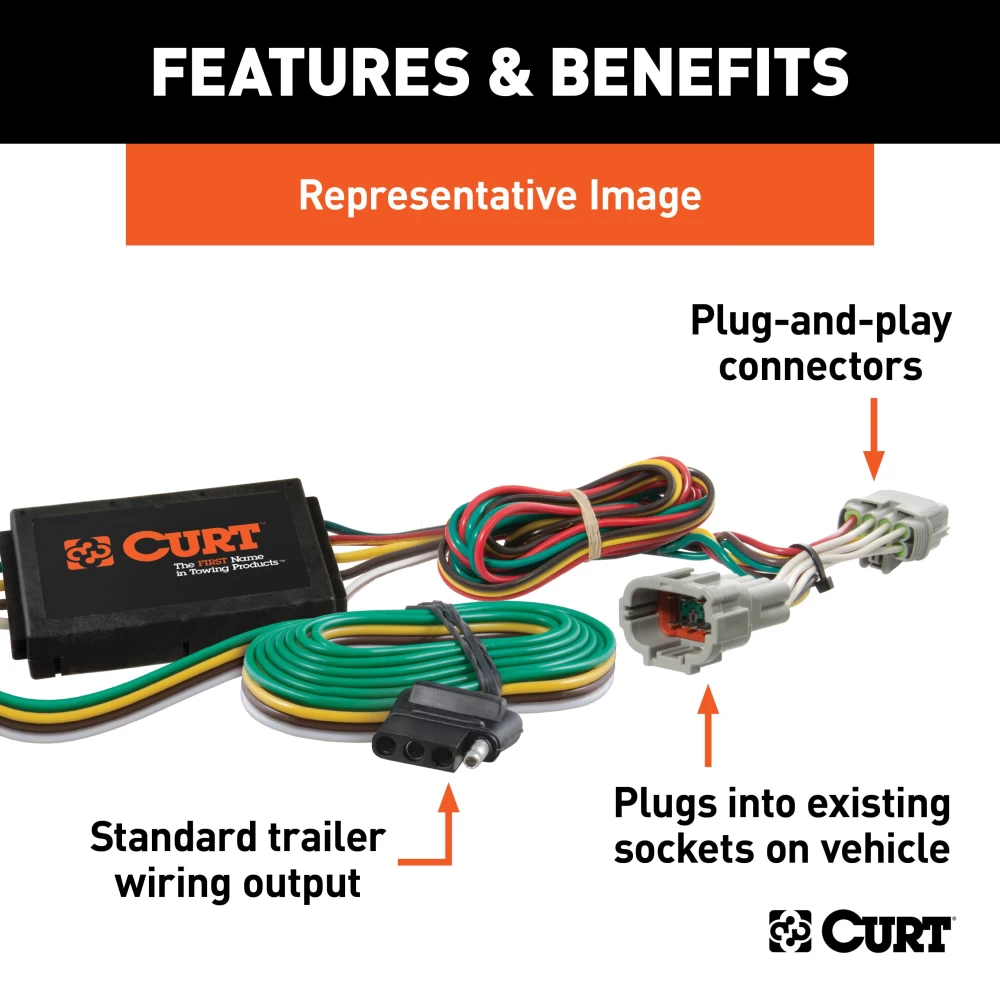

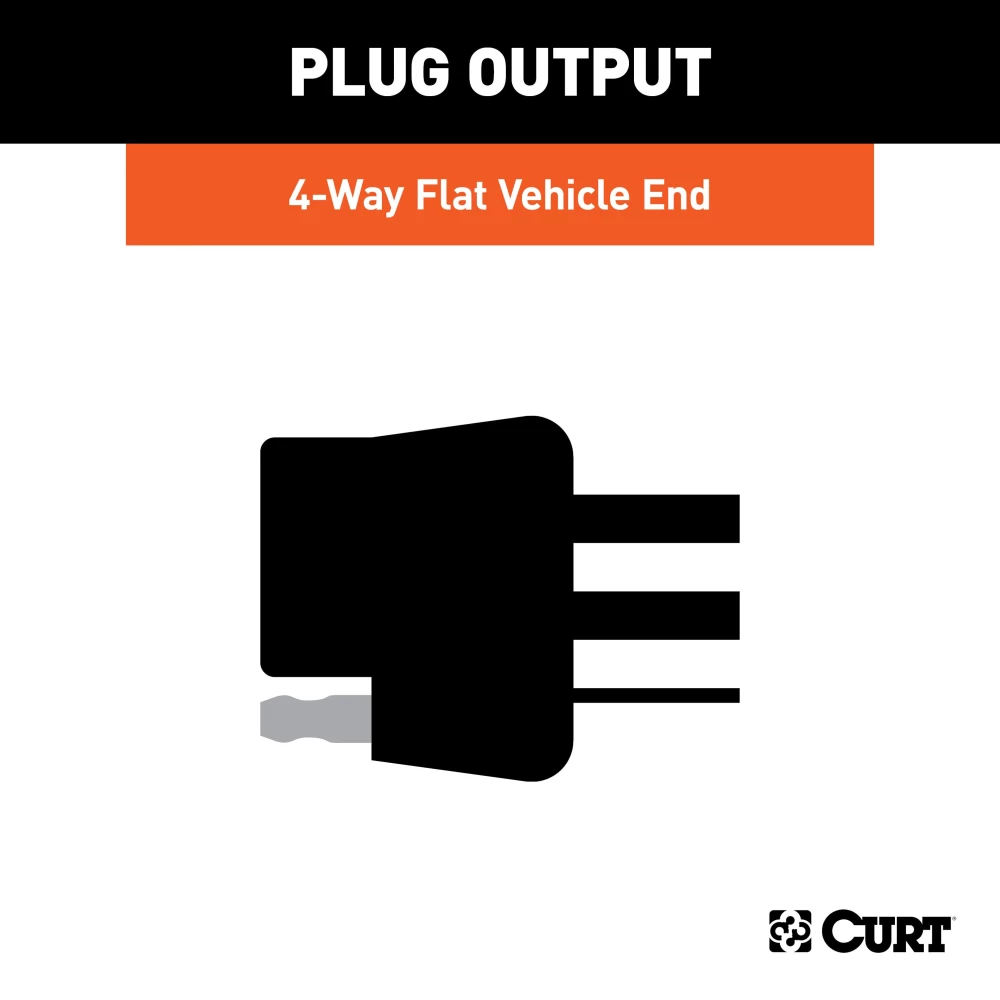

- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability

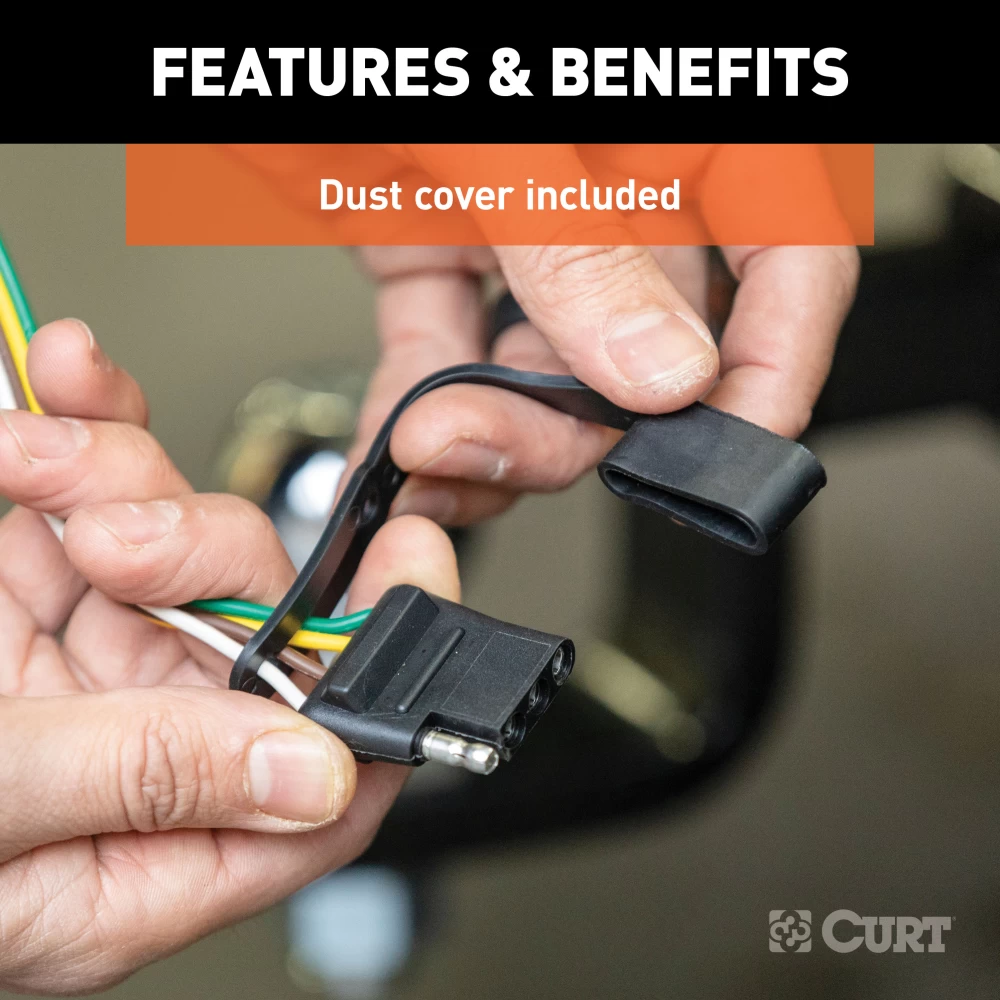

- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$80 99 $92.95 13% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$92.95 $80 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $20.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 56127-CW3029
- Includes: Custom Wiring
Compatibility Chart
Description
Get Expert Help
For 2011-2019 Mitsubishi Outlander Sport Trailer Wiring 4 Way Fits Models w/ LED Taillights Curt 56127 Install Notes
Installation Instructions for Mitsubishi Lancer (Sedan and Hatchback), Mitsubishi Outlander Sport (with LED Taillights), and Mitsubishi RVR (Canada Only)
Part Number:
- 56127
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Wiring Access Location:
-
SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver-side rear access panel
- S4: Behind passenger-side rear access panel
-
Passenger Cars (P):
- P1: Behind driver-side taillight housing, outside of trunk
- P3: Behind driver-side taillight housing, inside of trunk
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the vehicle tailgate.
- Remove the two Phillips screws securing each taillight assembly (Figure A).
- Locate and remove the grommet behind each taillight where the vehicle's taillight wiring passes through from inside the cabin to the taillight (Figure B).
-
Access the Taillight Wiring Harness:
- Inside the grommet hole, locate the vehicle's taillight wiring harness connectors.
- These connectors will resemble those on the custom wiring harness.
- Carefully separate the connectors from the taillight housing to avoid damaging the locking tabs (Figure C).
-
Remove Interior Trim Panels:
- Remove the cargo area floor covering and spare tire cover.
- Remove the two fasteners securing the rear scuff panel.
- Pull out on the bottom of the scuff panel, then up to remove it, taking care not to damage the alignment tabs (Figure D).
-
Access Interior Panels:
- Remove the screws holding the rear trim panels in place.
- Partially pull out the driver and passenger-side rear trim panels (Figure E).
-
Connect the T-Connector on Driver Side:
- Behind the driver-side access panel, insert the T-connector end with the yellow wire between the separated connectors.
- Reinstall the grommet and taillight, ensuring all connectors are fully inserted and locking tabs are engaged (Figure F).
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the provided ring terminal and screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage or personal injury.
-
Route the Green Wire to the Passenger Side:
- Route the T-connector end with the green wire behind the removed scuff panel to the passenger side.
- Repeat Steps 2–5 for the passenger side using the green wire.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as described in the CME-PCL-INS sheet.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
-
Reinstall Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Ensure all steps are followed to guarantee proper function.
- Use a test light or connect a properly wired trailer to confirm functionality.
- The battery connection must be fuse-protected (10-amp max).
Installation Instructions for Mitsubishi Lancer (Sedan and Hatchback), Mitsubishi Outlander Sport (with LED Taillights), and Mitsubishi RVR (Canada Only)
Part Number:
- 56127
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Wiring Access Location:
-
SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver-side rear access panel
- S4: Behind passenger-side rear access panel
-
Passenger Cars (P):
- P1: Behind driver-side taillight housing, outside of trunk
- P3: Behind driver-side taillight housing, inside of trunk
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the vehicle tailgate.
- Remove the two Phillips screws securing each taillight assembly (Figure A).
- Locate and remove the grommet behind each taillight where the vehicle's taillight wiring passes through from inside the cabin to the taillight (Figure B).
-
Access the Taillight Wiring Harness:
- Inside the grommet hole, locate the vehicle's taillight wiring harness connectors.
- These connectors will resemble those on the custom wiring harness.
- Carefully separate the connectors from the taillight housing to avoid damaging the locking tabs (Figure C).
-
Remove Interior Trim Panels:
- Remove the cargo area floor covering and spare tire cover.
- Remove the two fasteners securing the rear scuff panel.
- Pull out on the bottom of the scuff panel, then up to remove it, taking care not to damage the alignment tabs (Figure D).
-
Access Interior Panels:
- Remove the screws holding the rear trim panels in place.
- Partially pull out the driver and passenger-side rear trim panels (Figure E).
-
Connect the T-Connector on Driver Side:
- Behind the driver-side access panel, insert the T-connector end with the yellow wire between the separated connectors.
- Reinstall the grommet and taillight, ensuring all connectors are fully inserted and locking tabs are engaged (Figure F).
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the provided ring terminal and screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route the Green Wire to the Passenger Side:
- Route the T-connector end with the green wire behind the removed scuff panel to the passenger side.
- Repeat Steps 2–5 for the passenger side using the green wire.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as described in the CME-PCL-INS sheet.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
-
Reinstall Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Ensure all steps are followed to guarantee proper function.
- Use a test light or connect a properly wired trailer to confirm functionality.
- The battery connection must be fuse-protected (10-amp max).
Warranty:
For complete warranty information, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
