For 2011‑2016 BMW 535i xDrive Trailer Hitch Fits All Models Curt 11381 1‑1/4 Tow Receiver
Model: 11381-CH140This Trailer Tow Hitch Fits The Following Vehicles:

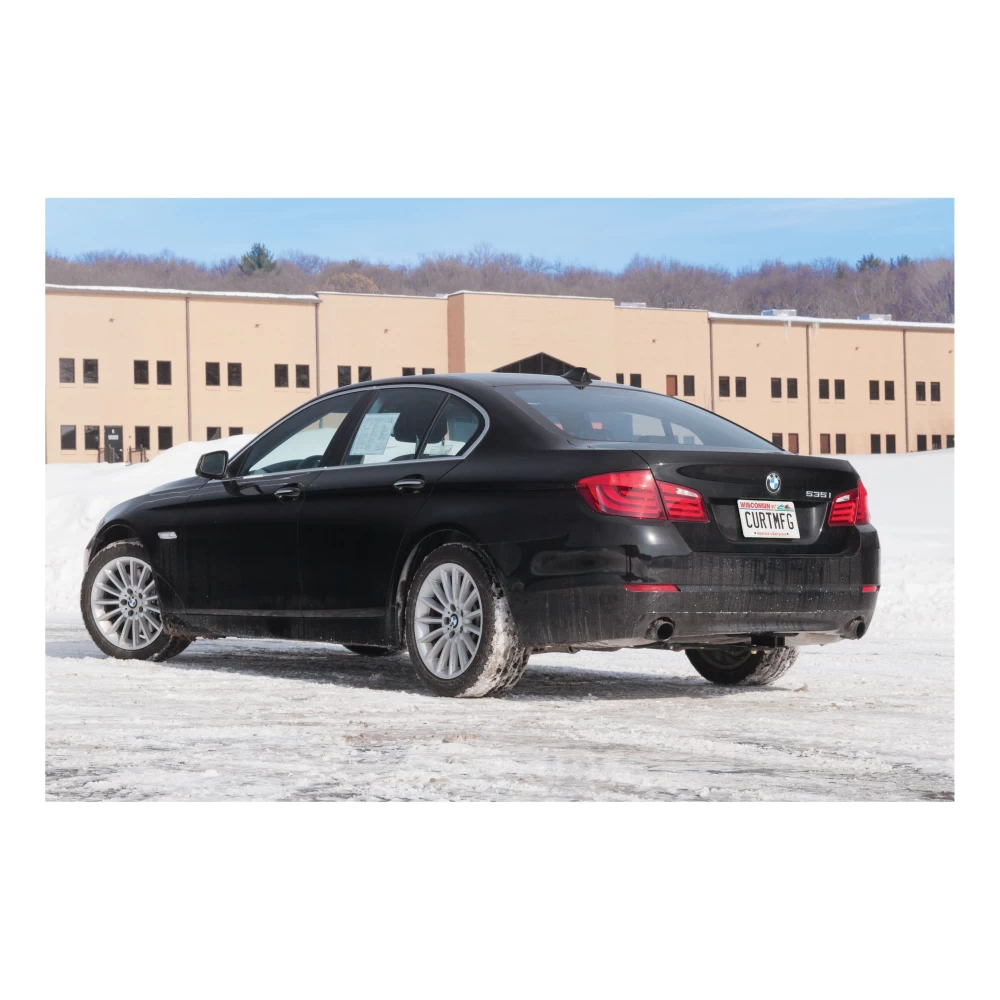

2011 - 2016 BMW 535i xDrive All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Hitch, 1-1/4" Receiver (Drilling Required)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2011, 2012, 2013, 2014, 2015, 2016

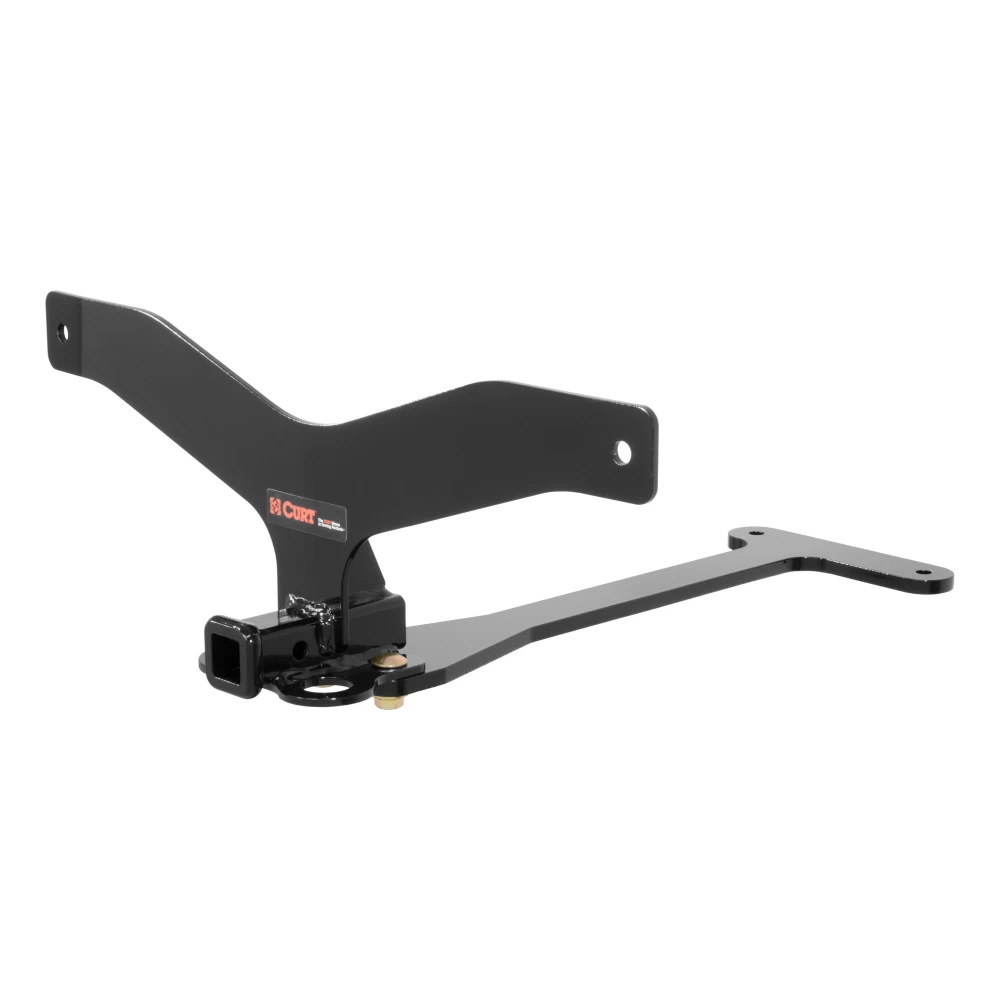

CURT 11381 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the BMW 535i, 535i xDrive, 550i and 550i xDrive (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.

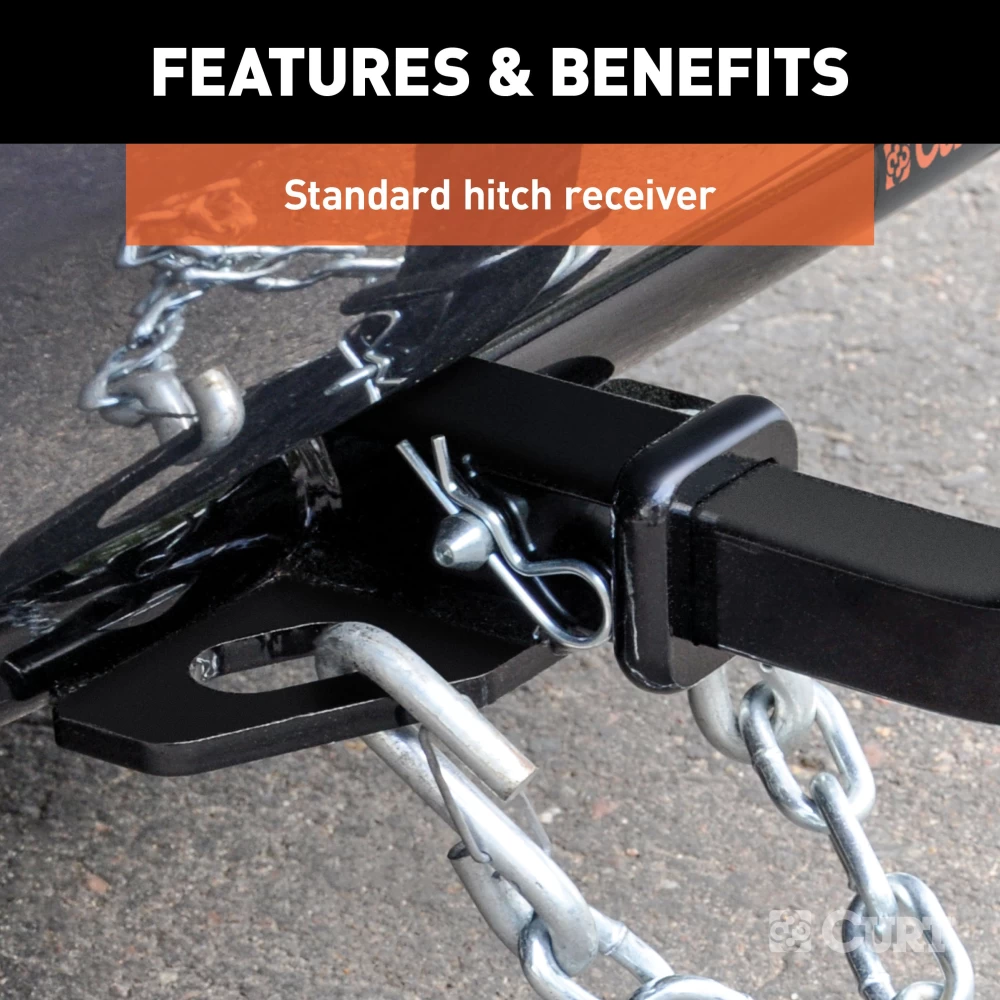

TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..

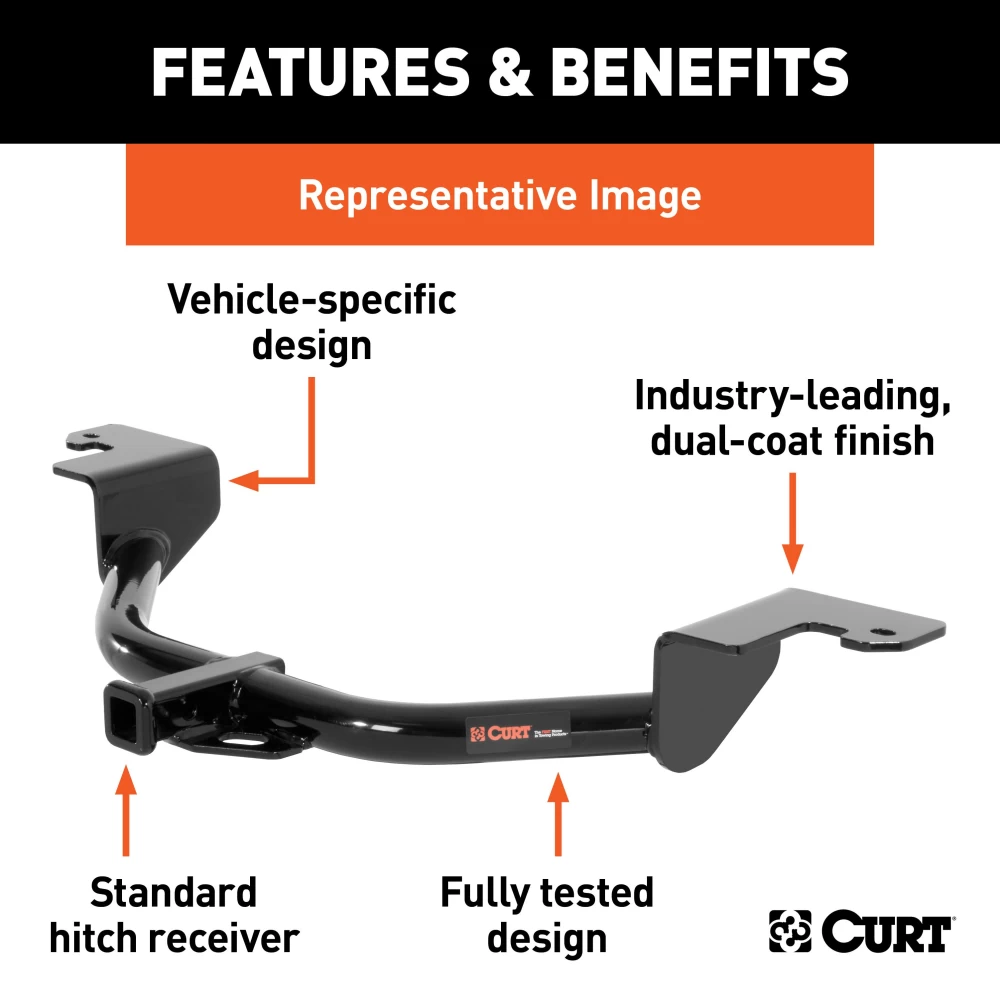

Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

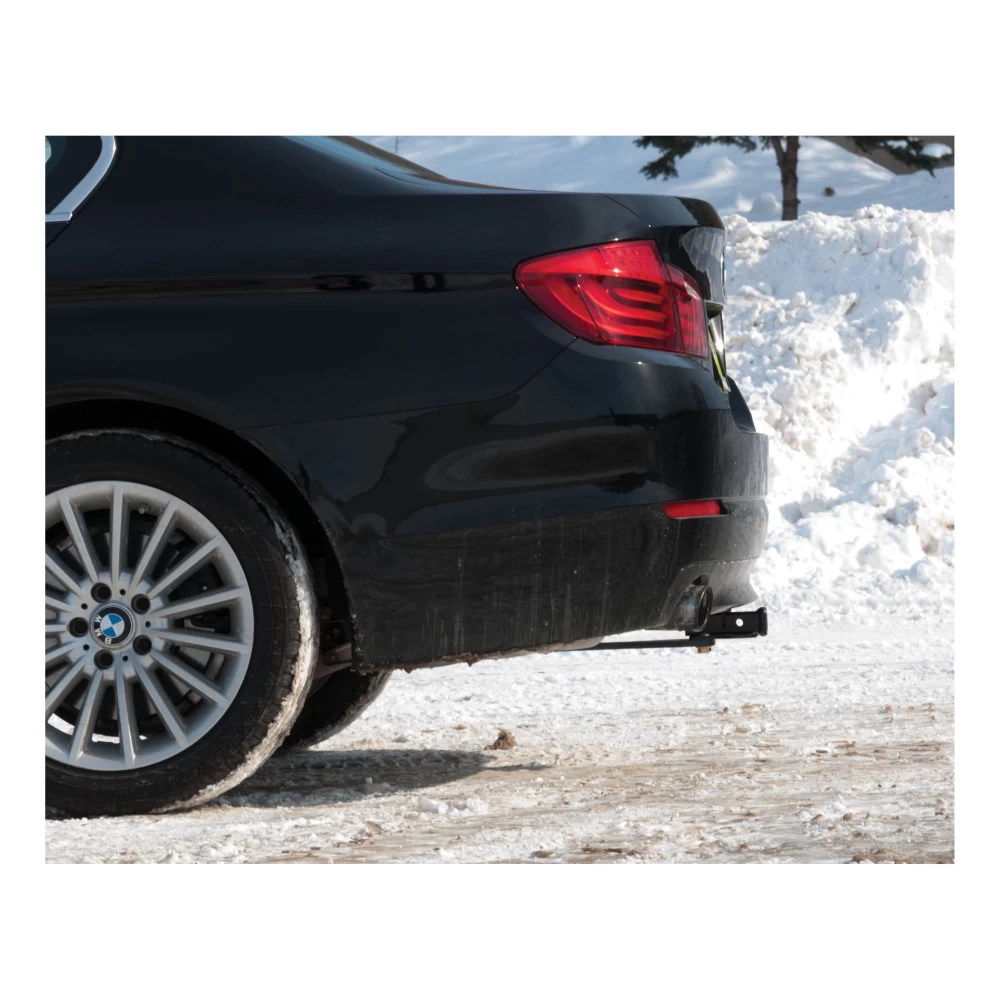

- Concealed main body for OE look and seamless integration with the vehicle

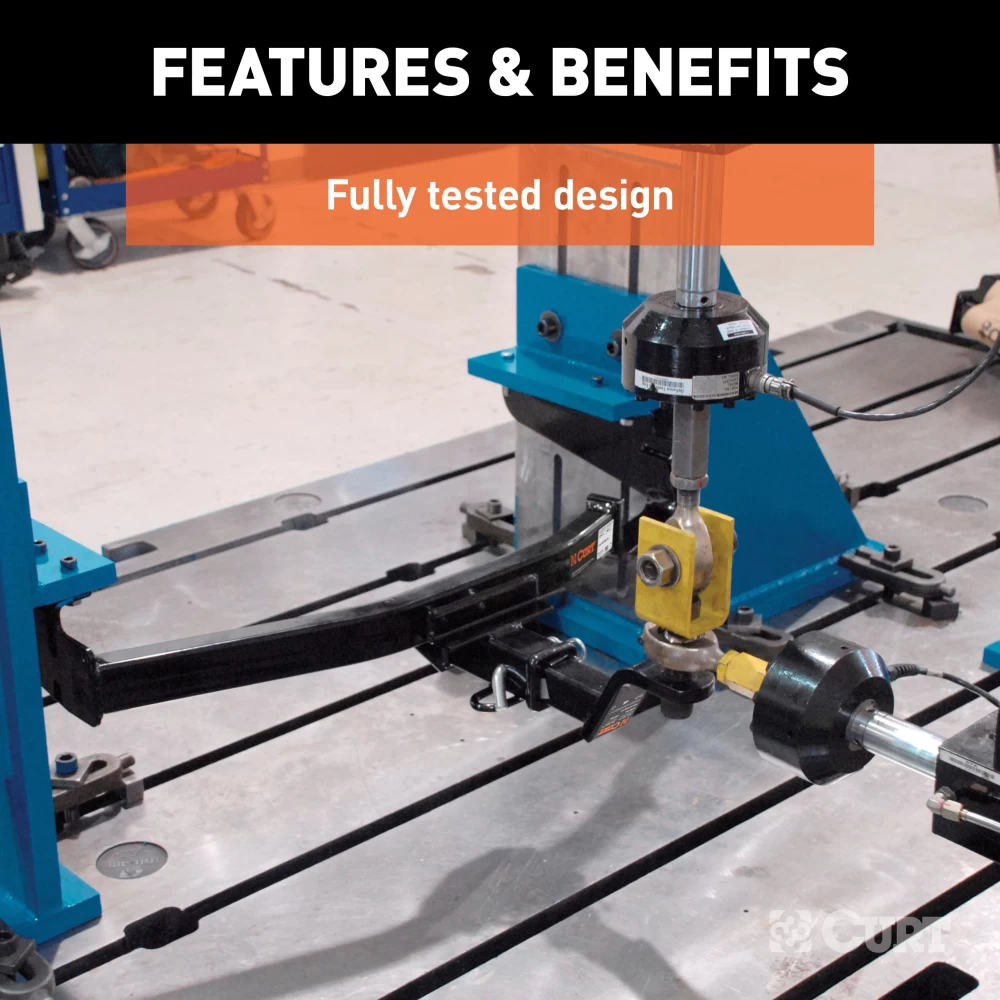

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

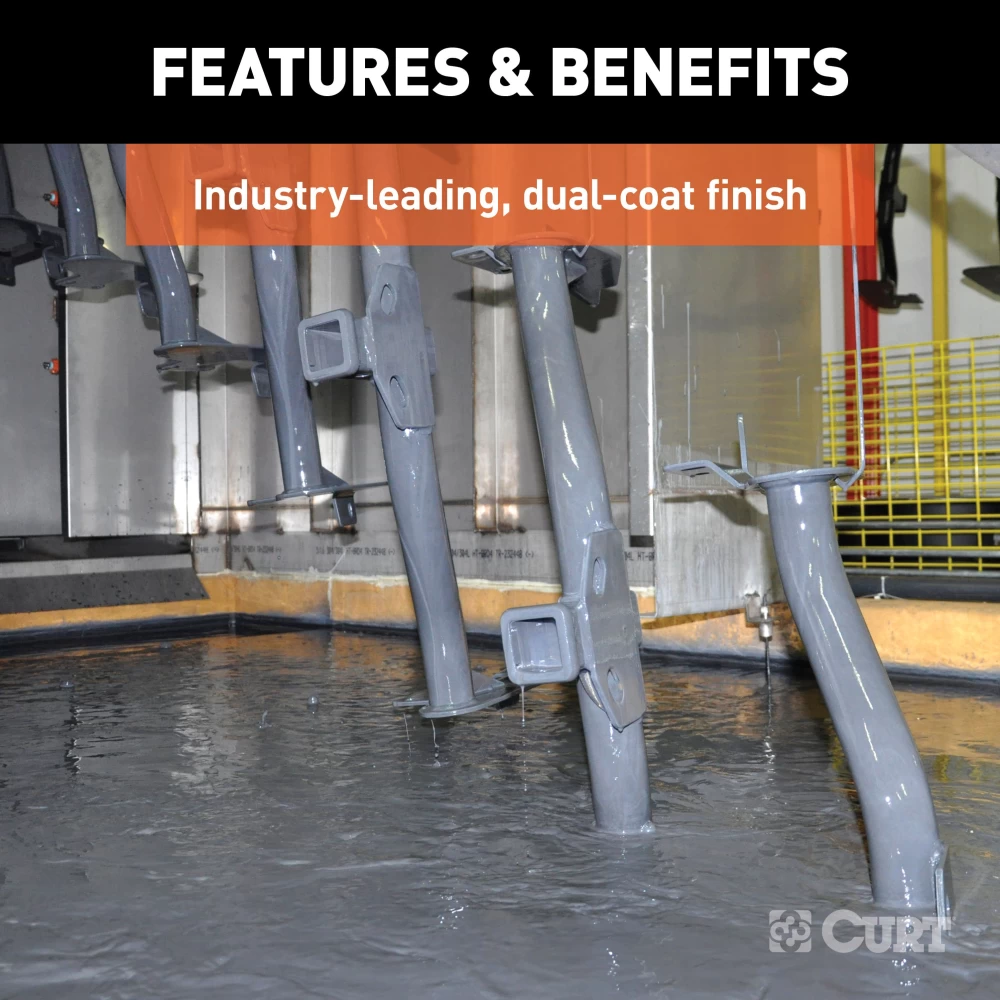

- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$218 99 $328.95 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$328.95 $218 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11381-CH140
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2011-2016 BMW 535i xDrive Trailer Hitch Fits All Models Curt 11381 1-1/4 Tow Receiver Install Notes
Installation Instructions for BMW 5-Series Sedan (2011-Present)
Part Numbers:
- 11381
Tools Required:
- Ratchet
- Torque Wrench
- 10mm Socket
- 11mm Socket
- 13mm Socket
- 3/4" Socket
- 6" Socket Extension
- Power Drill
- 17/32" Drill Bit
- Aviation Shears
- Plastic Rivet Removal Tool
- Masking Tape
- Safety Glasses
- Silicone Caulk
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Using a 10mm socket and plastic rivet removal tool, remove the underbody panel that attaches the bumper cover to the trunk pan.
- Save the panel and fasteners for reinstallation later.
-
Fishwire Carriage Bolts and Spacers:
- Fishwire (2) 1/2"-13 x 1-1/4" carriage bolts and (2) SP6 square hole spacers into the existing holes in the bumper beam.
- Raise the hitch into position and loosely secure it with 1/2"-13 hex flange nuts.
-
Mark and Drill Holes in Trunk Pan:
- Temporarily install the tail bracket to the hitch.
- Use the tail bracket as a template to mark the required drill holes in the trunk pan.
- Important: Clear the trunk pan of all contents and slide the battery towards the rear of the vehicle.
-
Drill Holes:
- Remove the tail bracket and drill the marked holes in the trunk pan using a 17/32" drill bit.
-
Reinstall Tail Bracket and Apply Silicone Caulk:
- Reinstall the tail bracket to the hitch using:
- (2) 1/2"-13 x 1-1/4" carriage bolts
- 1/2"-13 hex flange nuts.
- Apply silicone caulk to the SP4 spacers and the remaining carriage bolts.
- Install the hardware into the trunk pan and tail bracket, and loosely secure with the remaining 1/2"-13 hex flange nuts.
- Reinstall the tail bracket to the hitch using:
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 ft-lbs.
-
Trim Underbody Panel and Reinstall:
- Trim the underbody panel as required to clear the hitch using aviation shears.
- Reinstall the underbody panel using the saved fasteners.
-
Restore Trunk Contents:
- Slide the battery back into position.
- Reinstall the carpet and any trunk contents removed in Step 3.
Hardware List:
- (4) 1/2"-13 x 1-1/4" Carriage Bolts
- (2) SP6 Square Hole Spacers (0.250 x 1.00 x 3.00")
- (2) SP4 Square Hole Spacers (0.250 x 1.50 x 3.00")
- (4) 1/2"-13 Hex Flange Nuts
- (2) Fishwire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Non-trailer loads must be supported by 18050 stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 2,000 lbs. Trailer Weight
- 200 lbs. Tongue Weight
- Professional Install Time: 60 minutes
- Novice (DIY) Install Time: 120 minutes
Manufacturer Notes:
- Drilling of the trunk pan is required for this installation.
- Fishwiring of carriage bolts into the bumper beam is necessary.
- Designed for use with Ball Mount #45521.
- Euro Mount Options Available:
-
45571 (1-7/8" Ball)
-
45572 (2" Ball)
-
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for BMW 5-Series Sedan (2011-Present)
Part Numbers:
- 11381
Tools Required:
- Ratchet
- Torque Wrench
- 10mm Socket
- 11mm Socket
- 13mm Socket
- 3/4" Socket
- 6" Socket Extension
- Power Drill
- 17/32" Drill Bit
- Aviation Shears
- Plastic Rivet Removal Tool
- Masking Tape
- Safety Glasses
- Silicone Caulk
Step-by-Step Instructions:
-
Remove Underbody Panel:
- Using a 10mm socket and plastic rivet removal tool, remove the underbody panel that attaches the bumper cover to the trunk pan.
- Save the panel and fasteners for reinstallation later.
-
Fishwire Carriage Bolts and Spacers:
- Fishwire (2) 1/2"-13 x 1-1/4" carriage bolts and (2) SP6 square hole spacers into the existing holes in the bumper beam.
- Raise the hitch into position and loosely secure it with 1/2"-13 hex flange nuts.
-
Mark and Drill Holes in Trunk Pan:
- Temporarily install the tail bracket to the hitch.
- Use the tail bracket as a template to mark the required drill holes in the trunk pan.
- Important: Clear the trunk pan of all contents and slide the battery towards the rear of the vehicle.
-
Drill Holes:
- Remove the tail bracket and drill the marked holes in the trunk pan using a 17/32" drill bit.
-
Reinstall Tail Bracket and Apply Silicone Caulk:
- Reinstall the tail bracket to the hitch using:
- (2) 1/2"-13 x 1-1/4" carriage bolts
- 1/2"-13 hex flange nuts.
- Apply silicone caulk to the SP4 spacers and the remaining carriage bolts.
- Install the hardware into the trunk pan and tail bracket, and loosely secure with the remaining 1/2"-13 hex flange nuts.
- Reinstall the tail bracket to the hitch using:
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 ft-lbs.
-
Trim Underbody Panel and Reinstall:
- Trim the underbody panel as required to clear the hitch using aviation shears.
- Reinstall the underbody panel using the saved fasteners.
-
Restore Trunk Contents:
- Slide the battery back into position.
- Reinstall the carpet and any trunk contents removed in Step 3.
Hardware List:
- (4) 1/2"-13 x 1-1/4" Carriage Bolts
- (2) SP6 Square Hole Spacers (0.250 x 1.00 x 3.00")
- (2) SP4 Square Hole Spacers (0.250 x 1.50 x 3.00")
- (4) 1/2"-13 Hex Flange Nuts
- (2) Fishwire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Non-trailer loads must be supported by stabilizing straps.
- Failure to properly support non-trailer loads may void the warranty.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 2,000 lbs. Trailer Weight
- 200 lbs. Tongue Weight
- Professional Install Time: 60 minutes
- Novice (DIY) Install Time: 120 minutes
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty covering defects in material and workmanship for the specified duration. For complete warranty instructions, please download the full installation PDF.
