For 2012‑2021 Nissan NV3500 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Voyager Brake Controller + Plug & Play Adapter By Tekonsha
Model: 118553 85343 20506 7012A 9030 3050-P-527985This Bundle Fits The Following Vehicles:
2012-2021 Nissan NV3500

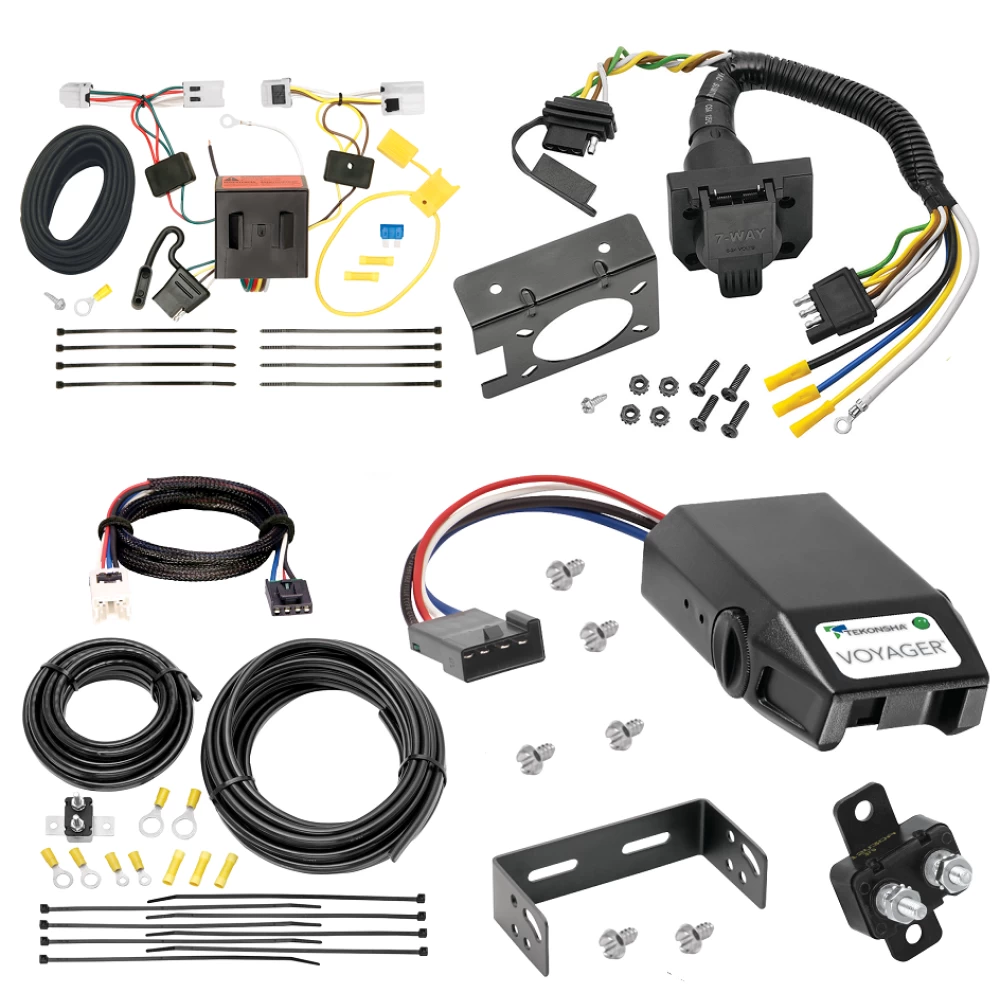

This Bundle Includes the Following Parts:
- 7-Way RV Wiring
- Tekonsha Voyager Brake Control
- Plug & Play BC Adapter
List of fitment years:
2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021

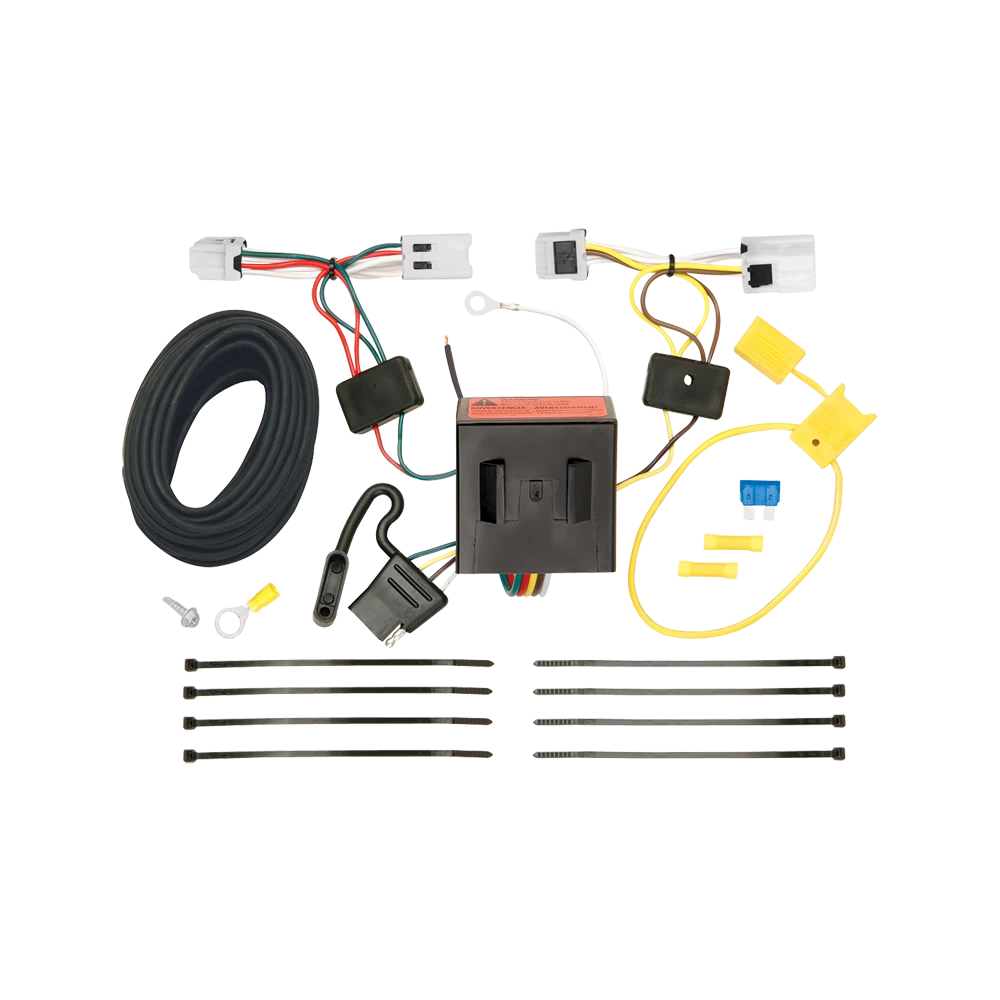

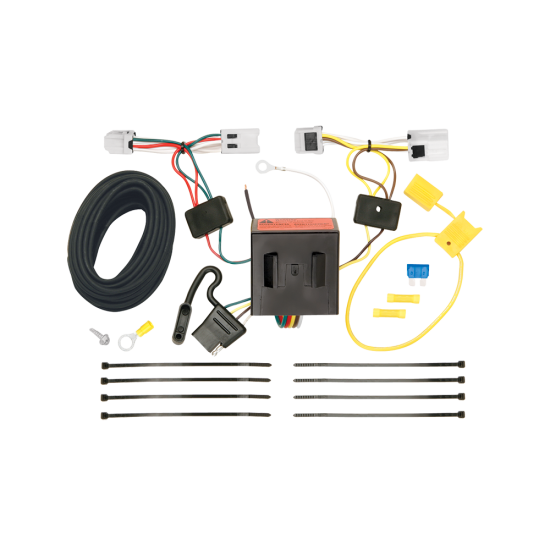

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
- 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
- Stop/Turn Circuit Capacity Of 4.2 Amps
- Taillight Circuit Capacity Of 7.5 Amps
- Solid, Weatherproof, One-Piece Construction
- No Cutting, Splicing, Or Taping Of Vehicle Wires
- Includes Converter Where Needed
Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower
REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.
- Provide versatility in going from 4 way flat to 7-Way round blade
- Sealed connection increases protection against moisture & corrosion
- Low profile design provides factory installed appearance
- Built with heavy duty rugged materials
- Included 4-Flat dust cover and heavy duty spring on 7-Way connector
- Butt connectors pre attached for quicker wiring
- Mounting bracket included
- Mounting hardware included
Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready
Includes all necessary parts required to completely install all brake controls. No other parts are necessary.
Circuit Breaker, 30 Amp Manufactured by: Tekonsha
Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.
Voyager® Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha
The Voyager® incorporates patented braking sensor by Tekonsha and is the best value you will find for smooth and secure trailer braking. It is compact size and features, like a bicolored LED brake monitor (to assure a complete connection to trailer brakes and give an indication of relative braking power being applied) make the Voyager® extremely versatile. Voyager® minimizes interference with tow vehicle electrical systems, uses a four wire hook up, has a broad setting range and is compatible with most any vehicle.
- Broad control range makes setting quick and easy.
- As braking power is applied, the LED changes color gradually from green, completed circuit, to red, to indicate relative braking power.
- Advanced electronics minimize false braking for smoother ride.
- Electric trailer brake control for up to 4 braking axles.
- Plug-N-Play feature allows quick and easy connection.
- 5 year limited warranty.

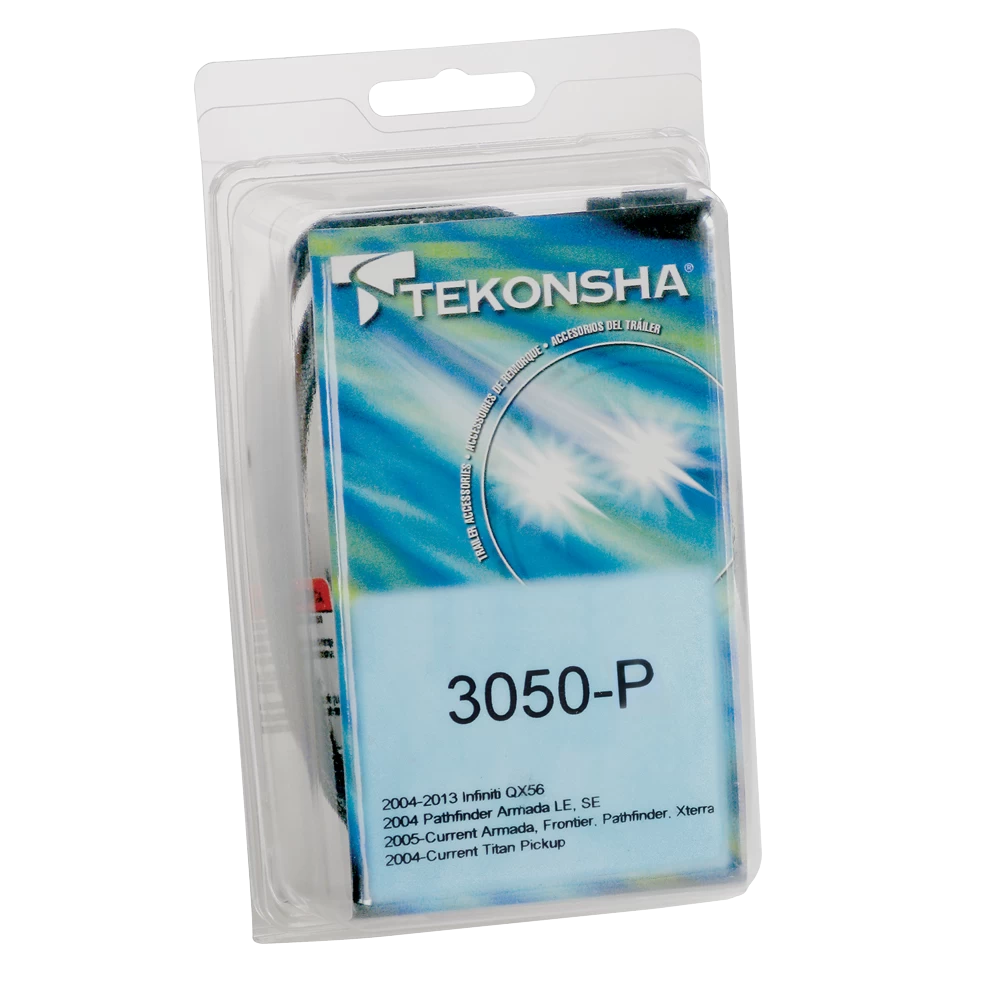

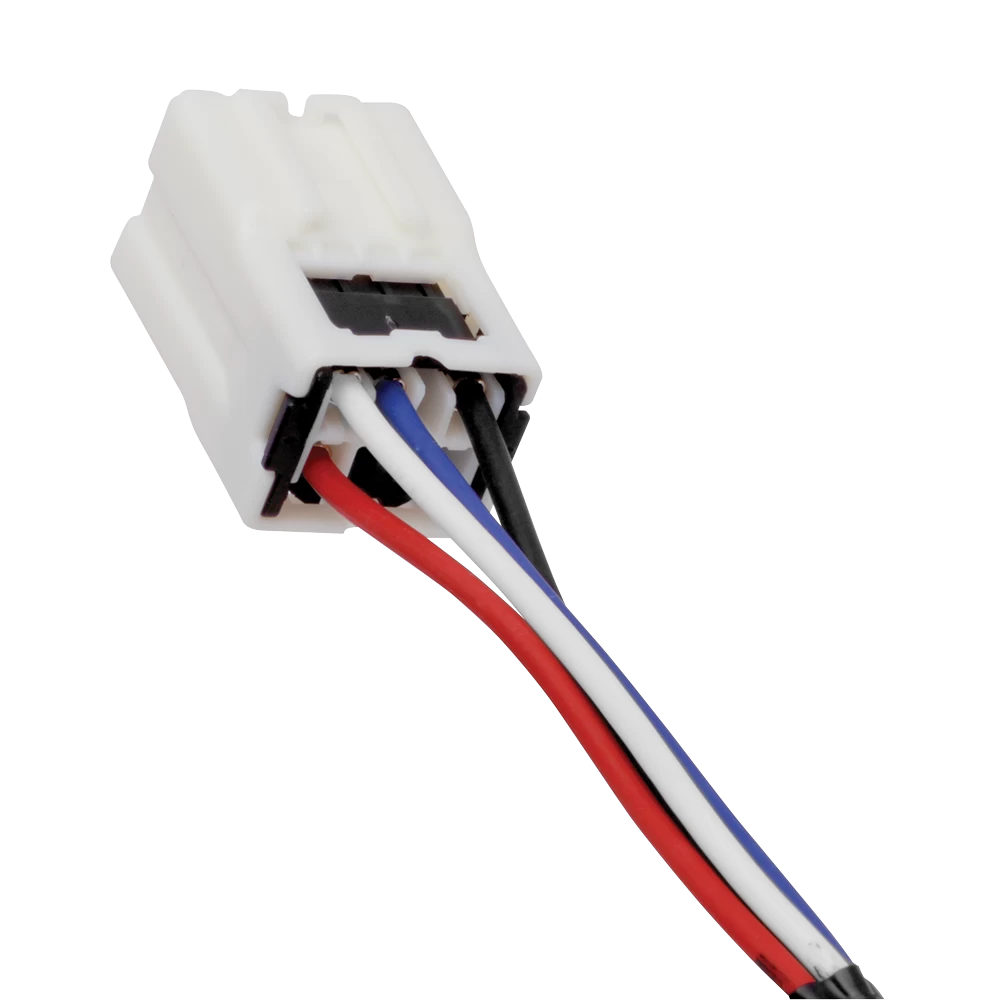

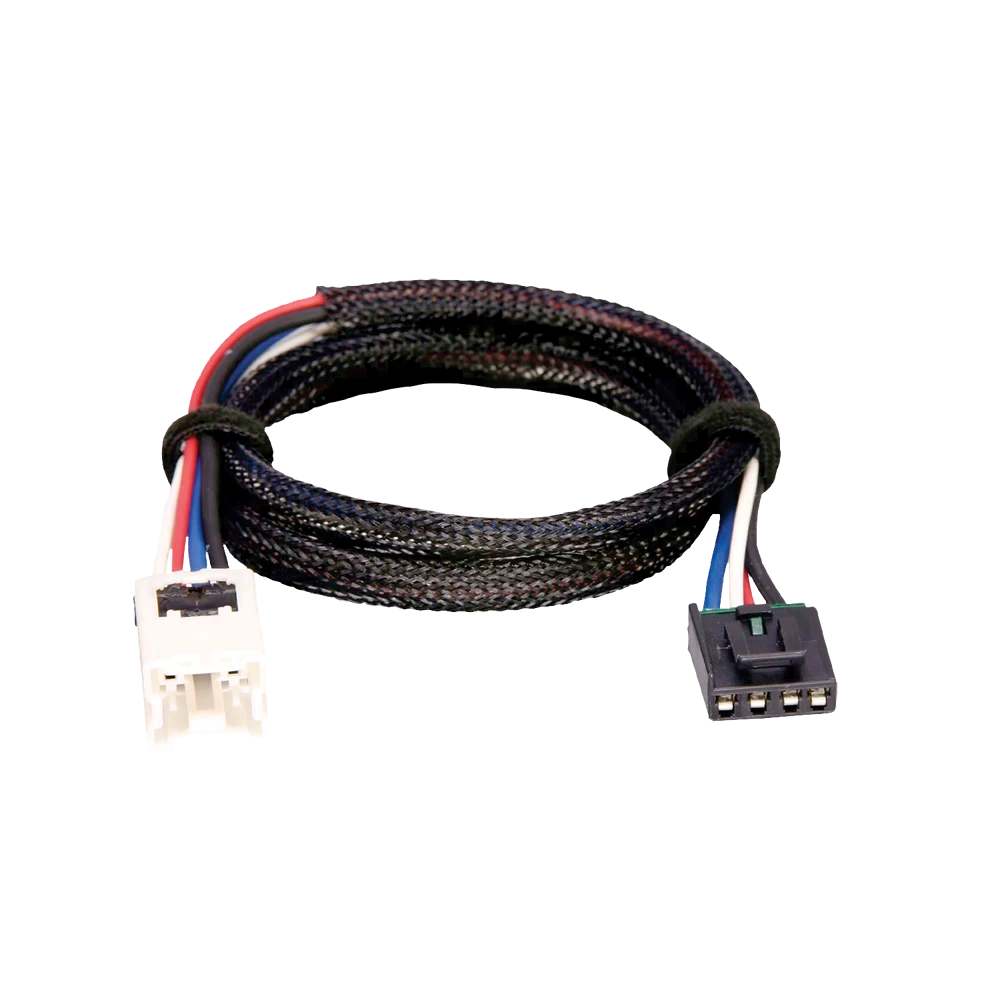

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
$271 15 $398.25 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$398.25 $271 15
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $67.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118553 85343 20506 7012A 9030 3050-P-527985
- Includes: T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Voyager Proportional Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Description
Get Expert Help
For 2012-2021 Nissan NV3500 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Voyager Brake Controller + Plug & Play Adapter By Tekonsha Install Notes
Installation Instructions for T-Connector Adapter for Nissan NV
Part Numbers:
- 118553
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate the Vehicle Jack Storage Compartment:
- Open the rear door and find the jack storage compartment on the passenger’s side.
- Remove the panel and tire jack to access the harness area.
-
Locate the Taillight Wiring Harness:
- Identify the taillight wiring harness behind each taillight housing.
- Disconnect the connectors carefully, ensuring the locking tabs are not damaged.
-
Install the Passenger-Side T-Connector:
- Insert the T-Connector with the green wire between the passenger-side wiring connectors.
- Ensure connectors are fully inserted and locked.
-
Route the Driver-Side T-Connector:
- Temporarily remove the rear threshold plate.
- Route the connector containing the green wire along the threshold to the driver’s side of the vehicle.
-
Install the Driver-Side T-Connector:
- Repeat Step 3 using the T-Connector end containing the yellow wire.
-
Ground the White Wire:
- Find a suitable grounding point near the connectors on the driver’s side.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify the surface behind before drilling to avoid damage or injury.
-
Connect the Power Wire:
- On the driver’s side, locate the red 12-gauge power wire from the T-Connector box.
- Attach the provided black 12-gauge wire to the red power wire.
-
Route the Black Power Wire:
- Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds into the engine compartment, avoiding areas that may pinch or damage the wire.
Warning:
- Avoid hot pipes, heat shields, or other areas that may damage the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the provided yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the black wire to the fuse holder using the provided yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test the installation with a test light or trailer to verify functionality.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Replace the threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched or damaged.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Store the 4-flat connector in the rear cargo area when not in use.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for T-Connector Adapter for Nissan NV
Part Numbers:
- 118553
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate the Vehicle Jack Storage Compartment:
- Open the rear door and find the jack storage compartment on the passenger’s side.
- Remove the panel and tire jack to access the harness area.
-
Locate the Taillight Wiring Harness:
- Identify the taillight wiring harness behind each taillight housing.
- Disconnect the connectors carefully, ensuring the locking tabs are not damaged.
-
Install the Passenger-Side T-Connector:
- Insert the T-Connector with the green wire between the passenger-side wiring connectors.
- Ensure connectors are fully inserted and locked.
-
Route the Driver-Side T-Connector:
- Temporarily remove the rear threshold plate.
- Route the connector containing the green wire along the threshold to the driver’s side of the vehicle.
-
Install the Driver-Side T-Connector:
- Repeat Step 3 using the T-Connector end containing the yellow wire.
-
Ground the White Wire:
- Find a suitable grounding point near the connectors on the driver’s side.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify the surface behind before drilling to avoid damage or injury.
-
Connect the Power Wire:
- On the driver’s side, locate the red 12-gauge power wire from the T-Connector box.
- Attach the provided black 12-gauge wire to the red power wire.
-
Route the Black Power Wire:
- Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds into the engine compartment, avoiding areas that may pinch or damage the wire.
Warning:
- Avoid hot pipes, heat shields, or other areas that may damage the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the provided yellow fuse holder to the positive (+) battery cable using the provided ring terminal.
- Connect the black wire to the fuse holder using the provided yellow butt connector.
- Insert the 10-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test the installation with a test light or trailer to verify functionality.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Replace the threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched or damaged.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Store the 4-flat connector in the rear cargo area when not in use.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Caution: Improper installation or circuit overloads can cause electrical failures. Always follow instructions carefully and test the installation thoroughly before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 305000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Brake Control Harness
- The electric brake control harness is located:
- Underneath and to the left of the steering column.
- It is typically taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the plug on the adapter.
Step 2: Plug in the Brake Control Adapter
- Plug the brake control adapter into the vehicle’s 6-pin electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions for:
- Wiring the adapter to the brake controller, and
- Mounting the brake controller securely.
Step 3: Finalize the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller as directed.
- Perform all test procedures as outlined by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles Without an OEM Trailer Tow Package:
- Additional fuses and relays may be required to complete the output and battery feed circuits.
- Refer to the vehicle owner’s manual for fuse and relay locations.
Safety Warnings:
- Overloading Circuits May Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller instruction sheet for further details.
Wiring Overview:
- Fused Battery Feed: Supplies power to the brake controller.
- Stop Lamp Switch (Input): Provides braking signal from the vehicle.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Ground: Ensures proper grounding for the system.
Final Notes:
- Periodically inspect all connections and wires for signs of damage or wear.
- Ensure the system operates correctly before towing.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 305000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Brake Control Harness
- The electric brake control harness is located:
- Underneath and to the left of the steering column.
- It is typically taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the plug on the adapter.
Step 2: Plug in the Brake Control Adapter
- Plug the brake control adapter into the vehicle’s 6-pin electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions for:
- Wiring the adapter to the brake controller, and
- Mounting the brake controller securely.
Step 3: Finalize the Installation
- Complete the installation per the brake control manufacturer’s instructions.
- Mount the brake controller as directed.
- Perform all test procedures as outlined by the brake controller manufacturer to confirm proper operation.
Notes:
- Vehicles Without an OEM Trailer Tow Package:
- Additional fuses and relays may be required to complete the output and battery feed circuits.
- Refer to the vehicle owner’s manual for fuse and relay locations.
Safety Warnings:
- Overloading Circuits May Cause Fires:
- DO NOT exceed the lower of:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of:
- Carefully read the vehicle owner’s manual and the brake controller instruction sheet for further details.
Wiring Overview:
- Fused Battery Feed: Supplies power to the brake controller.
- Stop Lamp Switch (Input): Provides braking signal from the vehicle.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
- Ground: Ensures proper grounding for the system.
Final Notes:
- Periodically inspect all connections and wires for signs of damage or wear.
- Ensure the system operates correctly before towing.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation and Operation Instructions for Voyager Electronic Brake Control
Specifications:
- Compatible with 2, 4, 6, and 8 brake applications.
- Uses an inertial sensor for proportional braking.
Tools Required:
- Drill with a 1/8” bit.
-
6 x 3/8” screws.
- Screwdriver or wrench.
Safety Notes:
- Avoid mounting or operating RF-generating devices (e.g., cell phones, two-way radios) closer than 12 inches to the brake control.
- Reversing the connection to a breakaway battery will damage the brake control.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage.
- The level adjustment is critical for proper braking response.
- Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
- This unit is designed for electric trailer brakes only.
Hardware List:
- Voyager brake control unit.
- Mounting bracket.
- Screws for mounting.
Installation Instructions:
Mounting the Brake Control:
- Select a Mounting Location:
- Ensure a flat, solid surface between -20° nose down and 70° nose up.
- Avoid any area with potential interference or unstable mounting.
- Attach the Mounting Bracket:
- Use the provided #6 x 3/8” screws to securely mount the bracket.
- Avoid over-tightening or using longer screws to prevent damage.
- Install the Brake Control:
- Attach the control to the bracket and adjust its position.
- Tighten the screws snugly to secure the unit.
Leveling the Sensor:
- Connect the trailer to the tow vehicle. The bi-colored light should glow green.
- Turn the Power Knob to maximum (clockwise).
- Press and hold the brake pedal.
- Adjust the Level Knob:
- Turn it counter-clockwise until the light changes from green to red.
- Slowly turn it clockwise until an orange light is visible.
- Light Settings:
- Dim orange: Normal setting.
- Bright orange: Aggressive braking.
- Dim red: More aggressive braking.
Adjusting Power to Trailer Brakes:
- Connect the trailer to the tow vehicle.
- Turn the Power Knob to the 12 o’clock position.
- Drive at 25 mph on a dry, level surface.
- Apply the Manual Slide Knob:
- If trailer brakes lock up, decrease power (turn counter-clockwise).
- If braking is insufficient, increase power (turn clockwise).
- Repeat until the braking is smooth and sufficient without wheel lock-up.
Fine-Tuning:
- Make several slow stops to assess braking response.
- If brakes grab too much, reduce aggressiveness by turning the Level Knob clockwise.
- If braking is delayed, increase aggressiveness by turning the Level Knob counter-clockwise.
Maintenance:
- Regularly inspect connections and ensure wires are secure.
- Adjust brakes after the first 200 miles of use and every 3,000 miles thereafter.
- Keep the unit clean and free from debris.
Troubleshooting Guide:
| Issue | Probable Cause | Solution |
|---|---|---|
| No green light when connected. | Corrosion or loose ground/power wires. | Inspect and clean connections. |
| No red light with manual knob. | Low power or short on brake wire. | Increase power or inspect wiring. |
| Brakes lock up. | Power set too high. | Reduce the power setting. |
| Delayed braking. | Improper sensor leveling. | Re-level the sensor. |
Warranty Information:
- Limited Warranty:
- Covers defects in materials and workmanship.
- Excludes damage caused by improper installation, misuse, or external factors.
- Attention: This is a summary of the installation procedure. For complete installation instructions, including detailed diagrams and additional information, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
