For 2014‑2024 RAM 3500 M5 Fifth Wheel Hitch 27K Talon Jaw Complete System For Models w/ Factory Puck System (For w/Factory or Reese Elite Puck System Models) By Reese
Model: 30919-2-NThis Bundle Fits The Following Vehicles:
2014-2024 RAM 3500 w/Factory or Reese Elite Puck System
This Bundle Includes the Following Parts:
M5 Fifth Wheel Hitch 27K Talon Jaw Complete System For Models w/ Factory Puck System
List of fitment years:
2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

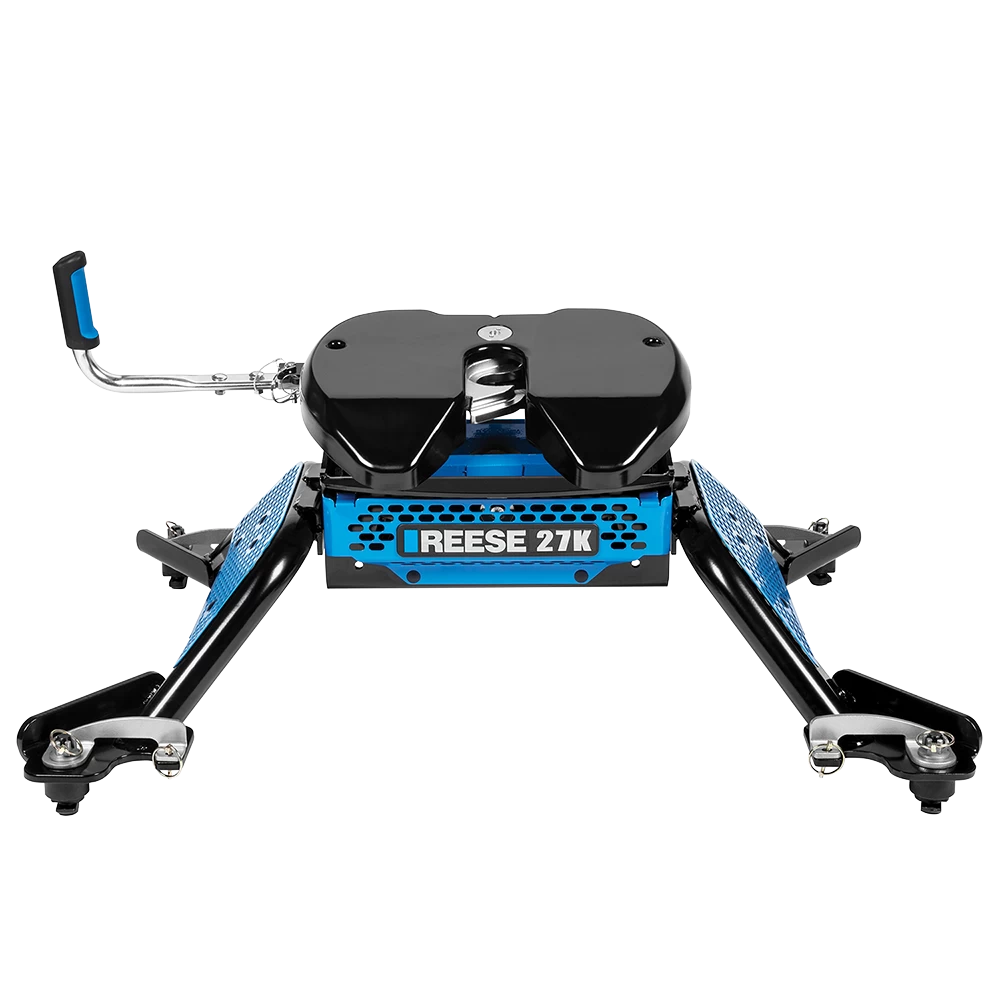

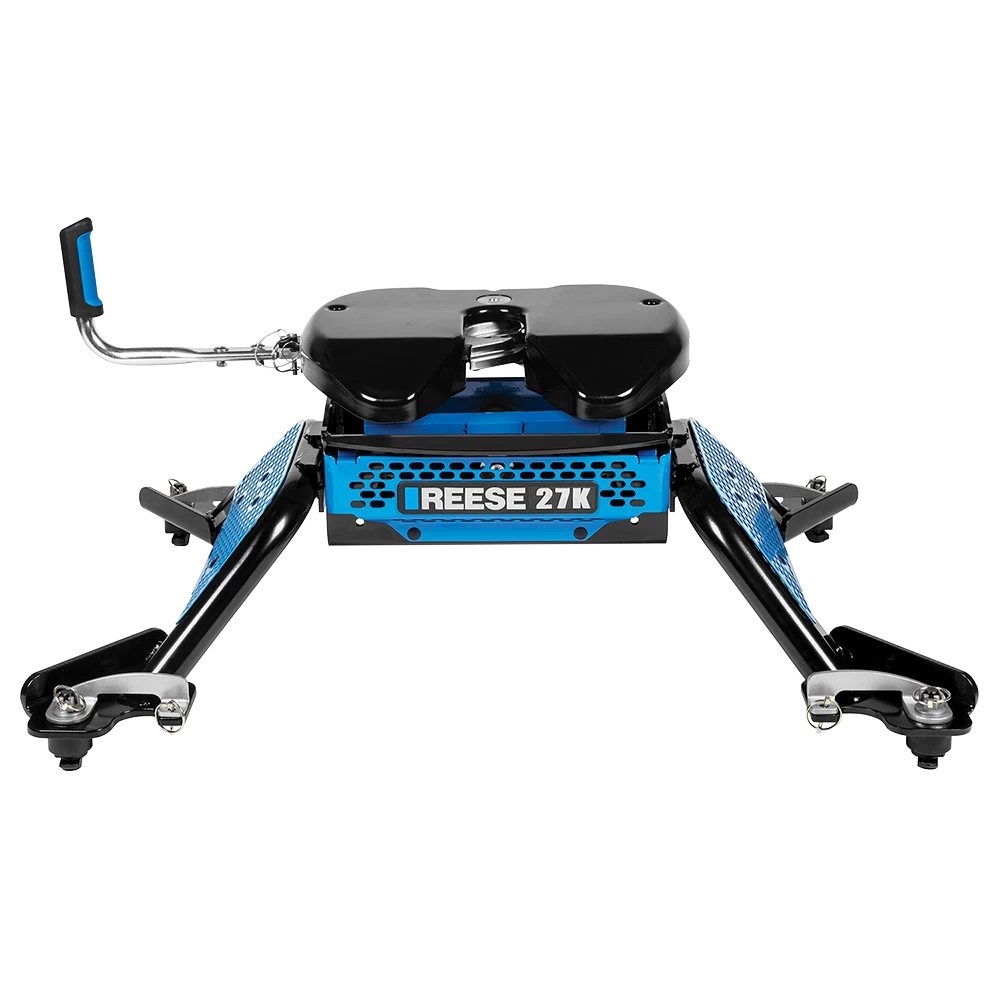

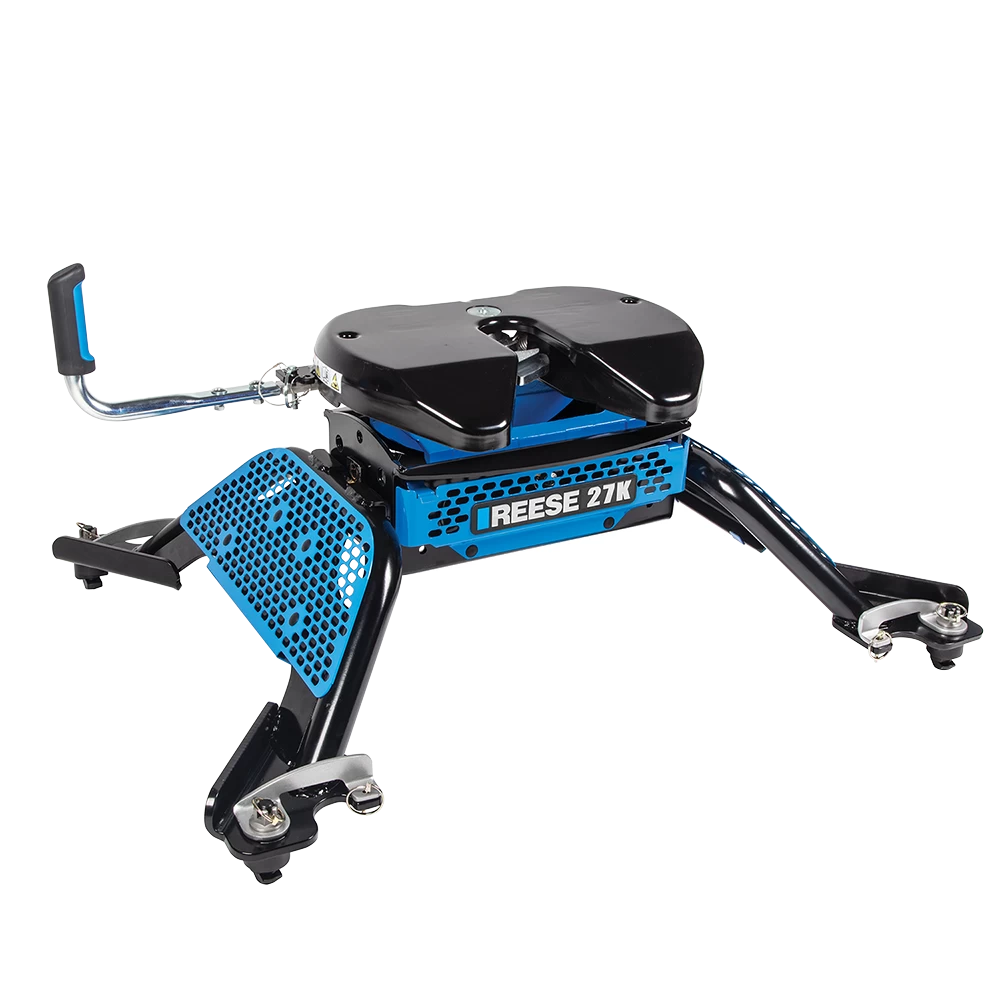

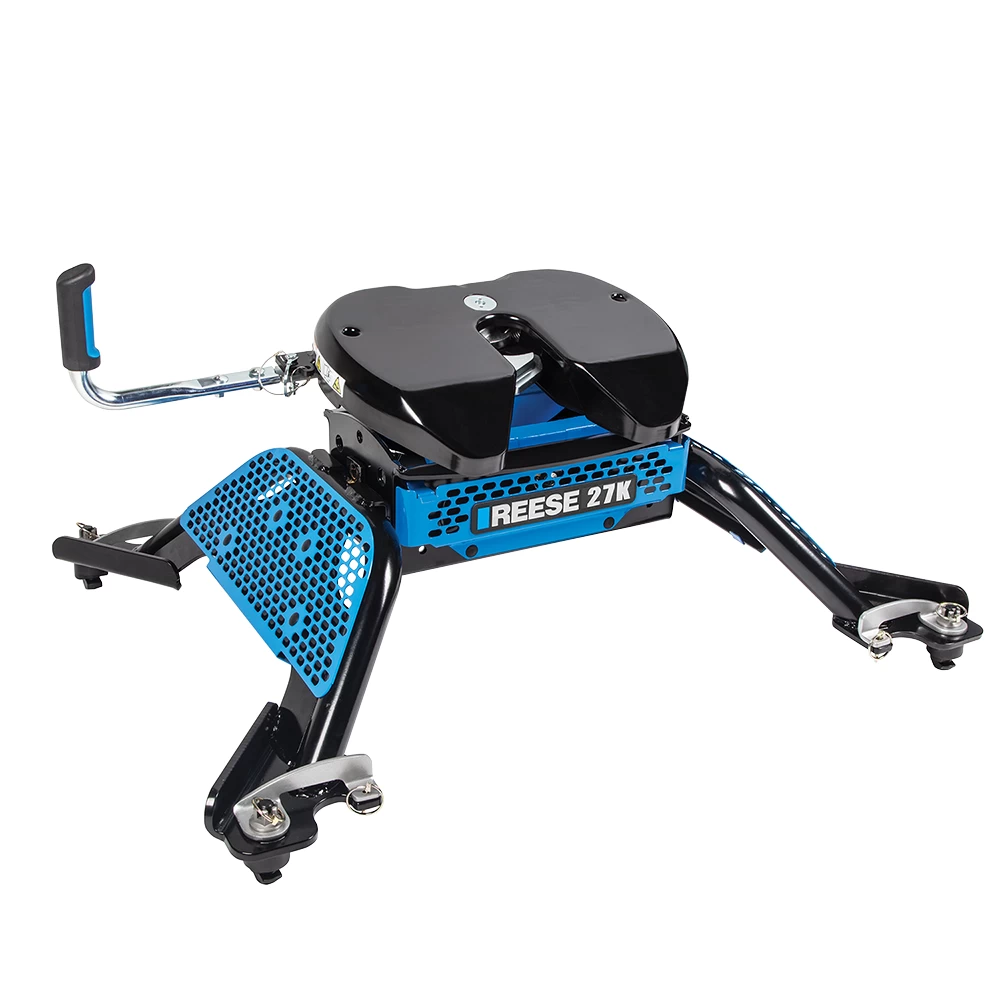

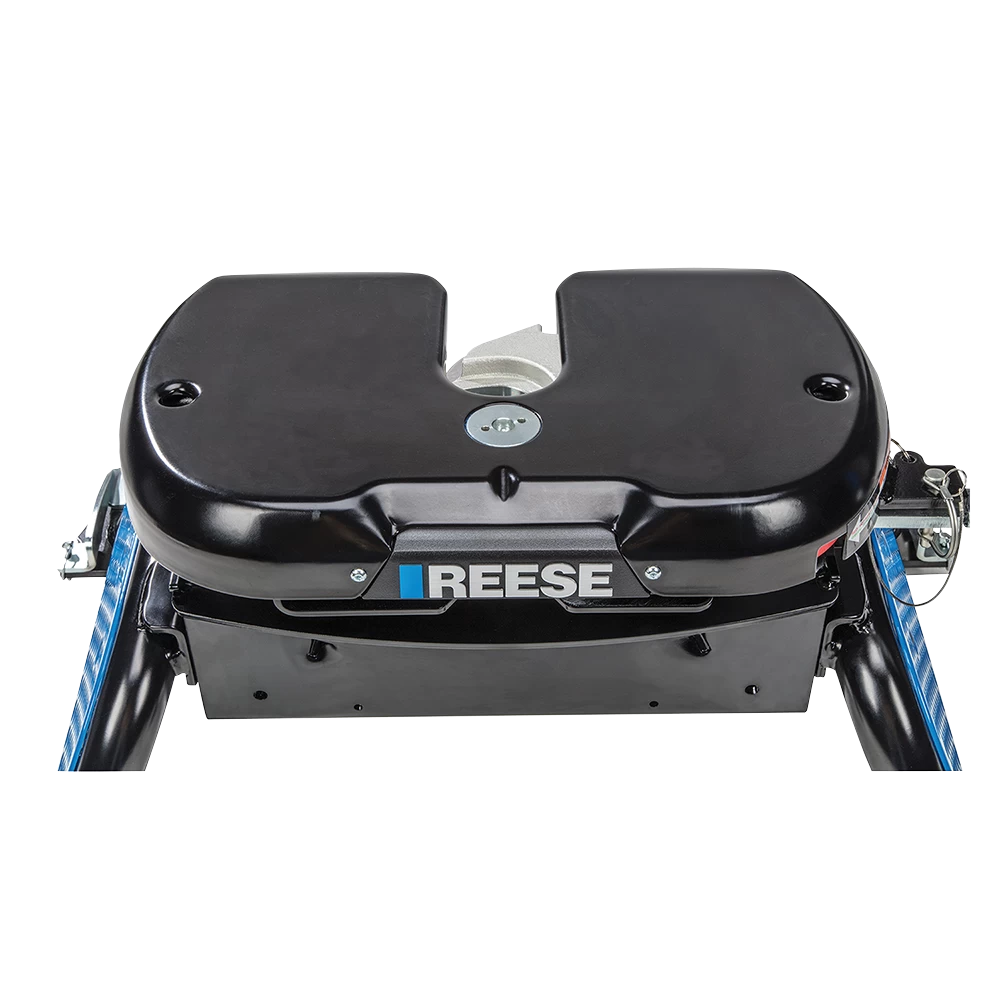

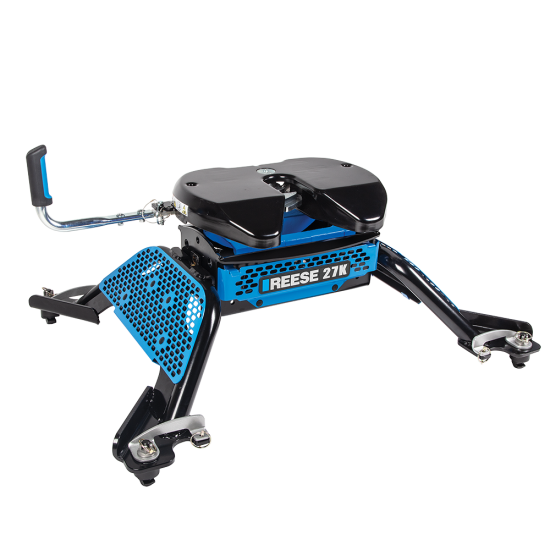

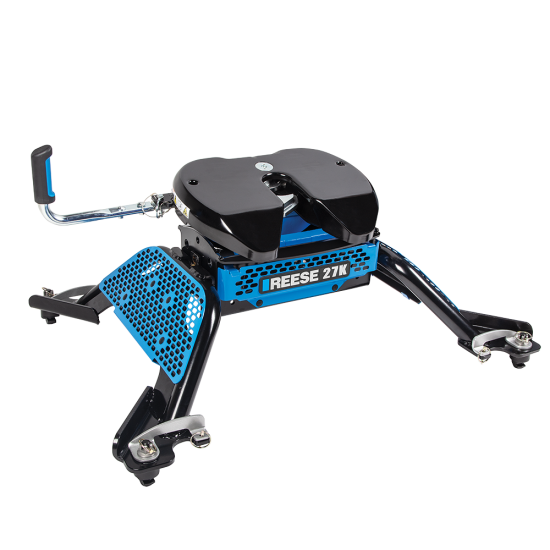

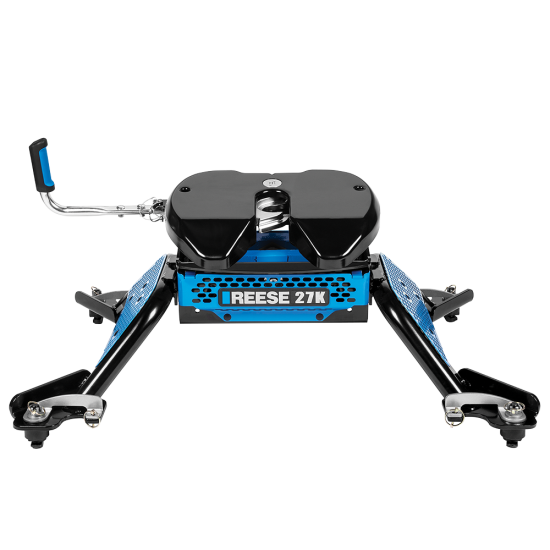

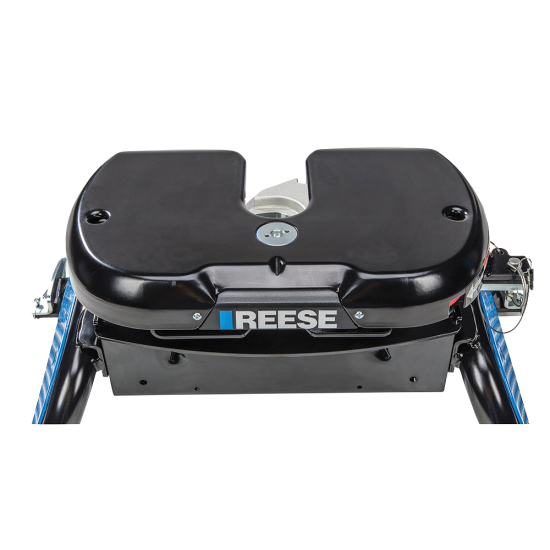

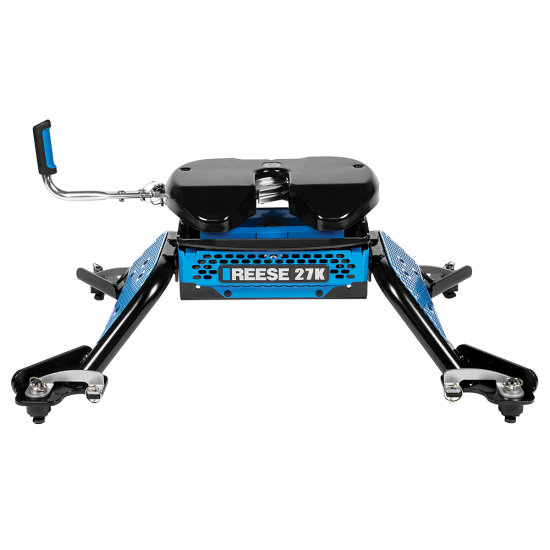

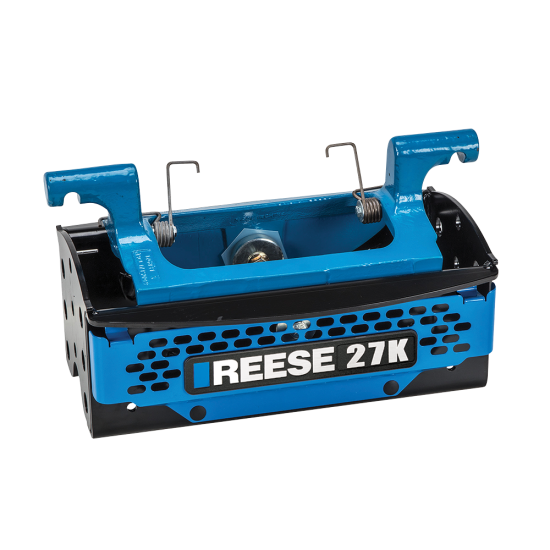

M5™ Fifth Wheel Hitch 27,000 lbs. Capacity, Talon Jaw, Complete System, RAM Manufactured by: Reese
The name you know and the brand you trust brings you the latest in fifth wheel towing: the REESE® M5. Whether you’re a novice or you’ve been towing for years, REESE has the hitch you need to connect your truck and trailer safely and securely. Designed with state-of-the-art equipment by top-of-the-line engineers, REESE’s complete line of M5 fifth wheel hitches is built to last! Featuring a three-part modular design, with wider stance legs, tighter tolerances, and the industry’s best shock absorption system! Plus, an exclusive Talon™ Jaw that is always ready to receive, gripping the pin to eliminate lateral chucking and reduce sway and noise. The REESE M5 fifth wheel hitch line combines the latest in technology, rugged endurance, and a sleek design for a quick hook-up and strong performance while on the road, with a clear tow/no tow indicator so you know when your connection is secure, and an ergonomic, easy-reach handle that requires less force to operate. When you’re done towing, REESE’s fifth wheel hitches are easy to remove, giving you access to the bed of your truck in no time. So tow with the confidence that only REESE can provide and make the journey as enjoyable as the destination.
- Rated up to 27,000 lbs. towing capacity and up to 6,750 lbs. pin weight capacity
- Mounts to factory prep rail kit
- Fits: Ram OE Prep Package
- Wide stance, one-piece legs

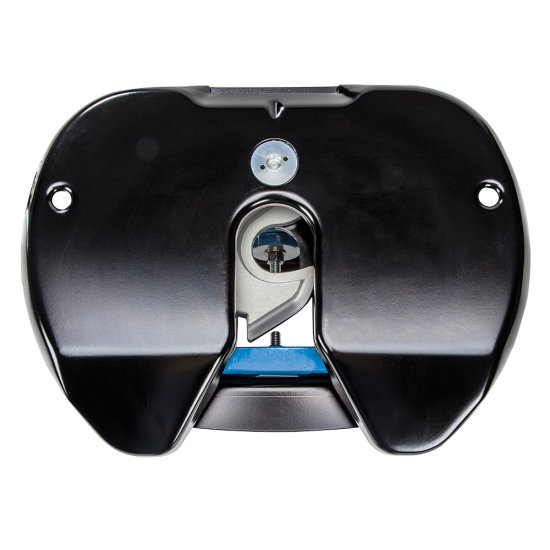

- Exclusive Talon™ Jaw; always read-to-receive, with a locking handle
- Rugged appearance
- Black powder coat over E-coat finish
$1,334 12 $1,878.48 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$1,878.48 $1,334 12
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $333.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 30919-2-N
- Includes: M5 Fifth Wheel Hitch 27K
Compatibility Chart
Get Expert Help
For 2014-2024 RAM 3500 M5 Fifth Wheel Hitch 27K Talon Jaw Complete System For Models w/ Factory Puck System (For w/Factory or Reese Elite Puck System Models) By Reese Install Notes
Installation Instructions for Part #30919

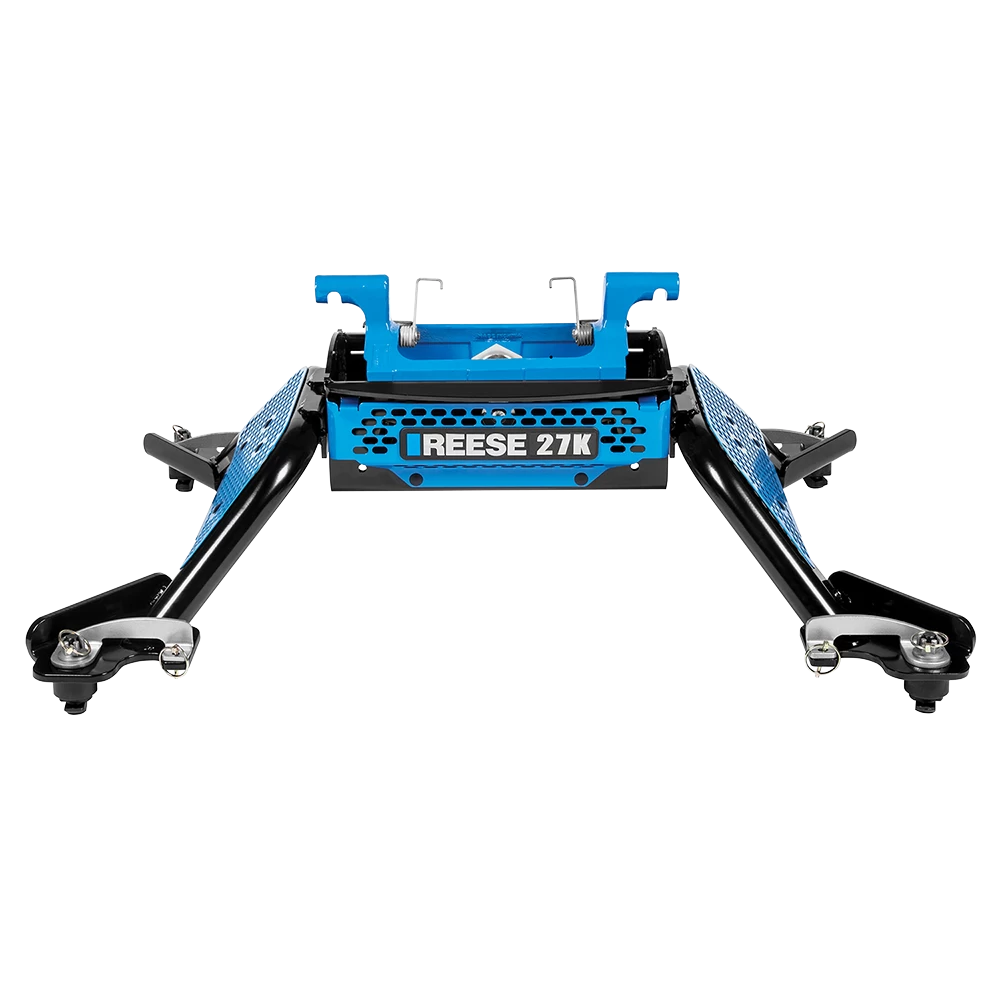

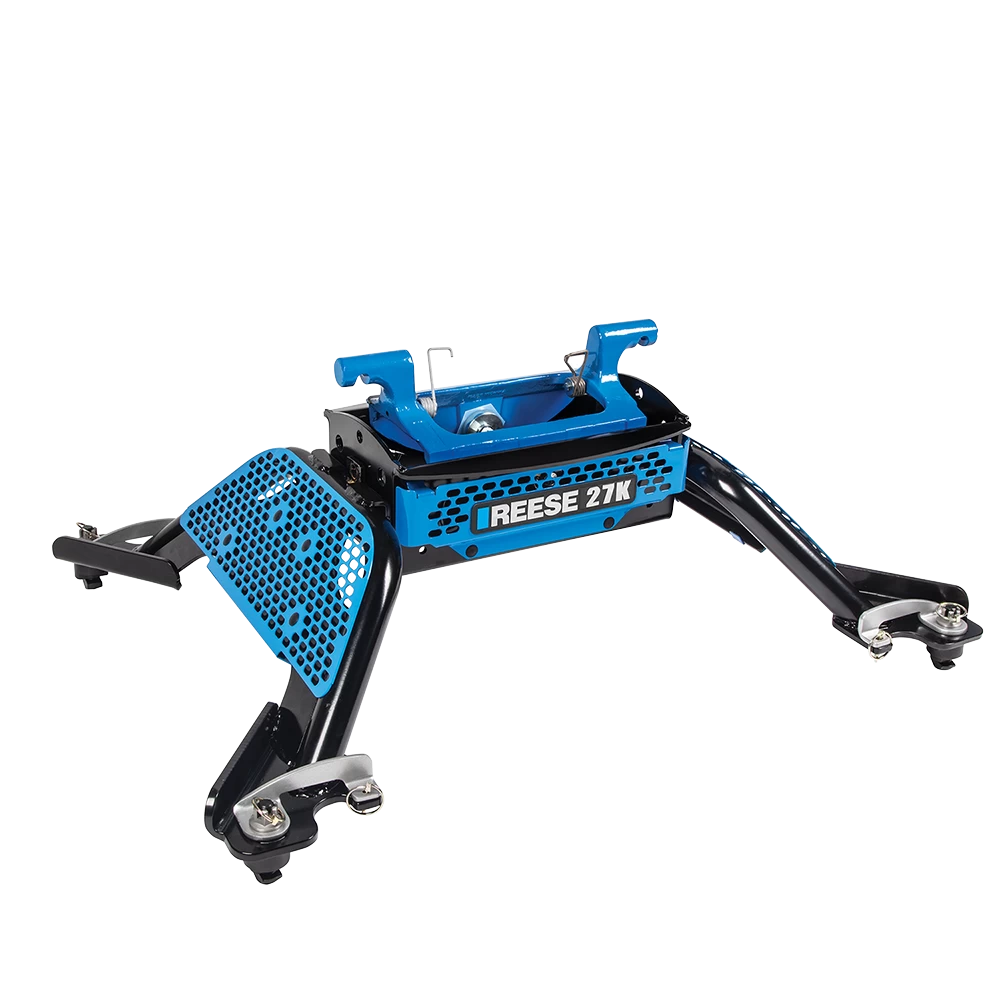

M5 5th Wheel Hitch System with M5 RAM Legs, Head, and Center Section
Part Numbers:
- 30892: M5 Head
- 30894: M5 Center Section
- 30917: M5 RAM Legs
Tools Required:
- Wrenches: M13, M24
- Torque Wrench (220 ft-lbs)
- Grease Gun with Needle Adapter
- White Lithium Spray Grease
- Pliers
- Safety Glasses
Hardware List:
30917 M5 RAM Legs
- (1) Left-Hand Leg
- (1) Right-Hand Leg
- (4) M16 x 2 x 40mm Bolts
- (4) 5/8” Conical Washers
- (4) T-Pin Handles
- (4) Lynch Pins
- (4) T-Bushings

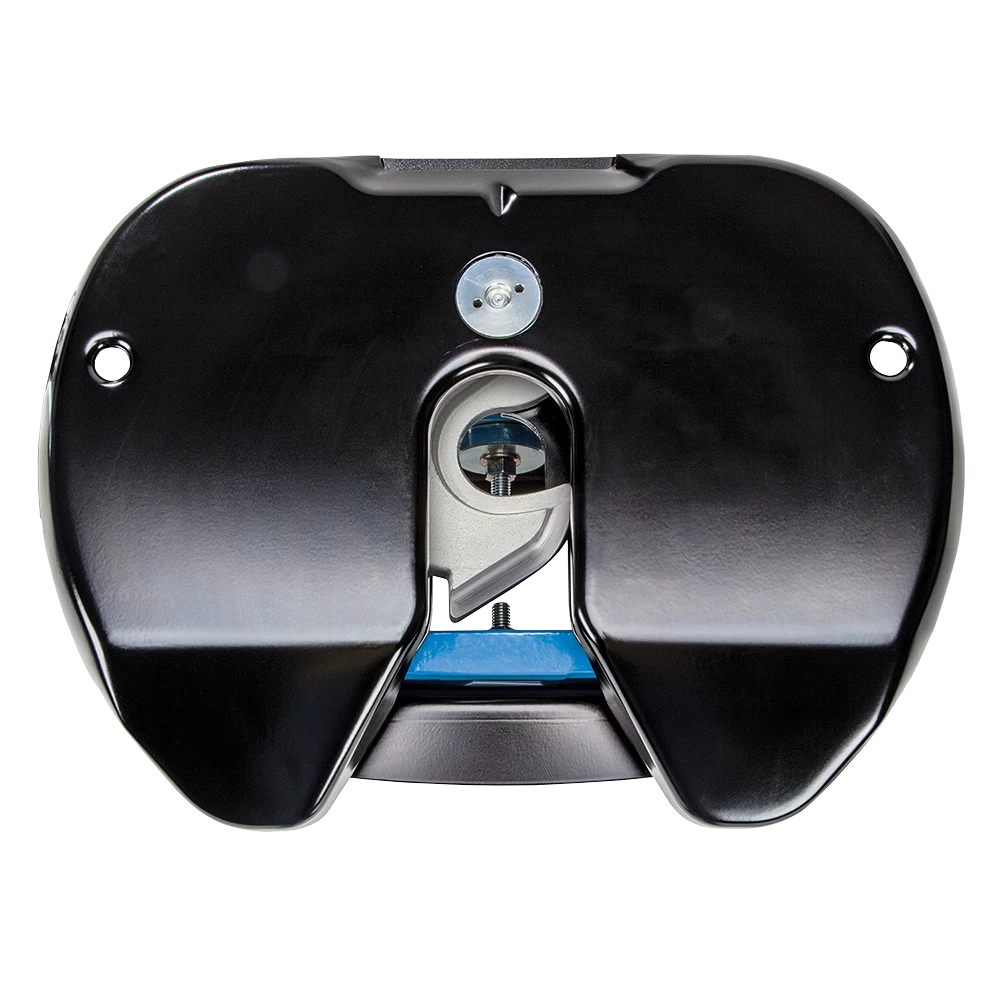

30892 M5 Head
- (1) Head Assembly
- (2) 1/2” Pull Pins
- (2) Spring Clips
- (2) M8 Carriage Bolts
- (2) M8 Lock Washers
- (2) M8 Nuts

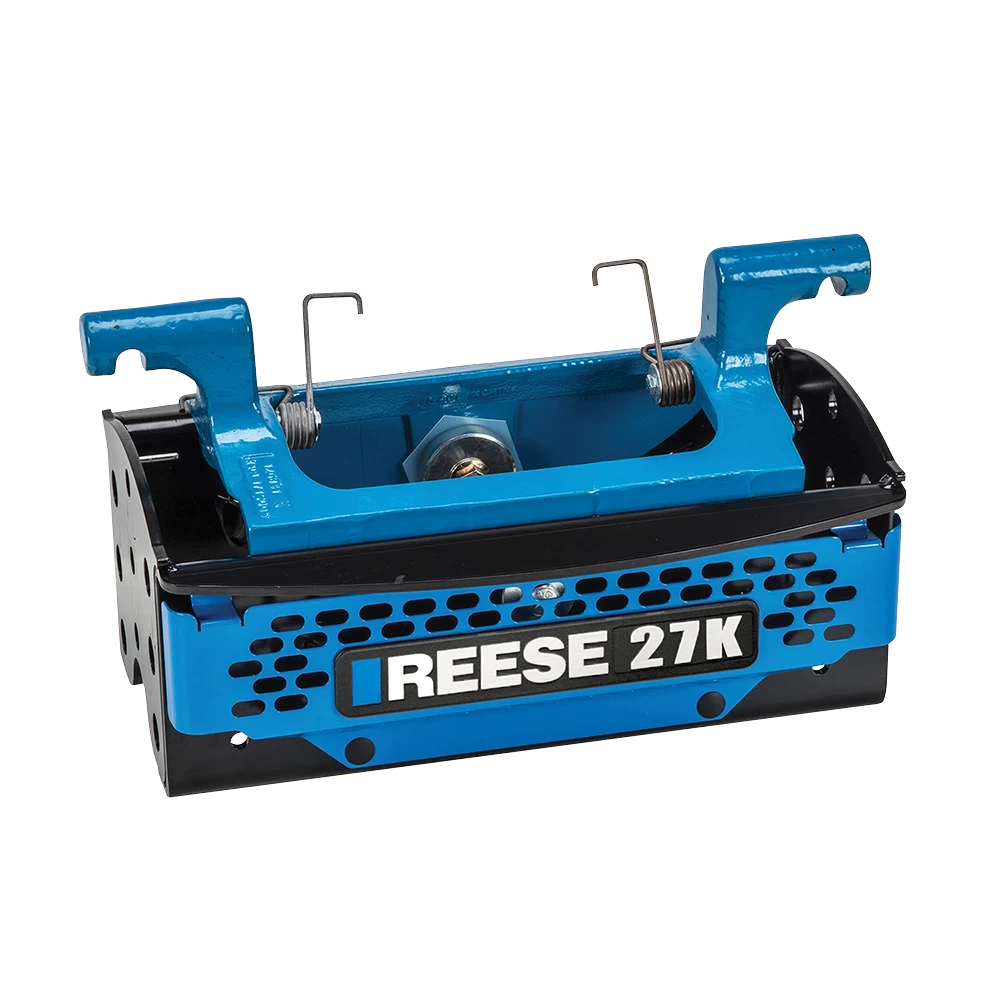

30894 Center Section
- (1) Center Section Assembly
Step-by-Step Instructions:

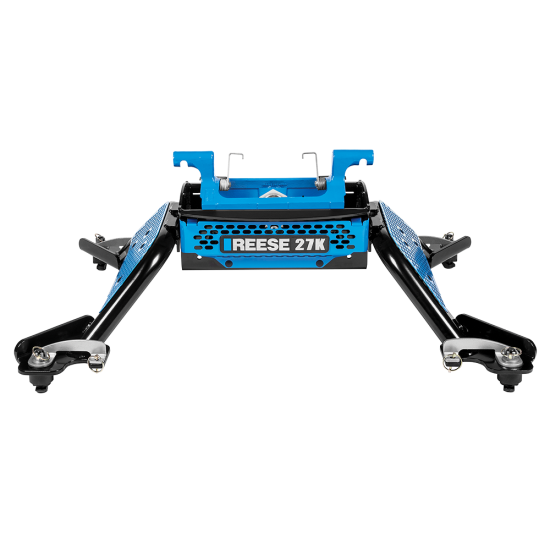

Step 1: Install M5 RAM Legs to the Center Section
- Place the center section (30894) upside down on a flat surface.
- Position the M5 RAM legs (30917) on either side of the center section.
- Ensure the small T-Pin/T-Bushing is at the front mounting holes and the large T-Pin/T-Bushing is at the rear.
- Attach the legs using:
- M16 x 2 x 40mm bolts
- 5/8” conical washers
- Thread the bolts from the inside of the center section into the threaded portion of the legs.
- Finger-tighten the bolts initially until final adjustments are made.
Step 2: Install Legs into the Truck Bed
- Lower the assembled center section and legs into the truck’s underbed pucks.
- Rotate the T-Pin handles to the OPEN position.
- Ensure the legs seat fully into the pucks.
- Rotate the handles to the CLOSED position and secure them with lynch pins.
- Verify that the handles are snug and not rattling. Adjust the castle nuts by hand if necessary.
Step 3: Install the M5 Head to the Center Section
- Apply grease to the following locations:
- Skid plate surface (use grease or REESE lube plate #83001, max thickness 3/16”).
- 5th wheel jaw and kingpin on the trailer.
- Grease fitting on the top of the head using a grease needle.
- Internal mechanisms with white lithium grease.
- Place the M5 Head (30892) on top of the center section.
- Insert the pull pins and secure them with spring clips.
- Verify the clips are properly seated through the sight holes on the head pan.
Step 4: Adjust the Hitch Height
- Ensure a minimum of 6” clearance between the truck bed rail and the bottom of the trailer.
- Adjust the legs vertically by selecting the appropriate mounting holes in the center section.
- Tighten all M16 bolts to 220 ft-lbs using a torque wrench.
Step 5: Hitching the Trailer
- Confirm the head is in the Ready-to-Receive position:
- Handle pulled out fully with an audible “CLICK.”
- Indicator shows RED.
- Slowly back the truck into the trailer so the kingpin aligns with the 5th wheel funnel.
- The jaw will automatically latch when the kingpin is secured. Verify the indicator turns GREEN.
- Perform a Pull Test:
- Block trailer wheels and keep landing gear down.
- Slowly pull forward to confirm the hitch is securely latched.
- Insert the bail pin into the locking hole to secure the handle.
Step 6: Unhitching the Trailer
- Block the trailer wheels and lower the landing gear.
- Remove the bail pin from the locking hole.
- Pull the handle to the Unhitching position (audible “CLICK”) and rotate it toward the cab.
- Slowly drive the truck forward to uncouple the trailer.
Maintenance:
Before Each Trip:
- Verify that all bolts, lynch pins, and T-Pins are secure and undamaged.
- Ensure proper operation of the handle and locking mechanisms.
Periodic Maintenance:
- Reapply grease to the skid plate, jaws, and kingpin every 1,000 miles or as needed.
- Tighten all M16 bolts to 220 ft-lbs.
- Inspect for wear and clean debris from the head before lubricating.
Safety Notes:
- Ensure at least 6” clearance between the truck bed and trailer.
- Verify the bail pin is secured after coupling the trailer.
- Perform a Pull Test before towing to confirm the trailer is securely hitched.
Specifications:
- Maximum Gross Trailer Weight: 27,000 lbs
- Maximum Pin Weight: 6,750 lbs
Warning: Failure to follow these instructions may result in serious injury, death, or property damage.
Warranty:
This product is covered by a Limited Lifetime Warranty against defects in materials and workmanship. For warranty information, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
