For 2014‑2024 Mitsubishi Mirage Trailer Hitch + Wiring 4 Pin Fits All Models Curt 11394 56223 1‑1/4 Tow Receiver
Model: 11394 56223-CH3015This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2014 - 2024 Mitsubishi Mirage All Models

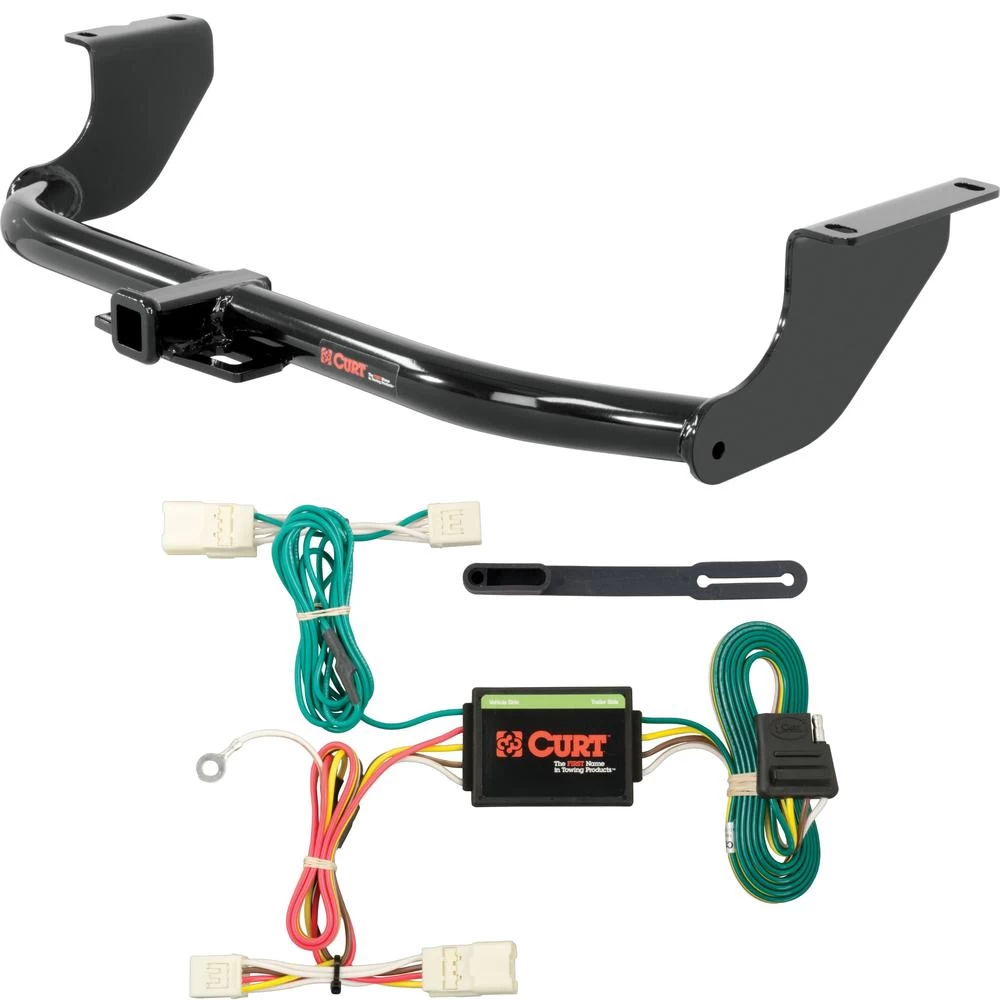

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Drilling Required)
- Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

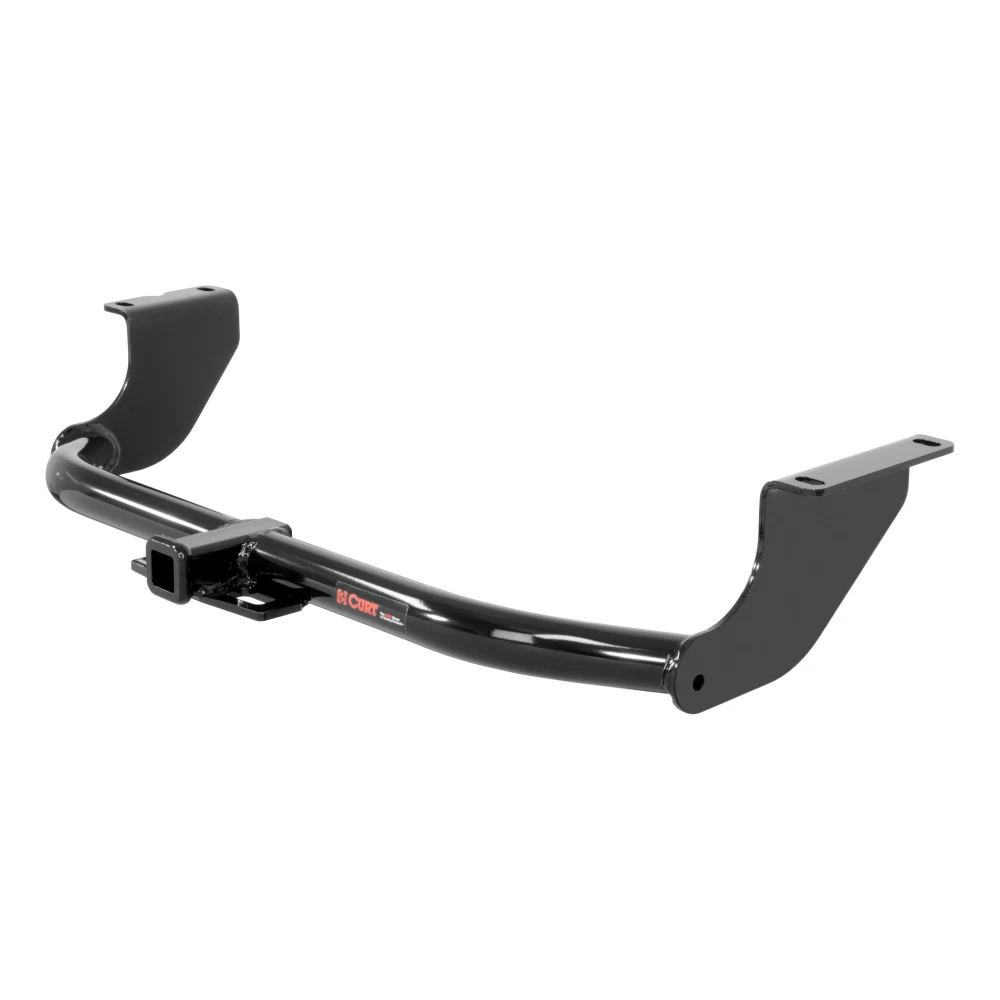

CURT 11394 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Mitsubishi Mirage (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 1,500 lbs GTW and 200 lbs.
TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..
Features:
- Rated to 1,500 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

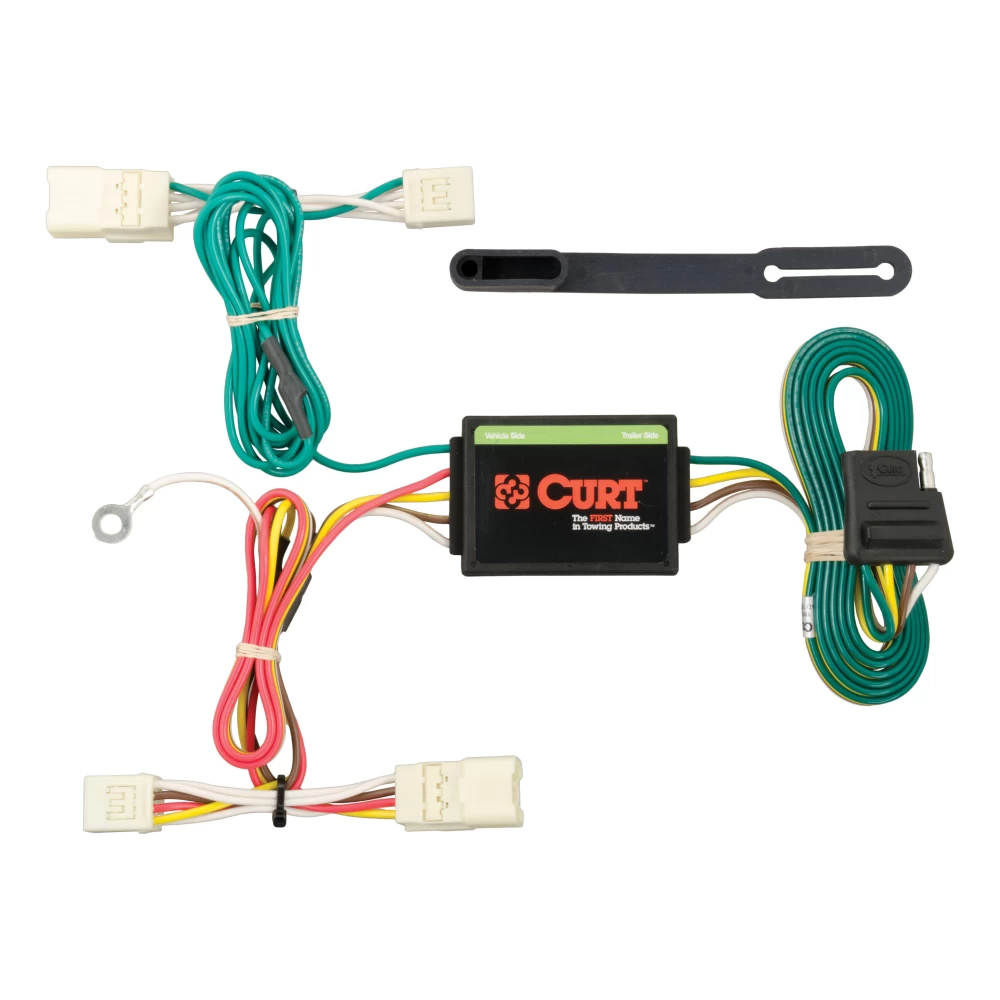

CURT 56223 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mitsubishi Mirage and Mirage G4 (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$232 65 $384.90 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$384.90 $232 65
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $58.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11394 56223-CH3015
- Includes: Class 1 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Get Expert Help
For 2014-2024 Mitsubishi Mirage Trailer Hitch + Wiring 4 Pin Fits All Models Curt 11394 56223 1-1/4 Tow Receiver Install Notes
Installation Instructions for Mitsubishi Mirage Hatchback (2014-Present)
Part Numbers:
- 11394
Tools Required:
- Ratchet
- Torque Wrench
- 6" Extension
- Die Grinder
- 9/16" Socket
- 11/16" Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Enlarge the existing hole
- Enlarge the existing hole on the driver side to allow 7/16" carriage bolts and SP2 spacers to pass through.
- Refer to the Hole Enlargement Diagram.
Step 2: Fishwire the hardware
- On the driver side:
- Fishwire a 7/16" carriage bolt and SP2 spacer through the enlarged access hole and out the forward-most mounting hole.
- Reverse fishwire a 7/16" carriage bolt and SP2 spacer in the enlarged access hole.
- On the passenger side:
- Fishwire 7/16" carriage bolts and SP2 spacers through the existing access hole and out the mounting holes.
- Refer to the Fishwire Technique Diagrams.
Step 3: Install the U-bolt
- Insert the 3/8" U-bolt through the tow hook.
Step 4: Position the hitch
- Raise the hitch into position.
- Secure the hitch to the frame rails using 7/16" flange nuts.
- Secure the hitch to the 3/8" U-bolt using 3/8" flange nuts.
- Note: When raising the hitch into position, take care not to push the carriage bolts back into the frame.
Step 5: Torque the hardware
- Torque all 7/16" hardware to 59 ft-lbs.
- Torque all 3/8" hardware to 45 ft-lbs.
Hardware List:
- (2) 3/8-16 UNC Flange Nut, Grade 8 (#20-00102)
- (2) 7/16-14 UNC Flange Nut, Grade 8 (#20-00103)
- (2) 7/16-14 UNC Carriage Bolt, 1-1/2", Grade 8 (#10-10282)
- (2) .250 x .88 x 2.25" Square Hole Spacer (#CM-SP2)
- (2) 7/16" Fishwire (#7_16 FISHWIRE)
- (1) 3/8-16 UNC U-Bolt, 1-9/16" (#10-10566)
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
- All non-trailer loads must be supported using stabilizing straps (#18050).
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Gross Load Capacity: 1,500 lbs trailer weight, 200 lbs tongue weight
- Installation Time: 40 minutes (Professional), 60 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Additional Notes:
- Hole enlargement is required for the driver-side frame rail.
- Fishwire technique is required for hardware installation.
- Torque specifications must be strictly followed.
- For installation questions, contact technical support at 1-877-287-8634.
Installation Instructions for Mitsubishi Mirage Hatchback (2014-Present)
Part Numbers:
- 11394
Tools Required:
- Ratchet
- Torque Wrench
- 6" Extension
- Die Grinder
- 9/16" Socket
- 11/16" Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Enlarge the existing hole
- Enlarge the existing hole on the driver side to allow 7/16" carriage bolts and SP2 spacers to pass through.
- Refer to the Hole Enlargement Diagram.
Step 2: Fishwire the hardware
- On the driver side:
- Fishwire a 7/16" carriage bolt and SP2 spacer through the enlarged access hole and out the forward-most mounting hole.
- Reverse fishwire a 7/16" carriage bolt and SP2 spacer in the enlarged access hole.
- On the passenger side:
- Fishwire 7/16" carriage bolts and SP2 spacers through the existing access hole and out the mounting holes.
- Refer to the Fishwire Technique Diagrams.
Step 3: Install the U-bolt
- Insert the 3/8" U-bolt through the tow hook.
Step 4: Position the hitch
- Raise the hitch into position.
- Secure the hitch to the frame rails using 7/16" flange nuts.
- Secure the hitch to the 3/8" U-bolt using 3/8" flange nuts.
- Note: When raising the hitch into position, take care not to push the carriage bolts back into the frame.
Step 5: Torque the hardware
- Torque all 7/16" hardware to 59 ft-lbs.
- Torque all 3/8" hardware to 45 ft-lbs.
Hardware List:
- (2) 3/8-16 UNC Flange Nut, Grade 8 (#20-00102)
- (2) 7/16-14 UNC Flange Nut, Grade 8 (#20-00103)
- (2) 7/16-14 UNC Carriage Bolt, 1-1/2", Grade 8 (#10-10282)
- (2) .250 x .88 x 2.25" Square Hole Spacer (#CM-SP2)
- (2) 7/16" Fishwire (#7_16 FISHWIRE)
- (1) 3/8-16 UNC U-Bolt, 1-9/16" (#10-10566)
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
- All non-trailer loads must be supported using stabilizing straps (#18050).
- Failure to properly support non-trailer loads may void the product warranty.
Specifications:
- Gross Load Capacity: 1,500 lbs trailer weight, 200 lbs tongue weight
- Installation Time: 40 minutes (Professional), 60 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty covering defects in material and workmanship for the specified duration. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Mitsubishi Mirage
Part Numbers:
- 56223
Wiring Access Location:
- P3: Behind driver side taillight housing, inside the trunk
- P4: Behind passenger side taillight housing, inside the trunk
Tools Required:
- Panel trim removal tool
Step-by-Step Instructions:
Step 1: Access the Vehicle Wiring Harness Connectors
- Identify the taillight wiring harness connectors in the trunk. These are located in positions P3 (driver side) and P4 (passenger side), as indicated in the wiring location guide.
- Ensure the area is clear and accessible before proceeding.
Step 2: Disconnect the Battery
- Locate the vehicle battery under the hood on the driver side.
- Use a suitable tool to disconnect the negative battery terminal. This step ensures safety while working with the vehicle’s electrical system.
Step 3: Open the Trunk and Remove Floor Coverings
- Open the trunk.
- Remove all trunk floor coverings to expose the scuff panel and side trim.
Step 4: Remove the Scuff Panel
- Gently pull out on the bottom of the scuff panel.
- Lift upwards to remove it completely. Take care not to damage any alignment tabs during this process.
Step 5: Remove the Side Trim Panel (Driver Side)
- Locate and remove the push fasteners that hold the side trim panel in place.
- Carefully pull back on the panel to expose the taillight wiring harness connectors.
Step 6: Disconnect the Taillight Wiring Harness
- Find the taillight wiring harness connectors behind the side trim panel. These connectors will look similar to the T-connector harness.
- Separate the connectors from the taillight housing carefully, ensuring the locking tabs are not damaged.
Step 7: Install the T-Connector (Driver Side)
- Take the T-connector end with the yellow wire.
- Insert it between the separated connectors on the driver side.
- Ensure the connectors are fully inserted, and the locking tabs are securely in place.
Step 8: Attach the Ground Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If necessary, drill a 3/32" pilot hole into a rust-free, clean metal area.
- Secure the white ground wire using the provided ring terminal and screw.
Safety Note: Before drilling, inspect the area to ensure no components are hidden behind or underneath the surface to avoid damage or injury.
Step 9: Repeat Steps for the Passenger Side
- Route the T-connector end with the green wire to the passenger side, behind the removed scuff panel.
- Follow Steps 5–7 to install the T-connector on the passenger side.
- Secure any loose wires using the provided cable ties.
Step 10: Mount the Converter Box
- Locate a flat and clean spot near the taillight inside the vehicle.
- Use the provided double-sided tape to adhere the black converter box securely to the selected surface.
Step 11: Position the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle for trailer connection.
- When not in use, roll up the connector and store it in a convenient, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
Step 12: Finalize Installation
- Reinstall all components removed during the installation, including the scuff panel, side trim, and trunk floor coverings.
- Reconnect the negative battery terminal to restore the vehicle’s electrical system.
- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.
Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always check for hidden components behind or beneath surfaces before drilling to prevent damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- This system is designed for 12-volt negative ground systems only.
Installation Instructions for Passenger Vehicle Models
Part Numbers:
- 56223
Wiring Access Location:
- P3: Behind driver side taillight housing, inside the trunk
- P4: Behind passenger side taillight housing, inside the trunk
Tools Required:
- Panel trim removal tool
Step-by-Step Instructions:
Step 1: Access the Vehicle Wiring Harness Connectors
- Identify the taillight wiring harness connectors in the trunk. These are located in positions P3 (driver side) and P4 (passenger side), as indicated in the wiring location guide.
- Ensure the area is clear and accessible before proceeding.
Step 2: Disconnect the Battery
- Locate the vehicle battery under the hood on the driver side.
- Use a suitable tool to disconnect the negative battery terminal. This step ensures safety while working with the vehicle’s electrical system.
Step 3: Open the Trunk and Remove Floor Coverings
- Open the trunk.
- Remove all trunk floor coverings to expose the scuff panel and side trim.
Step 4: Remove the Scuff Panel
- Gently pull out on the bottom of the scuff panel.
- Lift upwards to remove it completely. Take care not to damage any alignment tabs during this process.
Step 5: Remove the Side Trim Panel (Driver Side)
- Locate and remove the push fasteners that hold the side trim panel in place.
- Carefully pull back on the panel to expose the taillight wiring harness connectors.
Step 6: Disconnect the Taillight Wiring Harness
- Find the taillight wiring harness connectors behind the side trim panel. These connectors will look similar to the T-connector harness.
- Separate the connectors from the taillight housing carefully, ensuring the locking tabs are not damaged.
Step 7: Install the T-Connector (Driver Side)
- Take the T-connector end with the yellow wire.
- Insert it between the separated connectors on the driver side.
- Ensure the connectors are fully inserted, and the locking tabs are securely in place.
Step 8: Attach the Ground Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If necessary, drill a 3/32" pilot hole into a rust-free, clean metal area.
- Secure the white ground wire using the provided ring terminal and screw.
Safety Note: Before drilling, inspect the area to ensure no components are hidden behind or underneath the surface to avoid damage or injury.
Step 9: Repeat Steps for the Passenger Side
- Route the T-connector end with the green wire to the passenger side, behind the removed scuff panel.
- Follow Steps 5–7 to install the T-connector on the passenger side.
- Secure any loose wires using the provided cable ties.
Step 10: Mount the Converter Box
- Locate a flat and clean spot near the taillight inside the vehicle.
- Use the provided double-sided tape to adhere the black converter box securely to the selected surface.
Step 11: Position the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle for trailer connection.
- When not in use, roll up the connector and store it in a convenient, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
Step 12: Finalize Installation
- Reinstall all components removed during the installation, including the scuff panel, side trim, and trunk floor coverings.
- Reconnect the negative battery terminal to restore the vehicle’s electrical system.
- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.
Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always check for hidden components behind or beneath surfaces before drilling to prevent damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- This system is designed for 12-volt negative ground systems only.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
