Product Details

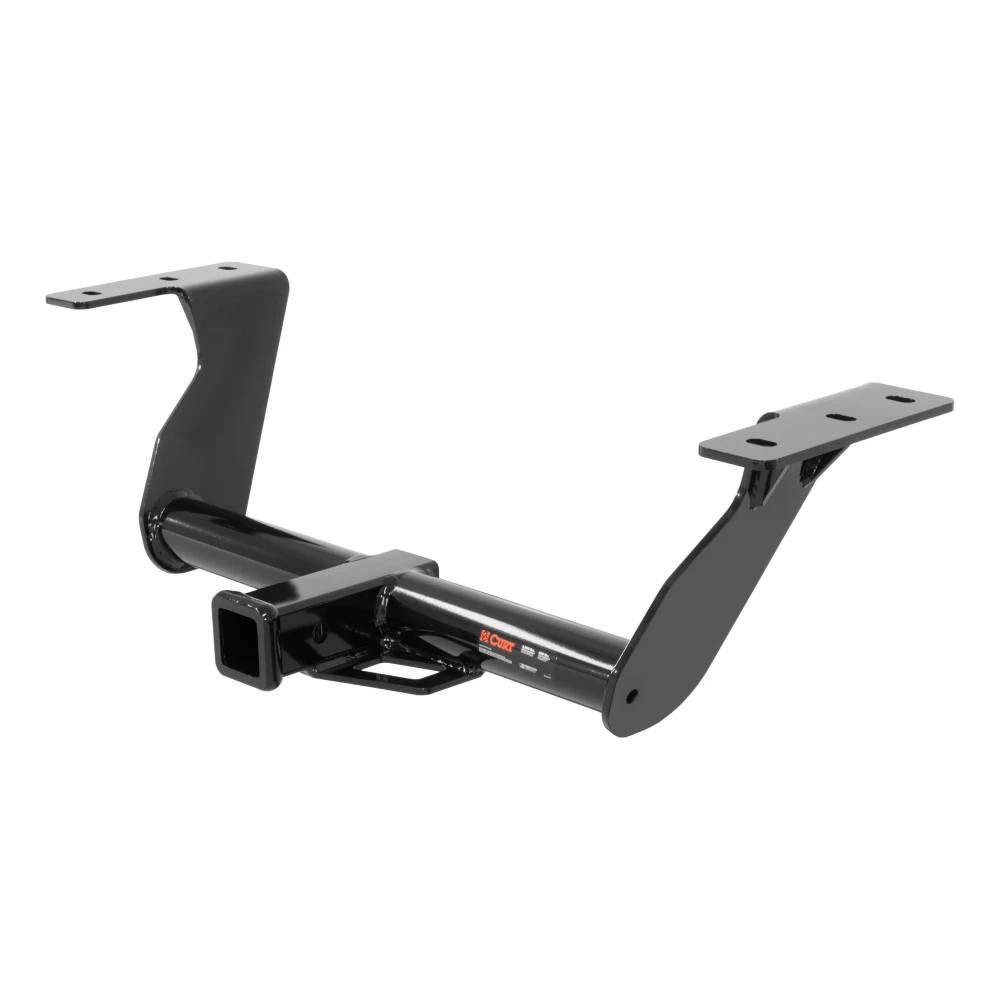

- Brand: Curt
- Model: 13144 56040-CH3442

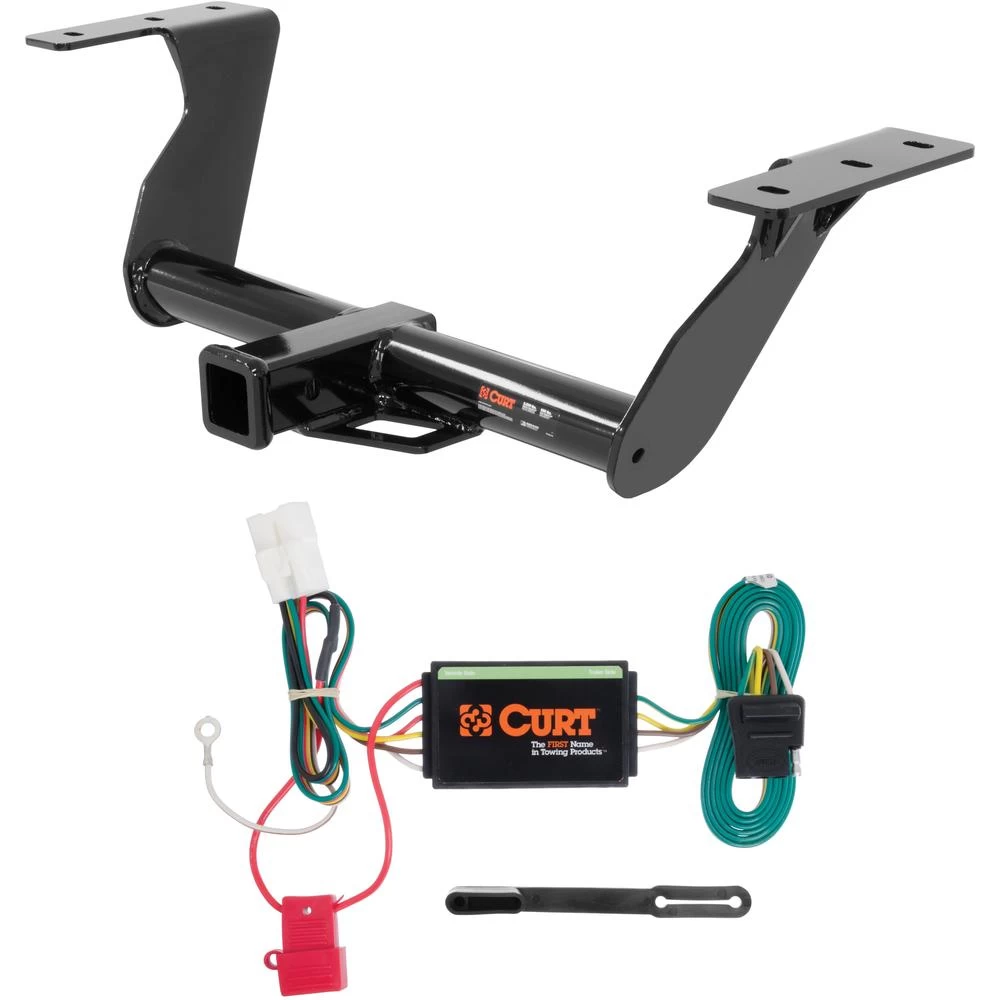

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
Description

Each may be shipped from a separate location, and therefore, may arrive at different times
Get Expert Help
For 2014-2018 Subaru Forester Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13144 56040 2 inch Tow Receiver Install Notes
Installation Instructions for Subaru Forester (2014-Present)
Part Numbers:
- 13144
Tools Required:
- Ratchet
- Torque Wrench
- 10mm Socket
- 3/4" Socket
- 6" Socket Extension
- Screwdriver
- Grinder or Drill
- Jack Stand
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the exhaust
- Remove two exhaust hangers from the passenger-side muffler and one from the center-front of the vehicle for single exhaust systems.
- For dual exhaust systems, remove two hangers from the driver-side muffler as well.
- Support the lowered exhaust with a jack stand.
Step 2: Remove heat shield and plugs
- Remove four heat shield attachments using a Phillips screwdriver or 10mm socket (both sides if equipped with dual exhaust).
- Remove three hole plugs from each side of the frame to expose mounting holes. Return all removed items to the customer.
Step 3: Enlarge frame holes
- Enlarge the center hole on each side of the frame to approximately 1 1/8" to allow the mounting hardware to pass through.
Step 4: Fishwire the hardware
- Fishwire 1/2" carriage bolts and spacers through the front and rear frame holes on both sides of the frame.
- Reverse fishwire the center holes on both sides.
Step 5: Position the hitch
- Raise the hitch into position and secure it to the frame using the provided 1/2" hardware.
- Torque all hardware to 110 ft-lbs.
Step 6: Reattach the exhaust
- Raise the exhaust back into place and reattach the exhaust hangers.
Hardware List:
- (6) 1/2"-13 x 1-3/4" Carriage Bolt, Grade 8 (#1/2-13)
- (6) 1/2"-13 Hex Flange Nut (#HFN 1213)
- (6) .250 x 1.00 x 2.50" Square Hole Spacer (#CM-SP106)
- (1) 1/2" Fishwire Tool (#1_2 FISHWIRE)
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity: 3,500 lbs trailer weight, 525 lbs tongue weight
- Installation Time: 60 minutes (Professional), 120 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Additional Notes:
- Hole enlargement is required.
- Fishwiring and reverse fishwiring are necessary for hardware installation.
- Torque specifications must be strictly followed.
- For installation questions, contact technical support at 1-877-287-8634.
Installation Instructions for Vehicle Model (2014-Present)
Part Numbers:
- 13144
Tools Required:
- Ratchet
- Torque Wrench
- 10mm Socket
- 3/4" Socket
- 6" Socket Extension
- Screwdriver
- Grinder or Drill
- Jack Stand
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the exhaust
- Remove two exhaust hangers from the passenger-side muffler and one from the center-front of the vehicle for single exhaust systems.
- For dual exhaust systems, remove two hangers from the driver-side muffler as well.
- Support the lowered exhaust with a jack stand.
Step 2: Remove heat shield and plugs
- Remove four heat shield attachments using a Phillips screwdriver or 10mm socket (both sides if equipped with dual exhaust).
- Remove three hole plugs from each side of the frame to expose mounting holes. Return all removed items to the customer.
Step 3: Enlarge frame holes
- Enlarge the center hole on each side of the frame to approximately 1 1/8" to allow the mounting hardware to pass through.
Step 4: Fishwire the hardware
- Fishwire 1/2" carriage bolts and spacers through the front and rear frame holes on both sides of the frame.
- Reverse fishwire the center holes on both sides.
Step 5: Position the hitch
- Raise the hitch into position and secure it to the frame using the provided 1/2" hardware.
- Torque all hardware to 110 ft-lbs.
Step 6: Reattach the exhaust
- Raise the exhaust back into place and reattach the exhaust hangers.
Hardware List:
- (6) 1/2"-13 x 1-3/4" Carriage Bolt, Grade 8
- (6) 1/2"-13 Hex Flange Nut
- (6) .250 x 1.00 x 2.50" Square Hole Spacer
- (1) 1/2" Fishwire Tool
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity: 3,500 lbs trailer weight, 525 lbs tongue weight
- Installation Time: 60 minutes (Professional), 120 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Additional Notes:
- Hole enlargement is required.
- Fishwiring and reverse fishwiring are necessary for hardware installation.
- Torque specifications must be strictly followed.
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Subaru Ascent, Subaru Forester, Subaru Outback, Subaru Crosstrek (excluding Hybrid), and Subaru XV Crosstrek (excluding Hybrid)
Part Numbers:
- 56040
Tools Required:
- 10 mm Socket
- Ratchet
- Panel Trim Removal Tool
Step-by-Step Instructions:
-
Disconnect the Battery
Locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. -
Prepare the Vehicle Interior
Open the vehicle tailgate. Remove all trunk floor coverings.- Remove the plastic fasteners securing the trays in the center and on the driver side.
- Remove the trays.
-
Locate the Vehicle Wiring Harness Connectors
- 2009-2013 Forester: Under the trays on the driver side.
- Outback: Behind the driver side inner fender trim, visible near the rubber grommet in the floor and the cargo anchor.
- XV Crosstrek / 2014+ Forester: Pull back on the rear trim panel to find the taillight wiring harness connectors on the driver side.
-
Connect the Custom Connector
Insert the custom connector end into the vehicle connector. Ensure the connectors are fully inserted and the locking tabs are engaged. -
Ground the White Wire
Locate a suitable grounding point near the connector (e.g., an existing screw with nut in the vehicle frame). If necessary, drill a 3/32" pilot hole for the provided screw.- The grounding area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for items hidden behind or under surfaces before drilling to avoid damage or personal injury.
-
Mount the Converter Box
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape. -
Install the Fuse
Install the red 10-amp fuse into the in-line fuse holder. -
Route the 4-Flat Connector
When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll it up and store it in a convenient, out-of-the-way location.- Secure any loose wires with the provided cable ties.
-
Reinstall Components
Reinstall all items removed during installation.
Reconnect the negative battery terminal.
Attach the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max). Exceeding the product rating can void the warranty, cause overheating, and result in a fire hazard.
- Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail / Running Circuits: 6.0 amps total
Installation Instructions for Vehicle Models
Part Numbers:
- 56040
Tools Required:
- 10 mm Socket
- Ratchet
- Panel Trim Removal Tool
Step-by-Step Instructions:
-
Disconnect the Battery
Locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. -
Prepare the Vehicle Interior
Open the vehicle tailgate. Remove all trunk floor coverings.- Remove the plastic fasteners securing the trays in the center and on the driver side.
- Remove the trays.
-
Locate the Vehicle Wiring Harness Connectors
- For Certain Models: Under the trays on the driver side.
- For Other Models: Behind the driver side inner fender trim, visible near the rubber grommet in the floor and the cargo anchor.
- For Specific Model Years: Pull back on the rear trim panel to find the taillight wiring harness connectors on the driver side.
-
Connect the Custom Connector
Insert the custom connector end into the vehicle connector. Ensure the connectors are fully inserted and the locking tabs are engaged. -
Ground the White Wire
Locate a suitable grounding point near the connector (e.g., an existing screw with nut in the vehicle frame). If necessary, drill a 3/32" pilot hole for the provided screw.- The grounding area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for items hidden behind or under surfaces before drilling to avoid damage or personal injury.
-
Mount the Converter Box
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape. -
Install the Fuse
Install the red 10-amp fuse into the in-line fuse holder. -
Route the 4-Flat Connector
When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll it up and store it in a convenient, out-of-the-way location.- Secure any loose wires with the provided cable ties.
-
Reinstall Components
Reinstall all items removed during installation.
Reconnect the negative battery terminal.
Attach the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max). Exceeding the product rating can void the warranty, cause overheating, and result in a fire hazard.
- Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail / Running Circuits: 6.0 amps total
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
