For 2015‑2022 Chevy Colorado Trailer Hitch Fits All Models Curt 13176 2 inch Tow Receiver
Model: 13176-CH320This Trailer Tow Hitch Fits The Following Vehicles:
2015 - 2022 Chevrolet Colorado All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Hitch, 2" (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022

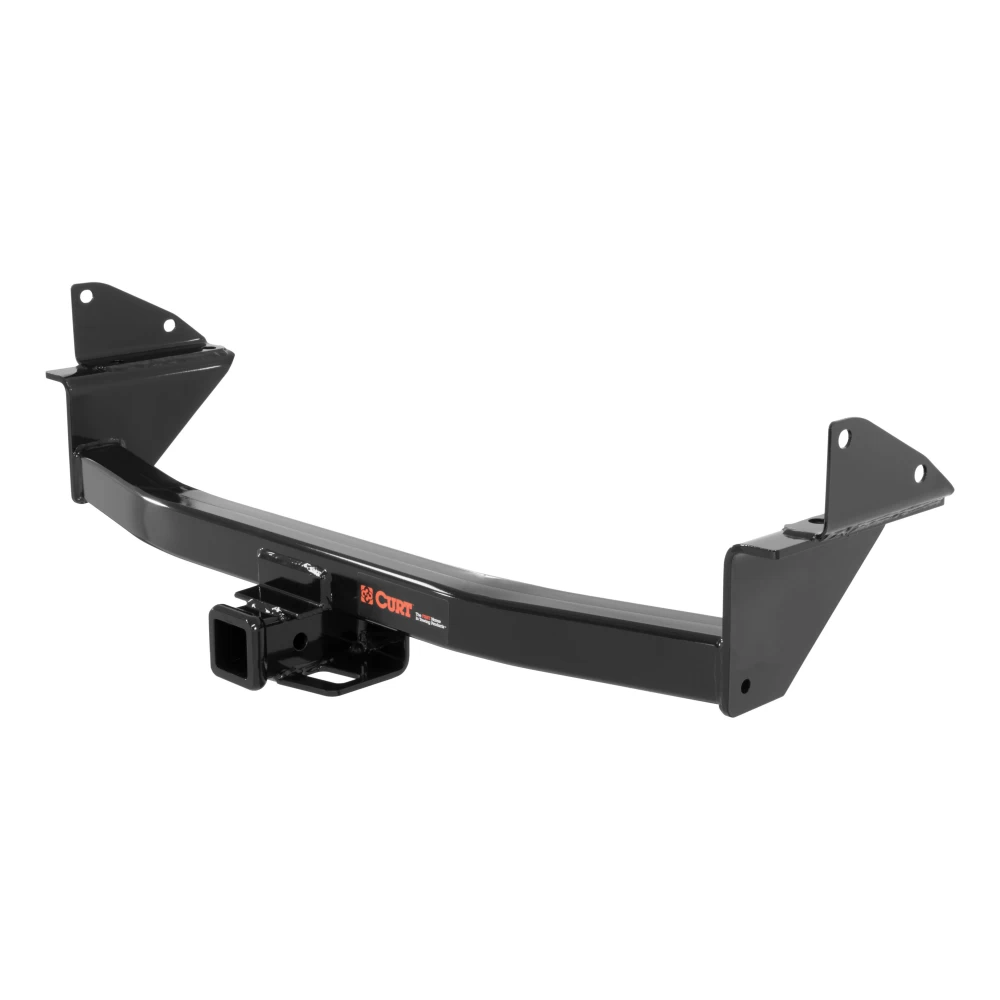

CURT 13176 Class 3 Trailer Hitch, 2-Inch Receiver, 8,000 lbs
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the GMC Canyon and Chevy Colorado (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 8,000 lbs GTW and 800 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs WD and 1,000 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 8,000 lbs. gross trailer weight and 800 lbs. tongue weight
- Compatible with weight distribution hitch (10,000 lbs. WD / 1,000 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$204 70 $318.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$318.95 $204 70
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13176-CH320
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2015-2022 Chevy Colorado Trailer Hitch Fits All Models Curt 13176 2 inch Tow Receiver Install Notes
Installation Instructions for 2015 Chevrolet Colorado & GMC Canyon Pick-Up
Part Number:
- 13176
Tools Required:
- Safety glasses
- Ratchet
- 13mm socket
- 21mm socket
- 9" extension
- Jack stands
- Spray lubricant
- Wire pipe brush
- Torque wrench
Step-by-Step Instructions:
-
Lower Spare Tire:
- Use the vehicle's service tools located in the cab to lower the spare tire.
-
Loosen Spare Tire Support Bracket:
- Remove the two bolts near the spare winch using a 13mm socket to loosen the spare tire support bracket.
-
Remove Factory Crossmember or Hitch:
- Detach the four bolts securing the factory crossmember or hitch to the frame rails using a 21mm socket.
- Support the bumper from underneath, as it shares the same mounting points.
- Ensure all wiring is clear, then carefully remove the factory crossmember or hitch from the vehicle.
-
Transfer Clip Nuts:
- Move the two clip nuts from the factory crossmember or hitch to the spare tire support bracket.
-
Clean Weldnuts:
- Use spray lubricant and a wire pipe brush to clean the weldnuts on the frame, ensuring proper bolt engagement.
-
Install CURT Hitch:
- Position the CURT hitch between the frame and bumper mounting plates.
- Attach the bottom mounting bolts (two per side) using the existing hardware, leaving them loose to allow for bumper adjustment.
- Align the bumper with the side mounting holes and secure the remaining four bolts using a 21mm socket.
-
Torque Fasteners:
- Torque all M14 bolts to 100 ft-lbs to ensure secure attachment.
-
Reinstall Spare Tire Support Bracket and Spare Tire:
- Reinstall all bolts removed in Step 2.
- Raise the spare tire back into its original position.
Safety Notes:
- Load Capacities:
- Weight Carrying: 8,000 lbs. trailer weight, 800 lbs. tongue weight.
- Weight Distribution: 10,000 lbs. trailer weight, 1,000 lbs. tongue weight.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
- Warranty:
- CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Alteration, misuse, or improper installation voids the warranty. Liability is limited to repair or replacement of defective products and excludes incidental or consequential damages.
For installation questions, contact Technical Support at 1-877-287-8634.
Installation Instructions for Pick-Up Vehicle
Part Number:
- 13176
Tools Required:
- Safety glasses
- Ratchet
- 13mm socket
- 21mm socket
- 9" extension
- Jack stands
- Spray lubricant
- Wire pipe brush
- Torque wrench
Step-by-Step Instructions:
-
Lower Spare Tire:
- Use the vehicle's service tools located in the cab to lower the spare tire.
-
Loosen Spare Tire Support Bracket:
- Remove the two bolts near the spare winch using a 13mm socket to loosen the spare tire support bracket.
-
Remove Factory Crossmember or Hitch:
- Detach the four bolts securing the factory crossmember or hitch to the frame rails using a 21mm socket.
- Support the bumper from underneath, as it shares the same mounting points.
- Ensure all wiring is clear, then carefully remove the factory crossmember or hitch from the vehicle.
-
Transfer Clip Nuts:
- Move the two clip nuts from the factory crossmember or hitch to the spare tire support bracket.
-
Clean Weldnuts:
- Use spray lubricant and a wire pipe brush to clean the weldnuts on the frame, ensuring proper bolt engagement.
-
Install Hitch:
- Position the hitch between the frame and bumper mounting plates.
- Attach the bottom mounting bolts (two per side) using the existing hardware, leaving them loose to allow for bumper adjustment.
- Align the bumper with the side mounting holes and secure the remaining four bolts using a 21mm socket.
-
Torque Fasteners:
- Torque all M14 bolts to 100 ft-lbs to ensure secure attachment.
-
Reinstall Spare Tire Support Bracket and Spare Tire:
- Reinstall all bolts removed in Step 2.
- Raise the spare tire back into its original position.
Safety Notes:
- Load Capacities:
- Weight Carrying: 8,000 lbs. trailer weight, 800 lbs. tongue weight.
- Weight Distribution: 10,000 lbs. trailer weight, 1,000 lbs. tongue weight.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
- Warranty:
- This product is warranted to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Alteration, misuse, or improper installation voids the warranty. Liability is limited to repair or replacement of defective products and excludes incidental or consequential damages.
For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
