For 2015‑2020 Ford F‑150 7 Pin Trailer Wiring RV 7 Way Trailer Plug By Tekonsha
Model: 118283 20212-250061This Bundle Fits The Following Vehicles:
2015-2020 Ford F-150
This Bundle Includes the Following Parts:

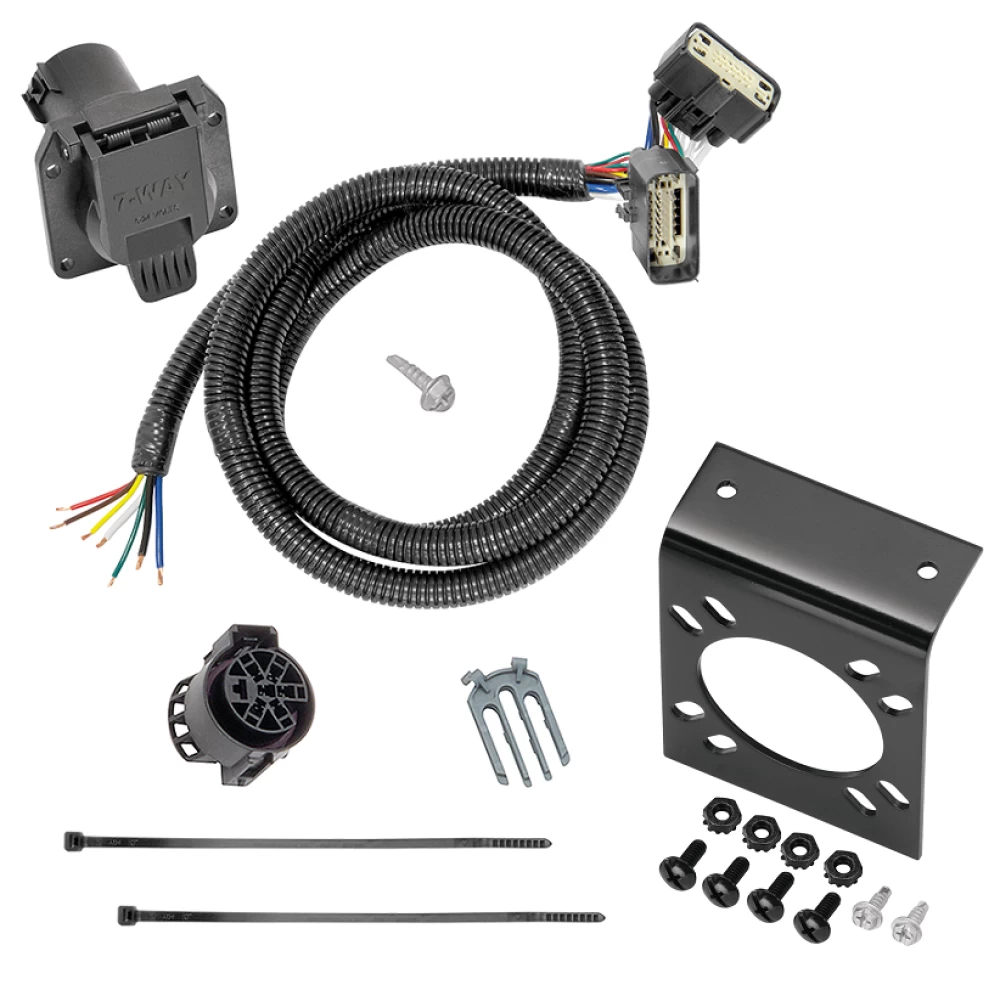

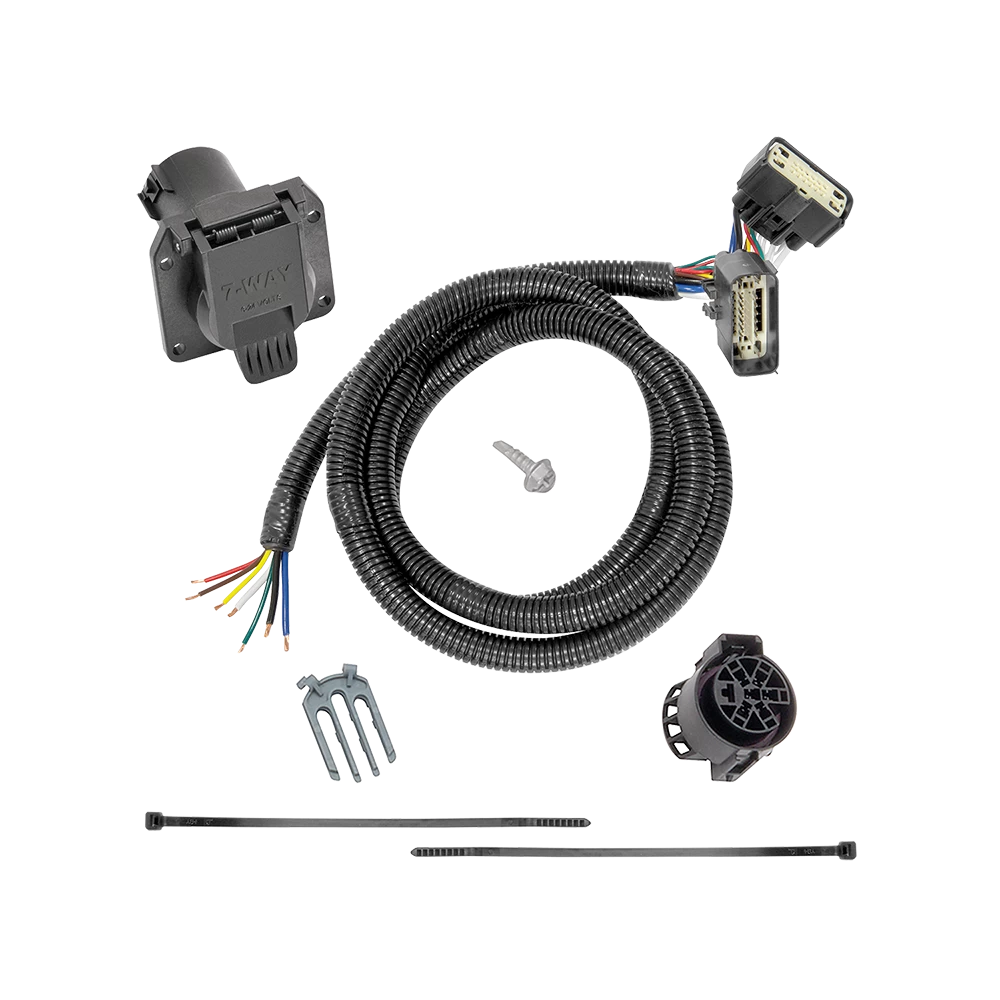

- 7-Way RV Wiring
List of fitment years:
2015, 2016, 2017, 2018, 2019, 2020

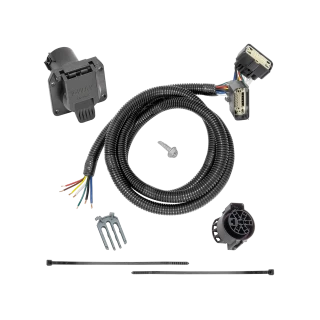

Tow Harness, 7-Way Manufactured by: Tekonsha
T-One Connectors require no splicing of vehicle wires. Simply locate your vehicle's wiring harness connector, unplug the connection, and insert the T-One Connector into the vehicle's harness. No special tools required.
- Exact replacement for damaged factory wiring harnesses
- Installs in seconds on vehicles not factory pre-wired
- Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
- Connects directly to standard factory connector
- Attractive point-of-purchase packaging
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
$90 02 $127.17 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$127.17 $90 02
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $22.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118283 20212-250061
- Includes: Tow Custom Harness, Mounting Bracket
Compatibility Chart
Description
Get Expert Help
For 2015-2020 Ford F-150 7 Pin Trailer Wiring RV 7 Way Trailer Plug By Tekonsha Install Notes
Installation Instructions for T-One® T-Connector for Ford F-150
Part Numbers:
- 118283
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate Tow-Plug Harness:
- Underneath the vehicle on the driver’s side, locate the vehicle’s Tow-Plug harness behind the rear tire.
- Separate the connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Insert T-One® Connector:
- Insert the T-One® Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Route the 7-Way Harness:
- Determine the mounting location for the 7-Way connector.
- Route the harness containing the seven wires along the inside of the bumper toward the center of the vehicle and the mounting location.
- Warning: Avoid routing wires near hot pipes, heat shields, the fuel tank, or any areas that could pinch or damage the wire.
-
Consult 7-Way Diagram:
- Refer to the included 7-Way diagram for proper wire locations.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
- Mount the 7-Way connector in an accessible location using a bracket or electrical box (not included).
-
Secure the Harness:
- Secure the remaining harness using the provided cable ties to prevent damage or rattling.
- Avoid areas that could pinch, cut, or melt the wires.
-
Test the Installation:
- Ensure all connections are complete for proper T-One® Connector functionality.
- Reset the vehicle’s electrical system by temporarily removing the ignition key.
- Test the installation with a test light or trailer.
Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 20 amps
- Max. trailer brakes: 3 axles/6 brakes (18 amps)
Safety Notes:
- Always follow all warnings and instructions included with the product.
- Wear safety glasses and use proper precautions during installation.
- Avoid exceeding the lower of the manufacturer’s ratings or the specific amperage ratings stated on the product.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118283
Tools Required:
- Trim Panel Remover
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate Tow-Plug Harness:
- Underneath the vehicle on the driver’s side, locate the vehicle’s Tow-Plug harness behind the rear tire.
- Separate the connector carefully without breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Insert T-One® Connector:
- Insert the T-One® Connector harness into the vehicle’s Tow-Plug harness and lock it into place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Route the 7-Way Harness:
- Determine the mounting location for the 7-Way connector.
- Route the harness containing the seven wires along the inside of the bumper toward the center of the vehicle and the mounting location.
- Warning: Avoid routing wires near hot pipes, heat shields, the fuel tank, or any areas that could pinch or damage the wire.
-
Consult 7-Way Diagram:
- Refer to the included 7-Way diagram for proper wire locations.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
- Mount the 7-Way connector in an accessible location using a bracket or electrical box (not included).
-
Secure the Harness:
- Secure the remaining harness using the provided cable ties to prevent damage or rattling.
- Avoid areas that could pinch, cut, or melt the wires.
-
Test the Installation:
- Ensure all connections are complete for proper T-One® Connector functionality.
- Reset the vehicle’s electrical system by temporarily removing the ignition key.
- Test the installation with a test light or trailer.
Warning: Overloading circuits can cause fires. Do not exceed the following ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 20 amps
- Max. trailer brakes: 3 axles/6 brakes (18 amps)
Safety Notes:
- Always follow all warnings and instructions included with the product.
- Wear safety glasses and use proper precautions during installation.
- Avoid exceeding the lower of the manufacturer’s ratings or the specific amperage ratings stated on the product.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
