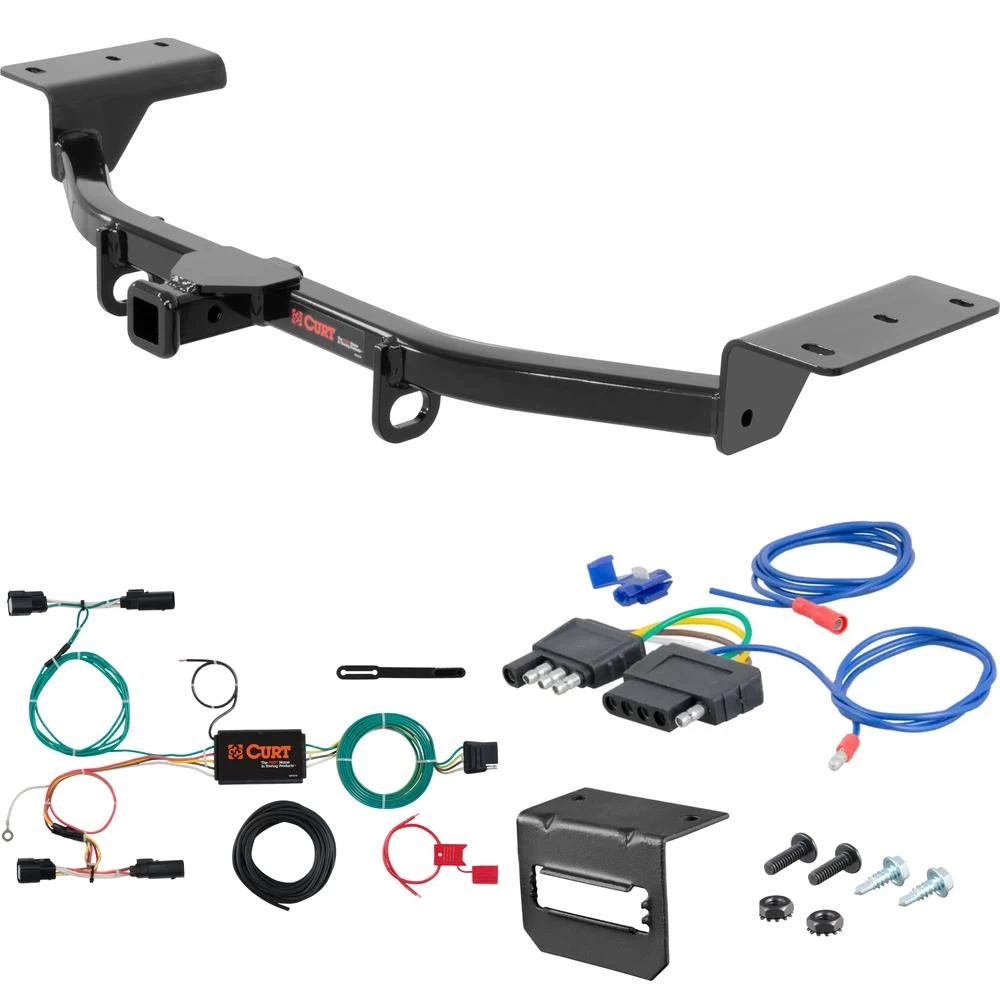

Product Details
- Brand: Curt
- Model: 11431 56273 57187 58303-CH1769
- Includes: Class 1 Trailer Tow Hitch, Custom Wiring Harness, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Description
Get Expert Help
For 2015-2018 Ford Focus Trailer Hitch + Wiring 5 Pin Fits ST Hatchback Curt 11431 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2013-Present Ford Focus ST Hatchback
Part Numbers:
- 11431
Tools Required:
- Ratchet
- Torque Wrench
- Drill
- Die Grinder
- 6" Socket Extension
- Drill Bits: 15/32", 11/16"
- 13mm Socket
- Marker
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the exhaust brackets.
- Remove four bolts and lower the two rear exhaust brackets.
- Return the bolts to the owner.
Step 2: Position the hitch and mark drill holes.
- Raise the hitch into position and temporarily secure it to the existing weld nuts in the frame rails using four M8-1.25 hex bolts and 3/8" conical toothed washers.
- Use the hitch as a template to mark the drill locations on both sides.
Step 3: Drill the marked holes.
- Lower the hitch and drill holes at the marked locations.
Step 4: Enlarge the access holes.
- Enlarge the access holes to allow the 7/16"-14 carriage bolts and SP7 spacers to pass through.
Step 5: Fishwire bolts and spacers through the frame.
- Fishwire 7/16"-14 carriage bolts and SP7 spacers through the enlarged access holes and out through the drilled holes.
Step 6: Secure the hitch.
- Raise the hitch into position and loosely secure the rear-most holes with 7/16"-14 flange nuts.
- Place the hitch side plates against the frame rails, followed by the 11431-SP spacers, and then the exhaust brackets.
- Secure using the supplied M8-1.25 hex bolts and 3/8" conical toothed washers.
Step 7: Torque all hardware.
- Torque all M8 hardware to 23 ft-lbs.
- Torque all 7/16" hardware to 70 ft-lbs.
Hardware List:
- (2) .250 x 1.00 x 2.00" Square Hole Spacers (CM-SP7)
- (2) 7/16"-14 x 1 1/2" Carriage Bolts
- (2) 7/16"-14 Hex Flange Nuts
- (4) 3/8" Conical Toothed Washers
- (2) 7/16" Fishwires
- (4) M8-1.25 x 40mm Hex Bolts
- (2) Spacers (11431-SP)
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Electrical wiring must be a minimum of 12 inches from exhaust tips to avoid heat damage.
- Ball mounts may become hot due to the center exhaust.
Specifications:
- Gross Trailer Weight (GTW): 2,000 lbs
- Tongue Weight (TW): 200 lbs
- Installation Time: 30 minutes (professional), 60 minutes (novice)
Manufacturer Notes:
- Drilling and fishwiring are required for installation.
- For assistance, contact Curt Manufacturing Technical Support at 1-877-287-8634.
Installation Instructions for 2013-Present Ford Focus ST Hatchback
Part Numbers:
- 11431
Tools Required:
- Ratchet
- Torque Wrench
- Drill
- Die Grinder
- 6" Socket Extension
- Drill Bits: 15/32", 11/16"
- 13mm Socket
- Marker
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the exhaust brackets.
- Remove four bolts and lower the two rear exhaust brackets.
- Return the bolts to the owner.
Step 2: Position the hitch and mark drill holes.
- Raise the hitch into position and temporarily secure it to the existing weld nuts in the frame rails using four M8-1.25 hex bolts and 3/8" conical toothed washers.
- Use the hitch as a template to mark the drill locations on both sides.
Step 3: Drill the marked holes.
- Lower the hitch and drill holes at the marked locations.
Step 4: Enlarge the access holes.
- Enlarge the access holes to allow the 7/16"-14 carriage bolts and SP7 spacers to pass through.
Step 5: Fishwire bolts and spacers through the frame.
- Fishwire 7/16"-14 carriage bolts and SP7 spacers through the enlarged access holes and out through the drilled holes.
Step 6: Secure the hitch.
- Raise the hitch into position and loosely secure the rear-most holes with 7/16"-14 flange nuts.
- Place the hitch side plates against the frame rails, followed by the 11431-SP spacers, and then the exhaust brackets.
- Secure using the supplied M8-1.25 hex bolts and 3/8" conical toothed washers.
Step 7: Torque all hardware.
- Torque all M8 hardware to 23 ft-lbs.
- Torque all 7/16" hardware to 70 ft-lbs.
Hardware List:
- (2) .250 x 1.00 x 2.00" Square Hole Spacers (CM-SP7)
- (2) 7/16"-14 x 1 1/2" Carriage Bolts
- (2) 7/16"-14 Hex Flange Nuts
- (4) 3/8" Conical Toothed Washers
- (2) 7/16" Fishwires
- (4) M8-1.25 x 40mm Hex Bolts
- (2) Spacers (11431-SP)
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Electrical wiring must be a minimum of 12 inches from exhaust tips to avoid heat damage.
- Ball mounts may become hot due to the center exhaust.
Specifications:
- Gross Trailer Weight (GTW): 2,000 lbs
- Tongue Weight (TW): 200 lbs
- Installation Time: 30 minutes (professional), 60 minutes (novice)
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty covers defects in material and workmanship at the time of purchase. For complete warranty instructions, please download the full installation PDF.

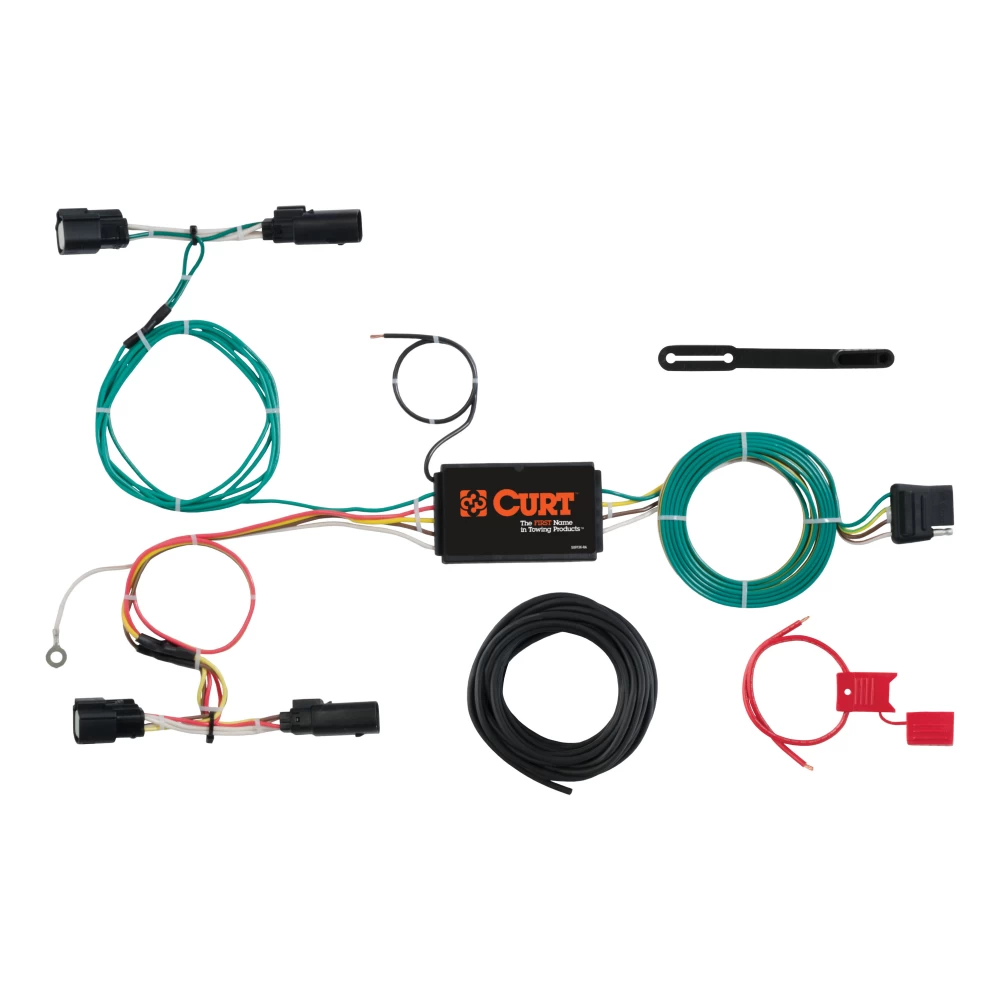

Installation Instructions for Ford Focus Hatchback
Part Numbers:
- 56273
Wiring Access Location:
- P1: Behind driver side taillight housing, outside of trunk
- P2: Behind passenger side taillight housing, outside of trunk
Tools Required:
- 10mm socket
- 1/4" socket
- T-20 Torx bit
- Ratchet
- Panel trim removal tool
- Crimping tool
- Wire cutters
- Cutting tool
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Step-by-Step Instructions:
Step 1: Disconnect the Battery
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
Step 2: Remove Trunk Floor Coverings
- Open the vehicle tailgate.
- Remove all trunk floor coverings and storage trays.
Step 3: Remove the Rear Scuff Panel
- Remove the push fasteners securing the rear scuff panel.
- Pull out on the bottom of the scuff panel, then lift it upward to remove it, being careful not to damage the alignment tabs.
Step 4: Access Driver-Side Taillight
- Starting on the driver side, remove the two fasteners securing the side trim panel.
- Pull back on the side trim panel to access the taillight assembly fasteners and remove them.
- Remove the taillight assembly by gently pulling rearward and out.
Step 5: Connect the Driver-Side Wiring Harness
- Behind the driver-side taillight, locate the vehicle taillight wiring harness connectors.
- Separate the connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
Step 6: Route Wiring Through Grommet
- Remove the grommet with wires running from inside the trunk to the taillight.
- Make a small slit in the grommet large enough to route the wiring harness wires through.
- Route the wiring harness end with the yellow wire out through the grommet opening and slit.
Step 7: Seal the Grommet
- Seat the grommet with the wiring harness wires passing through it.
- Use a sealant (not included) to seal the grommet where the wires pass through and where the grommet was cut.
Step 8: Secure the Ground Wire
- Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole in a clean, rust-free, and paint-free area.
- Attach the white ground wire using the provided ring terminal and screw.
Safety Note: Inspect the area before drilling to ensure no hidden components are present to avoid damage or injury.
Step 9: Mount the Converter Box
- Locate a flat, clean spot inside the vehicle near the taillight.
- Use the provided double-sided tape to securely adhere the black converter box to this location.
Step 10: Connect the Passenger-Side Wiring Harness
- Route the wiring harness end with the green wire to the passenger side behind the removed scuff panels.
- Repeat Steps 4–7 on the passenger side using the harness end with the green wire.
Step 11: Route and Connect the Power Wire
- Route the black power wire from the converter box to the vehicle battery as shown in the included CME-PCL-INS sheet.
- Secure the wire along its route using the provided cable ties, avoiding sharp edges, pinch points, and hot or rotating components.
Step 12: Position the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle for trailer connection.
- When not in use, roll up the connector and store it in a secure, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
Step 13: Finalize Installation
- Reinstall all panels, trim, and covers removed during the installation process.
- Reconnect the negative battery terminal.
- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.
Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always inspect for hidden components before drilling to prevent damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Ensure the battery connection is fuse-protected (maximum 10 amps). Exceeding this rating can lead to overheating, fire, or voided warranty.
Specifications:
- System Compatibility: This converter system is to be used only on 12-volt negative ground systems.
Installation Instructions for Vehicle
Part Numbers:
- 56273
Wiring Access Location:
- P1: Behind driver side taillight housing, outside of trunk
- P2: Behind passenger side taillight housing, outside of trunk
Tools Required:
- 10mm socket
- 1/4" socket
- T-20 Torx bit
- Ratchet
- Panel trim removal tool
- Crimping tool
- Wire cutters
- Cutting tool
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Step-by-Step Instructions:
Step 1: Disconnect the Battery
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
Step 2: Remove Trunk Floor Coverings
- Open the vehicle tailgate.
- Remove all trunk floor coverings and storage trays.
Step 3: Remove the Rear Scuff Panel
- Remove the push fasteners securing the rear scuff panel.
- Pull out on the bottom of the scuff panel, then lift it upward to remove it, being careful not to damage the alignment tabs.
Step 4: Access Driver-Side Taillight
- Starting on the driver side, remove the two fasteners securing the side trim panel.
- Pull back on the side trim panel to access the taillight assembly fasteners and remove them.
- Remove the taillight assembly by gently pulling rearward and out.
Step 5: Connect the Driver-Side Wiring Harness
- Behind the driver-side taillight, locate the vehicle taillight wiring harness connectors.
- Separate the connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
Step 6: Route Wiring Through Grommet
- Remove the grommet with wires running from inside the trunk to the taillight.
- Make a small slit in the grommet large enough to route the wiring harness wires through.
- Route the wiring harness end with the yellow wire out through the grommet opening and slit.
Step 7: Seal the Grommet
- Seat the grommet with the wiring harness wires passing through it.
- Use a sealant (not included) to seal the grommet where the wires pass through and where the grommet was cut.
Step 8: Secure the Ground Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle’s frame.
- If no suitable point exists, drill a 3/32" pilot hole in a clean, rust-free, and paint-free area.
- Attach the white ground wire using the provided ring terminal and screw.
Safety Note: Inspect the area before drilling to ensure no hidden components are present to avoid damage or injury.
Step 9: Mount the Converter Box
- Locate a flat, clean spot inside the vehicle near the taillight.
- Use the provided double-sided tape to securely adhere the black converter box to this location.
Step 10: Connect the Passenger-Side Wiring Harness
- Route the wiring harness end with the green wire to the passenger side behind the removed scuff panels.
- Repeat Steps 4–7 on the passenger side using the harness end with the green wire.
Step 11: Route and Connect the Power Wire
- Route the black power wire from the converter box to the vehicle battery as shown in the included CME-PCL-INS sheet.
- Secure the wire along its route using the provided cable ties, avoiding sharp edges, pinch points, and hot or rotating components.
Step 12: Position the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle for trailer connection.
- When not in use, roll up the connector and store it in a secure, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
Step 13: Finalize Installation
- Reinstall all panels, trim, and covers removed during the installation process.
- Reconnect the negative battery terminal.
- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.
Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always inspect for hidden components before drilling to prevent damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Ensure the battery connection is fuse-protected (maximum 10 amps). Exceeding this rating can lead to overheating, fire, or voided warranty.
Specifications:
- System Compatibility: This converter system is to be used only on 12-volt negative ground systems.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
