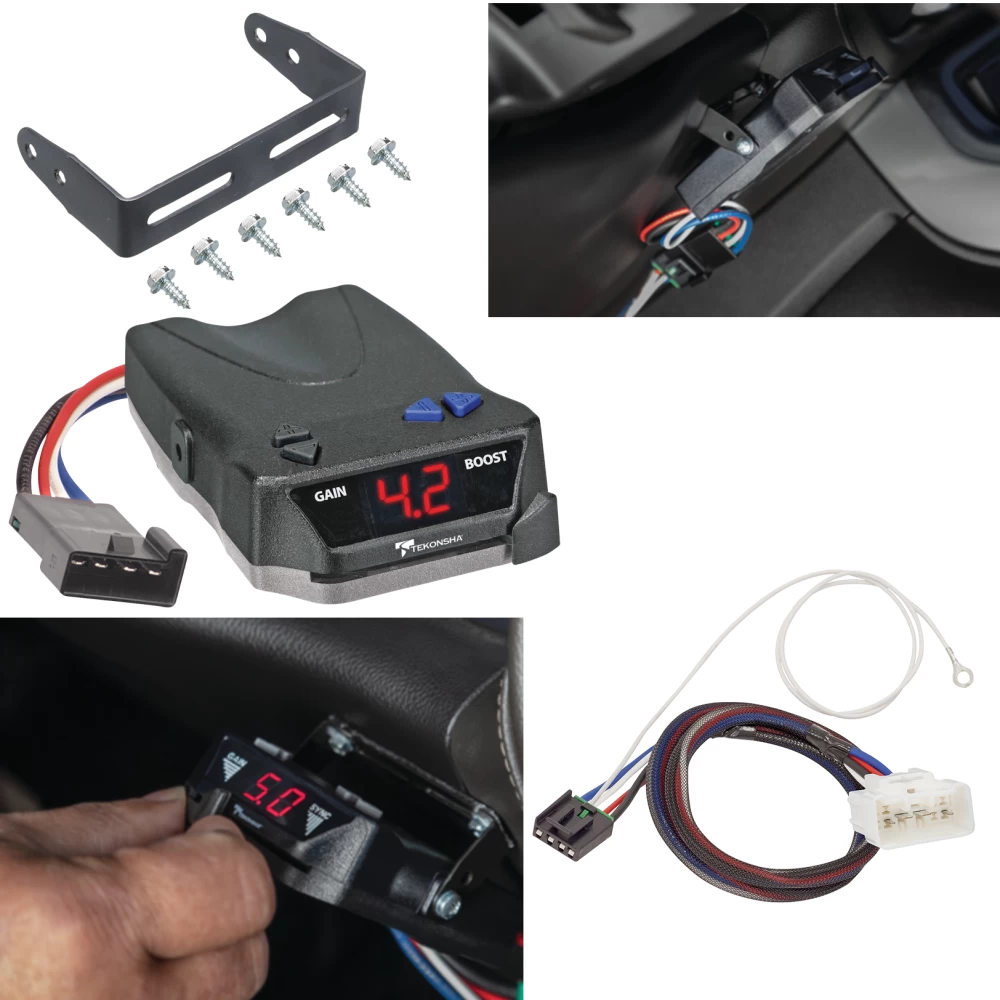

For 2015-2017 Toyota Tundra Tekonsha BRAKE-EVN Brake Control + Plug & Play BC Adapter By Tekonsha Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303100
Tools Required:
- Trim Panel Remover
Step-by-Step Instructions:
For Tundra:
- Ensure the vehicle is off and the keys are removed from the ignition.
- Locate the access panel in the center of the dash on the driver’s side:
- Use a trim panel puller to carefully pry the panel away from the dash at the notch.
- Disconnect any housings attached to the panel and set it aside.
- Pull the wiring harness housing toward the access panel opening.

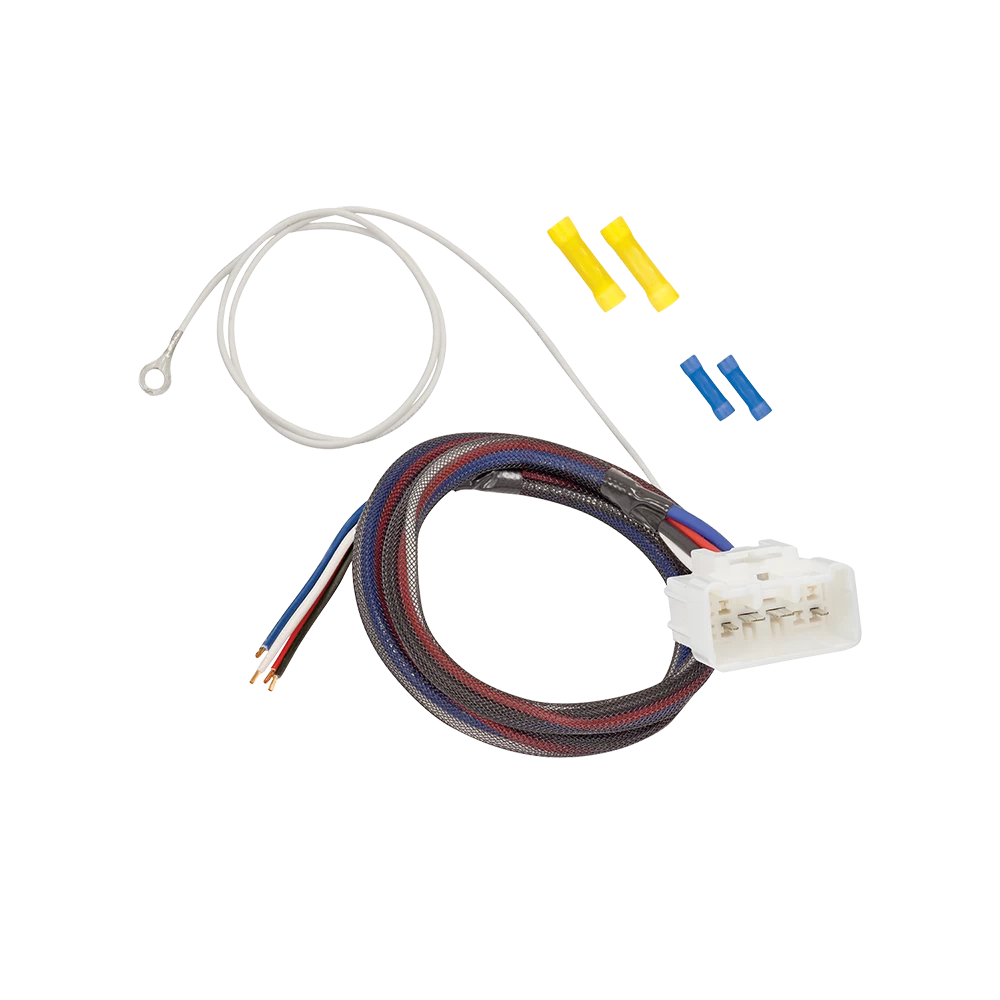

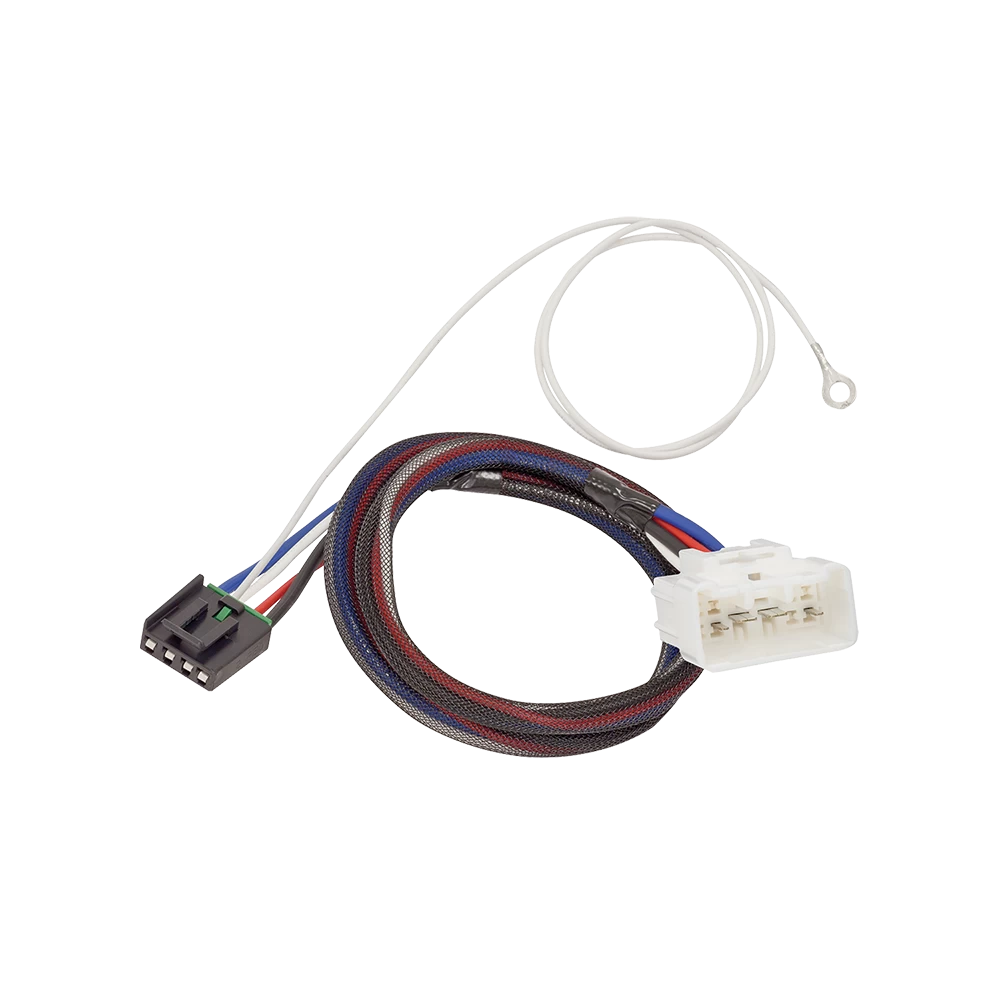

- Plug the white housing from the brake control adapter into the wiring harness connector.
- Locate a suitable grounding point near the connector:
- Use an existing ground stud or drill a 3/32” hole.
- Secure the white ground wire using the eyelet and screw provided.
- Clean dirt and rustproofing from the area before securing.
- Route the adapter through a hole in the bottom of the dash.
- Use a flashlight to locate a routing path.
- Complete the installation following the brake controller manufacturer’s instructions.
- Plug any unused connectors back into their original housings and snap the access panel back into place.
For Tacoma:
- Ensure the vehicle is off and the keys are removed from the ignition.
- Locate the electric brake control harness:
- Found underneath and left of the steering column, behind the kick panel, near the emergency brake pedal.
- The connector will be a white 10-pin connector.
- Remove the tape securing the harness and plug in the white housing from the brake control adapter.
- Locate a suitable grounding point near the connector:
- Use an existing ground stud or drill a 3/32” hole.
- Secure the white ground wire using the eyelet and screw provided.
- Clean the area of any dirt or rustproofing before securing.
- Complete the installation following the brake controller manufacturer’s instructions.
Safety Warnings:
- Circuit Overload Warning:
- DO NOT exceed the lower of the following:
- Vehicle towing rating (specified in the vehicle owner’s manual).
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of the following:
- Overloading the circuit may result in fire or damage to the electrical system.
- Always wear safety glasses and follow all safety precautions during installation.
- Vehicles not equipped with OEM trailer tow packages may require additional fuses and relays to complete the circuits.
- Refer to the vehicle owner’s manual for specific fuse and relay locations.
Wiring Overview:
- Ground Wire (#5): Secures the adapter to a grounding point.
- Trailer Brake Controller (#7): Sends braking signals to the trailer brakes.
- Fused Battery Feed (#8): Powers the brake controller unit.
- Stop Lamp Signal (#9): Provides braking input from the vehicle’s brake system.
Final Notes:
- Ensure all connections are secure and wires are routed safely away from sharp edges, heat sources, or moving parts.
- Test the system thoroughly after installation to confirm proper functionality.
- Retain these instructions for future reference.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303100
Tools Required:
- Trim Panel Remover
Step-by-Step Instructions:
For Tundra:
- Ensure the vehicle is off and the keys are removed from the ignition.
- Locate the access panel in the center of the dash on the driver’s side:
- Use a trim panel puller to carefully pry the panel away from the dash at the notch.
- Disconnect any housings attached to the panel and set it aside.
- Pull the wiring harness housing toward the access panel opening.
- Plug the white housing from the brake control adapter into the wiring harness connector.
- Locate a suitable grounding point near the connector:
- Use an existing ground stud or drill a 3/32” hole.
- Secure the white ground wire using the eyelet and screw provided.
- Clean dirt and rustproofing from the area before securing.
- Route the adapter through a hole in the bottom of the dash.
- Use a flashlight to locate a routing path.
- Complete the installation following the brake controller manufacturer’s instructions.
- Plug any unused connectors back into their original housings and snap the access panel back into place.
For Tacoma:
- Ensure the vehicle is off and the keys are removed from the ignition.
- Locate the electric brake control harness:
- Found underneath and left of the steering column, behind the kick panel, near the emergency brake pedal.
- The connector will be a white 10-pin connector.
- Remove the tape securing the harness and plug in the white housing from the brake control adapter.
- Locate a suitable grounding point near the connector:
- Use an existing ground stud or drill a 3/32” hole.
- Secure the white ground wire using the eyelet and screw provided.
- Clean the area of any dirt or rustproofing before securing.
- Complete the installation following the brake controller manufacturer’s instructions.
Safety Warnings:
- Circuit Overload Warning:
- DO NOT exceed the lower of the following:
- Vehicle towing rating (specified in the vehicle owner’s manual).
- Maximum Capacity: 3 axles / 6 brakes (18 amps).
- DO NOT exceed the lower of the following:
- Overloading the circuit may result in fire or damage to the electrical system.
- Always wear safety glasses and follow all safety precautions during installation.
- Vehicles not equipped with OEM trailer tow packages may require additional fuses and relays to complete the circuits.
- Refer to the vehicle owner’s manual for specific fuse and relay locations.
Wiring Overview:
- Ground Wire (#5): Secures the adapter to a grounding point.
- Trailer Brake Controller (#7): Sends braking signals to the trailer brakes.
- Fused Battery Feed (#8): Powers the brake controller unit.
- Stop Lamp Signal (#9): Provides braking input from the vehicle’s brake system.
Final Notes:
- Ensure all connections are secure and wires are routed safely away from sharp edges, heat sources, or moving parts.
- Test the system thoroughly after installation to confirm proper functionality.
- Retain these instructions for future reference.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Electronic Brake Control
Product Information:
- Model: Electronic Brake Control for 2, 4, 6, & 8 Brake Applications
- Part Number: N8508220
Tools Required:
- Drill with 1/8" drill bit
- Screwdriver or 1/4" Nut Driver
- Wire Cutter/Stripper
- Wire Crimping Tool
- Probe-type Circuit Tester
- Assorted End Wrenches
Components Included:
- Brake Control Unit
- Mounting Bracket
- Mounting Screws (#6 x 3/8") (Qty: 4)
- Warranty Card
Mounting Instructions:
-
Select a Suitable Mounting Location:
- Must be securely mounted to a solid surface.
- Must be within easy reach of the driver.
- Ensure the area behind the mounting location is clear before drilling.
-
Mark the Hole Locations:
- Hold the mounting bracket in place.
- Mark the holes using the slots in the bracket as a template.
-
Drill Mounting Holes:
- Use a 1/8" drill bit to drill holes at the marked locations.
-
Secure the Bracket:
- Use two self-tapping screws to secure the bracket.
- Avoid over-tightening to prevent stripping the holes.
-
Mount the Brake Control Unit:
- Secure the unit to the bracket using the remaining two screws.
Wiring Instructions:
-
Connect the Wires:
- Black Wire: Vehicle Power (12V positive battery connection, use a 30A circuit breaker).
- White Wire: Vehicle Ground (secure to a clean, bare metal surface).
- Red Wire: Stop Light Switch (connect to the wire that activates only when the brake pedal is pressed).
- Blue Wire: Trailer Brakes (connect to the brake wire at the trailer connector).
-
Verify Wiring Connections:
- Use a circuit tester to confirm correct connections.
Controls and Operation:
-
Output (Gain) Control:
- Adjusts the maximum power delivered to the trailer brakes.
- Use the +/- buttons to increase or decrease output.
- Display shows values from 0 to 10 (0 = minimum power, 10 = maximum power).
-
Manual Control:
- Located on the front of the brake control unit.
- Slide the control to manually apply the trailer brakes.
- Use this feature to check or adjust brake performance.
-
Boost Control:
- Provides more aggressive trailer braking.
- Boost levels: b.1, b.2, and b.3.
- Increase or decrease the boost by pressing the Boost Control button.
Setting Power to the Trailer Brakes:
- Connect the trailer to the tow vehicle.
- With the engine running, set the Output/Gain to approximately 5.0.
- Drive at 25 mph on a dry, level surface.
- Apply the Manual Control fully:
- If trailer brakes lock up, decrease power.
- If braking is insufficient, increase power.
- Repeat until braking is smooth and effective, just below wheel lock-up.
Troubleshooting Guide:
Issue | Cause | Solution |
---|---|---|
No display or no response | Power/ground loss | Verify black and white wire connections. |
Display flashes continuously | Short circuit in trailer brakes | Inspect trailer wiring and connections. |
Braking power too low | Gain set too low | Increase gain using + button. |
Intermittent power loss | Loose connection | Inspect all wiring and connections. |
Safety Notes:
- Do not mount the unit at an angle greater than -20° to +70° from level.
- Ensure all wiring connections are secure to avoid braking failures.
- Regularly inspect trailer brakes for wear and proper adjustment.
Technical Support:
For technical support and assistance, our team of experts is available to help.
You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Limited Warranty: Covers defects in materials and workmanship.
- Excludes misuse, improper installation, and normal wear and tear.
For complete warranty instructions, please download the full installation PDF.
