For 2016-2019 Chevy Volt Trailer Wiring 4 Way Fits All Models Curt 56315 Install Notes
Installation Instructions for Chevrolet Volt
Part Number:
- 56315
Wiring Access Locations:
- P1: Behind driver side taillight housing, outside of trunk
- P2: Behind passenger side taillight housing, outside of trunk
Tools Required:
- Ratchet
- 10mm socket
- T-15 Torx bit
- Phillips screwdriver
- Panel trim removal tool
- Cutting tool
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal.
-
Prepare Trunk Area:
- Open the vehicle trunk.
- Remove all trunk floor coverings.
- Remove the fasteners securing the trunk storage trays.
- Remove the trays.
-
Remove Rear Scuff Panel:
- Pull out on the bottom of the scuff panel and then lift up to remove it.
- Take care not to damage the alignment tabs on the back.
-
Access Driver Side Taillight:
- Starting on the driver side, remove the fasteners securing the side felt liner in place.
- Pull back on the felt liner to allow access for routing the custom wiring harness.
-
Remove Driver Side Taillight:
- On the outside of the vehicle, remove the fasteners securing the taillight.
- Gently pull the taillight rearward and out.
-
Disconnect Taillight Wiring Harness (Driver Side):
- Behind the taillight, locate the vehicle taillight wiring harness connectors.
- The connectors will be similar to those on the custom wiring harness.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Modify Grommet for Wiring (Driver Side):
- Locate the grommet behind the taillight where the vehicle taillight wiring passes from inside the cabin to the taillight.
- Remove the grommet and cut a slit large enough to route the custom wiring harness through.
-
Install Custom Wiring Harness (Driver Side):
- Route the custom wiring harness end with the yellow wire out through the grommet opening and through the slit in the grommet.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Seal Grommet (Driver Side):
- Reseat the grommet and use sealant (not provided) to seal the cut in the grommet and around all the wires.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
- Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Mount Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Install Custom Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat steps 4 through 9 on the passenger side using the harness end with the green wire.
-
Route Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-

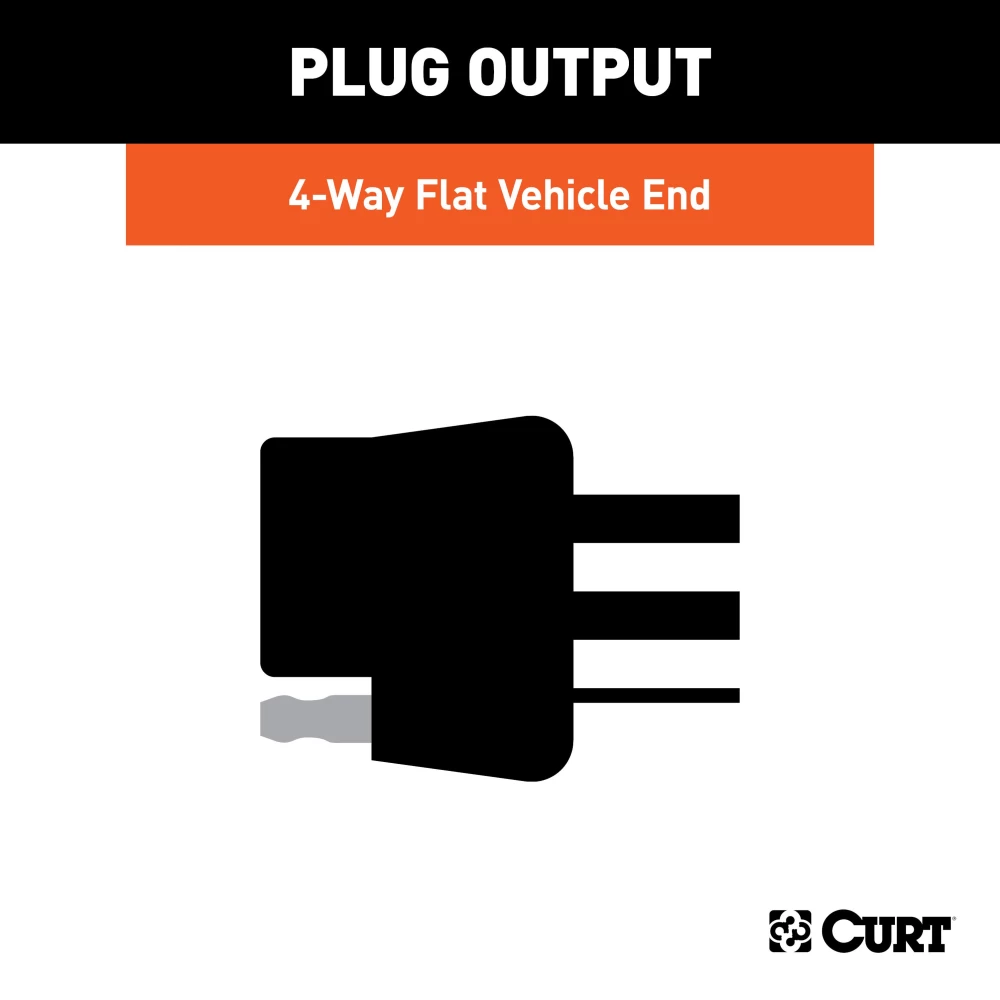

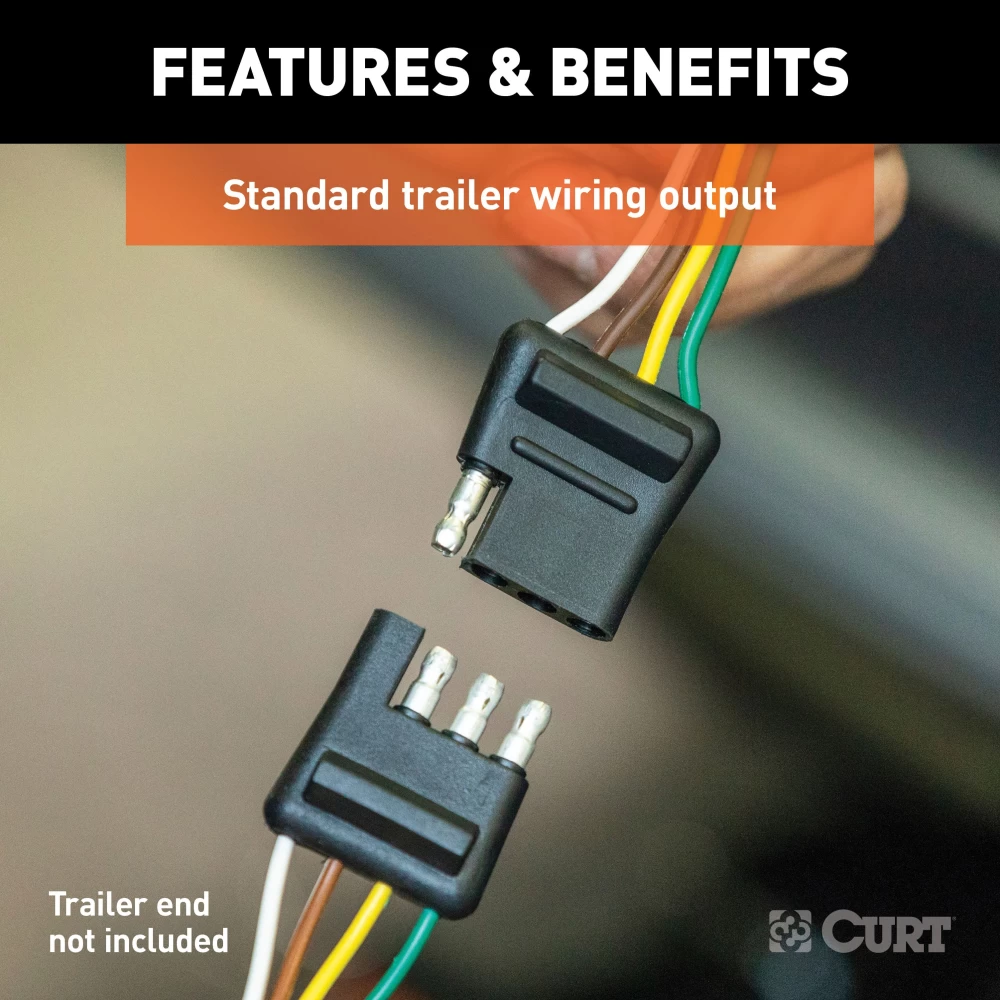

Position 4-Flat Connector:
- When in use, route the 4-flat to the center of the vehicle.
- When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble Vehicle Components:
- Reinstall all items removed during installation and reconnect the negative battery terminal.

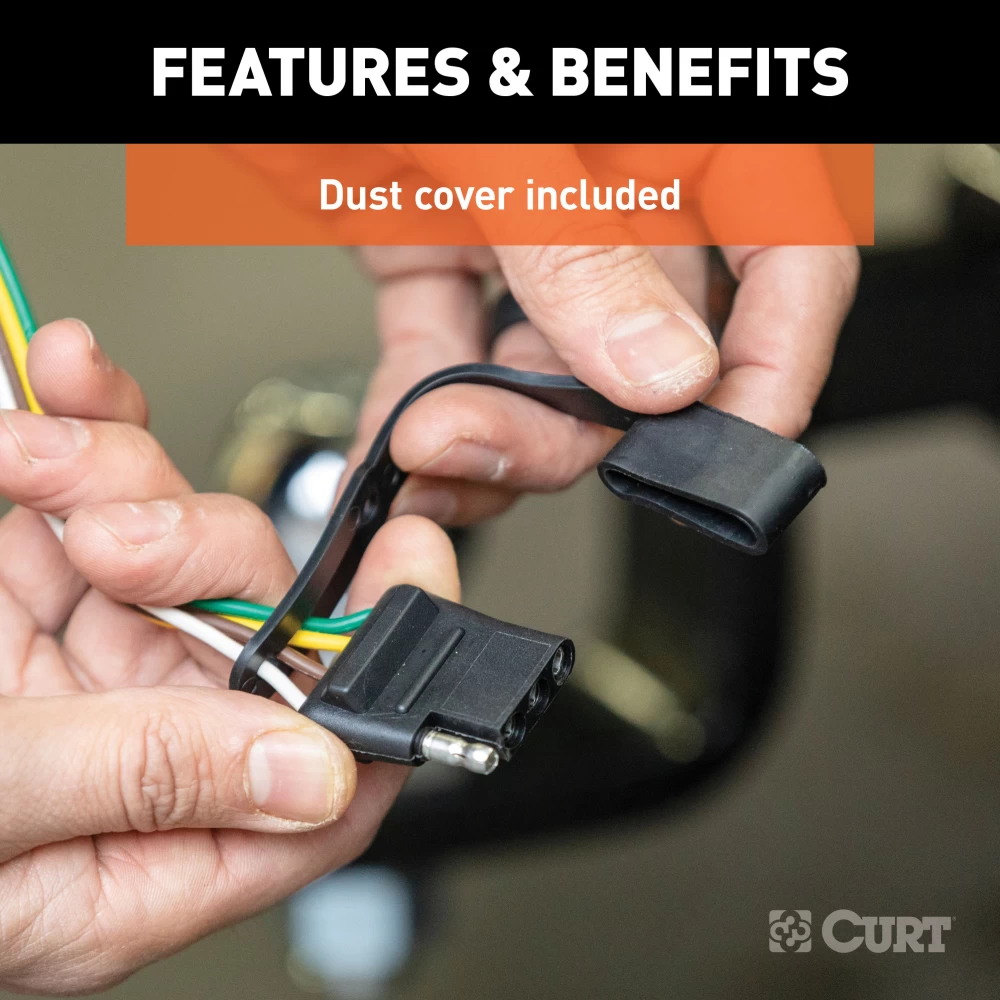

- Install the provided 4-flat dust cover to help prevent corrosion.

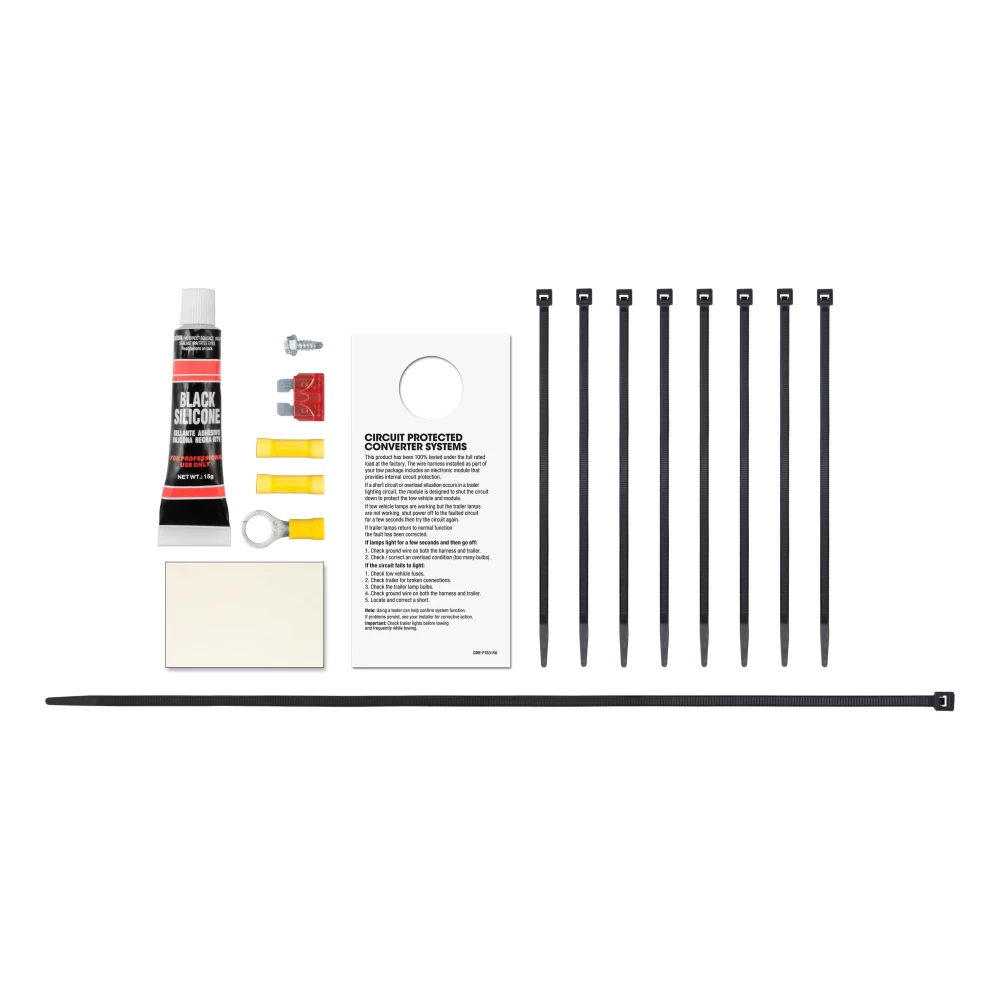

Hardware List:

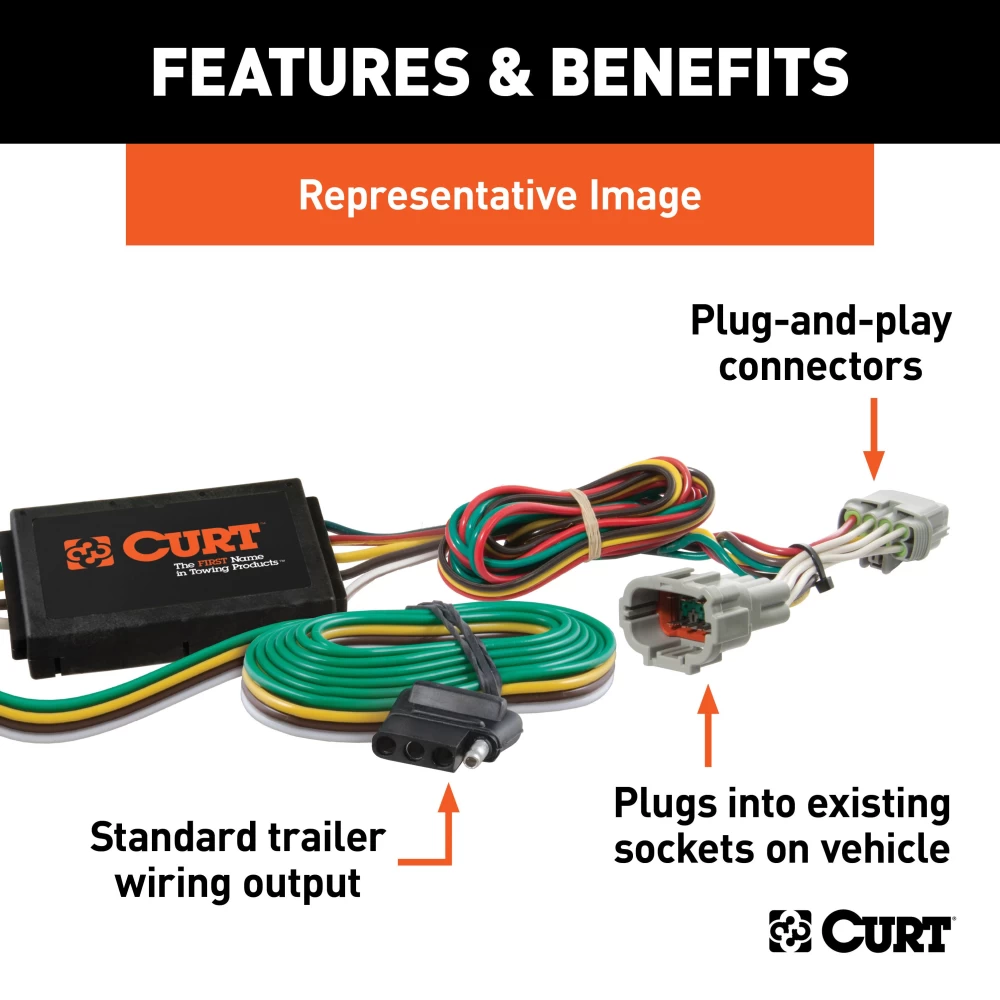

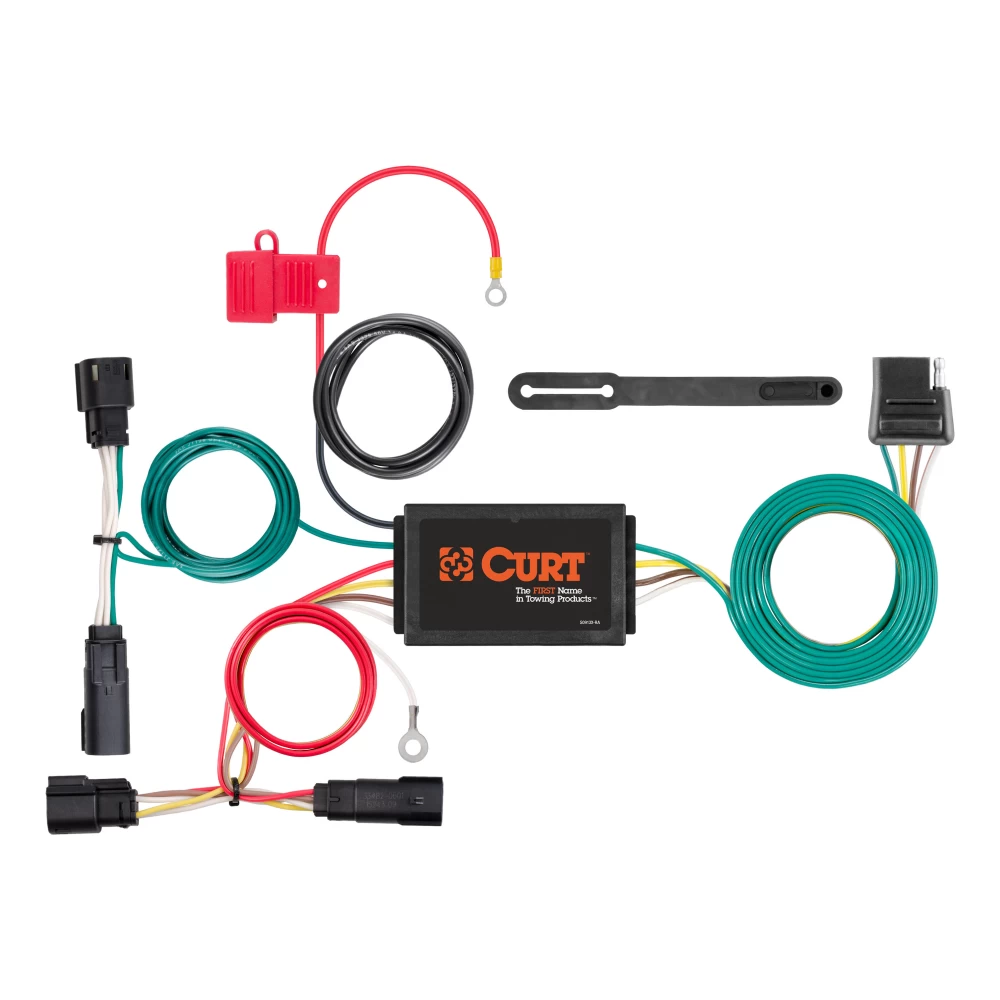

- Custom wiring harness with 4-flat connector
- Black converter module
- Double-sided tape
- Ring terminal
- Ground screw
- Cable ties
- 10-amp fuse (for fuse holder on converter harness)
- 4-flat dust cover
Safety Notes:
- Battery Connection: The battery connection must be fuse-protected, 10-amp max. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
- Drilling Caution: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
(Check the vehicle owner's manual or contact the vehicle manufacturer for more information.)
Installation Instructions for Vehicle
Part Number:
- 56315
Wiring Access Locations:
- P1: Behind driver side taillight housing, outside of trunk
- P2: Behind passenger side taillight housing, outside of trunk
Tools Required:
- Ratchet
- 10mm socket
- T-15 Torx bit
- Phillips screwdriver
- Panel trim removal tool
- Cutting tool
Step-by-Step Instructions:
Step 1: Disconnect the Battery
- Locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal.
Step 2: Prepare Trunk Area
- Open the vehicle trunk.
- Remove all trunk floor coverings.
- Remove the fasteners securing the trunk storage trays.
- Remove the trays.
Step 3: Remove Rear Scuff Panel
- Pull out on the bottom of the scuff panel and then lift up to remove it.
- Take care not to damage the alignment tabs on the back.
Step 4: Access Driver-Side Taillight
- Starting on the driver side, remove the fasteners securing the side felt liner in place.
- Pull back on the felt liner to allow access for routing the custom wiring harness.
Step 5: Remove Driver-Side Taillight
- On the outside of the vehicle, remove the fasteners securing the taillight.
- Gently pull the taillight rearward and out.
Step 6: Disconnect Taillight Wiring Harness (Driver Side)
- Behind the taillight, locate the vehicle taillight wiring harness connectors.
- The connectors will be similar to those on the custom wiring harness.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
Step 7: Modify Grommet for Wiring (Driver Side)
- Locate the grommet behind the taillight where the vehicle taillight wiring passes from inside the cabin to the taillight.
- Remove the grommet and cut a slit large enough to route the custom wiring harness through.
Step 8: Install Custom Wiring Harness (Driver Side)
- Route the custom wiring harness end with the yellow wire out through the grommet opening and through the slit in the grommet.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
Step 9: Seal Grommet (Driver Side)
- Reseat the grommet and use sealant (not provided) to seal the cut in the grommet and around all the wires.
Step 10: Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle’s frame.
- If no suitable grounding point exists, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Safety Note: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
Step 11: Mount Converter Box
- Locate a flat, clean spot inside the vehicle, near the taillight.
- Use the provided double-sided tape to securely adhere the black converter box to this location.
Step 12: Install Custom Wiring Harness (Passenger Side)
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat steps 4 through 9 on the passenger side using the harness end with the green wire.
Step 13: Route Black Power Wire
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
Step 14: Position 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
Step 15: Reassemble Vehicle Components
- Reinstall all items removed during installation and reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- Custom wiring harness with 4-flat connector
- Black converter module
- Double-sided tape
- Ring terminal
- Ground screw
- Cable ties
- 10-amp fuse (for fuse holder on converter harness)
- 4-flat dust cover
Safety Notes:
- Battery Connection: The battery connection must be fuse-protected, 10-amp max. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
- Drilling Caution: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
(Check the vehicle owner's manual or contact the vehicle manufacturer for more information.)
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
