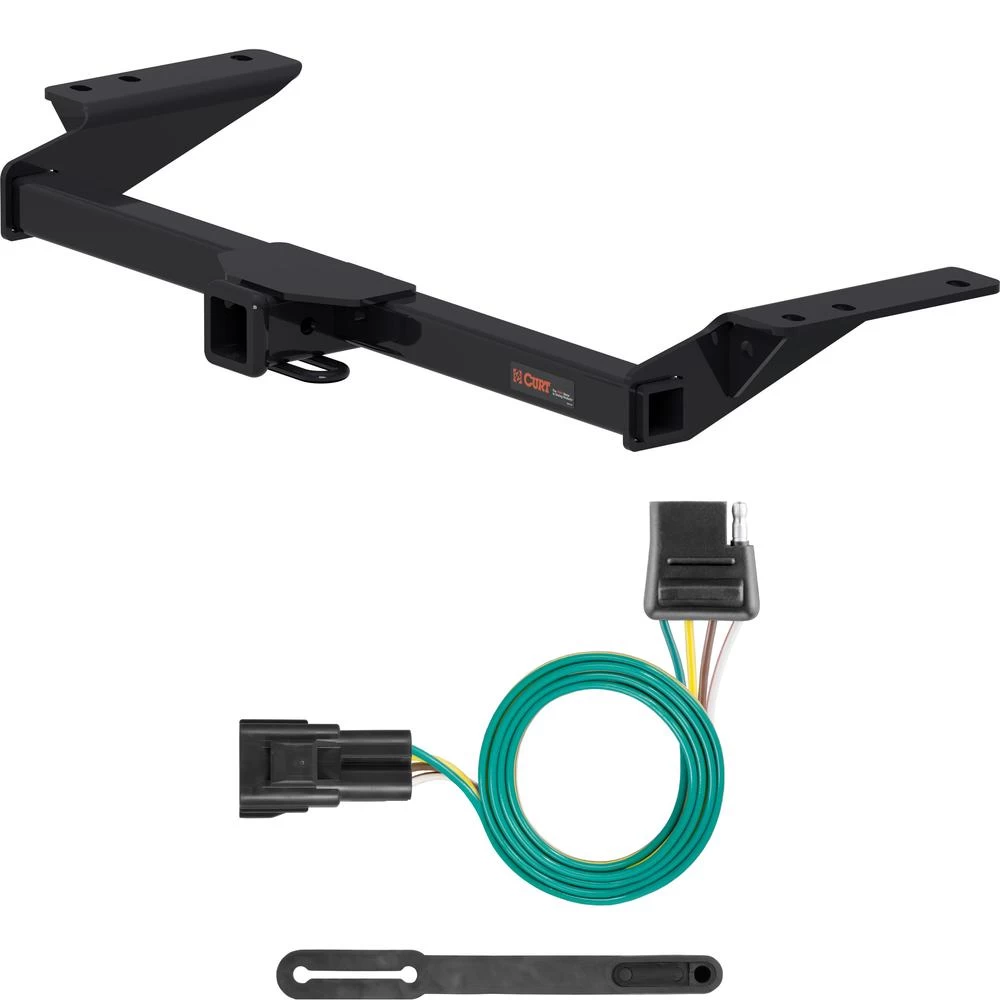

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
Description
Get Expert Help

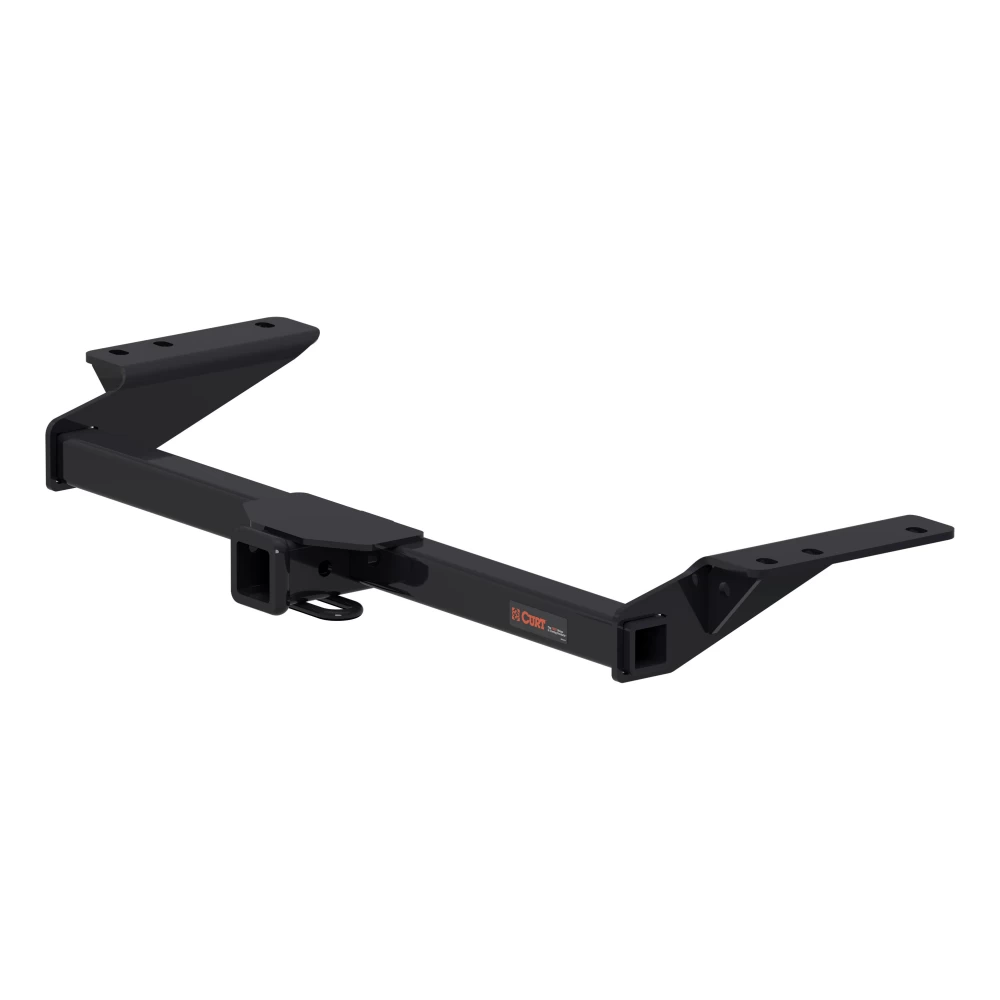

For 2019-2024 Chevy Blazer Trailer Hitch + Wiring 4 Pin Except Premier Curt 13418 56325 2 inch Tow Receiver Install Notes
Installation Instructions for Chevrolet Blazer (2019-Present)
Part Numbers:
- 13418
Tools Required:
- Ratchet
- Torque Wrench
- 8" Socket Extension
- Sockets: 7mm, 3/4"
- T-15 Torx Bit Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Vehicle Brackets and Lower Exhaust
- Use a T-15 socket to remove two screws securing the rear vehicle brackets on the fascia. Save screws for reinstallation.
- Remove three exhaust hangers to lower the exhaust.
- Tip: Support the exhaust while lowering to prevent damage.
Step 2: Fishwire Hardware
- Fishwire three square hole spacers (#3) and three 1/2" carriage bolts (#1) through the access holes and out the mounting holes on each side of the vehicle.
- Remove the access panel by unscrewing two wing nuts and pulling it down. Set the panel aside for reinstallation.
Step 3: Install Hitch
- Raise the hitch into position, aligning it with the mounting holes on the frame.
- Secure the hitch using three 1/2" flange nuts (#4) on each side.
- Use a 3/4" socket to torque all 1/2" hardware to 110 ft-lbs.
Step 4: Reassemble Vehicle
- Reinstall the vehicle bracket screws and exhaust hangers removed in Step 1.
- Reinstall the access panel removed in Step 2.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs.
- Tongue Weight (TW): 750 lbs.
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs.
- Tongue Weight (TW): 750 lbs.
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-1/2", Grade 8
- (6) Square Hole Spacers, .250" x 1" x 2.5"
- (6) Flange Nuts, 1/2"-13
- (6) Fishwires, 1/2"
Important Notice:
- This installation does not require drilling.
- For assistance, contact technical support at 877-287-8634.
Installation Instructions for Chevrolet Blazer (2019-Present)
Part Numbers:
- 13418
Tools Required:
- Ratchet
- Torque Wrench
- 8" Socket Extension
- Sockets: 7mm, 3/4"
- T-15 Torx Bit Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Vehicle Brackets and Lower Exhaust
- Use a T-15 socket to remove two screws securing the rear vehicle brackets on the fascia. Save screws for reinstallation.
- Remove three exhaust hangers to lower the exhaust.
- Tip: Support the exhaust while lowering to prevent damage.
Step 2: Fishwire Hardware
- Fishwire three square hole spacers (#3) and three 1/2" carriage bolts (#1) through the access holes and out the mounting holes on each side of the vehicle.
- Remove the access panel by unscrewing two wing nuts and pulling it down. Set the panel aside for reinstallation.
Step 3: Install Hitch
- Raise the hitch into position, aligning it with the mounting holes on the frame.
- Secure the hitch using three 1/2" flange nuts (#4) on each side.
- Use a 3/4" socket to torque all 1/2" hardware to 110 ft-lbs.
Step 4: Reassemble Vehicle
- Reinstall the vehicle bracket screws and exhaust hangers removed in Step 1.
- Reinstall the access panel removed in Step 2.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs
- Tongue Weight (TW): 750 lbs
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs
- Tongue Weight (TW): 750 lbs
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are secure.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-1/2", Grade 8
- (6) Square Hole Spacers, .250" x 1" x 2.5"
- (6) Flange Nuts, 1/2"-13
- (6) Fishwires, 1/2"
Important Notice:
- This installation does not require drilling.
- For complete installation instructions, including diagrams, please download the full installation PDF.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
End of Instructions
Installation Instructions for Cadillac XT5 and GMC Acadia (excluding Limited)
Part Number:
- 56325
Wiring Access Location:
- S6: Behind center of rear bumper
Tools Required:
- Wire cutter
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal.
-
Locate Vehicle Connector:
- Find the vehicle connector behind the rear bumper in the center of the vehicle.
- The connector will resemble the one on the CURT wiring connector.
-
Separate Connectors:
- Detach the vehicle connectors from the weather seal connectors.
- Be careful not to damage the locking tabs.
-
Connect Wiring Harness:
- Insert the CURT wiring connector into the vehicle connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Position 4-Flat Connector:
- When in use, route the 4-flat to the center of the vehicle.
- When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble and Finalize:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Product Rating: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Specifications:
- Signal Circuits: 7.5 amps per side
- Tail/Running Circuits: 7.5 amps total
(Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.)
Installation Instructions for Vehicles
Part Number:
- 56325
Wiring Access Location:
- S6: Behind center of rear bumper
Tools Required:
- Wire cutter
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal.
-
Locate Vehicle Connector:
- Find the vehicle connector behind the rear bumper in the center of the vehicle.
- The connector will resemble the one on the custom wiring connector.
-
Separate Connectors:
- Detach the vehicle connectors from the weather seal connectors.
- Be careful not to damage the locking tabs.
-
Connect Wiring Harness:
- Insert the custom wiring connector into the vehicle connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Position 4-Flat Connector:
- When in use, route the 4-flat to the center of the vehicle.
- When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble and Finalize:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Product Rating: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Specifications:
- Signal Circuits: 7.5 amps per side
- Tail/Running Circuits: 7.5 amps total
(Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.)
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
- This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
