For 2019‑2024 Honda Passport Trailer Hitch Fits All Models Curt 13421 2 inch Tow Receiver
Model: 13421-CH2312This Trailer Tow Hitch Fits The Following Vehicles:
2019 - 2024 Honda Passport All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2019, 2020, 2021, 2022, 2023, 2024

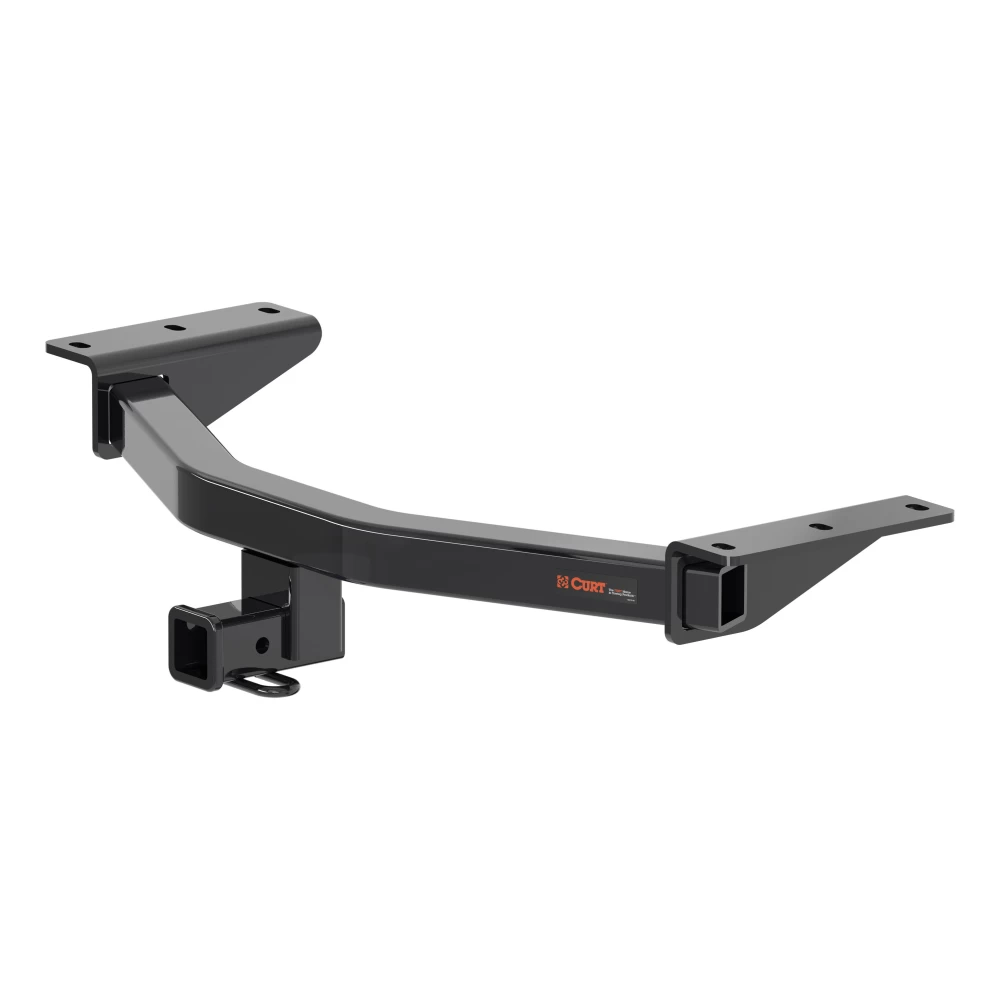

CURT 13421 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Honda Passport (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 5,000 lbs GTW and 750 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs WD and 750 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

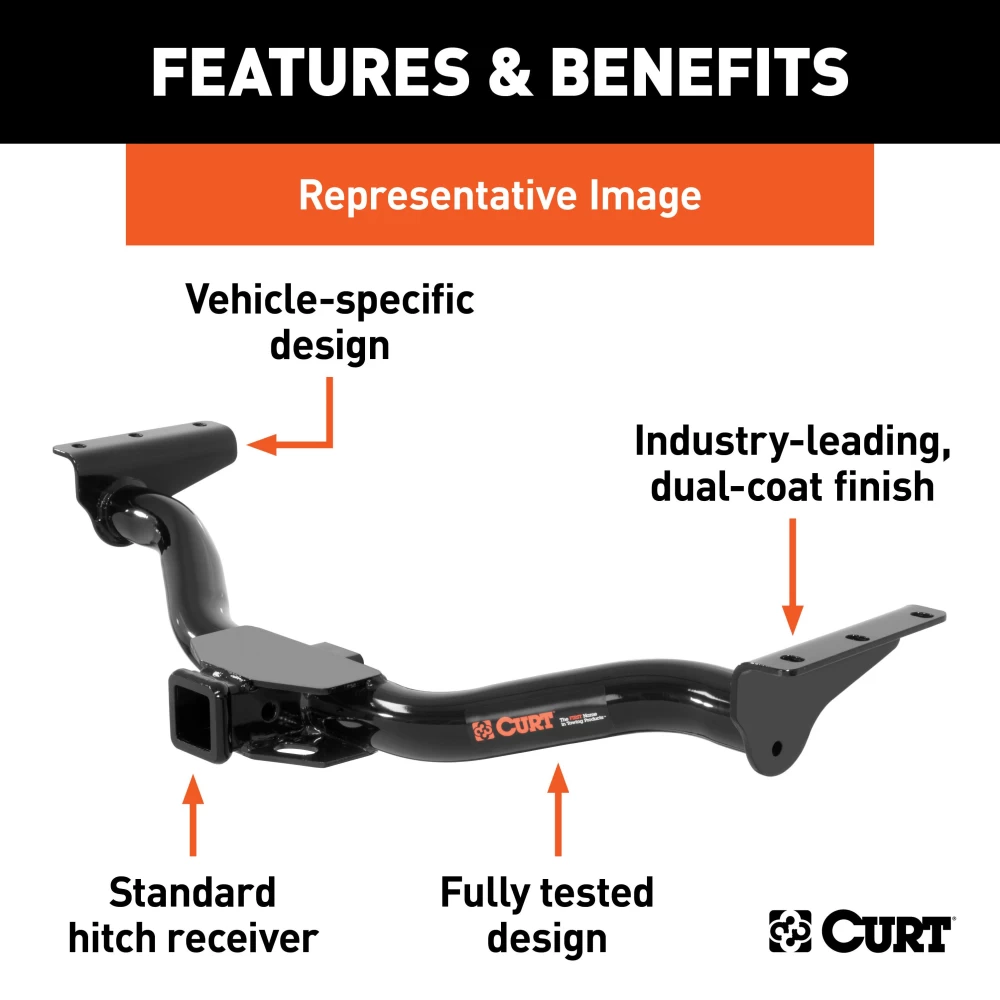

Features:
- Rated to 5,000 lbs. gross trailer weight and 750 lbs. tongue weight
- Compatible with weight distribution hitch (6,000 lbs. WD / 750 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

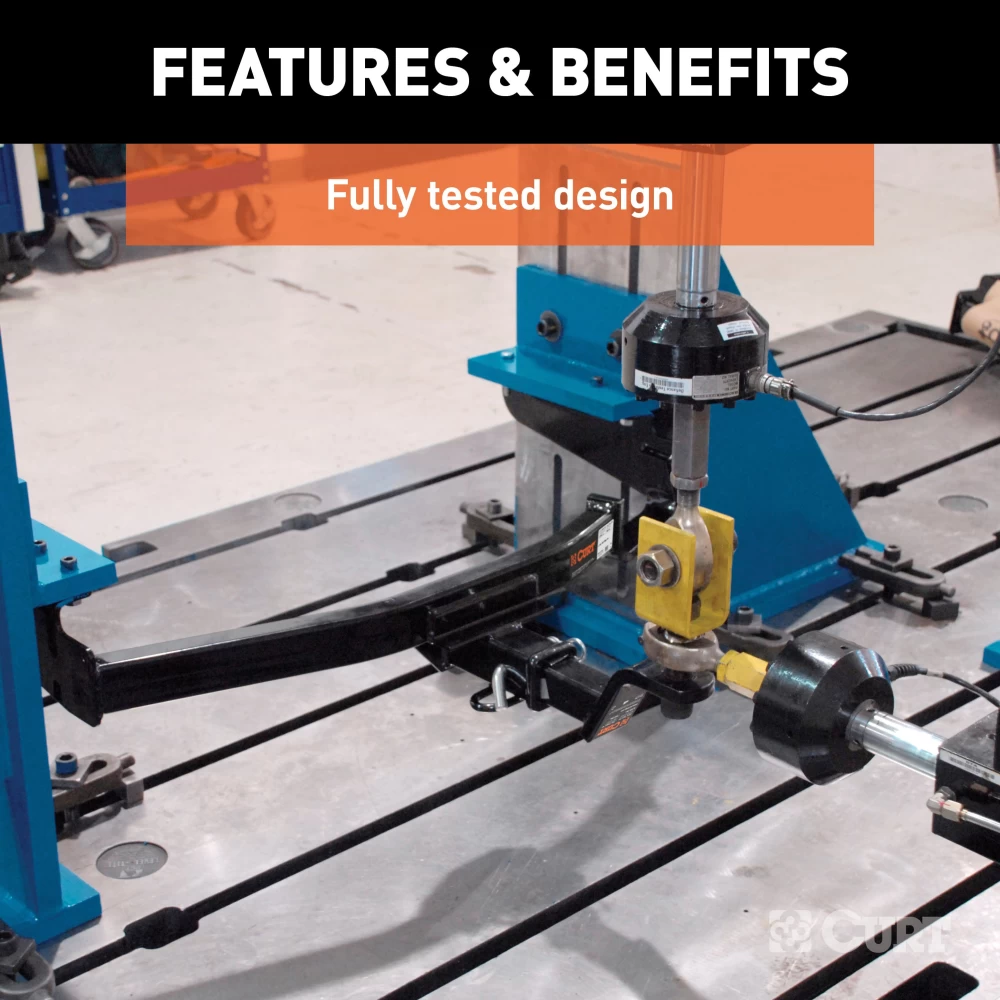

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

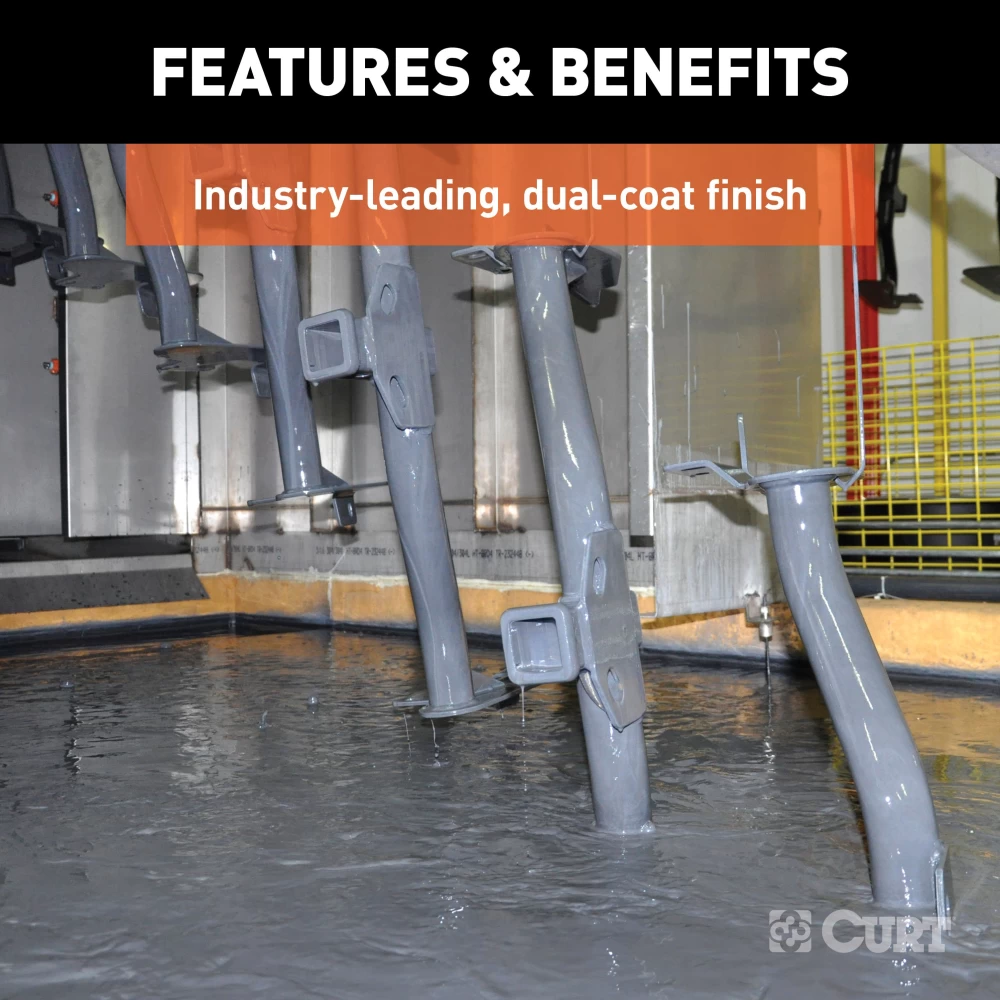

- Co-cured in a rust-resistant liquid A-coat, inside and out

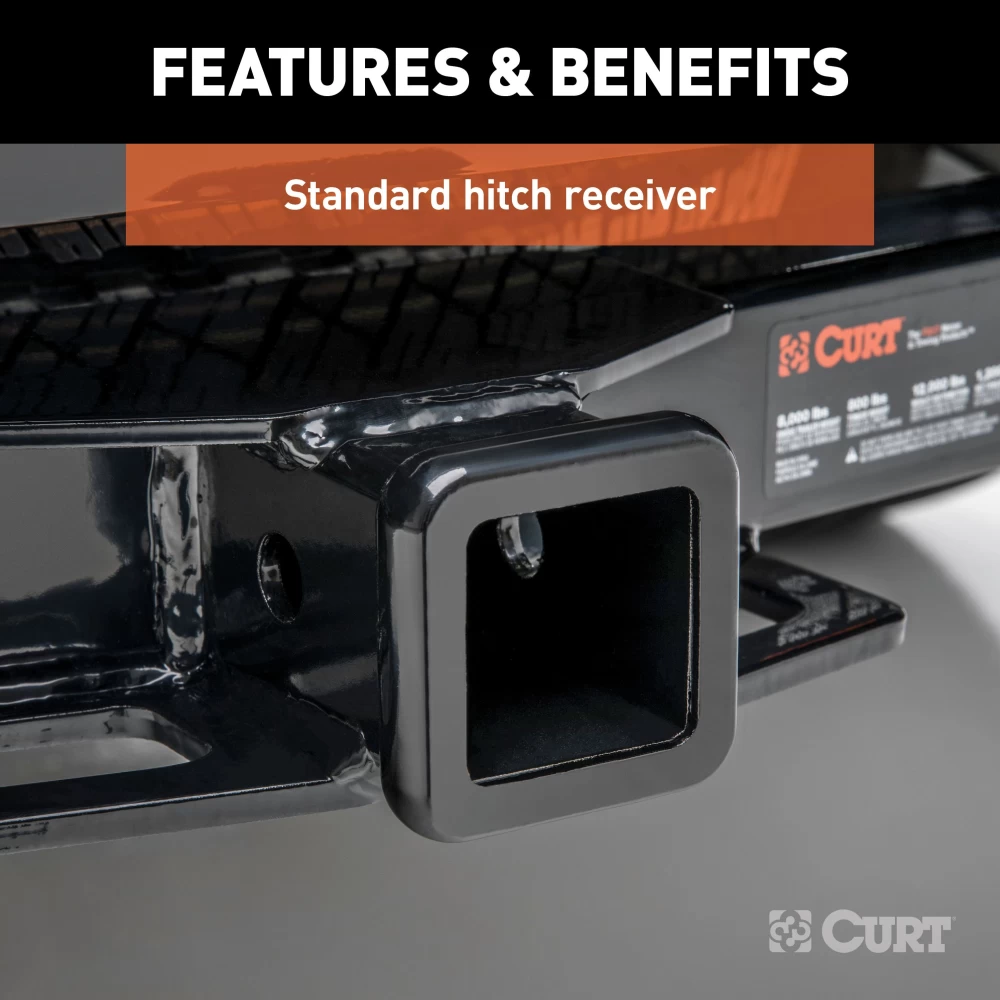

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$237 60 $371.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$371.95 $237 60
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13421-CH2312
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2019-2024 Honda Passport Trailer Hitch Fits All Models Curt 13421 2 inch Tow Receiver Install Notes
Installation Instructions for Honda Passport (2019-Present)
Part Numbers:
- 13421
Tools Required:
- Ratchet
- Torque Wrench
- Socket, 22mm
- 6" Socket Extension
- Wire or Pipe Brush
- Safety Glasses
Step-by-Step Instructions:
Step 1: Clean Weldnuts
- Inspect the existing weldnuts in the frame rails.
- If necessary, use a wire or pipe brush to remove debris. Spray lubricant or compressed air into the weldnuts for additional cleaning.
Step 2: Install Hitch
- Raise the hitch into position, aligning the holes in the hitch with the existing weldnuts in the frame rails.
- Secure the hitch using the provided M14x1.5 bolts (#1) and 9/16" conical-toothed washers (#2). Ensure the toothed side of the washers faces the hitch.
Step 3: Torque Hardware
- Torque all M14 bolts to 136 lb-ft using a torque wrench.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs.
- Tongue Weight (TW): 750 lbs.
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs.
- Tongue Weight (TW): 750 lbs.
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (2) Hex Bolts, M14x1.5x40mm, CL10.9
- (2) Conical-Toothed Washers, 9/16"
Important Notice:
- This installation does not require drilling.
- Read all instructions thoroughly before starting the installation.
- For assistance, contact technical support at 877-287-8634.
Installation Instructions for Honda Passport (2019-Present)
Part Numbers:
- 13421
Tools Required:
- Ratchet
- Torque Wrench
- Socket, 22mm
- 6" Socket Extension
- Wire or Pipe Brush
- Safety Glasses
Step-by-Step Instructions:
Step 1: Clean Weldnuts
- Inspect the existing weldnuts in the frame rails.
- If necessary, use a wire or pipe brush to remove debris.
- Spray lubricant or compressed air into the weldnuts for additional cleaning.
Step 2: Install Hitch
- Raise the hitch into position, aligning the holes in the hitch with the existing weldnuts in the frame rails.
- Secure the hitch using the provided M14x1.5 bolts (#1) and 9/16" conical-toothed washers (#2).
- Ensure the toothed side of the washers faces the hitch.
Step 3: Torque Hardware
- Torque all M14 bolts to 136 lb-ft using a torque wrench.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs
- Tongue Weight (TW): 750 lbs
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs
- Tongue Weight (TW): 750 lbs
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are secure.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (2) Hex Bolts, M14x1.5x40mm, CL10.9
- (2) Conical-Toothed Washers, 9/16"
Important Notice:
- This installation does not require drilling.
- Read all instructions thoroughly before starting the installation.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
End of Instructions
