For 2020‑2024 Cadillac XT5 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series POD Brake Controller + Wiring Adapter By Tekonsha
Model: 118276 20212 80500 8506920-26137This Bundle Fits The Following Vehicles:
2020-2024 Cadillac XT5

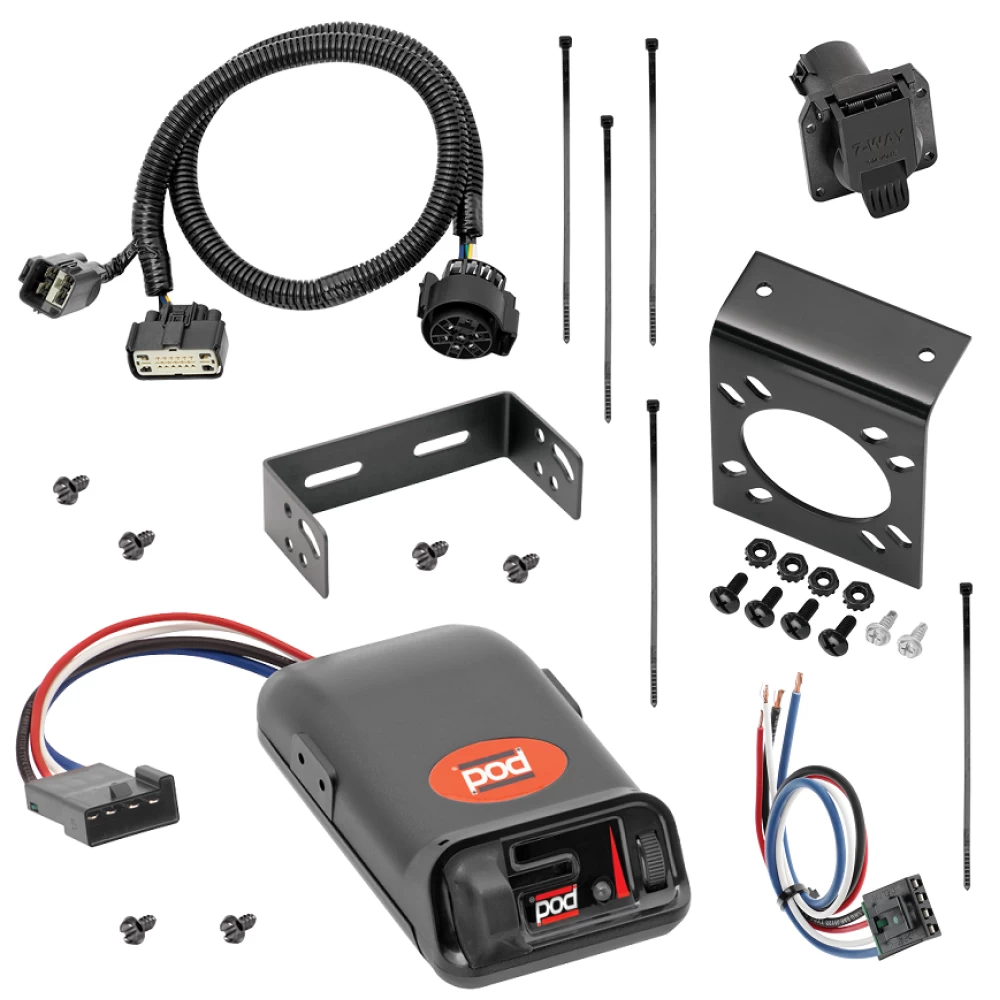

This Bundle Includes the Following Parts:
- 7-Way RV Wiring
- Pro Series POD Brake Control
- Generic BC Wiring Adapter
List of fitment years: 2020, 2021, 2022, 2023, 2024

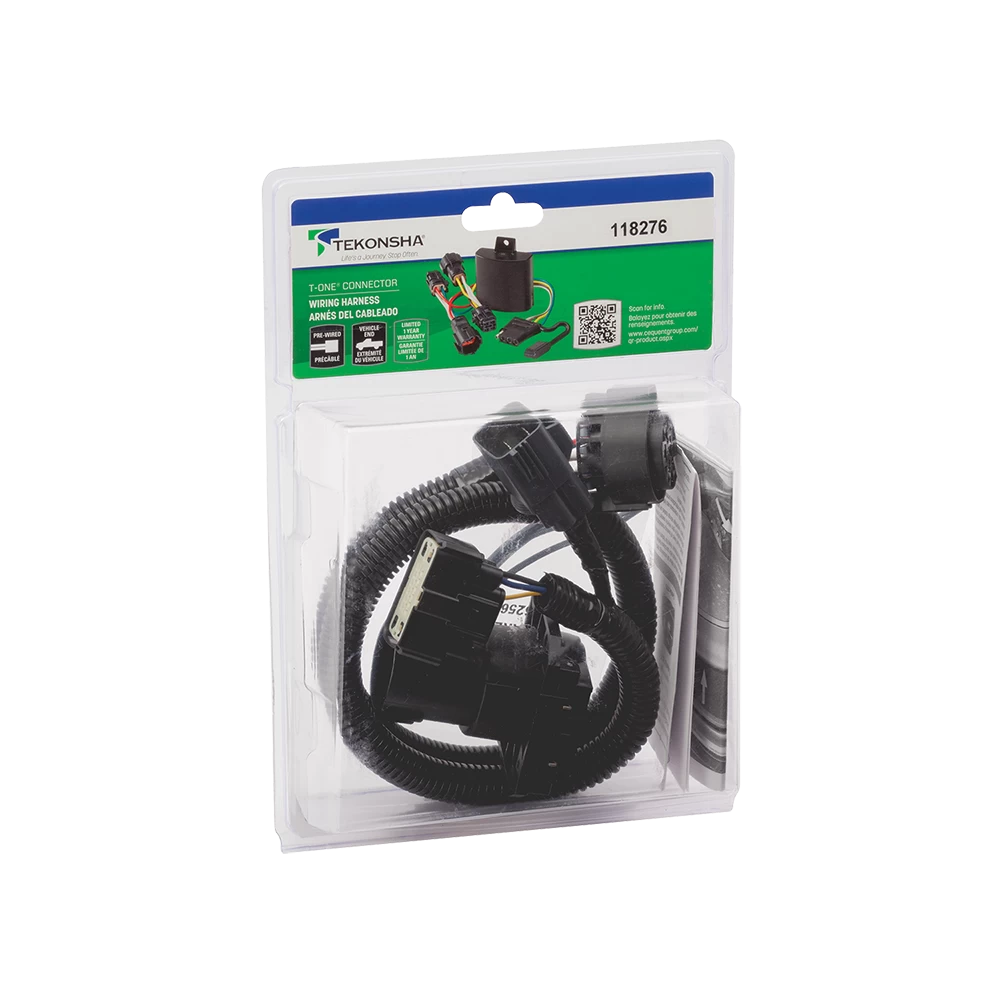

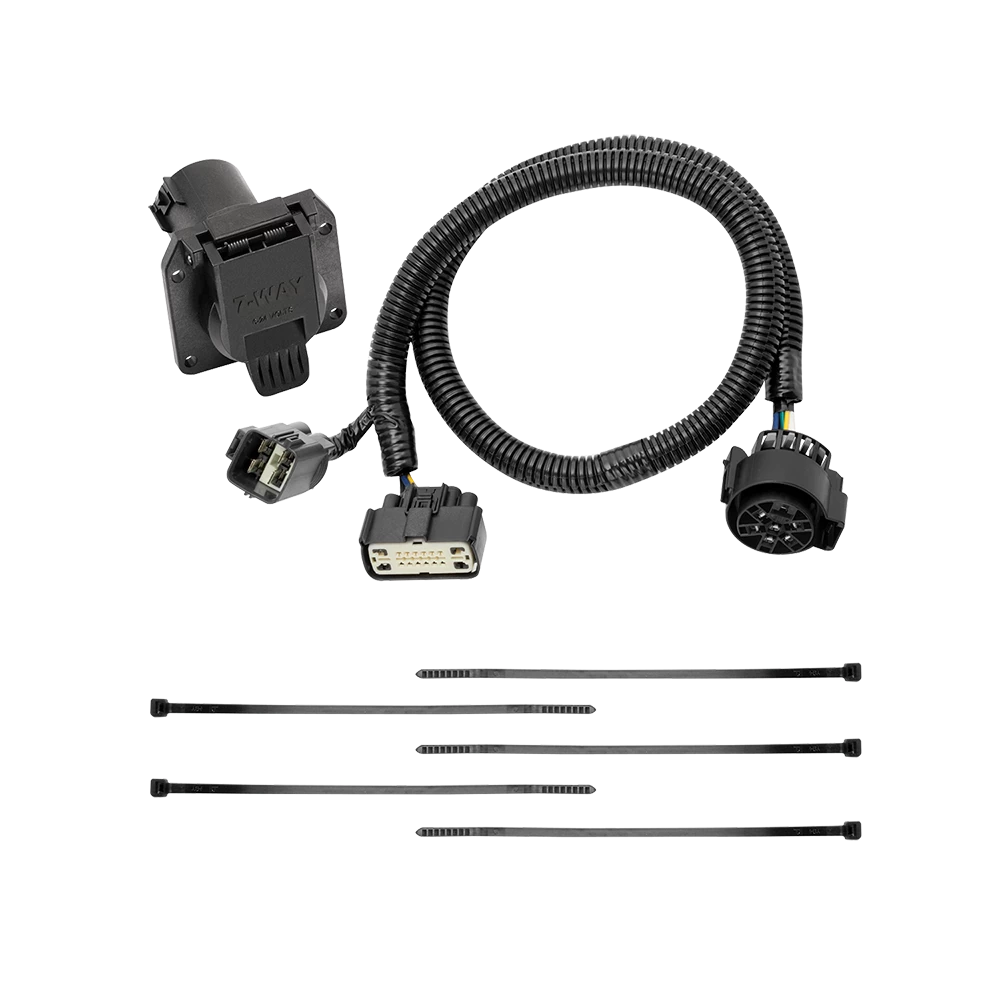

Tow Harness, 7-Way Manufactured by: Tekonsha
T-One Connectors require no splicing of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.
- Exact replacement for damaged factory wiring harnesses
- Installs in seconds on vehicles not factory pre-wired
- Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
- Connects directly to standard factory connector
- Attractive point-of-purchase packaging
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
POD® Trailer Time-Delay Brake Controller for Trailers with 1-2 Axles Manufactured by: Pro Series
POD (Power on Demand) is your best choice for 1 or 2 axle trailers ... especially when your installation options are limited. POD can be mounted in any direction, and features “up-front-easy-access” adjustment controls, even when mounted upside down. POD is the perfect choice with almost vertical dash mounting surfaces.
- Solid state electronics
- Power-on LED for a positive tow vehicle-to-trailer connection
- “Up-front” manual over-ride control
- Rugged, easy mount chassis
- Mounting hardware included
- Smooth and simple installation
- Plug & Play feature allows quick and easy connection
- 5 year limited warranty
Trailer Brake Controller Installation Kit, Universal Fit, 12 in. Length Manufactured by: Tekonsha
This universal harness is designed to mate with any Tekonsha brake controller. Simply wire in the harness and then plug into the controller to complete installation. This harness makes it easy to move the brake controller from one vehicle to another by just unplugging.
- OEM style wiring harness
- Quick and easy plug in connections
- Allows controller to be unplug and moved to other vehicles
- Color coded wire match brake control standards
- Works on time proportional and time based controls
- Positive locking connector stays connected when plug in tightly
- Simple do it yourself instructions on every package
- Fits REESE Towpower and Tekonsha brake controllers
$108 88 $142.67 24% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$142.67 $108 88
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $27.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118276 20212 80500 8506920-26137
- Includes: Tow Custom Harness, Mounting Bracket, POD Trailer Time-Delay Brake Controller for Trailers with 1-2 Axles, Trailer Brake Controller Universal Harness
Compatibility Chart
Description
Get Expert Help
For 2020-2024 Cadillac XT5 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series POD Brake Controller + Wiring Adapter By Tekonsha Install Notes
Installation Instructions for T-One® T-Connector for Cadillac XT5
Part Numbers:
- 118276
Tools Required:
- Trim Panel Puller
- 7 mm Socket or Wrench
- Test Probe
Step-by-Step Instructions:
-
Locate Access Cover:
- Locate the access cover on the vehicle’s rear bumper area.
- Using a 7 mm socket or wrench, remove the two bolts holding the cover to the vehicle.
- Carefully remove the cover and set it aside.
-
Locate Tow Plug Connectors:
- Behind the access cover, find the 16-Pin and 4-Pin connectors.
- Remove the factory tow harness protective caps and ensure the mating surfaces are clean and free of dirt.
- Insert the 16-Pin tow plug adapter and lock it into place.
- Insert the 4-Pin tow plug adapter and lock it into place, ensuring all connectors are fully inserted with locking tabs in place.
-
Secure the Harness:
- Secure the remainder of the T-One® T-Connector harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where the wires could be pinched, cut, or melted.
-
Route and Mount the 7-Way Socket:
- Determine the mounting location for the 7-Way socket.
- Route the harness containing the seven wires along the inside of the bumper toward the center of the vehicle and the mounting location.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
-
Replace Cover:
- Replace the access cover removed earlier.
-
Test the Installation:
- Ensure all connections are complete for proper T-One® T-Connector functionality.
- Reset the vehicle's electrical system by temporarily removing the ignition key.
- Test the installation with a test light or trailer.
Warning: Overloading circuits can cause fires. Do not exceed stated product ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 30 amps
- Max. trailer brakes: 3 axles/6 brakes (20 amps)
Safety Notes:
- Always wear safety glasses and follow safety precautions during installation.
- Avoid routing wires near hot pipes, heat shields, or areas where they may be pinched or damaged.
- Follow all vehicle warnings and installation instructions.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118276
Tools Required:
- Trim Panel Puller
- 7 mm Socket or Wrench
- Test Probe
Step-by-Step Instructions:
-
Locate Access Cover:
- Locate the access cover on the vehicle’s rear bumper area.
- Using a 7 mm socket or wrench, remove the two bolts holding the cover to the vehicle.
- Carefully remove the cover and set it aside.
-
Locate Tow Plug Connectors:
- Behind the access cover, find the 16-Pin and 4-Pin connectors.
- Remove the factory tow harness protective caps and ensure the mating surfaces are clean and free of dirt.
- Insert the 16-Pin tow plug adapter and lock it into place.
- Insert the 4-Pin tow plug adapter and lock it into place, ensuring all connectors are fully inserted with locking tabs in place.
-
Secure the Harness:
- Secure the remainder of the T-One® T-Connector harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where the wires could be pinched, cut, or melted.
-
Route and Mount the 7-Way Socket:
- Determine the mounting location for the 7-Way socket.
- Route the harness containing the seven wires along the inside of the bumper toward the center of the vehicle and the mounting location.
-
Install the 7-Way Socket:
- Plug the 7-way socket (provided) into the Trailer Tow Harness.
-
Replace Cover:
- Replace the access cover removed earlier.
-
Test the Installation:
- Ensure all connections are complete for proper T-One® T-Connector functionality.
- Reset the vehicle's electrical system by temporarily removing the ignition key.
- Test the installation with a test light or trailer.
Warning: Overloading circuits can cause fires. Do not exceed stated product ratings:
- Max. stop/turn light: 10 amps
- Max. tail lights: 10 amps
- Max. backup: 10 amps
- Max. power circuit: 30 amps
- Max. trailer brakes: 3 axles/6 brakes (20 amps)
Safety Notes:
- Always wear safety glasses and follow safety precautions during installation.
- Avoid routing wires near hot pipes, heat shields, or areas where they may be pinched or damaged.
- Follow all vehicle warnings and installation instructions.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
Installation Instructions for Brake Control Plugin Wiring Harness (Part 20127/8506920)
Tools Required:
- Wire Stripper & Cutter
- Pliers
Overview:
This brake control plugin wiring harness is designed for quick and secure connections to your brake controller. It simplifies installation by matching functions and connecting to the corresponding wires in your vehicle.
Step-by-Step Instructions:
-
Disconnect the Battery:
- Before beginning, disconnect the battery terminals to prevent electrical shorts or damage.
-
Connect the Wires:
- Refer to the following chart to match the harness wires to their functions:
- Black Wire: Battery Positive (+)
- Red Wire: Stoplight Signal (active when the brake pedal is pressed)
- White Wire: Ground (-)
- Blue Wire: Output to Trailer Brakes
- Use the appropriate connectors to secure each wire, ensuring a solid connection.
- Refer to the following chart to match the harness wires to their functions:
-
Secure the Wiring Harness:
- Mount the wiring harness under the dashboard or another safe location, keeping it away from moving parts or sharp edges.
-
Plug in the Brake Controller:
- Insert the wiring harness connector into the brake controller, ensuring it clicks securely into place.
-
Reconnect the Battery:
- Reattach the battery terminals, ensuring they are clean and tightly connected.
-
Test the System:
- Use a test light, circuit tester, or trailer to verify all functions:
- The brake controller powers on.
- The manual override activates the trailer brakes.
- Stoplight signals and trailer brakes function properly when the brake pedal is pressed.
- Use a test light, circuit tester, or trailer to verify all functions:
Notes:
- Always connect wires based on function, not color, to ensure proper operation.
- Consult your vehicle manual for fuse locations related to the brake control system.
- Verify all connections are secure and tested before use.
Warning:
- All connections must be complete for the system to function properly.
- Overloading circuits can cause damage or fire. Do not exceed the lower of the towing manufacturer’s ratings or:
- Max. Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
- Max. (+) Battery, Reverse, and Electric Brake Circuits: 30 amps
- Refer to your vehicle’s owner’s manual for additional instructions. Additional fusing may be required.
For safe towing and optimal performance, ensure all connections are properly secured and tested.
Installation Instructions for Brake Control Plugin Wiring Harness (Part 20127/8506920)
Tools Required:
- Wire Stripper & Cutter
- Pliers
Overview:
This brake control plugin wiring harness is designed for quick and secure connections to your brake controller. It simplifies installation by matching functions and connecting to the corresponding wires in your vehicle.
Step-by-Step Instructions:
-
Disconnect the Battery:
- Before beginning, disconnect the battery terminals to prevent electrical shorts or damage.
-
Connect the Wires:
- Refer to the following chart to match the harness wires to their functions:
- Black Wire: Battery Positive (+)
- Red Wire: Stoplight Signal (active when the brake pedal is pressed)
- White Wire: Ground (-)
- Blue Wire: Output to Trailer Brakes
- Use the appropriate connectors to secure each wire, ensuring a solid connection.
- Refer to the following chart to match the harness wires to their functions:
-
Secure the Wiring Harness:
- Mount the wiring harness under the dashboard or another safe location, keeping it away from moving parts or sharp edges.
-
Plug in the Brake Controller:
- Insert the wiring harness connector into the brake controller, ensuring it clicks securely into place.
-
Reconnect the Battery:
- Reattach the battery terminals, ensuring they are clean and tightly connected.
-
Test the System:
- Use a test light, circuit tester, or trailer to verify all functions:
- The brake controller powers on.
- The manual override activates the trailer brakes.
- Stoplight signals and trailer brakes function properly when the brake pedal is pressed.
- Use a test light, circuit tester, or trailer to verify all functions:
Notes:
- Always connect wires based on function, not color, to ensure proper operation.
- Consult your vehicle manual for fuse locations related to the brake control system.
- Verify all connections are secure and tested before use.
Warning:
- All connections must be complete for the system to function properly.
- Overloading circuits can cause damage or fire. Do not exceed the lower of the towing manufacturer’s ratings or:
- Max. Right Turn, Left Turn, Stop, & Tail Light Circuits: 7.5 amps
- Max. (+) Battery, Reverse, and Electric Brake Circuits: 30 amps
- Refer to your vehicle’s owner’s manual for additional instructions. Additional fusing may be required.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
20127/8506920 Rev. A 2-6-07
Installation Instructions for Electronic Brake Control (2 to 4 Brake Systems)
Product Information:
- Part Number: N80500
- Application: Designed for 2 to 4 trailer brake systems
Tools Required:
- Drill with 1/8" drill bit
- Screwdriver
- Wire Cutter/Stripper
- Wire Crimping Tool
- Circuit Tester
Package Contents:
- Brake Control Unit
- Mounting Bracket
- Mounting Screws (#6 x 3/8") (Qty: 4)
Components Overview:
- A: Power Knob
- B: Manual Slide Knob
- C: Bracket Mounting Holes
- D: Bi-Colored Light
Important Notes:
- Avoid RF Interference: Do not mount RF-generating devices (cell phones, radios) within 12 inches of the unit.
- Breakaway Battery: Reverse wiring of a breakaway battery will destroy the Brake Control.
- Breakaway Switch Testing: Disconnect the trailer plug before testing; failure to do so may destroy the Brake Control.
- Light Indicators:
- Green Light: Trailer is connected.
- Red Light: Brakes are activated (manual control or brake pedal).
- Flashing Red/No Light: Trailer is not connected.
- The Green Light uses 10 milliamps; it would take over 5,000 hours to drain the vehicle battery.
- Weight Limit: Never exceed the Gross Combined Weight Rating (GCWR) recommended by the vehicle manufacturer.
Mounting Instructions:
-
Select a Suitable Mounting Location:
- Choose a solid surface within easy reach of the driver.
-
Mount the Bracket:
- Use the mounting bracket as a template and mark the holes.
- Drill two (2) 1/8" holes at the marked points.
- Secure the bracket with #6 x 3/8" screws provided.
-
Install the Brake Control:
- Slide the Brake Control into the bracket.
- Secure with screws; tighten snugly but do not overtighten.
Wiring Instructions:
-
Black Wire (Battery +):
- Connect to the positive terminal of the vehicle battery using a 20A circuit breaker.
-
White Wire (Ground -):
- Connect to a clean, bare metal surface on the vehicle chassis.
-
Red Wire (Stoplight Switch):
- Connect to the cold side of the stoplight switch (only active when the brake pedal is pressed).
-
Blue Wire (Trailer Brake):
- Connect to the trailer brake wire at the 7-way connector.
Adjusting Brake Power:
-
Initial Setup:
- Turn the Power Knob to minimum.
- Turn the Power Knob 1/4 turn in the + direction.
-
Testing Brakes:
- Connect the trailer and drive at 25 mph on a dry, level surface.
- Apply the Manual Slide Knob:
- If brakes lock up: Reduce power using the Power Knob.
- If braking is insufficient: Increase power using the Power Knob.
-
Fine-Tuning Power:
- Repeat the above step until braking is smooth, just below the point of wheel lock-up.
Troubleshooting Guide:
| Condition | Possible Cause | Solution |
|---|---|---|
| No trailer brakes (Manual Slide) | Power set to minimum | Adjust Power Knob upward. |
| No brakes with pedal activation | Incorrect Red Wire connection | Verify Red Wire at stoplight switch. |
| Weak trailer braking | Power too low | Increase Power Knob setting. |
| Intermittent braking | Poor ground connection | Check White Wire ground. |
| Brakes too strong | Power too high | Reduce Power Knob setting. |
| Flashing Red Light | Trailer not connected or open wire | Check trailer wiring and connections. |
| Constant Green Light | Short in brake line to ground | Inspect Blue Wire for short circuit. |
Safety Notes:
- Warm trailer brakes before testing by driving 1/4 mile at 45 mph with light manual braking.
- Adjust power based on load weight and road conditions.
- Do not set power so high that trailer brakes lock up, as this can cause loss of control.
Maintenance:
- Inspect trailer brakes every 3,000 miles or as recommended.
- Adjust brakes as necessary for optimal performance.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Incorrect installation or failure to follow these instructions may result in loss of braking performance or damage to the Brake Control unit. Always test the brakes before towing.
