Product Details
- Brand: Reese
- Model: 30951 30845-3-N
- Includes: Elite Series Fifth Wheel Hitch Mounting System Rail Kit, Elite Series Fifth Wheel Gooseneck Hitch
Compatibility Chart
Get Expert Help

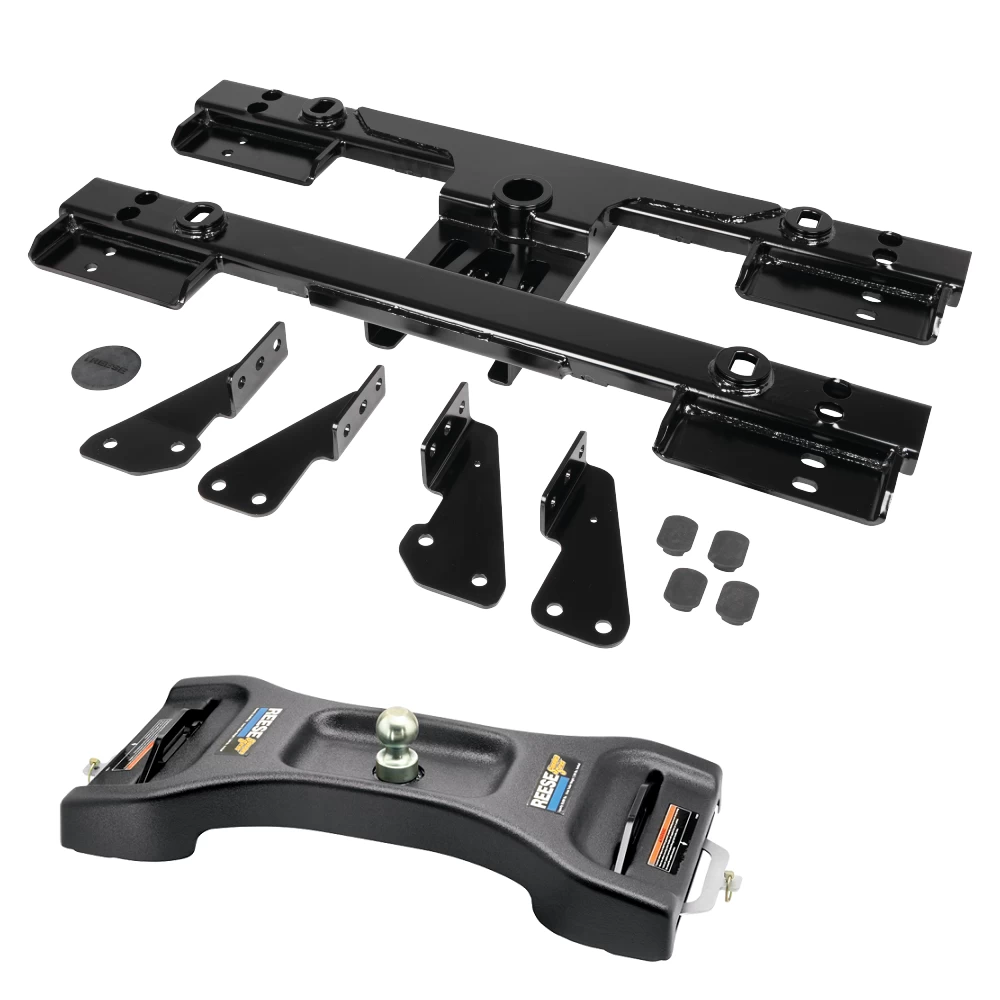

For 2020-2024 GMC Sierra 2500 HD Elite Series Fifth Wheel Hitch Mounting System Rail Kit + Elite Gooseneck For Models w/o Factory Puck System (For 6-1/2' and 8 foot Bed, w/o Factory Puck System Models) By Reese Install Notes

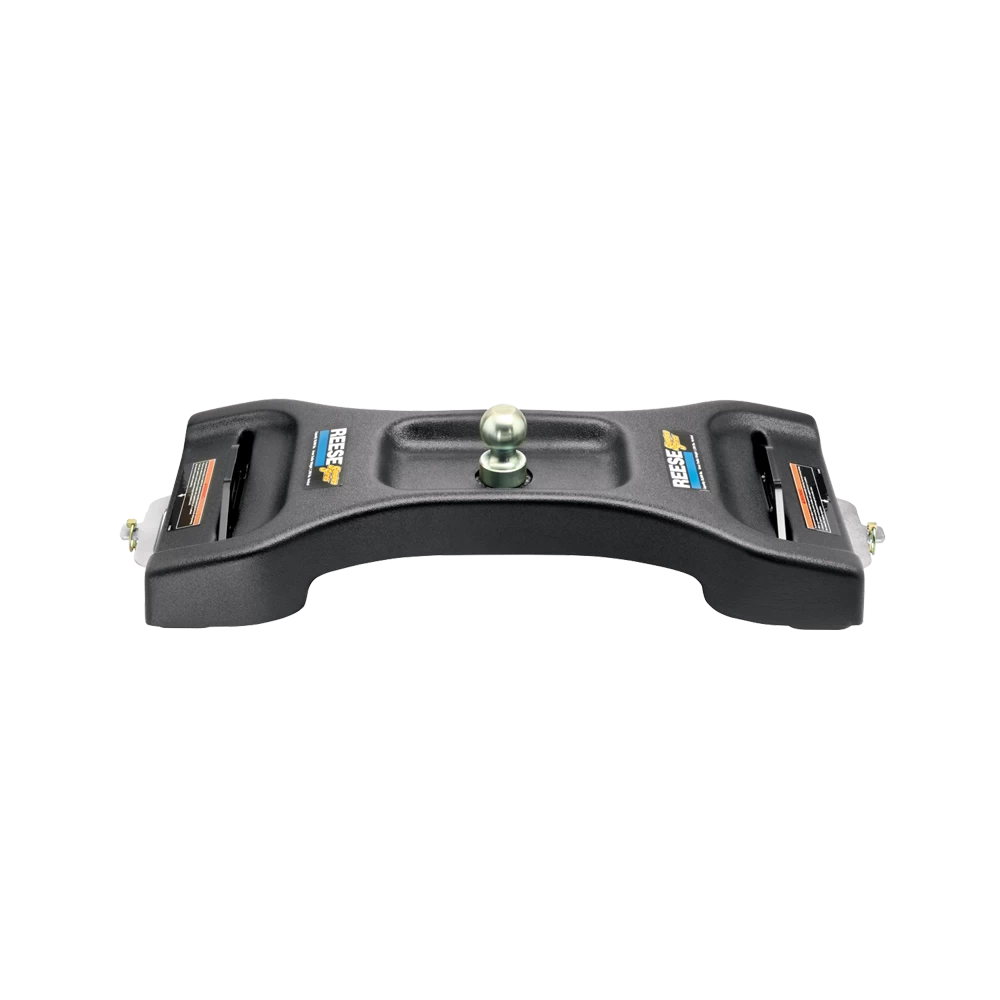

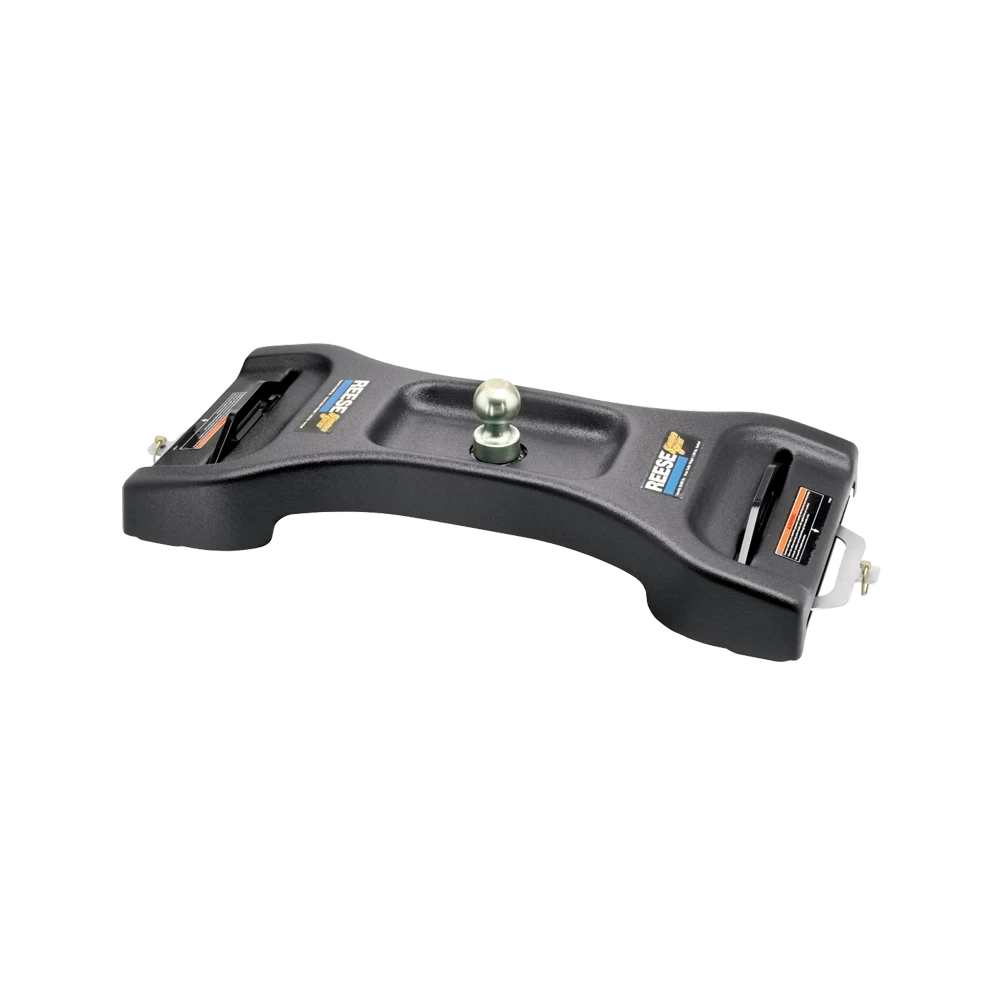

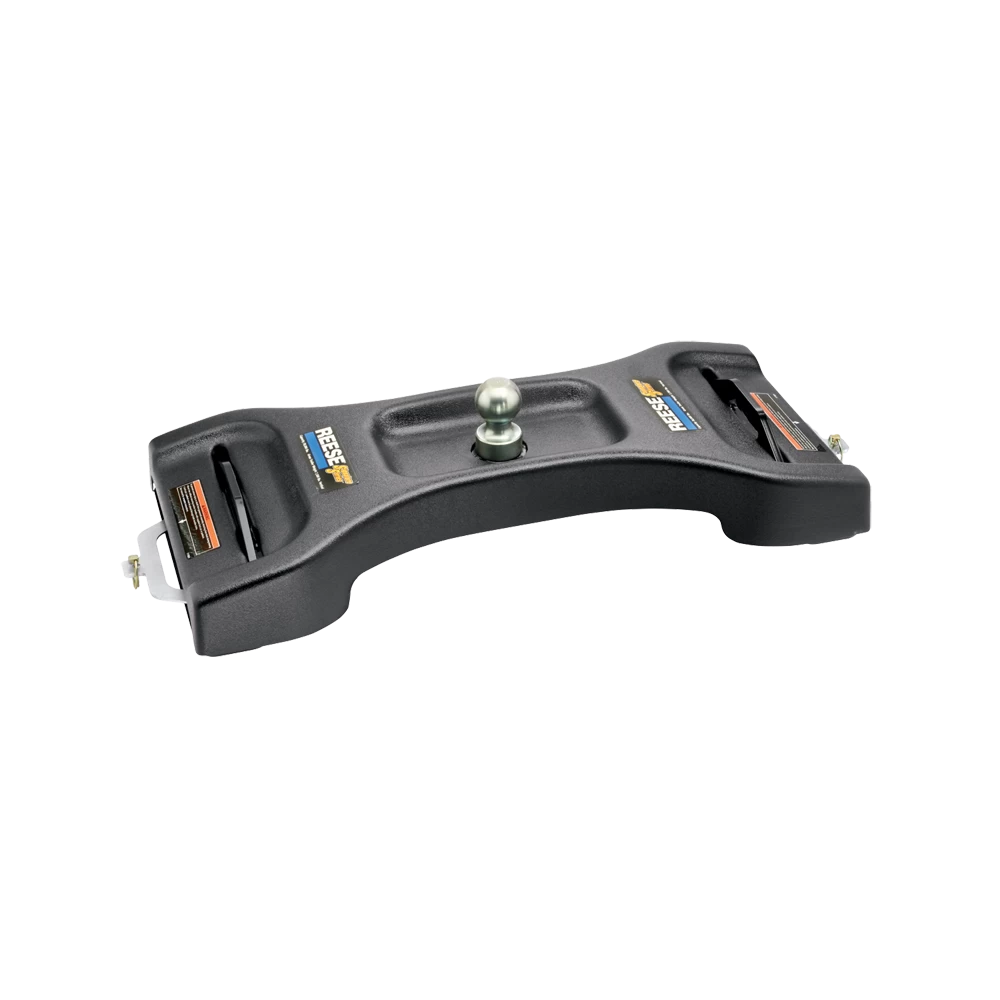

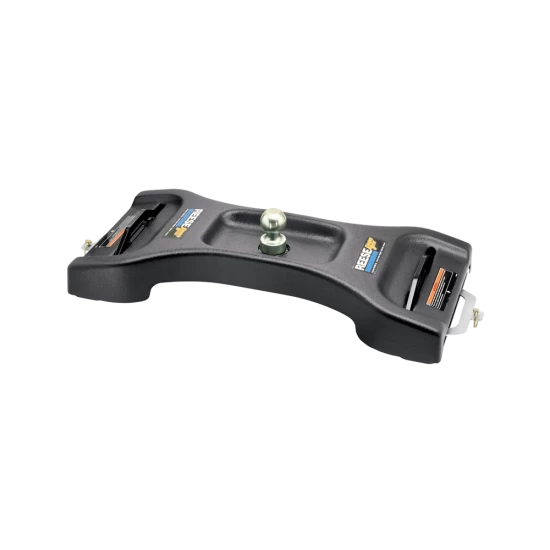

Installation Instructions for Signature Series Gooseneck Hitch
Part Numbers:
- 30845, 40845, 50845
Rated Capacity:
- Maximum Trailer Weight: 25,000 lbs
- Maximum Pin Weight: 6,250 lbs
Tools Required:
- Safety Glasses
- 1 1/2” Wrench or Socket
- Impact Wrench
- Chisel
- Hammer
- White Lithium Grease
Hardware List:
- Base Assembly - Qty: 1
- Plastic Cover - Qty: 1
- Handle "A" - Qty: 2
- Handle "B" - Qty: 2
- 1” Jam Nut - Qty: 4
- Tab Washer - Qty: 4
- 3/16” Lynch Pin - Qty: 6
- Anchor Bushing - Qty: 4
- Anchor Tee Pin - Qty: 4
- Primer - Qty: 1
Warnings:
- Follow all installation instructions to avoid serious injury or death.
- Ensure adequate clearance between the truck and trailer during operation.
- Maintain at least 6 inches of clearance between the top of the pickup walls and the underside of the trailer.
Step-by-Step Installation Instructions:
1. Pre-Installation Preparation:
- Confirm all components from the hardware list are included.
- Lubricate the anchor bushings with white lithium grease.
2. Assembling the Anchor Bushings:
- Loosely attach the four anchor bushings to the base of the gooseneck hitch using 1” jam nuts and tab washers.
- Place the hitch into the mounting pucks installed in the truck bed.
3. Securing the Hitch:
- Snug-tighten the jam nuts using a 1 1/2” wrench until there is no vertical play in the anchor bushings.
- Tighten the jam nuts an additional quarter turn to secure.
- Bend one tab of the washer against the flat of the jam nut using a chisel and hammer to lock the nuts in place.
4. Installing Anchor Tee Pins and Handles:
- Remove the hitch from the truck bed and install the anchor Tee pins through the bushings.
- Attach the anchor handles, ensuring proper alignment and threading.
- Insert 3/16” lynch pins to lock the assembly.
5. Installing the Hitch in the Truck:
- Place the hitch into the pucks and rotate the anchor handles into the locked position.
- Insert lynch pins into the anchor handles to secure the hitch.
Maintenance:
- Keep the assembly clean and free of debris.
- Lubricate the hitch ball monthly or as needed with heavy grease.
- Inspect all parts for wear and replace as necessary.
Warranty:
- Seven-Year Limited Warranty:
- Covers defects in materials and workmanship.
- Excludes misuse, overloading, improper installation, and wear and tear.
- For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

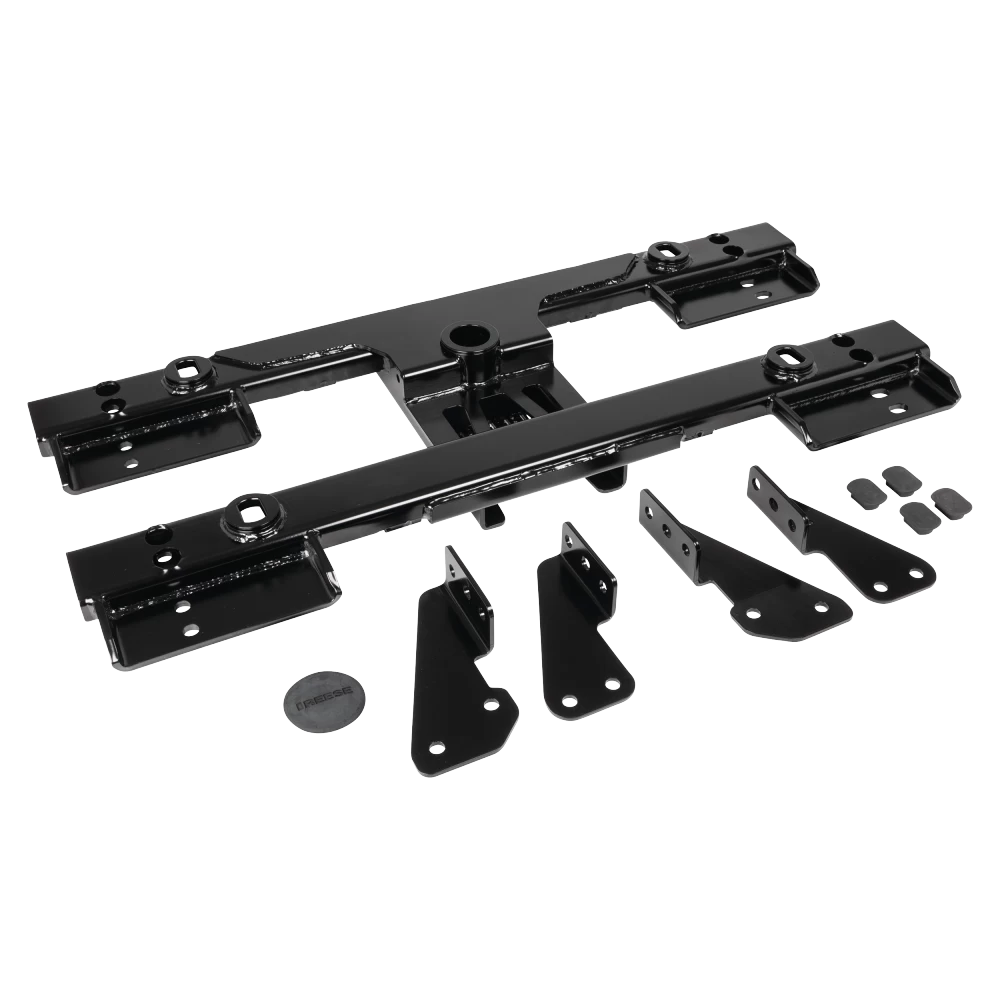

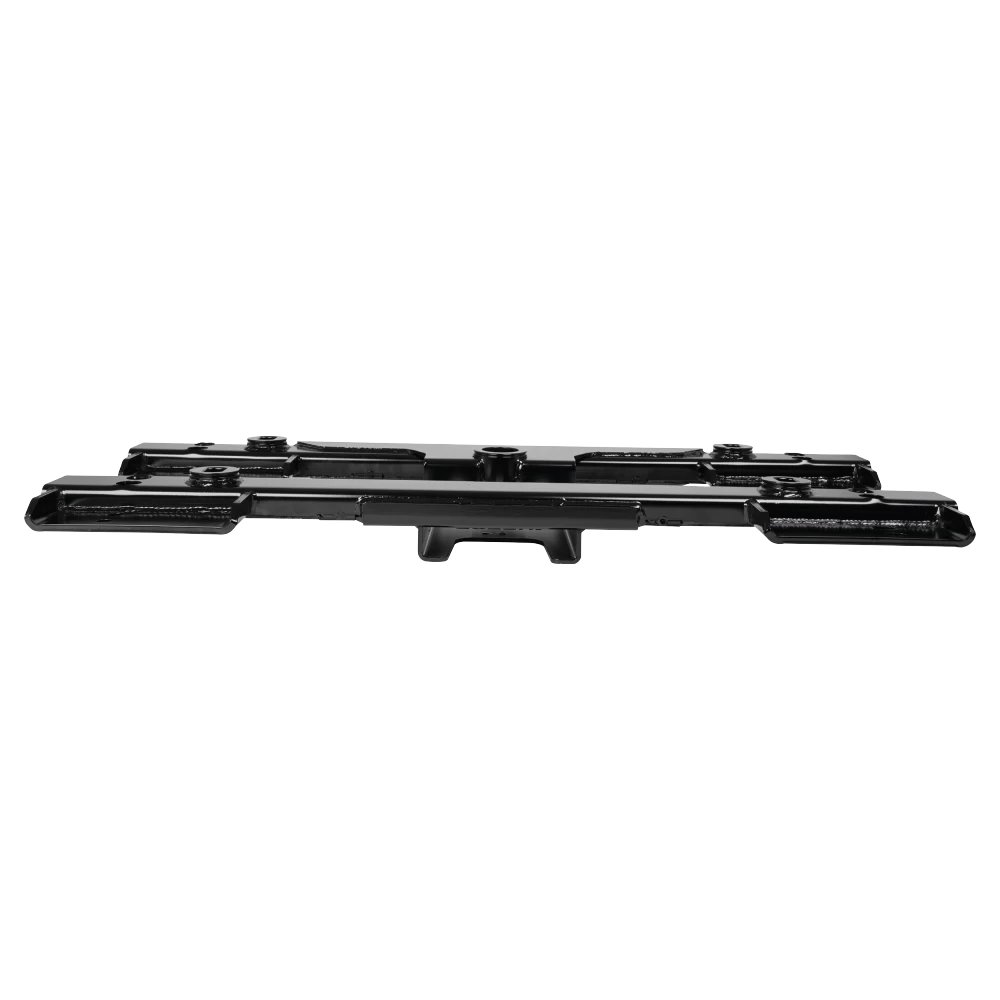

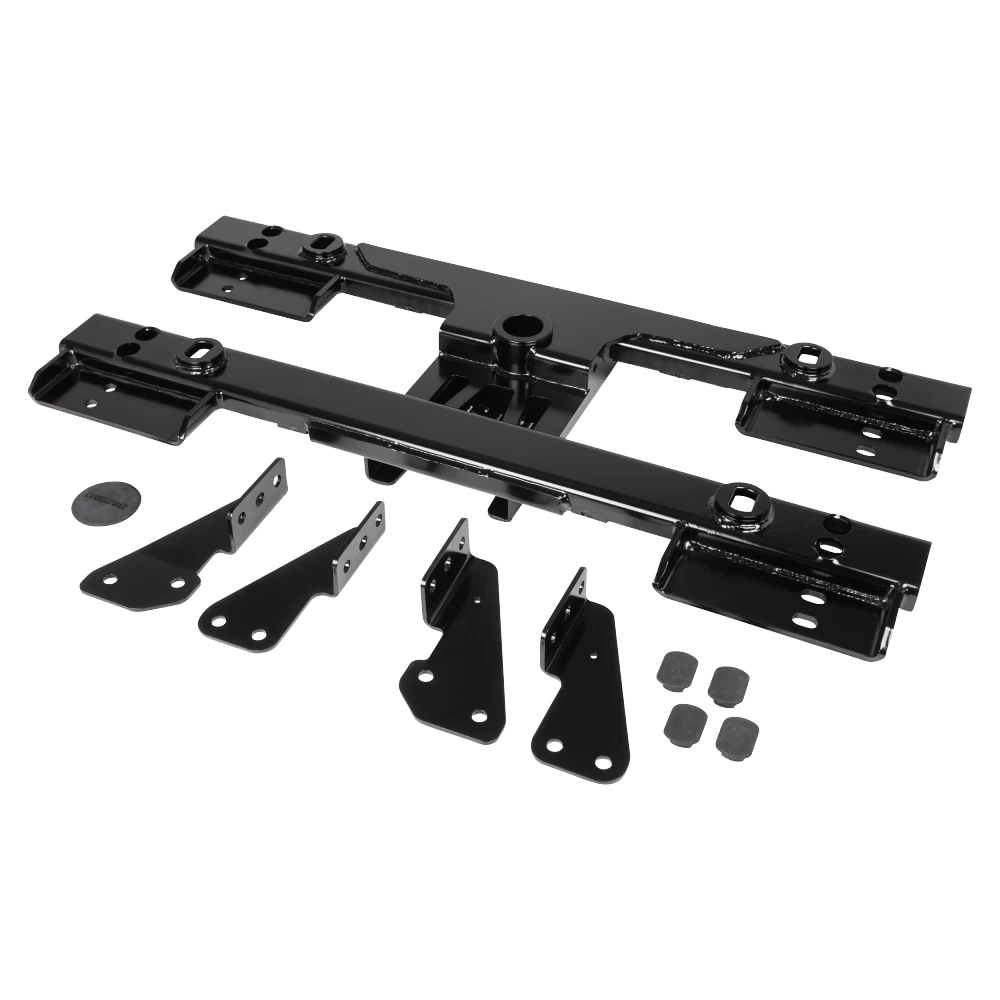

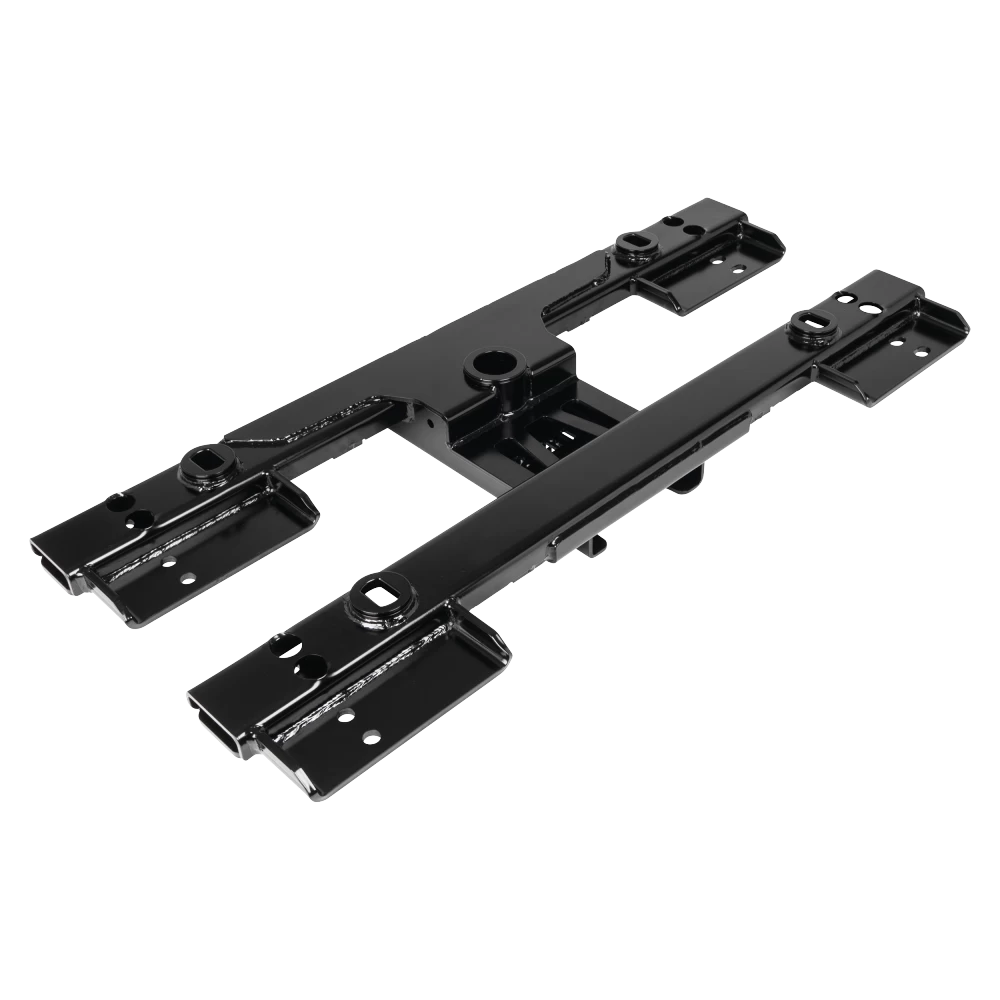

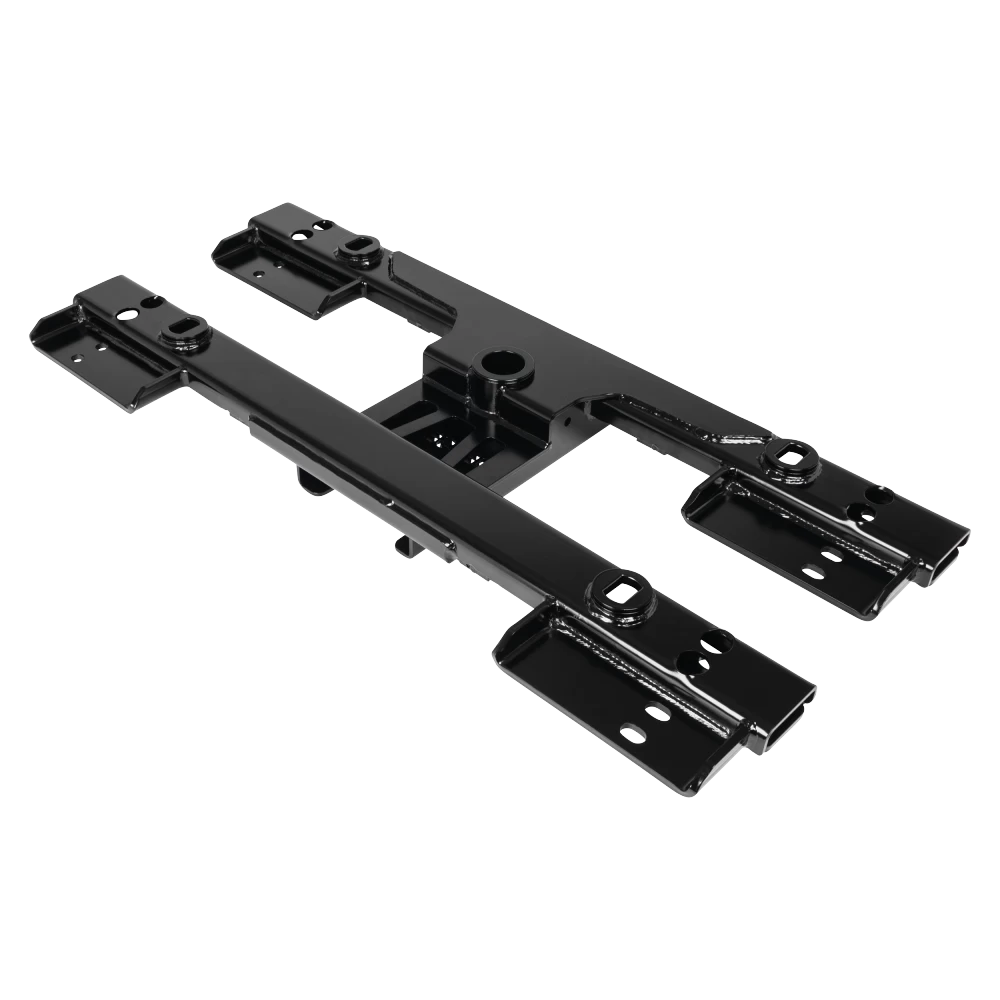

Installation Instructions for Elite Series Under-Bed Mounting System
Part Numbers:
- 30951
Tools Required:
- Wrenches and Sockets: 3/4", 12mm, 18mm, 19mm, 22mm
- Drill Bits: 1/8" Pilot Drill, 3" Hole Saw, 3-1/2" Hole Saw
- Other Tools:
- Drill
- Center Punch
- Hammer
- Measuring Tape
- Torque Wrench
- Ratchet with Socket Extensions
- Tin Snips
Safety Notes:
- Warning:
- Do not exceed the lower of the towing vehicle manufacturer's recommended capacity or the lowest rated component of your system.
- Ensure clearance between the trailer and the rear of the truck cab and bed before installation.
- Carefully examine fuel lines, brake lines, and electrical wiring along the truck frame to prevent damage during installation.
Step-by-Step Instructions:
Step 1: Identify Truck Frame Configuration
- Truck configurations supported by this kit:
- Without helper spring brackets.
- With helper spring brackets.
- Without helper spring brackets but with threaded inserts inside the frame.
Step 2: Pickup Bed Removal
- Remove any plastic bed liners (spray-on liners are acceptable).
- Detach the fuel filler tube and remove retaining clips/screws.
- Disconnect tailgate and tail-light wiring by the spare tire.
- Remove 8 pickup bed mounting bolts and lift the bed using at least four people.
Step 3: Frame Bracket Installation
- Front Brackets (Driver & Passenger Side):
- Install loosely using supplied bolts, washers, and nuts. Use pull wires to feed carriage bolts through frame slots.
- Rear Brackets (Driver & Passenger Side):
- Follow a similar process as the front brackets. Use larger top holes in the frame and secure with hardware provided.
Step 4: Mounting Rail Installation
- Use correct mounting holes for bed size:
- 6.5 ft: Second set of twin holes.
- 8 ft: First set of holes.
- Tighten all hardware:
- M14 Bolts to 148 ft-lbs.
- M12 Bolts to 100 ft-lbs.
- 1/2" Carriage Bolts to 110 ft-lbs.
Step 5: Drilling Bed Holes
- Mark and drill pilot holes for fifth wheel and gooseneck mounts:
- 6.5 ft bed: 36-1/16" forward of the truck floor edge.
- 8 ft bed: 37-5/16" forward of the truck floor edge.
- Use a 3-1/2" hole saw for the center hole and 3" hole saws for outer mounts.
Step 6: Install Mounting Structure
- Position the mounting structure and align with drilled holes.
- Attach using bolts, washers, and nuts.
Step 7: Reinstall Pickup Bed
- Carefully place the bed back onto the frame.
- Reattach all wiring and fuel filler components.
- Tighten the bed bolts securely.
Hardware List:
- (1) Mounting Structure Weldment
- (4) Frame Brackets (Driver & Passenger Front/Rear)
- (8) 1/2"-13 x 1.75" Carriage Bolts
- (8) M12 x 1.25 x 40mm Hex Bolts
- (8) M12 x 1.75 x 70mm Hex Bolts
- (8) Conical Washers (1/2")
- (6) 1/4" x 1" x 2" Blocks
- (8) 1/4" x 1" x 3" Blocks
Warranty:
- Limited Lifetime Warranty for defects in material and workmanship.
- Does not cover misuse, improper installation, or unauthorized modifications.
For assistance, contact Horizon Global at 1-800-632-3290.
Installation Instructions for Elite Series Under-Bed Mounting System
Part Numbers:
- 30951
Tools Required:
- Wrenches and Sockets: 3/4", 12mm, 18mm, 19mm, 22mm
- Drill Bits:
- 1/8" Pilot Drill
- 3" Hole Saw
- 3-1/2" Hole Saw
- Other Tools:
- Drill
- Center Punch
- Hammer
- Measuring Tape
- Torque Wrench
- Ratchet with Socket Extensions
- Tin Snips
Safety Notes:
- Warning:
- Do not exceed the lower of the towing vehicle manufacturer's recommended capacity or the lowest-rated component of your system.
- Ensure clearance between the trailer and the rear of the truck cab and bed before installation.
- Carefully examine fuel lines, brake lines, and electrical wiring along the truck frame to prevent damage during installation.
Step-by-Step Instructions:
Step 1: Identify Truck Frame Configuration
- Truck configurations supported by this kit:
- Without helper spring brackets.
- With helper spring brackets.
- Without helper spring brackets but with threaded inserts inside the frame.
Step 2: Pickup Bed Removal
- Remove any plastic bed liners (spray-on liners are acceptable).
- Detach the fuel filler tube and remove retaining clips/screws.
- Disconnect tailgate and tail-light wiring by the spare tire.
- Remove 8 pickup bed mounting bolts and lift the bed using at least four people.
Step 3: Frame Bracket Installation
- Front Brackets (Driver & Passenger Side):
- Install loosely using supplied bolts, washers, and nuts. Use pull wires to feed carriage bolts through frame slots.
- Rear Brackets (Driver & Passenger Side):
- Follow a similar process as the front brackets. Use larger top holes in the frame and secure with hardware provided.
Step 4: Mounting Rail Installation
- Use correct mounting holes for bed size:
- 6.5 ft: Second set of twin holes.
- 8 ft: First set of holes.
- Tighten all hardware:
- M14 Bolts to 148 ft-lbs.
- M12 Bolts to 100 ft-lbs.
- 1/2" Carriage Bolts to 110 ft-lbs.
Step 5: Drilling Bed Holes
- Mark and drill pilot holes for fifth wheel and gooseneck mounts:
- 6.5 ft bed: 36-1/16" forward of the truck floor edge.
- 8 ft bed: 37-5/16" forward of the truck floor edge.
- Use a 3-1/2" hole saw for the center hole and 3" hole saws for outer mounts.
Step 6: Install Mounting Structure
- Position the mounting structure and align with drilled holes.
- Attach using bolts, washers, and nuts.
Step 7: Reinstall Pickup Bed
- Carefully place the bed back onto the frame.
- Reattach all wiring and fuel filler components.
- Tighten the bed bolts securely.
Hardware List:
- (1) Mounting Structure Weldment
- (4) Frame Brackets (Driver & Passenger Front/Rear)
- (8) 1/2"-13 x 1.75" Carriage Bolts
- (8) M12 x 1.25 x 40mm Hex Bolts
- (8) M12 x 1.75 x 70mm Hex Bolts
- (8) Conical Washers (1/2")
- (6) 1/4" x 1" x 2" Blocks
- (8) 1/4" x 1" x 3" Blocks
Warranty:
- Limited Lifetime Warranty for defects in material and workmanship.
- Does not cover misuse, improper installation, or unauthorized modifications.
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
