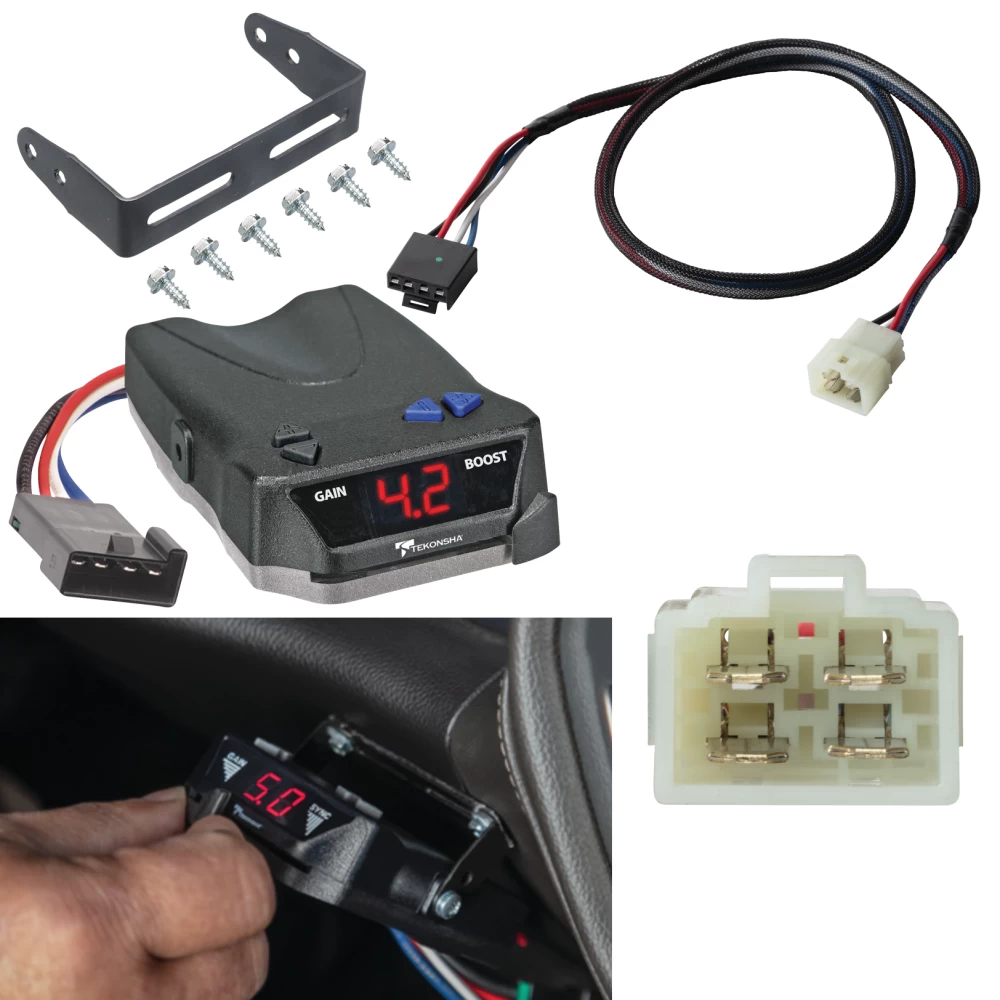

- Includes: BRAKE-EVN Proportional Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Get Expert Help
For 2020-2024 Hyundai Palisade Tekonsha BRAKE-EVN Brake Control + Plug & Play BC Adapter By Tekonsha Install Notes
Installation Instructions for Kia Telluride, Hyundai Palisade, and Hyundai Santa Cruz
Part Numbers:
- 308100
Wiring Access Location:
- Under dash, left of the steering column, near the driver-side kick panel
Tools Required:
- Safety glasses
- Trim panel remover
- Test light
Step-by-Step Instructions:
Step 1: Disconnect the vehicle battery
- Locate the vehicle’s battery and disconnect the negative battery cable.
- Isolate the cable to prevent accidental contact during installation.
- Caution: Do not touch the negative terminal to the positive terminal. This can cause serious injury or damage to the vehicle’s electrical system.
Step 2: Locate the brake control harness connector
- Remove the driver-side kick panel using a trim panel remover.

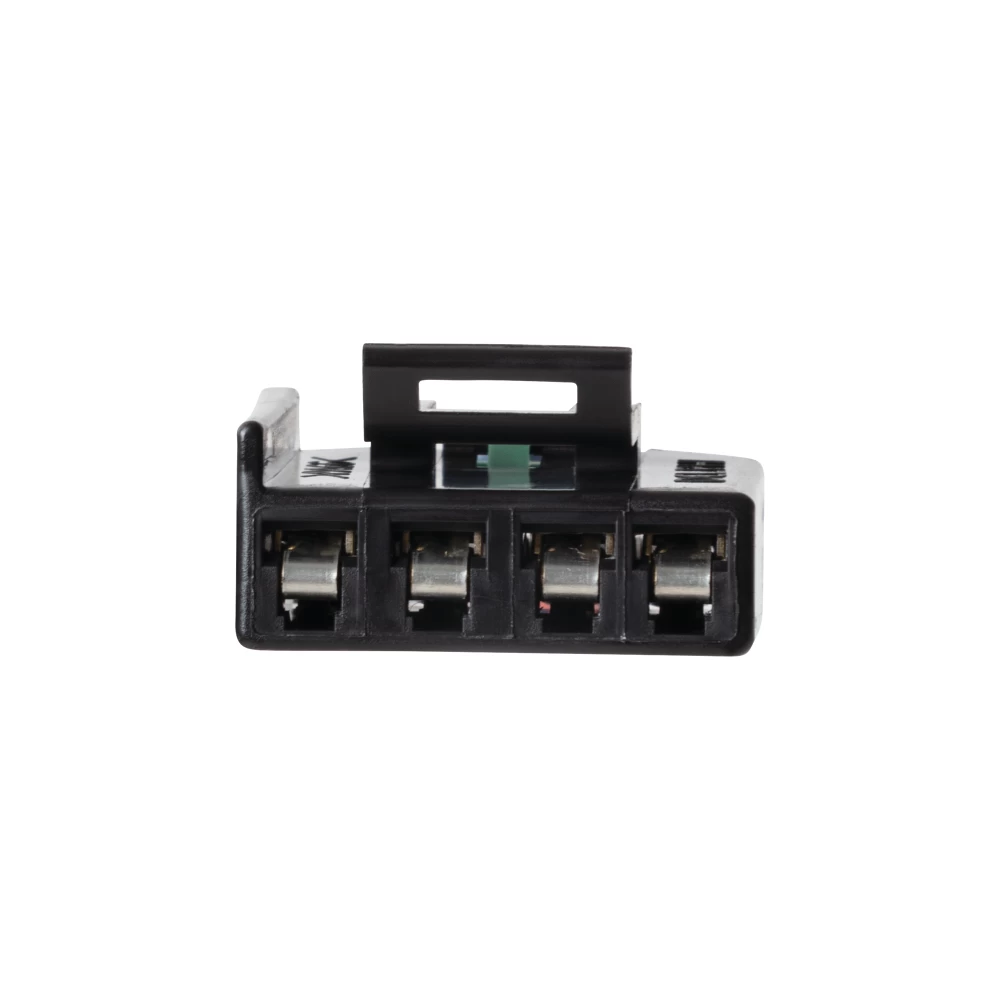

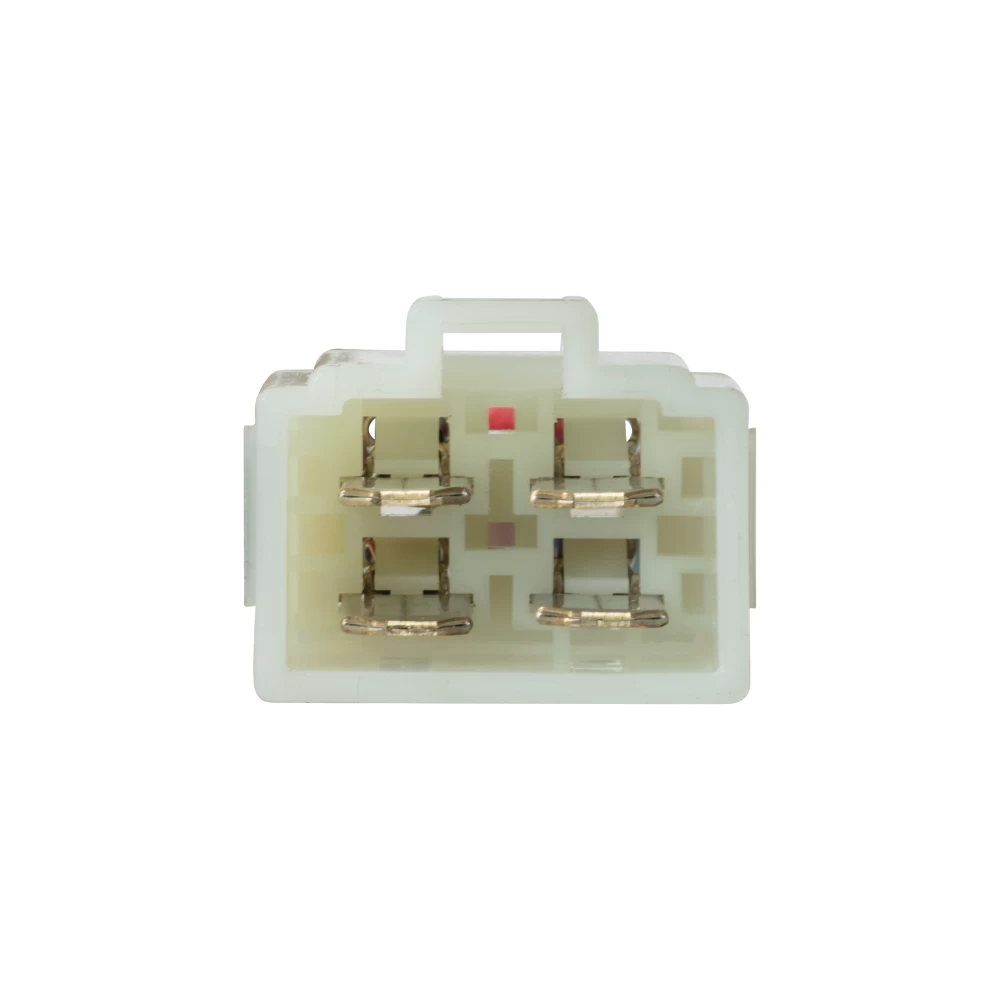

- Find the 4-pin electric brake control harness connector under the dash. It will be taped to another harness and resemble the brake control harness.
Step 3: Connect the brake control harness

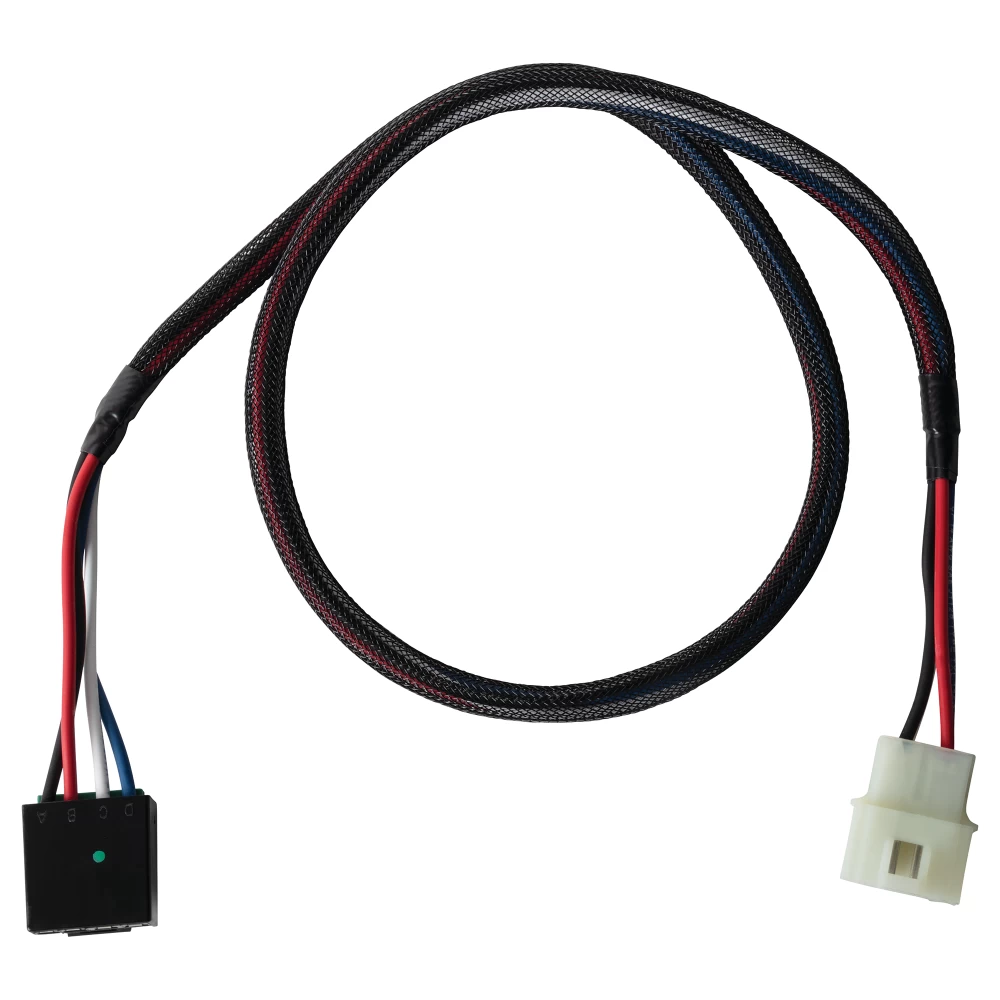

- Insert the brake control harness into the vehicle’s connector, ensuring the locking tabs are secure.
- Take care not to damage the connector during this step.
Step 4: Attach the brake control adapter
- Plug the brake control adapter into the electric controller connector.
- Route the wiring neatly to avoid any pinch points or interference with vehicle components.
Step 5: Mount and test the brake control unit
- Complete the installation using the manufacturer’s brake control instructions.
- Mount the brake control unit as directed.
- Perform the recommended test procedures to verify functionality.
Hardware List:

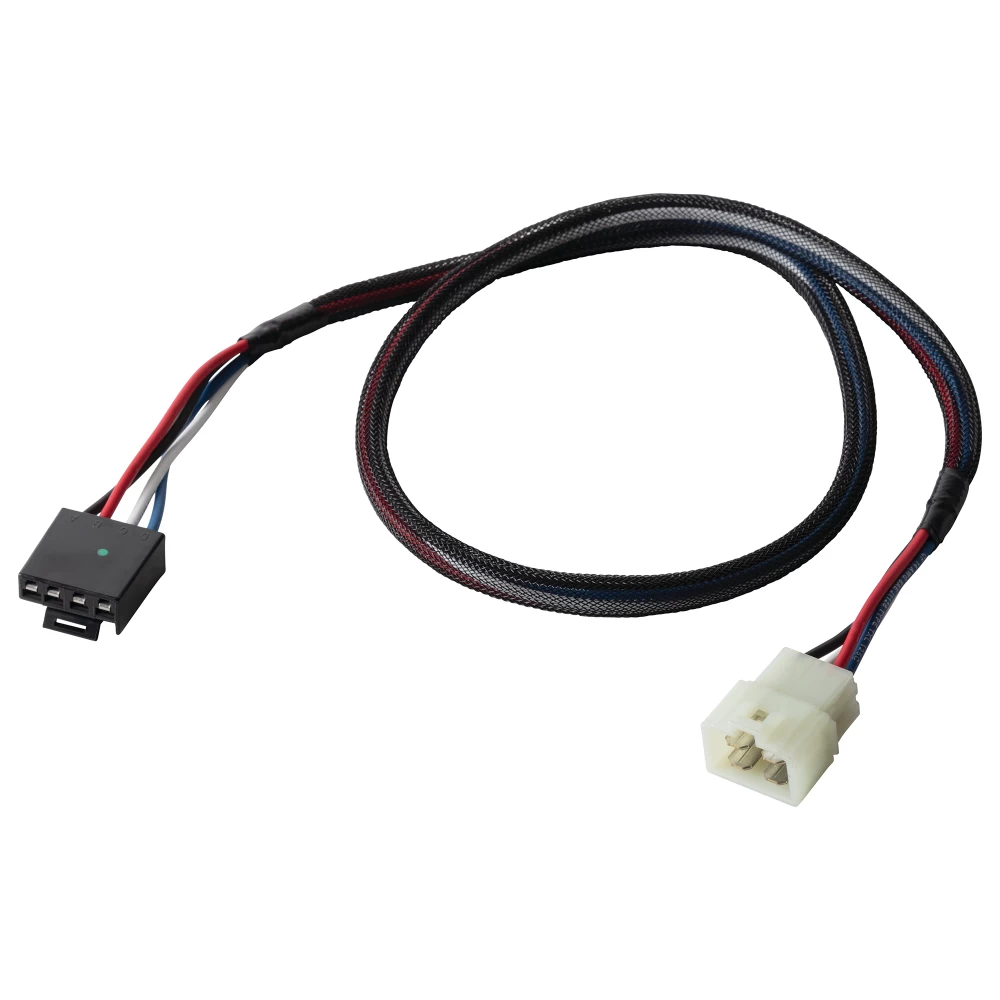

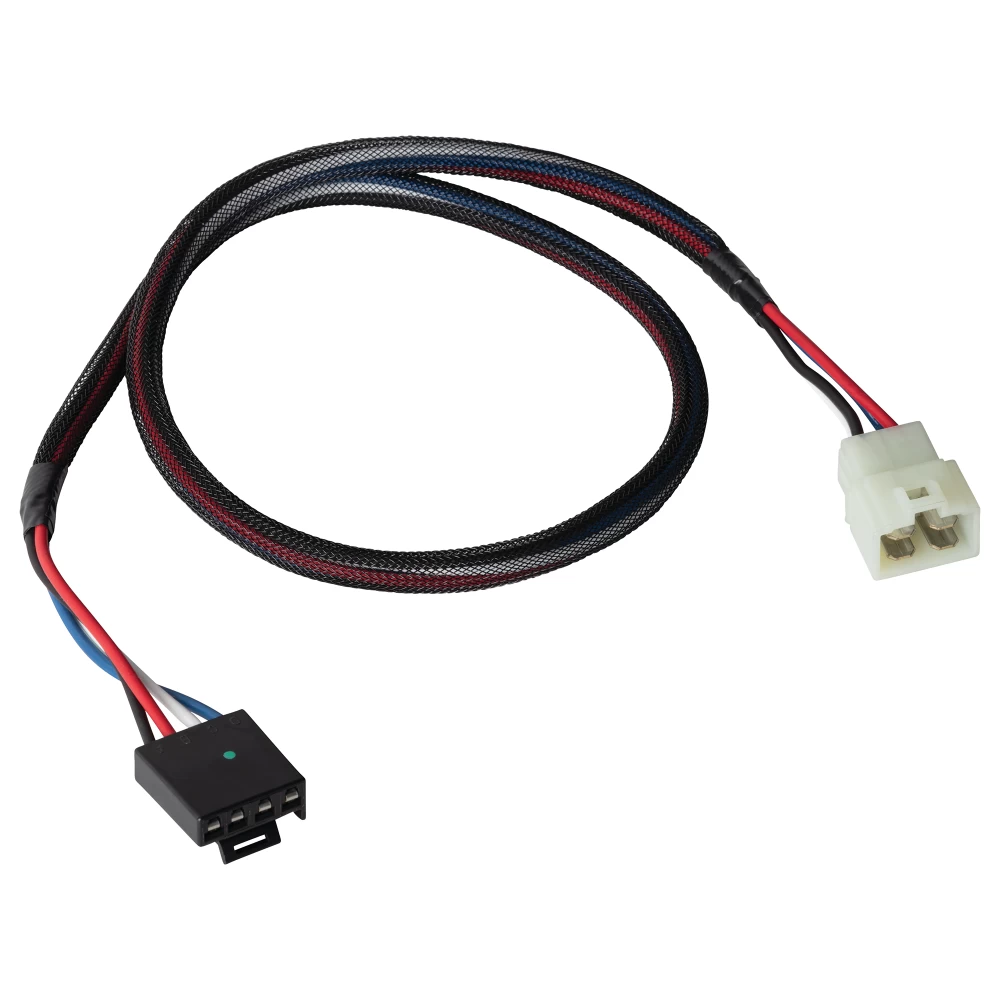

- (1) Brake control adapter
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Consult the owner’s manual for specific fuse and relay locations.
- Do not exceed the towing manufacturer’s rating or the following limits:
- Maximum 4 axles: 8 brakes (24 amps).
- Periodically inspect all wires and connections for visible damage or looseness.
- Always wear safety glasses and follow safety precautions during installation.
Troubleshooting Guide:
-
Trailer Disconnected Notification
- Check the trailer connection for dirt, corrosion, or miswiring.
- Verify the brake control wire is not open or disconnected.
-
Brake Control Short Notification
- Inspect the brake wire for shorts or grounding issues.
- Use an approved test light or tester to diagnose the issue.
-
Brake Control Electrical Overload Notification
- Check for defective brake magnets or shorts in the brake wiring.
- Reduce electrical load if thermal overload occurs.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty Coverage:
- Limited warranty against defects in material and workmanship under normal use.
- Excludes misuse, overloading, improper installation, or neglect.
- For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Electronic Brake Control
Product Information:
- Model: Electronic Brake Control for 2, 4, 6, & 8 Brake Applications
- Part Number: N8508220
Tools Required:
- Drill with 1/8" drill bit
- Screwdriver or 1/4" Nut Driver
- Wire Cutter/Stripper
- Wire Crimping Tool
- Probe-type Circuit Tester
- Assorted End Wrenches
Components Included:
- Brake Control Unit
- Mounting Bracket
- Mounting Screws (#6 x 3/8") (Qty: 4)
- Warranty Card
Mounting Instructions:
-
Select a Suitable Mounting Location:
- Must be securely mounted to a solid surface.
- Must be within easy reach of the driver.
- Ensure the area behind the mounting location is clear before drilling.
-
Mark the Hole Locations:
- Hold the mounting bracket in place.
- Mark the holes using the slots in the bracket as a template.
-
Drill Mounting Holes:
- Use a 1/8" drill bit to drill holes at the marked locations.
-
Secure the Bracket:
- Use two self-tapping screws to secure the bracket.
- Avoid over-tightening to prevent stripping the holes.
-
Mount the Brake Control Unit:
- Secure the unit to the bracket using the remaining two screws.
Wiring Instructions:
-
Connect the Wires:
- Black Wire: Vehicle Power (12V positive battery connection, use a 30A circuit breaker).
- White Wire: Vehicle Ground (secure to a clean, bare metal surface).
- Red Wire: Stop Light Switch (connect to the wire that activates only when the brake pedal is pressed).
- Blue Wire: Trailer Brakes (connect to the brake wire at the trailer connector).
-
Verify Wiring Connections:
- Use a circuit tester to confirm correct connections.
Controls and Operation:
-
Output (Gain) Control:
- Adjusts the maximum power delivered to the trailer brakes.
- Use the +/- buttons to increase or decrease output.
- Display shows values from 0 to 10 (0 = minimum power, 10 = maximum power).
-
Manual Control:
- Located on the front of the brake control unit.
- Slide the control to manually apply the trailer brakes.
- Use this feature to check or adjust brake performance.
-
Boost Control:
- Provides more aggressive trailer braking.
- Boost levels: b.1, b.2, and b.3.
- Increase or decrease the boost by pressing the Boost Control button.
Setting Power to the Trailer Brakes:
- Connect the trailer to the tow vehicle.
- With the engine running, set the Output/Gain to approximately 5.0.
- Drive at 25 mph on a dry, level surface.
- Apply the Manual Control fully:
- If trailer brakes lock up, decrease power.
- If braking is insufficient, increase power.
- Repeat until braking is smooth and effective, just below wheel lock-up.
Troubleshooting Guide:
Issue | Cause | Solution |
---|---|---|
No display or no response | Power/ground loss | Verify black and white wire connections. |
Display flashes continuously | Short circuit in trailer brakes | Inspect trailer wiring and connections. |
Braking power too low | Gain set too low | Increase gain using + button. |
Intermittent power loss | Loose connection | Inspect all wiring and connections. |
Safety Notes:
- Do not mount the unit at an angle greater than -20° to +70° from level.
- Ensure all wiring connections are secure to avoid braking failures.
- Regularly inspect trailer brakes for wear and proper adjustment.
Technical Support:
For technical support and assistance, our team of experts is available to help.
You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Limited Warranty: Covers defects in materials and workmanship.
- Excludes misuse, improper installation, and normal wear and tear.
For complete warranty instructions, please download the full installation PDF.
