For 2020‑2024 Toyota Highlander Trailer Hitch Fits w/ factory tow package Curt 13453 2 inch Tow Receiver
Model: 13453-CH3571This Trailer Tow Hitch Fits The Following Vehicles:
2020 - 2024 Toyota Highlander w/ factory tow package
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Drilling Required)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2020, 2021, 2022, 2023, 2024

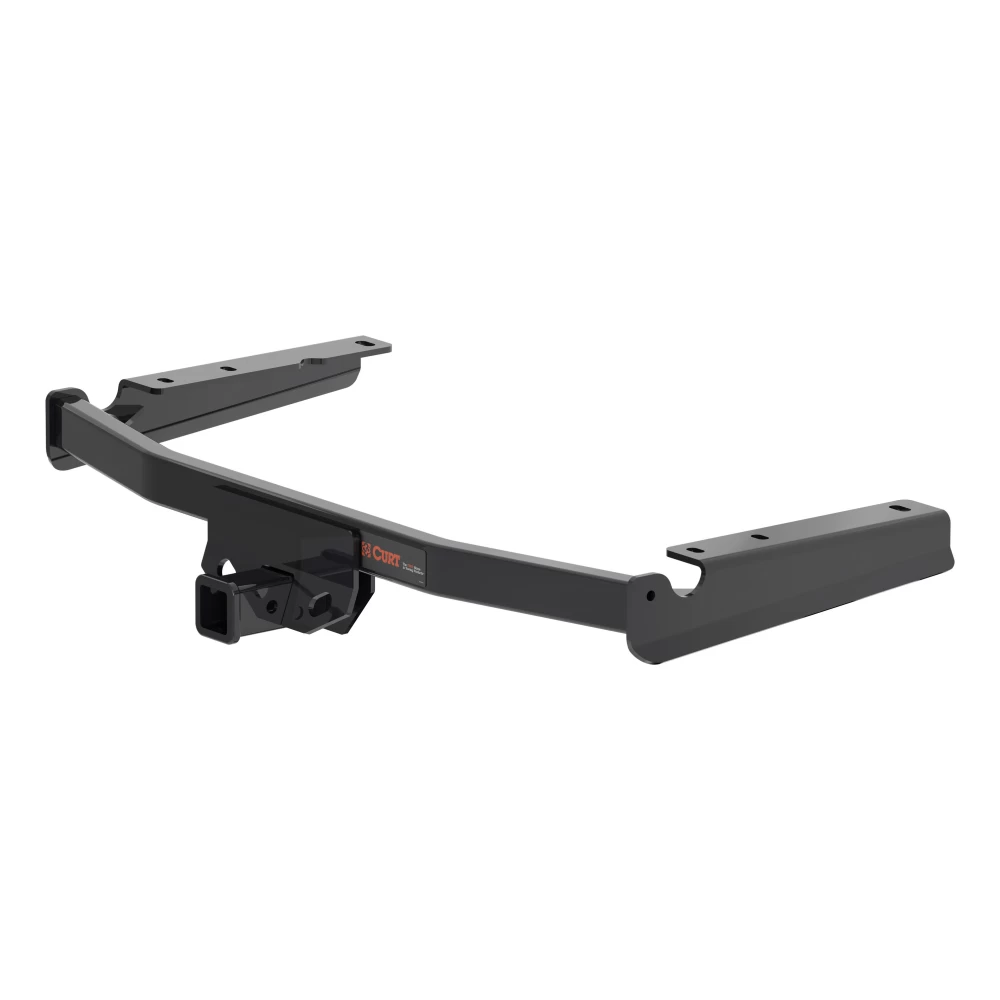

CURT 13453 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Toyota Highlander (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 5,000 lbs GTW and 500 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

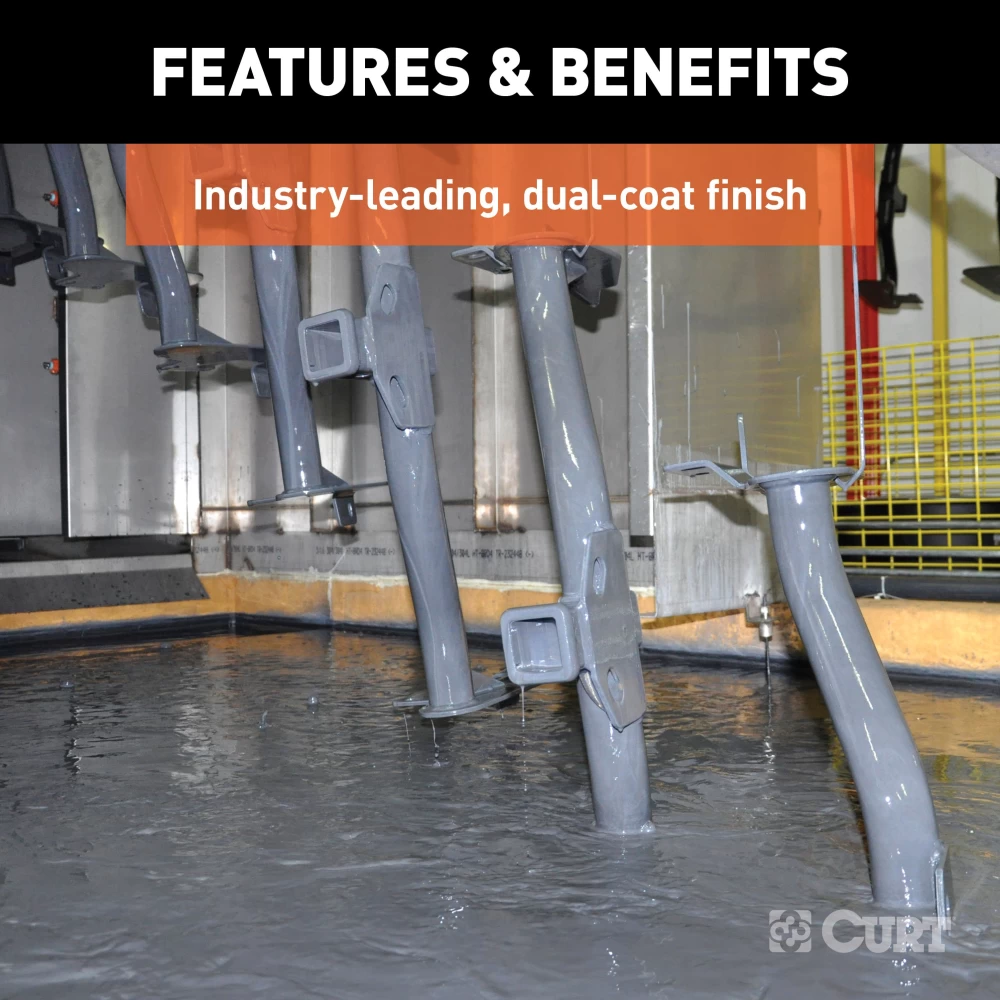

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

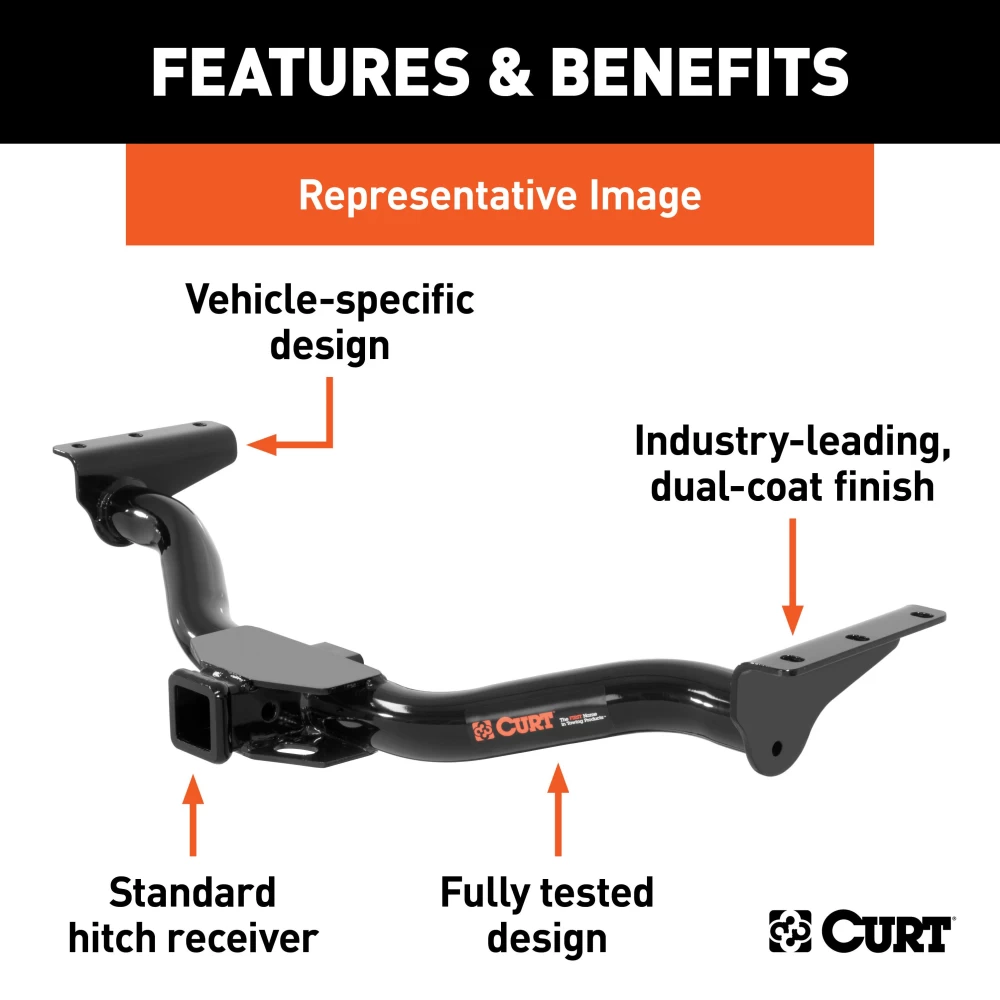

Features:
- Rated to 5,000 lbs. gross trailer weight and 500 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

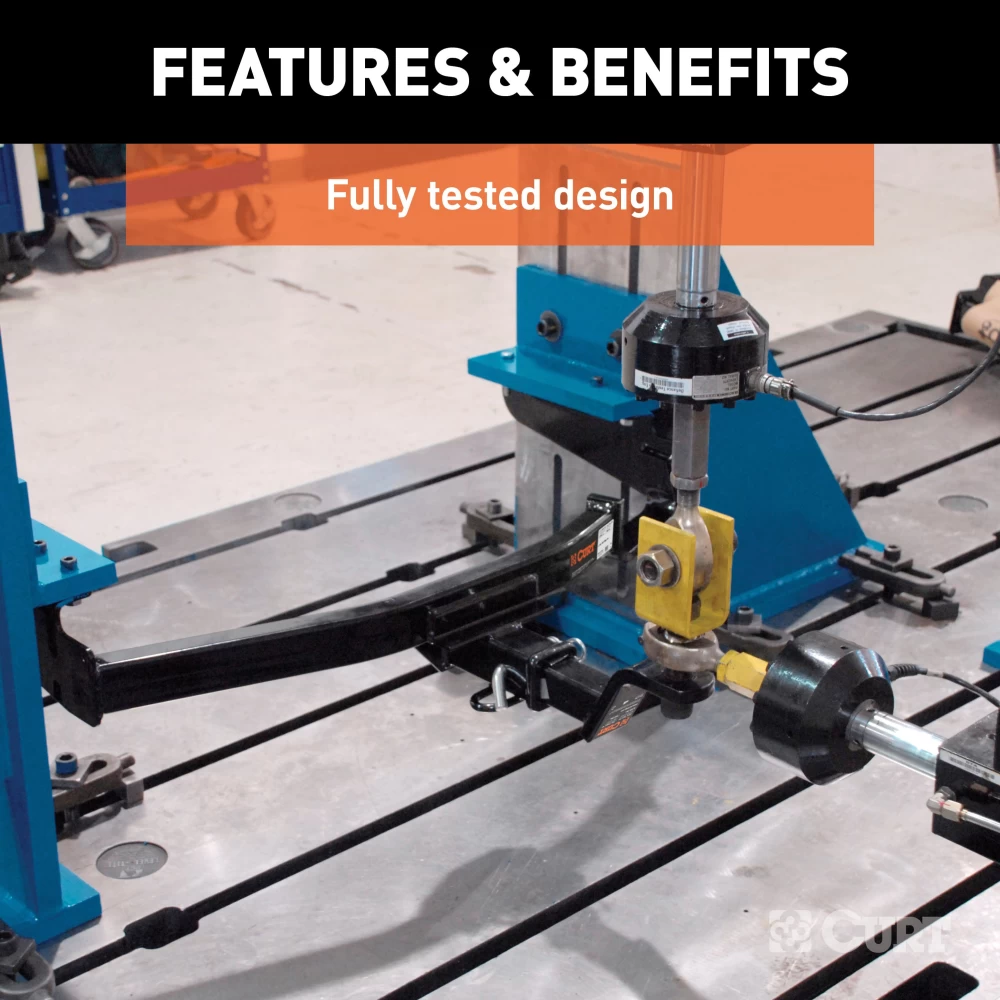

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out

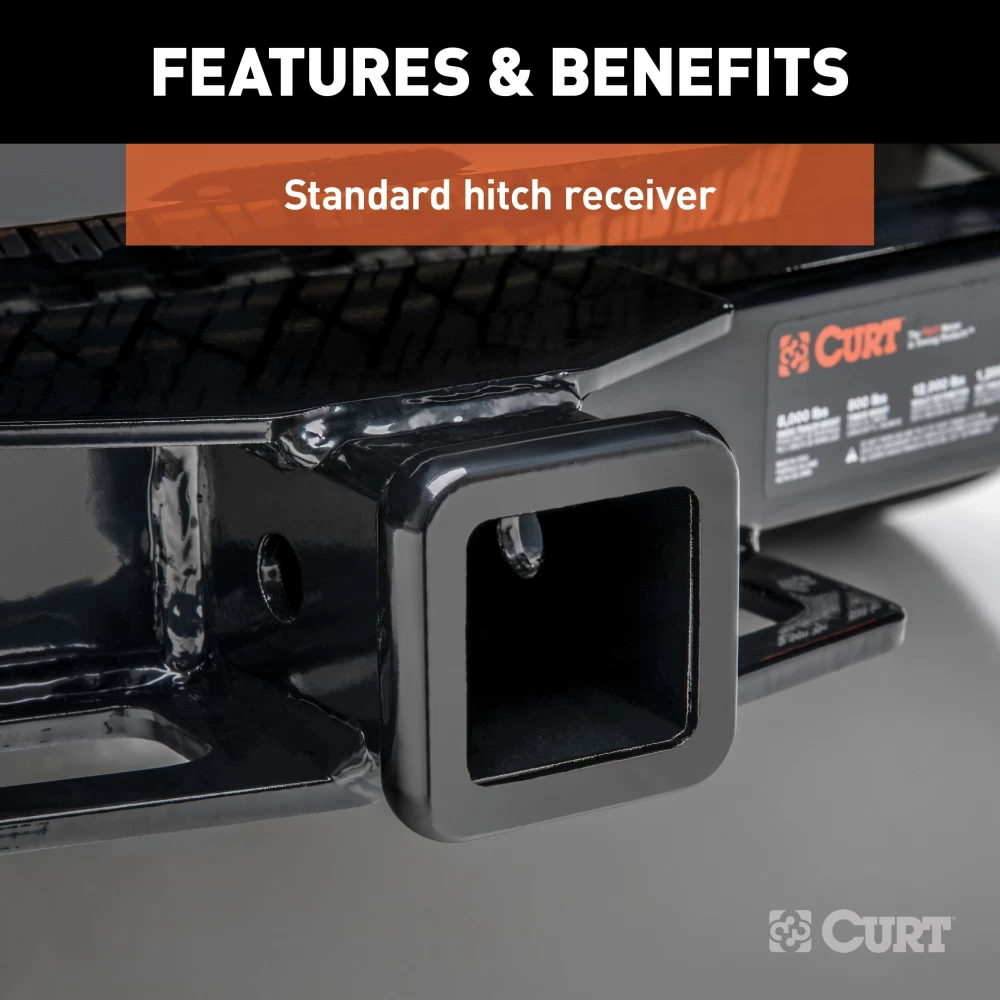

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$255 99 $395.95 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$395.95 $255 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $63.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13453-CH3571
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2020-2024 Toyota Highlander Trailer Hitch Fits w/ factory tow package Curt 13453 2 inch Tow Receiver Install Notes
Installation Instructions for Toyota Highlander (2020-Present)
Part Numbers:
- 13453
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- Screwdriver
- 10mm Socket
- 12mm Socket
- 17mm Socket
- 19mm Socket
- Rotary Tool (optional)
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Underbody Panel
- Remove five fasteners securing the driver-side underbody panel.
- Lower the panel and either trim it for reinstallation or return it to the owner.
- Remove one fastener from the outermost bumper support tabs and bend the tabs down.
Step 2: Remove Rubber Plugs and Plastic Inserts
- Remove two rubber plugs from each frame rail.
- Unscrew three threaded plastic inserts from the driver-side frame rail and two from the passenger-side frame rail.
- Return all plugs and inserts to the owner.
Step 3: Remove Metal Fascia Tab
- Remove the M12 bolt securing the metal fascia tab to the passenger-side frame rail.
- Return the fascia tab and fasteners to the owner.
Step 4: Install Hitch
- Raise the hitch over the exhaust and align the holes in the hitch with the weldnuts in the frame.
- Secure the hitch using the supplied M12-1.25 hex bolts and 1/2" conical toothed washers.
- Torque all 12mm hardware to 86 ft-lbs.
- Reinstall the bumper fascia tabs removed in Step 1.
Step 5: Trim and Reattach Underbody Panel
- Mark and trim the underbody panel as needed. Use the ribs of the panel as cutting guides.
- Reattach the underbody panel using the fasteners removed in Step 1.
- Refer to the trim diagram for approximate dimensions, confirming fit prior to trimming.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs.
- Tongue Weight (TW): 500 lbs.
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (4) M12x1.25, 35mm Hex Head Cap Screws
- (4) 1/2" Conical Toothed Washers
Important Notice:
- This installation requires part removal and trimming but no drilling.
- Read all instructions thoroughly before starting the installation.
- For assistance, contact technical support at 877-287-8634.
Installation Instructions for Toyota Highlander (2020-Present)
Part Numbers:
- 13453
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- Screwdriver
- 10mm Socket
- 12mm Socket
- 17mm Socket
- 19mm Socket
- Rotary Tool (optional)
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Underbody Panel
- Remove five fasteners securing the driver-side underbody panel.
- Lower the panel and either trim it for reinstallation or return it to the owner.
- Remove one fastener from the outermost bumper support tabs and bend the tabs down.
Step 2: Remove Rubber Plugs and Plastic Inserts
- Remove two rubber plugs from each frame rail.
- Unscrew three threaded plastic inserts from the driver-side frame rail and two from the passenger-side frame rail.
- Return all plugs and inserts to the owner.
Step 3: Remove Metal Fascia Tab
- Remove the M12 bolt securing the metal fascia tab to the passenger-side frame rail.
- Return the fascia tab and fasteners to the owner.
Step 4: Install Hitch
- Raise the hitch over the exhaust and align the holes in the hitch with the weldnuts in the frame.
- Secure the hitch using the supplied M12-1.25 hex bolts and 1/2" conical toothed washers.
- Torque all 12mm hardware to 86 ft-lbs.
- Reinstall the bumper fascia tabs removed in Step 1.
Step 5: Trim and Reattach Underbody Panel
- Mark and trim the underbody panel as needed. Use the ribs of the panel as cutting guides.
- Reattach the underbody panel using the fasteners removed in Step 1.
- Refer to the trim diagram for approximate dimensions, confirming fit prior to trimming.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs.
- Tongue Weight (TW): 500 lbs.
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (4) M12x1.25, 35mm Hex Head Cap Screws
- (4) 1/2" Conical Toothed Washers
Important Notice:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty coverage details and duration apply as specified.
- For complete warranty instructions, please download the full installation PDF.
