For 2020‑2023 Hyundai Sonata Trailer Hitch Except Hybrid Curt 11619 1‑1/4 Tow Receiver
Model: 11619-CH2382This Trailer Tow Hitch Fits The Following Vehicles:
2020 - 2023 Hyundai Sonata Except Hybrid
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2020, 2021, 2022, 2023

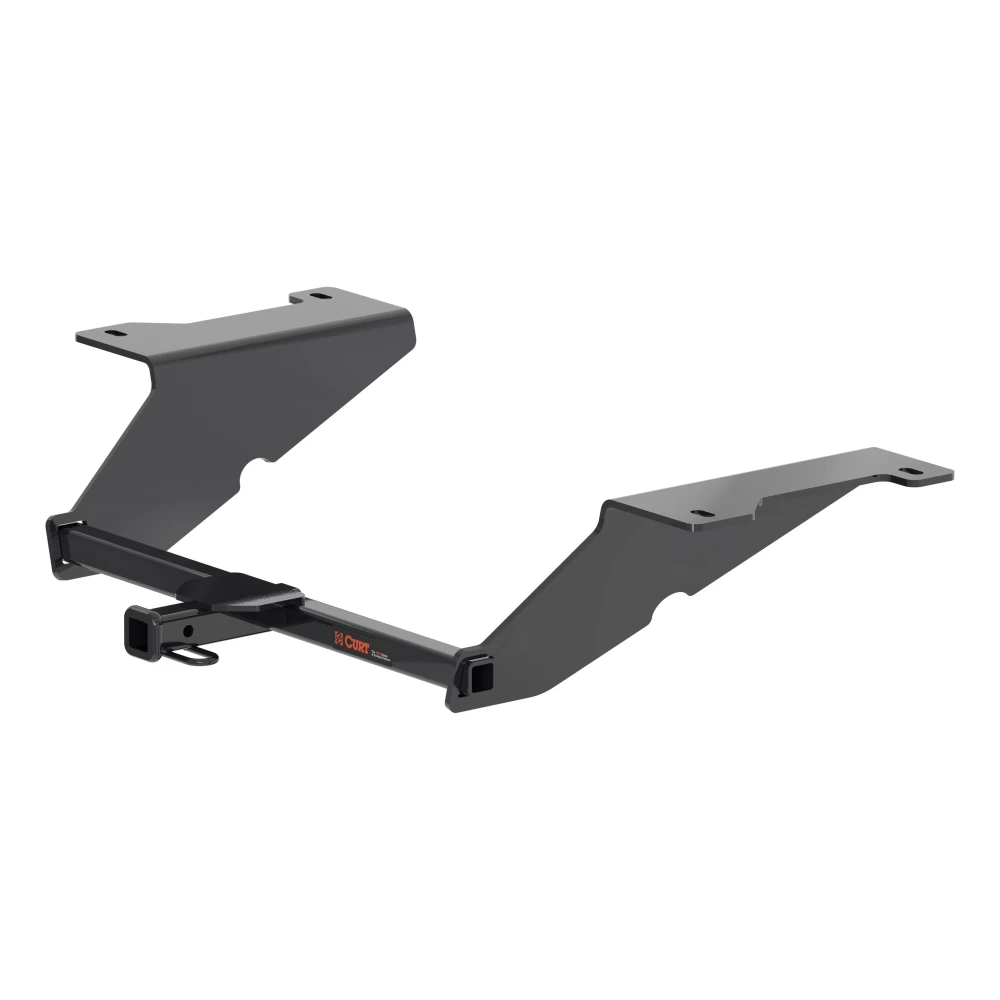

CURT 11619 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Hyundai Sonata (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.

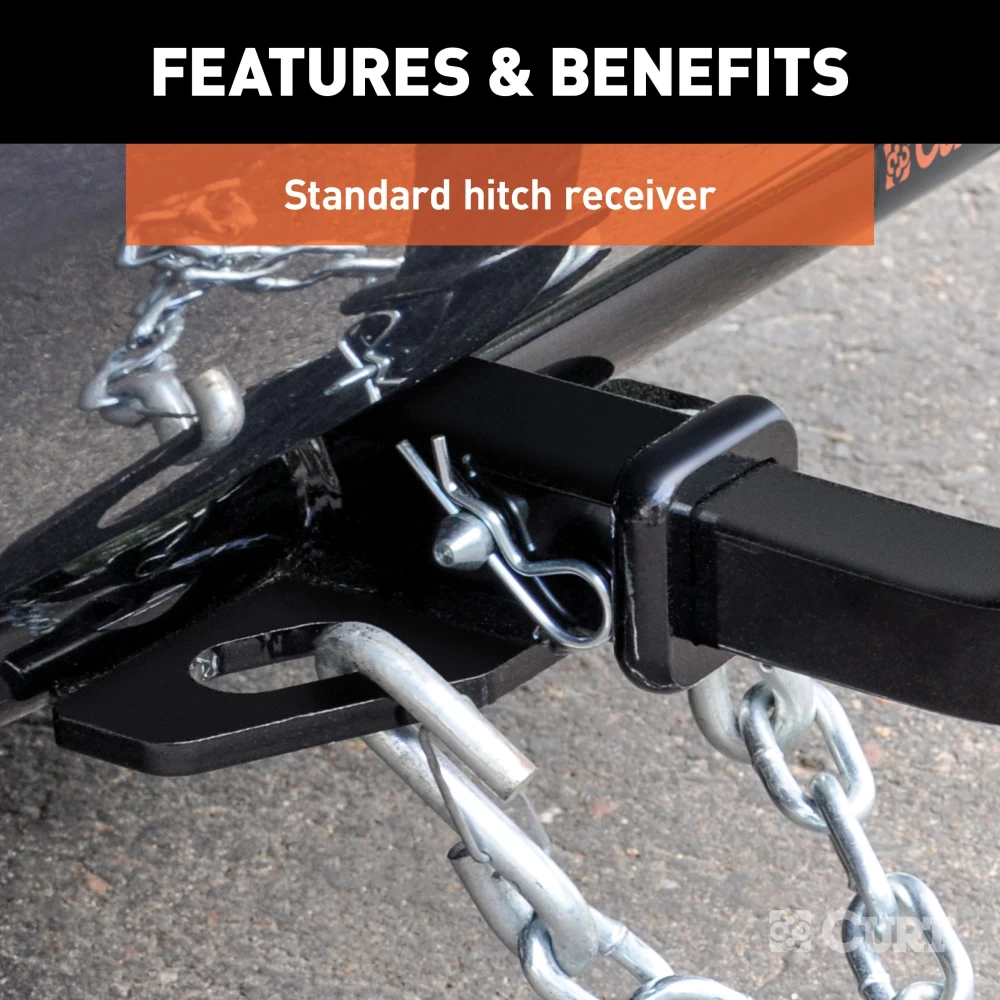

TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..

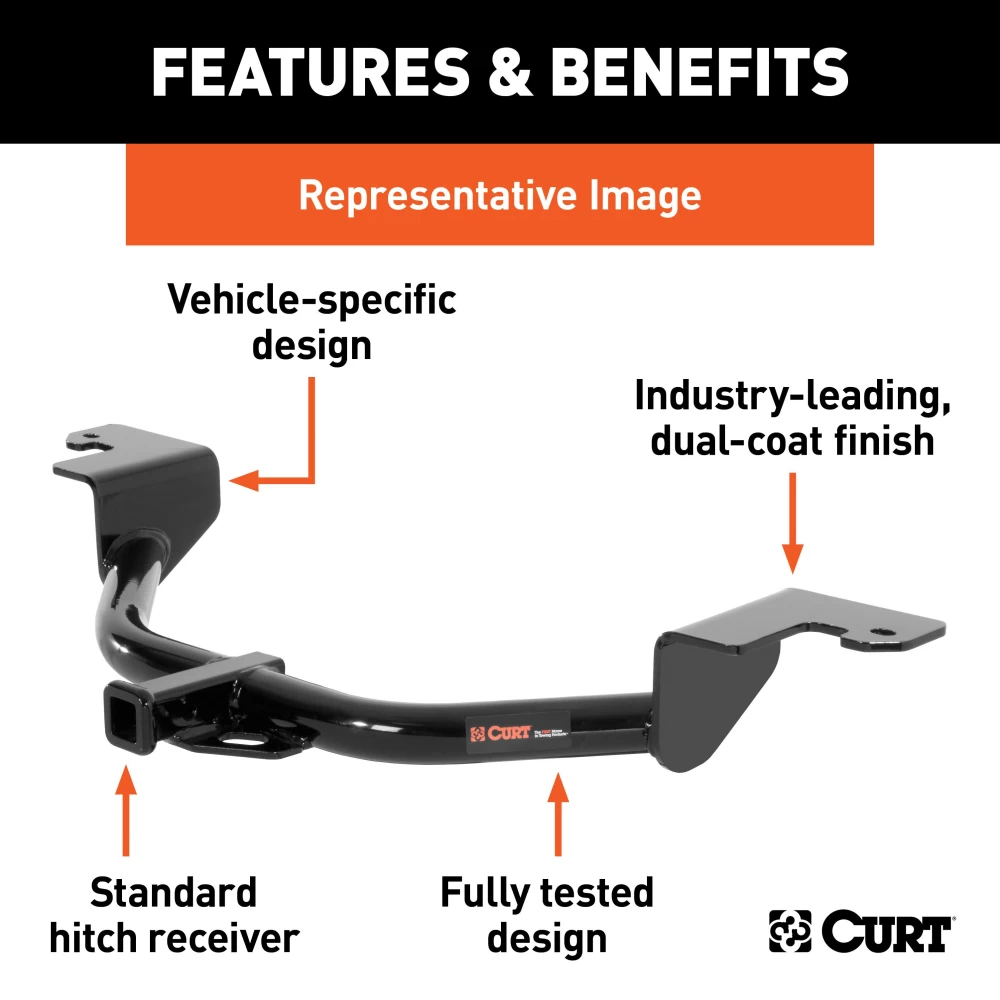

Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

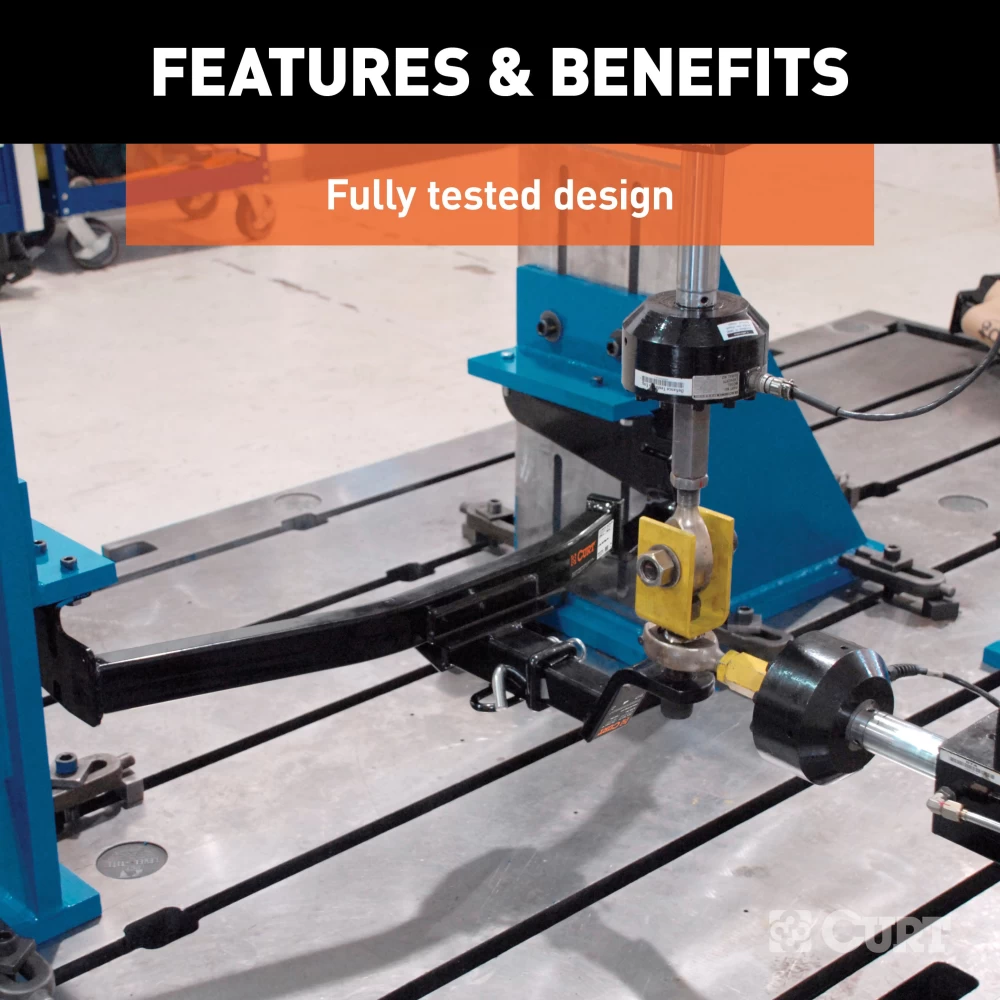

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

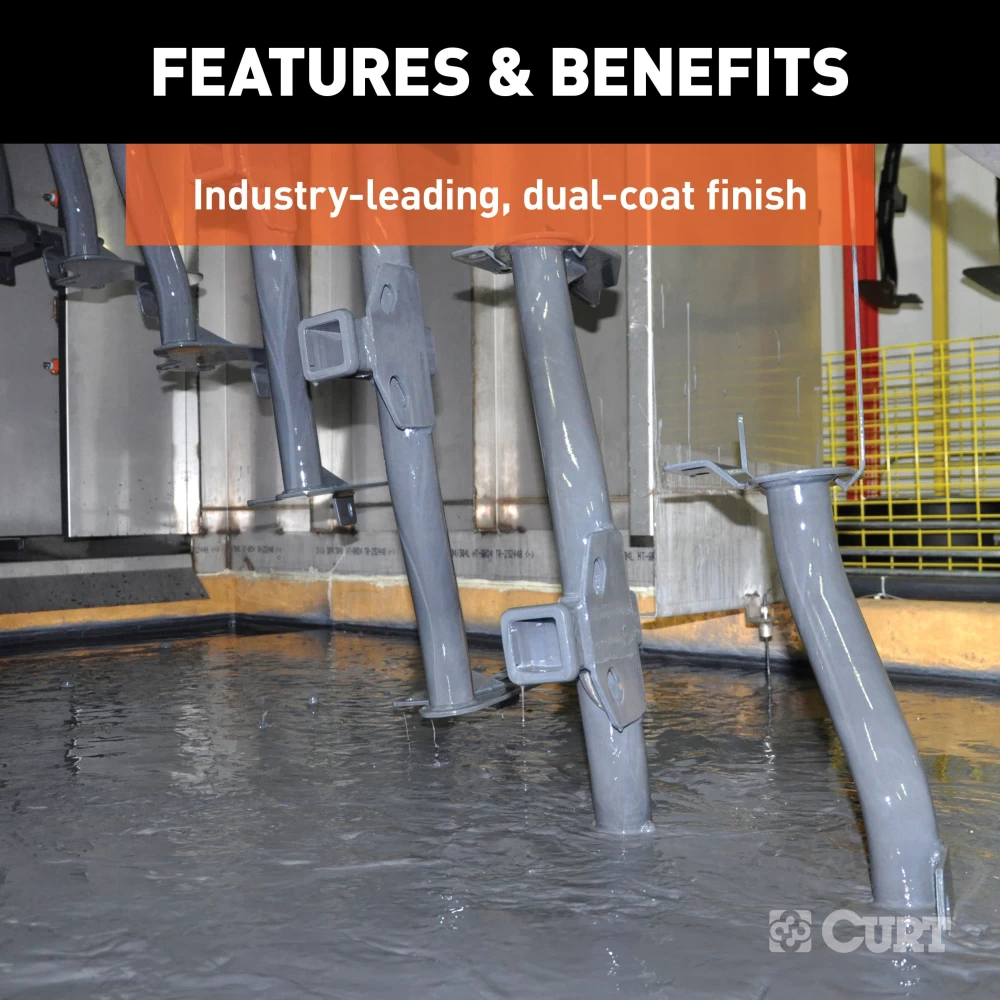

- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$210 86 $328.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$328.95 $210 86
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Each may be shipped from a separate location, and therefore, may arrive at different times
Product Details
- Brand: Curt
- Model: 11619-CH2382
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Each may be shipped from a separate location, and therefore, may arrive at different times
Get Expert Help
For 2020-2023 Hyundai Sonata Trailer Hitch Except Hybrid Curt 11619 1-1/4 Tow Receiver Install Notes
Installation Instructions for Hyundai Sonata
Part Numbers:
- 11619
Tools Required:
- Ratchet
- Torque Wrench
- Socket, 3/4"
- Socket, 10mm
- Socket, 12mm
- 6" Socket Extension
- Fishwire, 1/2" (provided)
- Flathead Screwdriver
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Driver-Side Trim Panel
- Use a 10mm socket to remove two flange nuts securing the trim panel.
- Use a flathead screwdriver to remove three pop rivets.
- Remove the trim panel and return it to the owner with the hardware.
Step 2: Lower the Exhaust
- Support the exhaust before proceeding.
- Use a 12mm socket to remove two flange nuts on the passenger side.
- Carefully remove the rubber isolators to lower the exhaust.
Step 3: Remove Passenger-Side Heat Shield
- Use a 10mm socket to remove three flange nuts securing the heat shield.
- Remove the heat shield and return it along with the hardware to the owner.
Step 4: Fishwire Hardware into Frame
- Use the provided fishwire to guide the square-hole spacers (#1) and carriage bolts (#2) into the frame through the access hole.
- Leave the fishwire attached to the hardware to assist in hitch alignment.
- Repeat this process on the passenger side.
Step 5: Position and Secure Hitch
- Raise the hitch into position, aligning its holes with those on the frame rails.
- Remove the fishwire from the carriage bolts and install conical-toothed washers (#4) and hex nuts (#3).
- Ensure the toothed side of the washers face toward the hitch.
Step 6: Torque Hardware
- Use a torque wrench to tighten all 1/2” hardware to 110 ft-lbs.
- Reinstall the exhaust by securing the flange nuts and rubber isolators removed in Step 2.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 2,000 lbs.
- Tongue Weight (TW): 200 lbs.
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (4) Square-Hole Spacers, 1/4" x 1” x 3”
- (4) Carriage Bolts, 1/2”-13 x 1-1/2”, Grade 8
- (4) Hex Nuts, 1/2”-13
- (4) Conical-Toothed Washers, 1/2”
Important Notice:
- This installation requires part removal and fishwiring. No drilling is needed.
- Read all instructions thoroughly before starting the installation.
- For assistance, contact technical support at 877-287-8634.
Installation Instructions for Hyundai Sonata
Part Numbers:
- 11619
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 3/4", 10mm, 12mm
- 6" Socket Extension
- Fishwire, 1/2" (provided)
- Flathead Screwdriver
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Driver-Side Trim Panel
- Use a 10mm socket to remove two flange nuts securing the trim panel.
- Use a flathead screwdriver to remove three pop rivets.
- Remove the trim panel and return it to the owner with the hardware.
Step 2: Lower the Exhaust
- Support the exhaust before proceeding.
- Use a 12mm socket to remove two flange nuts on the passenger side.
- Carefully remove the rubber isolators to lower the exhaust.
Step 3: Remove Passenger-Side Heat Shield
- Use a 10mm socket to remove three flange nuts securing the heat shield.
- Remove the heat shield and return it along with the hardware to the owner.
Step 4: Fishwire Hardware into Frame
- Use the provided fishwire to guide the square-hole spacers (#1) and carriage bolts (#2) into the frame through the access hole.
- Leave the fishwire attached to the hardware to assist in hitch alignment.
- Repeat this process on the passenger side.
Step 5: Position and Secure Hitch
- Raise the hitch into position, aligning its holes with those on the frame rails.
- Remove the fishwire from the carriage bolts and install conical-toothed washers (#4) and hex nuts (#3).
- Ensure the toothed side of the washers face toward the hitch.
Step 6: Torque Hardware
- Use a torque wrench to tighten all 1/2” hardware to 110 ft-lbs.
- Reinstall the exhaust by securing the flange nuts and rubber isolators removed in Step 2.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 2,000 lbs
- Tongue Weight (TW): 200 lbs
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (4) Square-Hole Spacers, 1/4" x 1” x 3”
- (4) Carriage Bolts, 1/2”-13 x 1-1/2”, Grade 8
- (4) Hex Nuts, 1/2”-13
- (4) Conical-Toothed Washers, 1/2”
Important Notice:
- This installation requires part removal and fishwiring. No drilling is needed.
- Read all instructions thoroughly before starting the installation.
Notes:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
