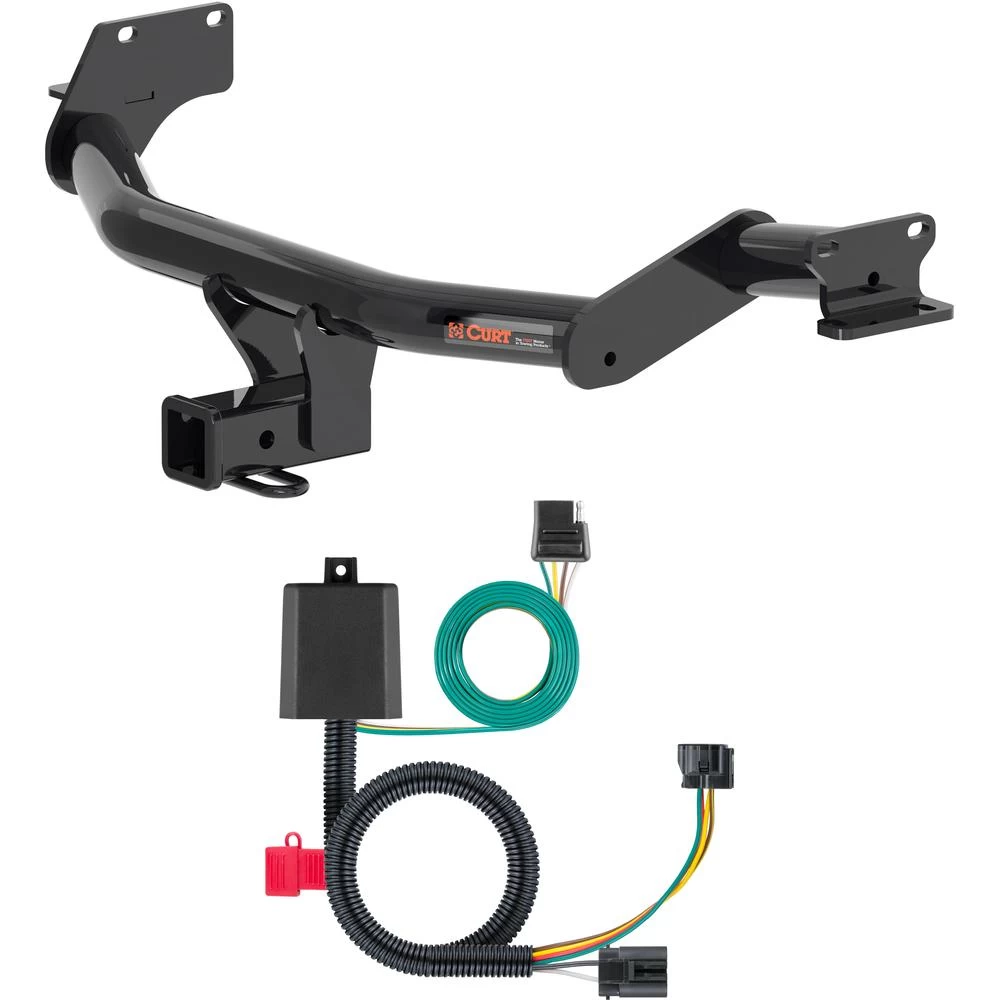

For 2020‑2022 Hyundai Palisade Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13427 56332 2 inch Tow Receiver
Model: 13427 56332-CH2354This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2020 - 2022 Hyundai Palisade All Models
This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Custom 4-Flat
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2020, 2021, 2022

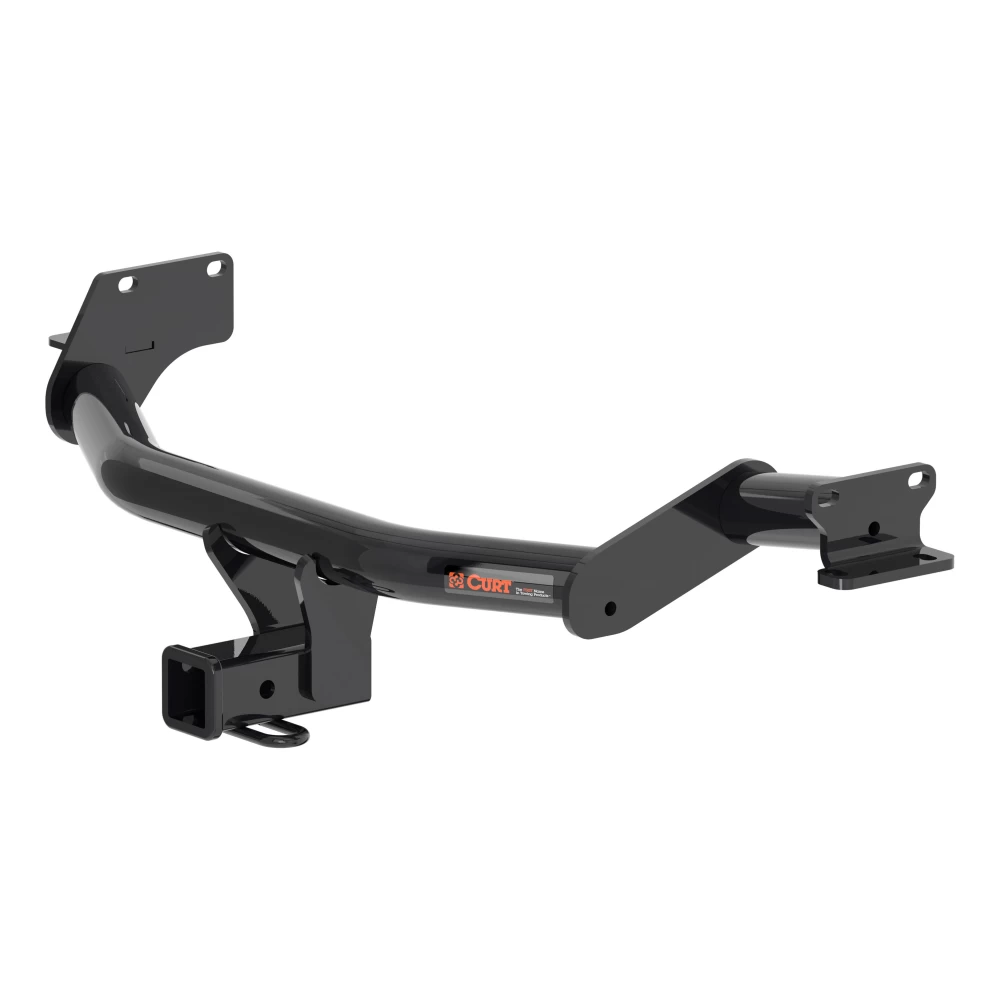

CURT 13427 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Hyundai Palisade (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 5,000 lbs GTW and 750 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs WD and 750 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 5,000 lbs. gross trailer weight and 750 lbs. tongue weight
- Compatible with weight distribution hitch (6,000 lbs. WD / 750 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

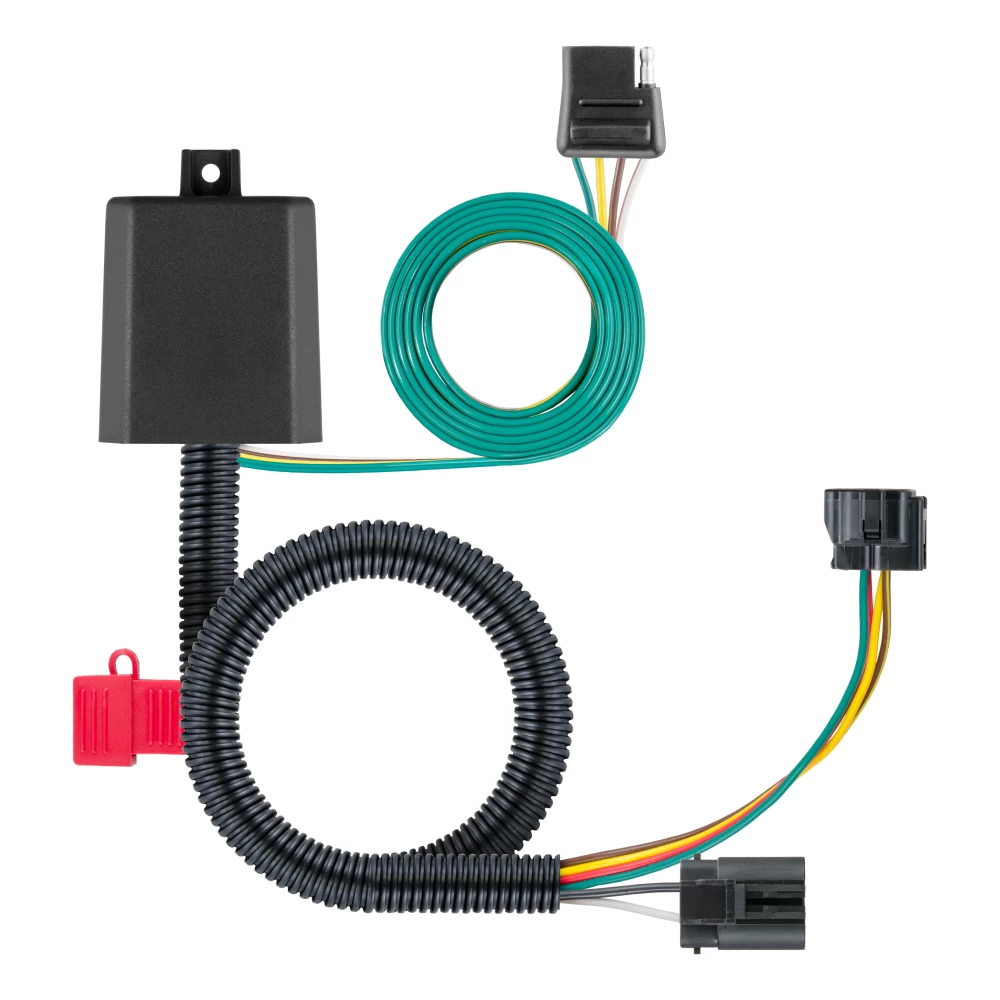

CURT 56332 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.
This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Hyundai Santa Fe, Santa Fe XL and Veracruz and Kia Sedona and Sorento (factory tow package required; to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$273 57 $454.90 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$454.90 $273 57
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $68.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13427 56332-CH2354
- Includes: Class 3 Trailer Tow Hitch, Custom 4-Flat
Compatibility Chart
Get Expert Help
For 2020-2022 Hyundai Palisade Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13427 56332 2 inch Tow Receiver Install Notes
Installation Instructions for Hyundai Palisade
Part Numbers:
- 13427
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 11mm Socket
- 14mm Socket
- 17mm Socket
- 19mm Socket
- 19mm Boxed-End Wrench
- Straight Screwdriver
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Spare Tire
- Use an 11mm socket and ratchet to lower the spare tire.
- Place the spare tire off to the side.
Step 2: Remove Underbody Panel
- Remove three push clips securing the driver-side underbody panel.
- Use a 14mm socket to turn two plastic retainers counterclockwise.
- Set the panel aside for reinstallation.
Step 3: Lower Exhaust
- Unhook the four rearward-most exhaust isolators to lower the exhaust.
- Support the exhaust to avoid damage.
Step 4: Install Hitch
- Raise the hitch into position over the exhaust.
- Loosely install the fasteners into the existing vehicle weldnuts and tube spacers in the frame.
Step 5: Torque Hardware
- Torque all M12 fasteners to 79 lb-ft.
- Torque all M10 fasteners to 48 lb-ft.
Step 6: Reassemble Vehicle
- Reinstall the underbody panel, raise the spare tire back into position, and reinstall the exhaust isolators.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs.
- Tongue Weight (TW): 750 lbs.
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs.
- Tongue Weight (TW): 750 lbs.
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (2) M10x1.25, 30mm Hex Head Cap Screws
- (4) M12x1.75, 120mm Hex Head Cap Screws
- (4) M12x1.75 Hex Nuts
- (4) 1/2" Conical Spring Washers
- (4) 7/16" Conical Spring Washers
Important Notice:
- This installation requires part removal but no drilling.
- For assistance, contact technical support at 877-287-8634.
Installation Instructions for Hyundai Palisade
Part Numbers:
- 13427
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 11mm Socket
- 14mm Socket
- 17mm Socket
- 19mm Socket
- 19mm Boxed-End Wrench
- Straight Screwdriver
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Spare Tire
- Use an 11mm socket and ratchet to lower the spare tire.
- Place the spare tire off to the side.
Step 2: Remove Underbody Panel
- Remove three push clips securing the driver-side underbody panel.
- Use a 14mm socket to turn two plastic retainers counterclockwise.
- Set the panel aside for reinstallation.
Step 3: Lower Exhaust
- Unhook the four rearward-most exhaust isolators to lower the exhaust.
- Support the exhaust to avoid damage.
Step 4: Install Hitch
- Raise the hitch into position over the exhaust.
- Loosely install the fasteners into the existing vehicle weldnuts and tube spacers in the frame.
Step 5: Torque Hardware
- Torque all M12 fasteners to 79 lb-ft.
- Torque all M10 fasteners to 48 lb-ft.
Step 6: Reassemble Vehicle
- Reinstall the underbody panel, raise the spare tire back into position, and reinstall the exhaust isolators.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs
- Tongue Weight (TW): 750 lbs
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs
- Tongue Weight (TW): 750 lbs
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (2) M10x1.25, 30mm Hex Head Cap Screws
- (4) M12x1.75, 120mm Hex Head Cap Screws
- (4) M12x1.75 Hex Nuts
- (4) 1/2" Conical Spring Washers
- (4) 7/16" Conical Spring Washers
Important Notice:
- This installation requires part removal but no drilling.
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
End of Instructions
Installation Instructions for Hyundai Santa Fe, Hyundai Veracruz, Kia Sedona, and Kia Sorento
Part Numbers:
- 56332
Wiring Access Location:
- S5: Behind driver side rear bumper
- S7: Behind passenger side rear bumper
Tools Required:
- Flat blade screwdriver
- Side cutter
Step-by-Step Instructions:
For Vehicles with Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring harness connector near the rear tire on the passenger side, along the frame. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For Vehicles without Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring connector behind the rear tire on the driver side, on the outside frame rail. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For All Vehicles:
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle by going over the exhaust along the bumper.
- Avoid areas that may cut, pinch, or melt the wire.
- Secure any loose wires with the provided cable ties.
-
Mount the Converter Box:
- Locate a flat, clean surface that is out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
Warning: Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
-
Insert the Fuse:
- To complete the installation, insert the provided 10 AMP fuse into the in-line fuse holder.
Safety Notes:
- The battery connection must be fuse protected, 10 amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Note: Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for Vehicles
Part Numbers:
- 56332
Wiring Access Location:
- S5: Behind driver side rear bumper
- S7: Behind passenger side rear bumper
Tools Required:
- Flat blade screwdriver
- Side cutter
Step-by-Step Instructions:
For Vehicles with Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring harness connector near the rear tire on the passenger side, along the frame. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For Vehicles without Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring connector behind the rear tire on the driver side, on the outside frame rail. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For All Vehicles:
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle by going over the exhaust along the bumper.
- Avoid areas that may cut, pinch, or melt the wire.
- Secure any loose wires with the provided cable ties.
-
Mount the Converter Box:
- Locate a flat, clean surface that is out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
Warning: Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
-
Insert the Fuse:
- To complete the installation, insert the provided 10 AMP fuse into the in-line fuse holder.
Safety Notes:
- The battery connection must be fuse protected, 10 amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Note: Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
- This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
