For 2021‑2024 Jeep Grand Cherokee L Trailer Hitch Fits All Models Curt 13525 2 inch Tow Receiver
Model: 13525-CH2507This Trailer Tow Hitch Fits The Following Vehicles:
2021 - 2024 Jeep Grand Cherokee L All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2021, 2022, 2023, 2024

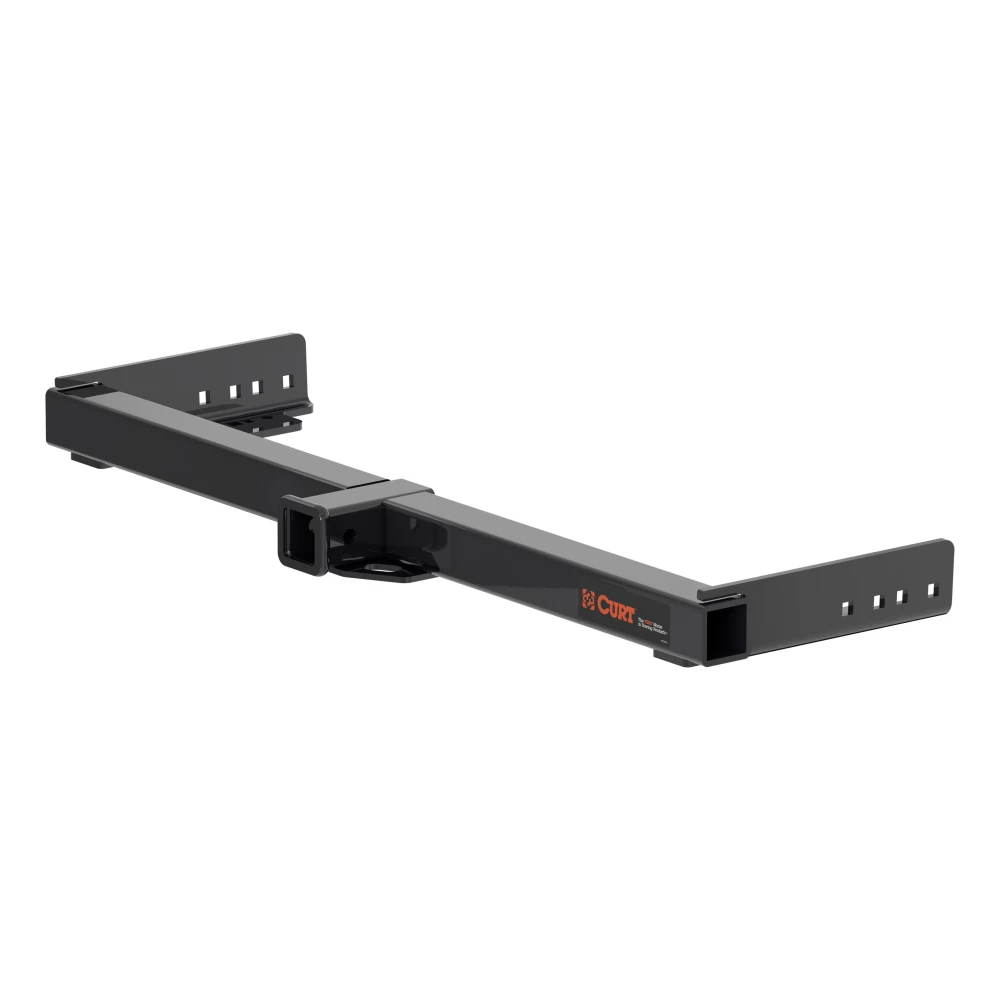

CURT 13525 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Jeep Grand Cherokee and Grand Cherokee L (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 7,500 lbs GTW and 750 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 7,500 lbs WD and 750 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
- Compatible with weight distribution hitch (7,500 lbs. WD / 750 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$240 57 $376.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$376.95 $240 57
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13525-CH2507
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2021-2024 Jeep Grand Cherokee L Trailer Hitch Fits All Models Curt 13525 2 inch Tow Receiver Install Notes
Installation Instructions for Jeep Grand Cherokee L
Part Numbers:
- 13525
Tools Required:
- Ratchet
- Torque wrench
- Socket, 8mm
- Socket, 10mm
- Socket, 13mm
- Socket, 21mm
- Socket, 3/4"
- Socket, 1/2"
- Torx bit, T-30
- Flathead screwdriver
Step-by-Step Instructions:
Step 1: Remove Bumper Cover Bolts
- Remove four bolts from the bottom of the bumper cover using a 10mm socket.
- Remove four bolts from the rear of each wheel well liner, starting from the bottom, using an 8mm socket.
Step 2: Remove Wheel Trim
- Gently pull the wheel trim away from the vehicle, starting at the bottom and working upward.
- Squeezing the white clips behind the wheel liner may ease removal.
- Remove the newly exposed bolt using a 10mm socket.
- Repeat on the other side of the vehicle.
Step 3: Disconnect Electrical Connectors
- Locate the electrical connectors at the rear of the tire behind the bumper cover on each side.
- Disconnect the connectors by pulling the tab on the vehicle side of the connector forward and pushing it down.
Step 4: Remove Additional Bolts
- With the rear lift gate open, remove the two black plugs in the bumper cover using a flathead screwdriver.
- Remove the bolts behind the plugs with a 10mm socket.
Step 5: Remove Taillight Cover
- Remove the taillight cover by pulling it straight rearward. If equipped with a plug, remove it first.
- Optional: To ease installation, remove the taillight by using a T-30 Torx bit to remove the securing bolt and pulling the light rearward. Set aside for reinstallation.
Step 6: Remove Bumper Cover
- Gently pull the bumper cover away from the vehicle, starting at the wheel well and working toward the rear. Set aside for reinstallation.
Step 7: Remove Exhaust Hangers
- L Models: Remove two bolts from each exhaust hanger on the outside of the vehicle using a 13mm socket.
- Non-L Models: Remove one bolt from each exhaust hanger on the bottom of the frame rail using a 13mm socket.
Step 8: Remove Rear Bumper Beam
- Remove two bolts from the outside and one bolt from the bottom of each frame rail using a 21mm socket.
- Return the bumper beam and fasteners to the vehicle owner.
Step 9: Install Hitch
- Insert the hitch side plates into the frame rails and loosely secure with 1/2" carriage bolts (#2) and serrated-flange nuts (#3). Use fishwires for the side bolts if necessary.
- L Models: Use the set of holes farthest from the main body.
- Non-L Models: Use the set of holes closest to the main body.
- Insert 5/16" carriage bolts (#5) into the smaller slots on the bottom of the side plates. Reinstall the exhaust using 5/16" serrated-flange nuts (#6).
Step 10: Torque Hardware
- Torque 1/2" hardware to 110 ft-lbs.
- Torque 5/16" hardware to 178 in-lbs.
Step 11: Reinstall Bumper Cover
- Reinstall the bumper cover following Steps 1–7 in reverse order.
- Optional: When not in use, the hitch can be hidden behind the factory bumper cover.
Hardware List:
- (1) Trailer hitch
- (6) Carriage bolt, 1/2"
- (6) Serrated-flange nut, 1/2"
- (4) Fishwire, 1/2"
- (2) Carriage bolt, 5/16"
- (2) Flange nut, 5/16"
Safety Notes:
- Safety glasses should be worn at all times during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and secure.
Specifications:
- Gross trailer weight (GTW): 7,500 lbs.
- Tongue weight (TW): 750 lbs.
- Weight distribution (WD): 7,500 lbs.
- WD tongue weight (WDTW): 750 lbs.
Installation Instructions for Vehicle
Part Numbers:
- 13525
Tools Required:
- Ratchet
- Torque wrench
- Socket, 8mm
- Socket, 10mm
- Socket, 13mm
- Socket, 21mm
- Socket, 3/4"
- Socket, 1/2"
- Torx bit, T-30
- Flathead screwdriver
Step-by-Step Instructions:
Step 1: Remove Bumper Cover Bolts
- Remove four bolts from the bottom of the bumper cover using a 10mm socket.
- Remove four bolts from the rear of each wheel well liner, starting from the bottom, using an 8mm socket.
Step 2: Remove Wheel Trim
- Gently pull the wheel trim away from the vehicle, starting at the bottom and working upward.
- Squeezing the white clips behind the wheel liner may ease removal.
- Remove the newly exposed bolt using a 10mm socket.
- Repeat on the other side of the vehicle.
Step 3: Disconnect Electrical Connectors
- Locate the electrical connectors at the rear of the tire behind the bumper cover on each side.
- Disconnect the connectors by pulling the tab on the vehicle side of the connector forward and pushing it down.
Step 4: Remove Additional Bolts
- With the rear lift gate open, remove the two black plugs in the bumper cover using a flathead screwdriver.
- Remove the bolts behind the plugs with a 10mm socket.
Step 5: Remove Taillight Cover
- Remove the taillight cover by pulling it straight rearward. If equipped with a plug, remove it first.
- Optional: To ease installation, remove the taillight by using a T-30 Torx bit to remove the securing bolt and pulling the light rearward. Set aside for reinstallation.
Step 6: Remove Bumper Cover
- Gently pull the bumper cover away from the vehicle, starting at the wheel well and working toward the rear. Set aside for reinstallation.
Step 7: Remove Exhaust Hangers
- L Models: Remove two bolts from each exhaust hanger on the outside of the vehicle using a 13mm socket.
- Non-L Models: Remove one bolt from each exhaust hanger on the bottom of the frame rail using a 13mm socket.
Step 8: Remove Rear Bumper Beam
- Remove two bolts from the outside and one bolt from the bottom of each frame rail using a 21mm socket.
- Return the bumper beam and fasteners to the vehicle owner.
Step 9: Install Hitch
- Insert the hitch side plates into the frame rails and loosely secure with 1/2" carriage bolts (#2) and serrated-flange nuts (#3). Use fishwires for the side bolts if necessary.
- L Models: Use the set of holes farthest from the main body.
- Non-L Models: Use the set of holes closest to the main body.
- Insert 5/16" carriage bolts (#5) into the smaller slots on the bottom of the side plates. Reinstall the exhaust using 5/16" serrated-flange nuts (#6).
Step 10: Torque Hardware
- Torque 1/2" hardware to 110 ft-lbs.
- Torque 5/16" hardware to 178 in-lbs.
Step 11: Reinstall Bumper Cover
- Reinstall the bumper cover following Steps 1–7 in reverse order.
- Optional: When not in use, the hitch can be hidden behind the factory bumper cover.
Hardware List:
- (1) Trailer hitch
- (6) Carriage bolt, 1/2"
- (6) Serrated-flange nut, 1/2"
- (4) Fishwire, 1/2"
- (2) Carriage bolt, 5/16"
- (2) Flange nut, 5/16"
Safety Notes:
- Safety glasses should be worn at all times during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and secure.
Specifications:
- Gross trailer weight (GTW): 7,500 lbs.
- Tongue weight (TW): 750 lbs.
- Weight distribution (WD): 7,500 lbs.
- WD tongue weight (WDTW): 750 lbs.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
