For 2022‑2024 Ford F150 Trailer Hitch Fits Models w/o factory hitch exc Police w/ LED Tail back sensors & scale Curt 14017 2 inch Tow Receiver
Model: 14017-CH1369This Trailer Tow Hitch Fits The Following Vehicles:
2022 - 2024 Ford F-150 w/o factory hitch exc Police w/ LED Tail back sensors & scale
This Trailer Tow Hitch Includes the Following Parts:
- Class 4 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2022, 2023, 2024

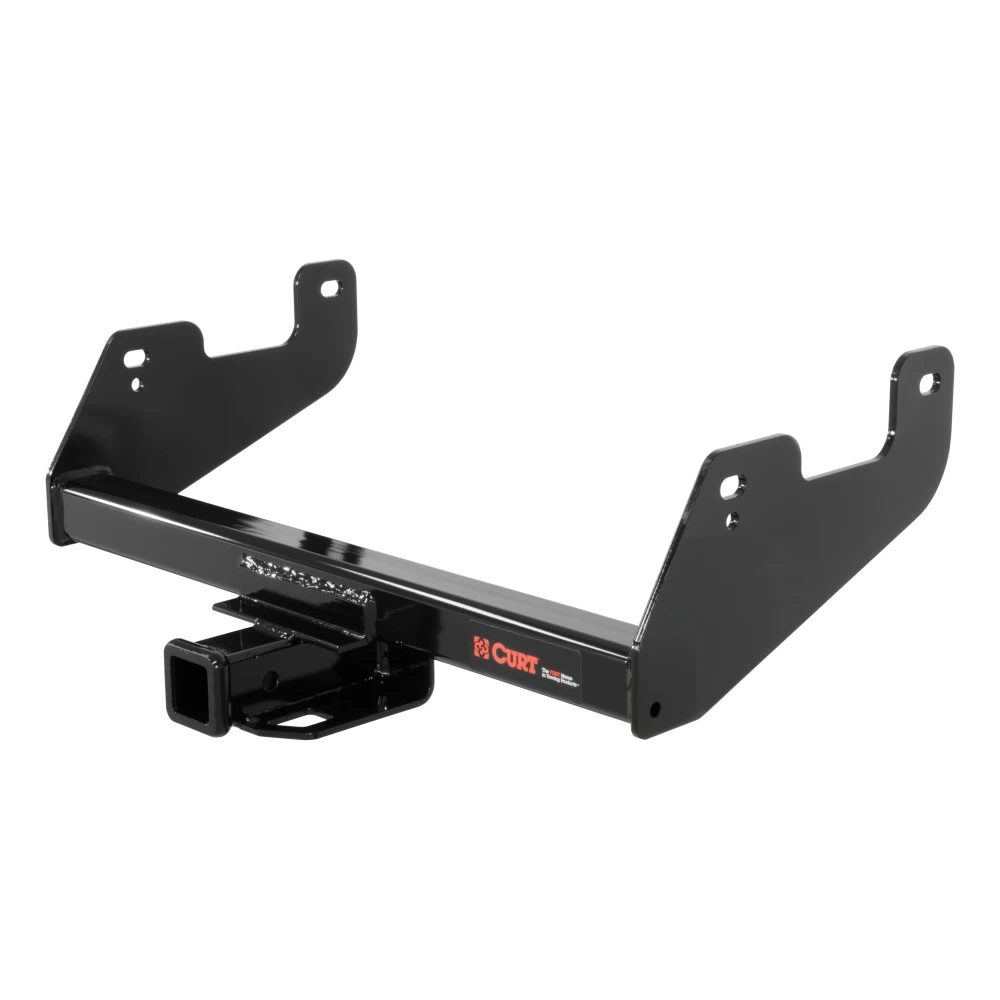

CURT 14017 Class 4 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans.
This particular class 4 hitch fits certain years of the Ford F150 (to verify vehicle compatibility, see application info) It provides a weight carrying capacity of 10,000 lbs GTW and 1,000 lbs.
TW It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs and a WDTW of 1,200 lbs.
CURT class 4 tow hitches are as much suited for work as they are for play With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component) All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation.
From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on To prove it, we test all our hitches in accordance with SAE J684 for safety..
Features:
- Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
- Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$258 50 $405.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$405.95 $258 50
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $64.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 14017-CH1369
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2022-2024 Ford F150 Trailer Hitch Fits Models w/o factory hitch exc Police w/ LED Tail back sensors & scale Curt 14017 2 inch Tow Receiver Install Notes
Installation Instructions for 2015-Present Ford F-150
Part Number:
- 14017
Tools Required:
- Ratchet
- Torque wrench
- Sockets: 10mm, 13mm, 15/16"
- Masking tape
- Safety glasses
Hardware List:
- 2 × U-shaped spacers, 0.188" x 1.00" x 2.00"
- 6 × Square-hole spacers, 0.250" x 1.25" x 2.50"
- 4 × 5/8"-11 x 1-3/4" Grade 8 carriage bolts
- 4 × 5/8"-11 hex flange nuts
- 4 × 5/8" fishwires
- 1 × M8-1.25 x 25mm hex flange bolt
Step-by-Step Instructions:
-
Prepare Vehicle:
- If present, remove the grounding cable from the rear of the passenger-side frame rail using a 10mm socket. Retain the fastener for reinstallation.
- Lower the spare tire to provide additional workspace during the installation.
-
Position U-Shaped Spacers:
- For the rearmost holes on both frame rails, tape a U-shaped spacer into the recess in the frame to ensure proper alignment during hitch installation.
-
Fishwire Carriage Bolts:
- Use the provided fishwires to guide two 5/8" carriage bolts and square-hole spacers through either an access hole or the end of each frame rail. Leave the hardware in the frame with the fishwires attached to facilitate hitch attachment.
-
Mount the Hitch:
- Raise the hitch into position, carefully pulling the fishwires to bring the carriage bolts into their final positions through the hitch mounting holes.
- Remove the fishwires carefully and loosely install the supplied 5/8" hex flange nuts onto the carriage bolts.
- If the grounding cable was removed in Step 1, reinstall it using the provided M8 hex flange bolt.
-
Torque Fasteners:
- Torque all 5/8" fasteners to 210 lb-ft to ensure secure attachment.
- Raise the spare tire back into its original position.
Safety Notes:
- Load Capacities:
- Weight Carrying: 10,000 lbs. trailer weight, 1,000 lbs. tongue weight.
- Weight Distribution: 12,000 lbs. trailer weight, 1,200 lbs. tongue weight.
- Warning: Never exceed your vehicle manufacturer's recommended towing capacity.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
- Warranty:
- CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Alteration to, misuse of, or improper installation of this product voids the warranty. Liability is limited to repair or replacement of products found to be defective and specifically excludes liability for incidental or consequential loss or damage.
For installation questions, contact Technical Support at 1-877-287-8634.
Installation Instructions for 2015-Present Ford F-150
Part Number:
- 14017
Tools Required:
- Ratchet
- Torque wrench
- Sockets: 10mm, 13mm, 15/16"
- Masking tape
- Safety glasses
Hardware List:
- 2 × U-shaped spacers, 0.188" x 1.00" x 2.00"
- 6 × Square-hole spacers, 0.250" x 1.25" x 2.50"
- 4 × 5/8"-11 x 1-3/4" Grade 8 carriage bolts
- 4 × 5/8"-11 hex flange nuts
- 4 × 5/8" fishwires
- 1 × M8-1.25 x 25mm hex flange bolt
Step-by-Step Instructions:
-
Prepare Vehicle:
- If present, remove the grounding cable from the rear of the passenger-side frame rail using a 10mm socket. Retain the fastener for reinstallation.
- Lower the spare tire to provide additional workspace during the installation.
-
Position U-Shaped Spacers:
- For the rearmost holes on both frame rails, tape a U-shaped spacer into the recess in the frame to ensure proper alignment during hitch installation.
-
Fishwire Carriage Bolts:
- Use the provided fishwires to guide two 5/8" carriage bolts and square-hole spacers through either an access hole or the end of each frame rail.
- Leave the hardware in the frame with the fishwires attached to facilitate hitch attachment.
-
Mount the Hitch:
- Raise the hitch into position, carefully pulling the fishwires to bring the carriage bolts into their final positions through the hitch mounting holes.
- Remove the fishwires carefully and loosely install the supplied 5/8" hex flange nuts onto the carriage bolts.
- If the grounding cable was removed in Step 1, reinstall it using the provided M8 hex flange bolt.
-
Torque Fasteners:
- Torque all 5/8" fasteners to 210 lb-ft to ensure secure attachment.
- Raise the spare tire back into its original position.
Safety Notes:
- Load Capacities:
- Weight Carrying: 10,000 lbs. trailer weight, 1,000 lbs. tongue weight.
- Weight Distribution: 12,000 lbs. trailer weight, 1,200 lbs. tongue weight.
- Warning: Never exceed your vehicle manufacturer's recommended towing capacity.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
Specifications:
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
- Drilling Required: No
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty covers defects in material and workmanship at the time of purchase.
- For complete warranty instructions, please download the full installation PDF.
