Product Details
- Brand: Curt
- Model: 13487 56467 57187 58303-CH3025

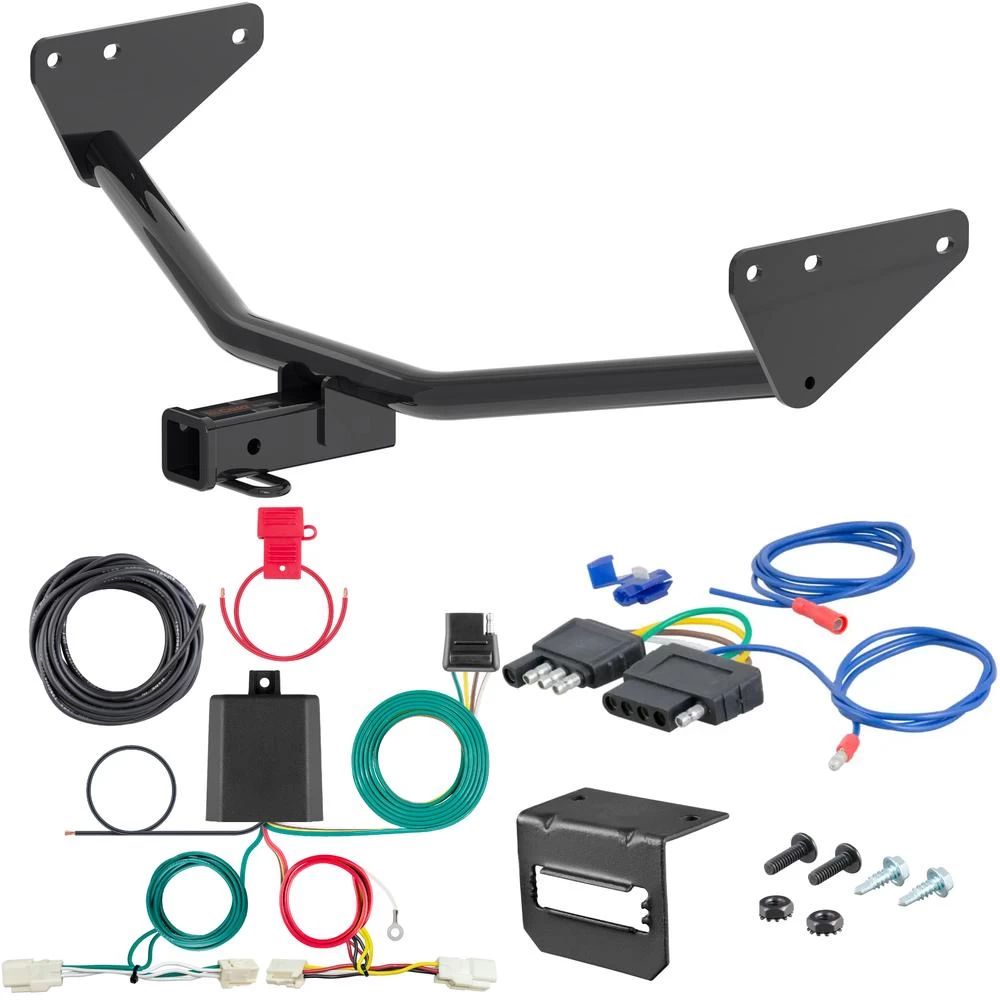

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Harness, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Description
Get Expert Help
For 2022-2024 Mitsubishi Outlander Trailer Hitch + Wiring 5 Pin Fits Models w/o factory tow package - Except PHEV Curt 13487 2 inch Tow Receiver Install Notes
Installation Instructions for Mitsubishi Outlander
Part Numbers:
- 13487
Tools Required:
- Ratchet
- Torque wrench
- Socket (19mm)
- Exhaust removal tool
Step 1: Lower the exhaust
- Remove the three (3) rearmost rubber holders from the exhaust hangers.
- Use a stand to support the exhaust and prevent damage.
- The exhaust will be reinstalled in Step 3.

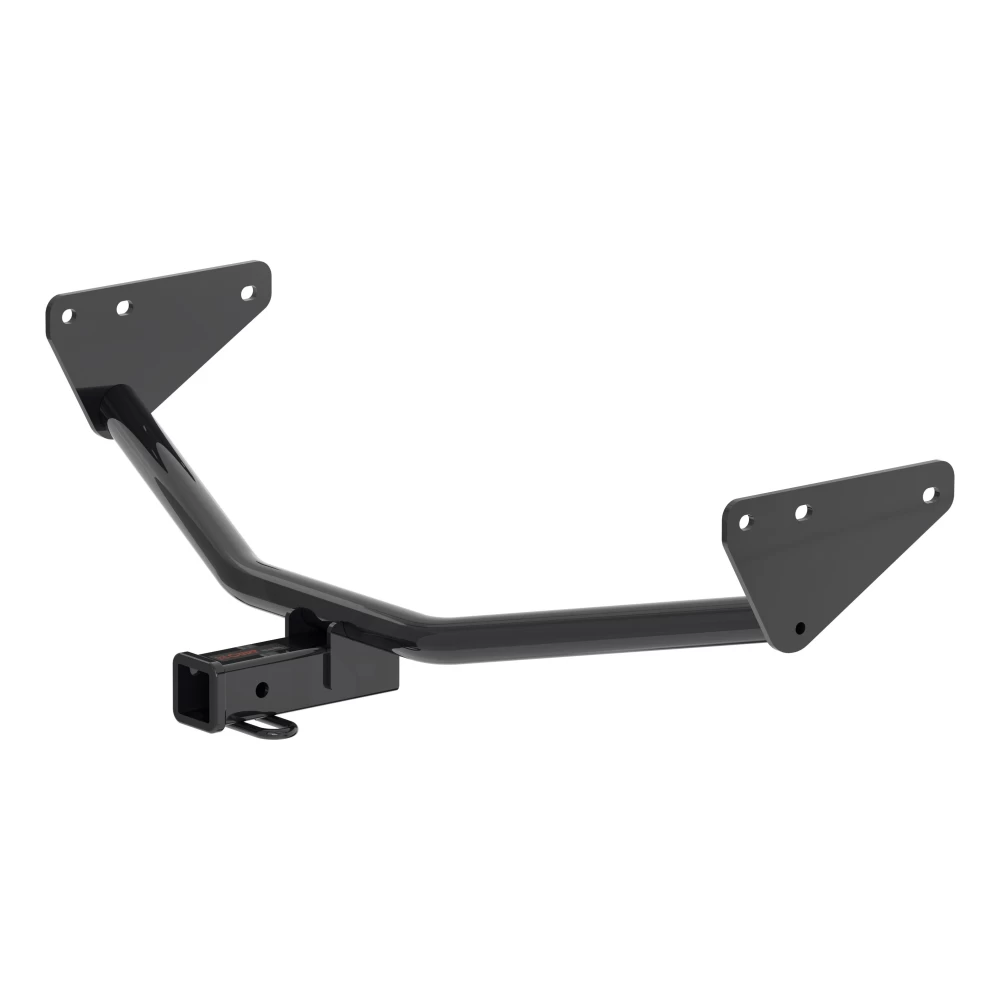

Step 2: Install the hitch
- Raise the trailer hitch into position by sliding the driver side over the exhaust first.
- Align the three (3) holes in the hitch with the three weld nuts on each side of the frame rail.
- Loosely secure the hitch using six (6) M12 hex bolts (#1) and six (6) conical-toothed washers (#2).
Step 3: Torque hardware and reinstall the exhaust
- Torque all M12 fasteners to 60 ft-lbs.
- Reinstall the exhaust onto the hangers removed in Step 1.
Hardware List:
- (6) Hex bolts, M12 - 1.25 x 40mm, CL 8.8 (#1)
- (6) Conical-toothed washers, 1/2” (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 3,500 lbs.
- Tongue Weight (TW): 525 lbs.
- Torque Specification: 60 ft-lbs.
Installation Instructions for Vehicle
Part Numbers:
- 13487
Tools Required:
- Ratchet
- Torque wrench
- Socket (19mm)
- Exhaust removal tool
Step-by-Step Instructions:
Step 1: Lower the exhaust
- Remove the three (3) rearmost rubber holders from the exhaust hangers.
- Use a stand to support the exhaust and prevent damage.
- The exhaust will be reinstalled in Step 3.
Step 2: Install the hitch
- Raise the trailer hitch into position by sliding the driver side over the exhaust first.
- Align the three (3) holes in the hitch with the three weld nuts on each side of the frame rail.
- Loosely secure the hitch using six (6) M12 hex bolts (#1) and six (6) conical-toothed washers (#2).
Step 3: Torque hardware and reinstall the exhaust
- Torque all M12 fasteners to 60 ft-lbs.
- Reinstall the exhaust onto the hangers removed in Step 1.
Hardware List:
- (6) Hex bolts, M12 - 1.25 x 40mm, CL 8.8 (#1)
- (6) Conical-toothed washers, 1/2” (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 3,500 lbs.
- Tongue Weight (TW): 525 lbs.
- Torque Specification: 60 ft-lbs.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.

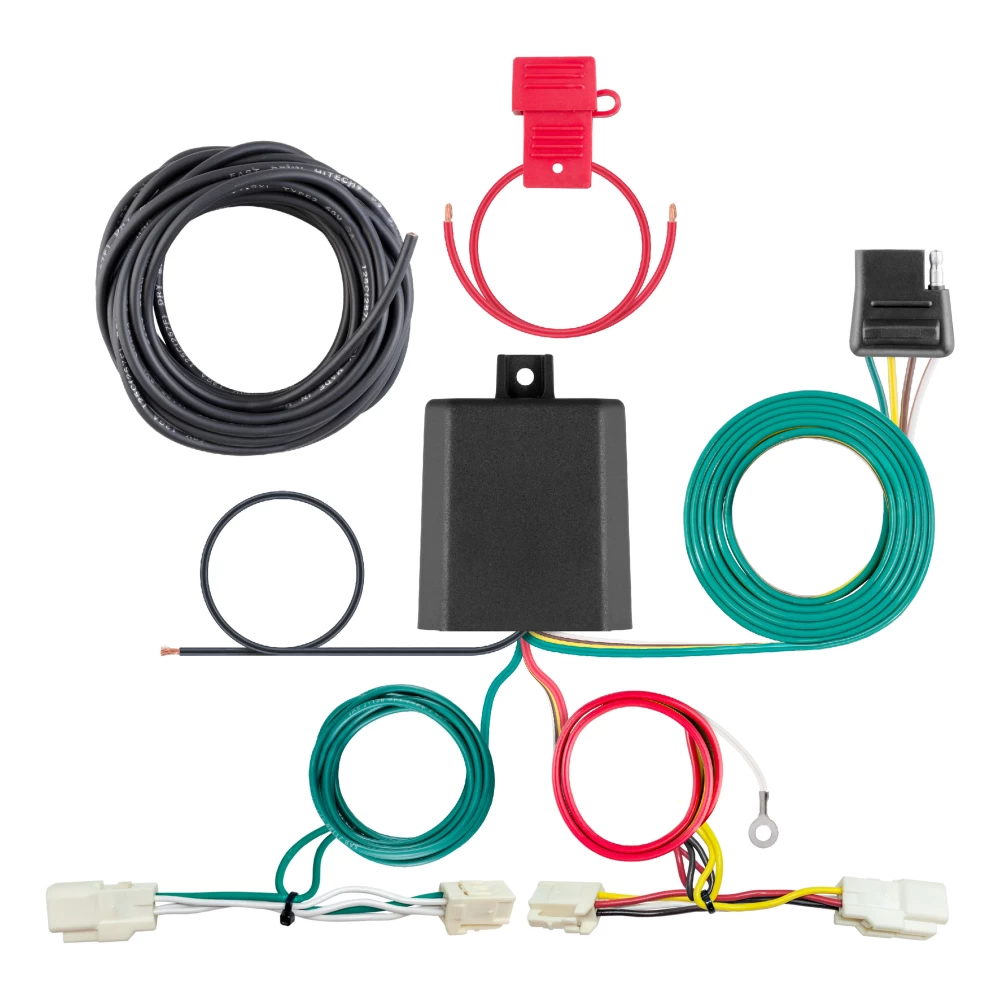

Installation Instructions for Mitsubishi Outlander
Part Numbers:
- 56467
Wiring Access Location:
- T1: Behind driver side taillight housing
- T2: Behind passenger side taillight housing
Tools Required:
- Ratchet
- Phillips screwdriver
- Fish wire
- Drill
- Drill bit (3/32")
- Wire cutter
- Wire stripper
- Crimping tool
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Locate the vehicle battery and disconnect the negative terminal. Secure the cable away from the battery to prevent accidental contact during the installation.
-
Remove Taillight Trim:
- Open the rear hatch. Use a panel trim removal tool to remove the taillight trim panels.
- Remove the two Phillips-head screws securing each taillight.
-
Remove the Taillights:
- Carefully pull each taillight straight back to detach it. Avoid damaging the alignment tabs or letting the housing slip inside the body.
- Locate the vehicle’s taillight wiring connectors behind the grommet. Disconnect the connectors carefully to avoid damaging the locking tabs. Repeat for the passenger side.
-
Install Driver-Side Wiring:
- Drop a fish wire down inside the box where the driver-side taillight was removed.
- From under the vehicle, attach the custom wiring harness end with the yellow wire to the fish wire and pull it up into the taillight cavity.
- Connect the custom wiring harness between the factory connectors and the taillight housing, ensuring all connections are secure.
-
Route Passenger-Side Wiring:
- Route the green wire along the rear bumper to the passenger-side taillight cavity. Secure the wire with zip ties as needed.
- Repeat the connection process for the passenger side, ensuring secure and locked connections.
-
Mount the Converter Box:
- Locate a flat surface near the driver-side rear bumper or inside the taillight cavity.
- Attach the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
-
Ground the Wiring Harness:
- Locate a grounding point, such as an existing screw or bolt in the vehicle frame. If necessary, drill a 3/32" pilot hole in a rust-free and clean area.
- Secure the white ground wire using the provided ring terminal and ground screw.
-
Route and Connect the Power Wire:
- Route the black power wire from the converter box to the vehicle battery, following the Powered Converter Lead Instruction Sheet for proper routing.
- Avoid sharp edges, hot components, and moving parts. Secure the wire along its path with cable ties.
-
Secure the 4-Flat Connector:
- Route the 4-flat connector along the rear bumper and mount it close to the receiver tube. Use cable ties to secure any loose wires.
- When not in use, roll up and store the 4-flat connector in a safe location. Install the provided dust cover to protect it from dirt and corrosion.
-
Reassemble and Test:
- Reinstall the taillights and any trim or panels removed during the installation.
- Reconnect the negative battery terminal.
- Test the wiring harness using a test light, 4-flat tester, or a functioning trailer to confirm proper operation of all lighting functions.
Hardware List:
- Ring terminal
- Ground screw
- Cable ties
- Double-sided tape
Electrical Ratings:
- Signal Circuits: 5.0 amps per side
- Tail/Running Circuits: 7.5 amps total
Safety Notes:
- Do not exceed the product or vehicle load ratings.
- Ensure the power wire is fuse-protected (10 amps max).
- Regularly inspect all wiring and connections for damage or wear.
Specifications:
- Powered converter designed for 12-volt negative ground systems.
- Compliance: SAE J684 standards.
Maintenance:
- Periodically inspect all wiring and connections to ensure they remain secure and functional.
Installation Instructions
Part Numbers:
- 56467
Wiring Access Location:
- T1: Behind driver side taillight housing
- T2: Behind passenger side taillight housing
Tools Required:
- Ratchet
- Phillips screwdriver
- Fish wire
- Drill
- Drill bit (3/32")
- Wire cutter
- Wire stripper
- Crimping tool
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Locate the vehicle battery and disconnect the negative terminal. Secure the cable away from the battery to prevent accidental contact during the installation.
-
Remove Taillight Trim:
- Open the rear hatch. Use a panel trim removal tool to remove the taillight trim panels.
- Remove the two Phillips-head screws securing each taillight.
-
Remove the Taillights:
- Carefully pull each taillight straight back to detach it. Avoid damaging the alignment tabs or letting the housing slip inside the body.
- Locate the vehicle’s taillight wiring connectors behind the grommet. Disconnect the connectors carefully to avoid damaging the locking tabs. Repeat for the passenger side.
-
Install Driver-Side Wiring:
- Drop a fish wire down inside the box where the driver-side taillight was removed.
- From under the vehicle, attach the custom wiring harness end with the yellow wire to the fish wire and pull it up into the taillight cavity.
- Connect the custom wiring harness between the factory connectors and the taillight housing, ensuring all connections are secure.
-
Route Passenger-Side Wiring:
- Route the green wire along the rear bumper to the passenger-side taillight cavity. Secure the wire with zip ties as needed.
- Repeat the connection process for the passenger side, ensuring secure and locked connections.
-
Mount the Converter Box:
- Locate a flat surface near the driver-side rear bumper or inside the taillight cavity.
- Attach the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
-
Ground the Wiring Harness:
- Locate a grounding point, such as an existing screw or bolt in the vehicle frame. If necessary, drill a 3/32" pilot hole in a rust-free and clean area.
- Secure the white ground wire using the provided ring terminal and ground screw.
-
Route and Connect the Power Wire:
- Route the black power wire from the converter box to the vehicle battery, following the Powered Converter Lead Instruction Sheet for proper routing.
- Avoid sharp edges, hot components, and moving parts. Secure the wire along its path with cable ties.
-
Secure the 4-Flat Connector:
- Route the 4-flat connector along the rear bumper and mount it close to the receiver tube. Use cable ties to secure any loose wires.
- When not in use, roll up and store the 4-flat connector in a safe location. Install the provided dust cover to protect it from dirt and corrosion.
-
Reassemble and Test:
- Reinstall the taillights and any trim or panels removed during the installation.
- Reconnect the negative battery terminal.
- Test the wiring harness using a test light, 4-flat tester, or a functioning trailer to confirm proper operation of all lighting functions.
Hardware List:
- Ring terminal
- Ground screw
- Cable ties
- Double-sided tape
Electrical Ratings:
- Signal Circuits: 5.0 amps per side
- Tail/Running Circuits: 7.5 amps total
Safety Notes:
- Do not exceed the product or vehicle load ratings.
- Ensure the power wire is fuse-protected (10 amps max).
- Regularly inspect all wiring and connections for damage or wear.
Specifications:
- Powered converter designed for 12-volt negative ground systems.
- Compliance: SAE J684 standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Maintenance:
- Periodically inspect all wiring and connections to ensure they remain secure and functional.

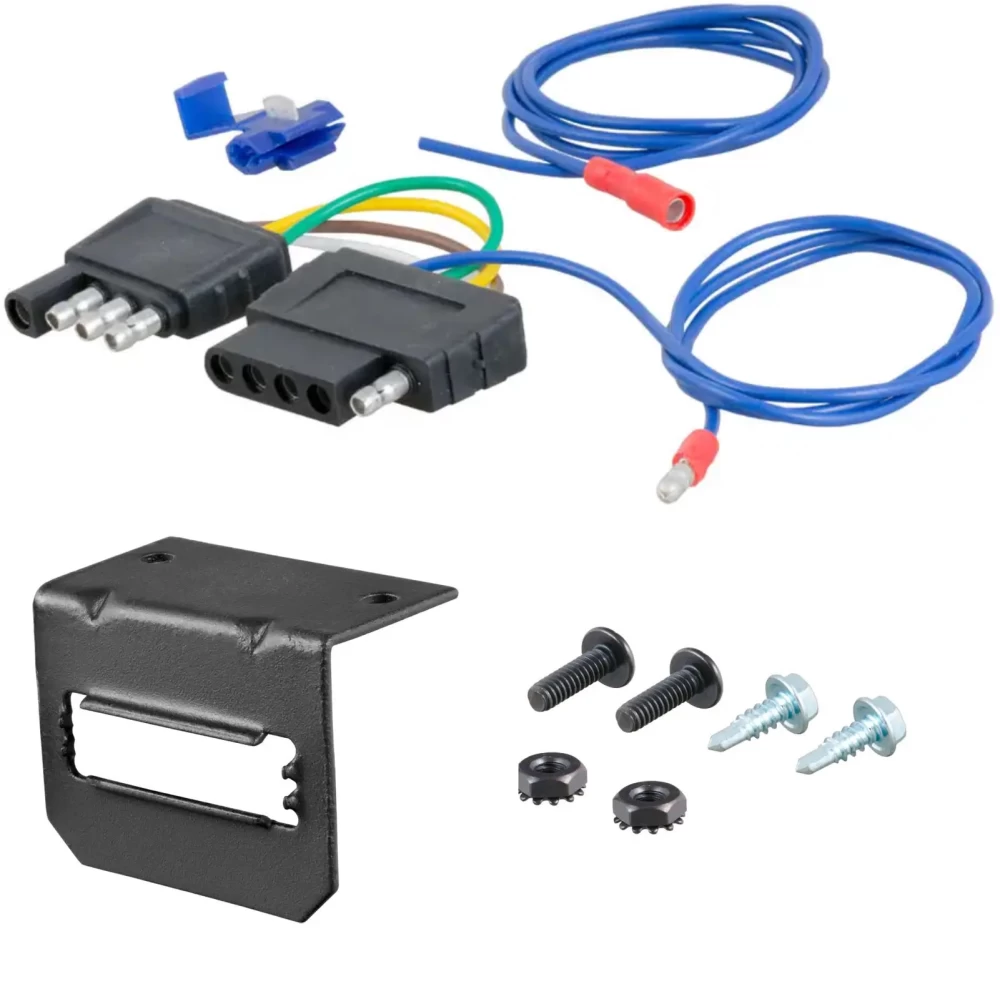

Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
