For 2022-2023 Jeep Grand Cherokee WK 7-Way RV Wiring + Pro Series Pilot Brake Control + Plug & Play BC Adapter By Tekonsha

For 2022-2023 Jeep Grand Cherokee WK 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller + Plug & Play Adapter By Tekonsha

Name: For 2022-2023 Jeep Grand Cherokee WK Trailer Brake Controller + 7 Pin Trailer Wiring by: Tekonsha
Brand: Tekonsha
Price: 231.71 USD
Availability: InStock

Model: 118727 74184 8506020 20212 80550 3082-P-453239

This Bundle Fits The Following Vehicles:

2022-2023 Jeep Grand Cherokee WK

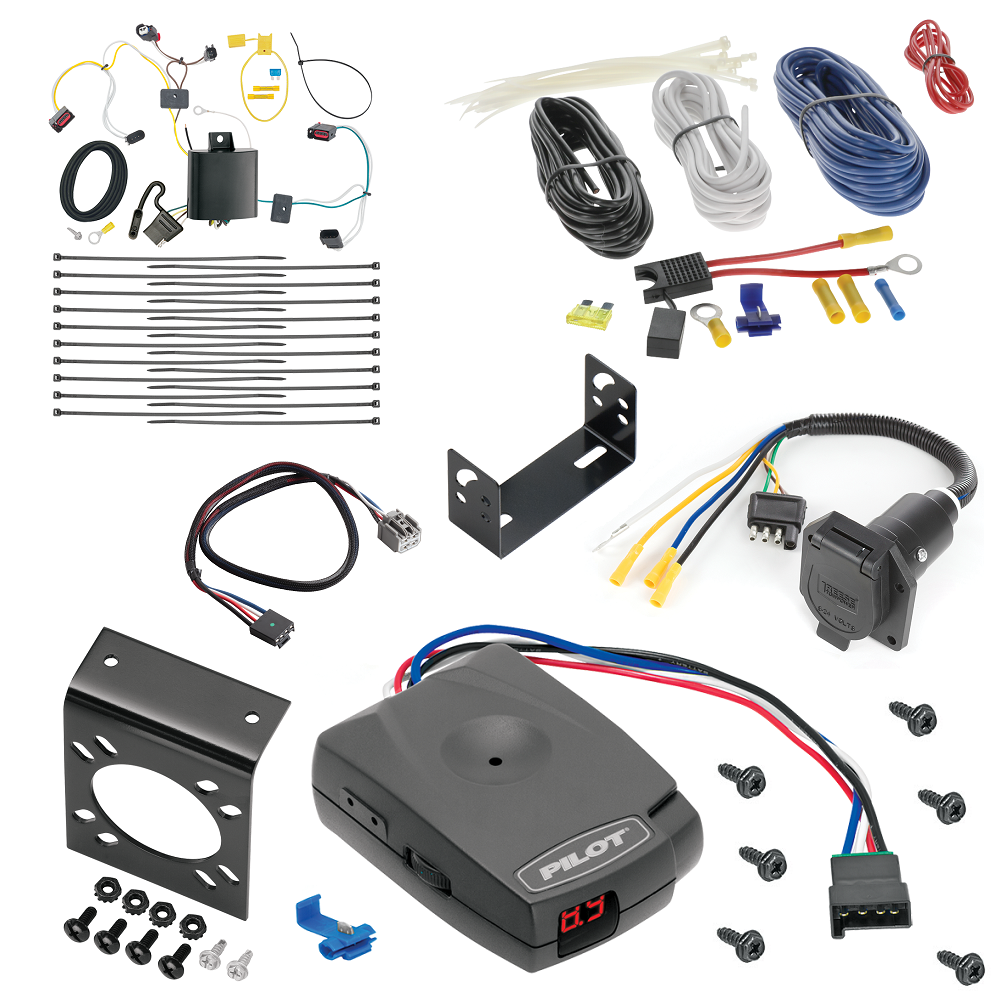

This Bundle Includes the Following Parts:

7-Way RV Wiring
Pro Series Pilot Brake Control
Plug & Play BC Adapter

List of fitment years: 2022, 2023

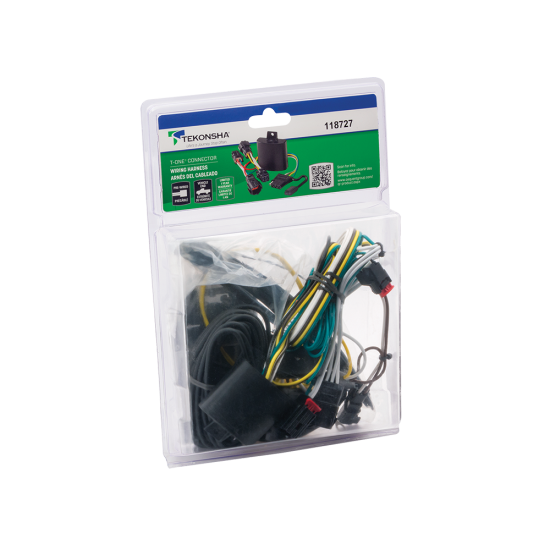

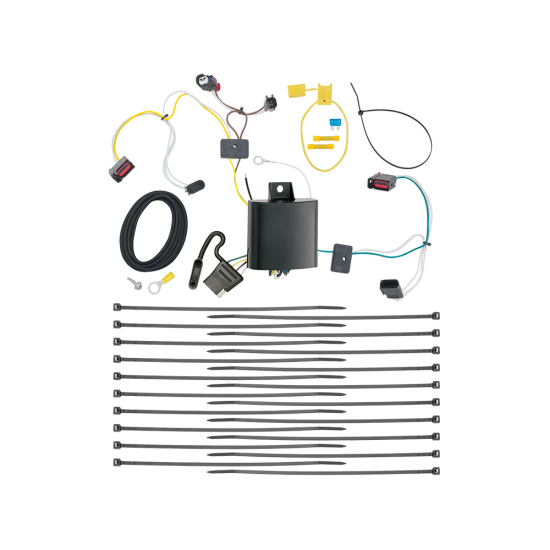

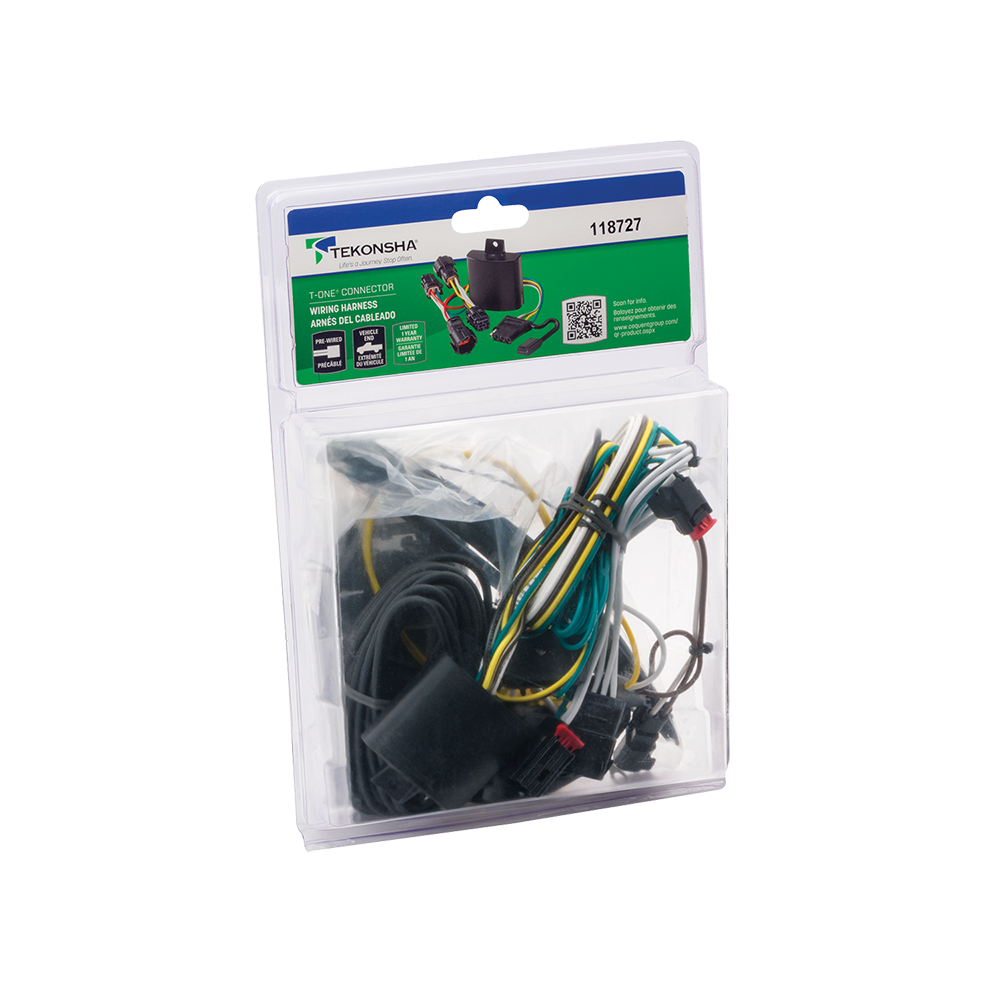

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha

Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.

16 Gauge Bonded Wire With 4-Way Flat Plug & Play
Stop/Turn Circuit Capacity Of 5 Amps
Taillight Circuit Capacity Of 7.5 Amps
Solid, Weatherproof, One-Piece Construction
No Cutting, Splicing, Or Taping Of Vehicle Wires
Includes Converter Where Needed

Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower

The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.

Provide versatility in going from 4-Flat to 7-Way standard plug
Pre-wired with 4-Flat and wired with butt connectors and ring terminal
Easy wiring featuring prewired with 4-Flat and wired with butt connectors and ring terminal
Features non-corroding brass terminals
Mounts to standard 7-Way bracket
Non-corrosive thermo plastic construction
Ring terminal already mounted to ground wire
12 volt and brake wires have butt connectors already attached

Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha

This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.

OEM Style wiring harness
Easy to install
1-3 axles

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready

Mounts electrical connector to attachment bracket
Includes screws and nuts
Attractive point-of-purchase packaging

Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series

Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.

Large easy to read dual digital display shows:
Properly wired control
Voltage output to brakes (vs. a percentage)
Connection to trailer
Dark smoke lens ideal for direct light applications; performs better than red lens
Protection against short circuit/loss of ground
Microprocessor allows control to be mounted upside down and still have a readable display
Standard mounting bracket included with optional ball mount available
For use on any 12 volt negative ground system
Plug & Play feature allows quick and easy connection
Limited lifetime warranty

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Towing and trailering requires a lot of equipment, and sometimes that equipment requires adapters to make it fit just right. Thankfully, Tekonsha® has a complete line of adapters – or harnesses - to fit whatever brake controller you may choose. These Plug & Play adapters are designed with a plug-in installation on both ends, making it simple to install a brake controller into a factory under-dash connector. And considering that many of the vehicles today are pre-wired with a brake controller connector under the dash, selecting a Tekonsha Plug & Play adapter makes wiring easy and trouble-free.

There’s no cutting or splicing needed! Just select the custom two-plug adapter to fit your vehicle, then plug the Tekonsha Plug & Play adapter into your vehicle’s under-dash connector and the other end into your brake controller. In no time, you’ll be on the road. Life’s a Journey. Stop Often.

Provides Plug and Play connector to mate with all HZN brake controllers
Features a factory connector on one end and a brake control connector on the other
Eliminates the need for cutting or splicing of wires
Positive locking connector stays connected when plug in tightly
Reduces possible short circuits

Order today or call us at 877-869-6690 for expert advice and personalized service.

See Full Description

$231 ⁷¹ $282.03 18% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Estimate

Verify Fitment

Year

Make

Model

Add to Wish List

$282.03 $231 ⁷¹

Pay in 4 interest-free installments of with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 118727 74184 8506020 20212 80550 3082-P-453239
Includes: T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Mounting Bracket, Pilot Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles, Trailer Brake Controller Custom Harness

Compatibility Chart

Year Range	Make	Model	Style

Default
Bundle Part Number	118727 74184 8506020 20212 80550 3082-P
Type	Timed Delay
7-Way Manufacturer	Tekonsha
Self Leveling	Yes
Trailer Connector Type	7-Way Round Connector
Display Type	Digital Screen
Installation Style	Plug & Play For Trailer Lights + Run All Undercar Wires
Bracket Included	Yes
Number of Axles	1 to 3
Brake Controller Included	Yes
Brake Control Part Number	80550
Brake Control Manufacturer	Pro Series
Housing	Black Plastic
Warranty	Lifetime
Solid State Construction	Yes
Mounting Hardware	Included
