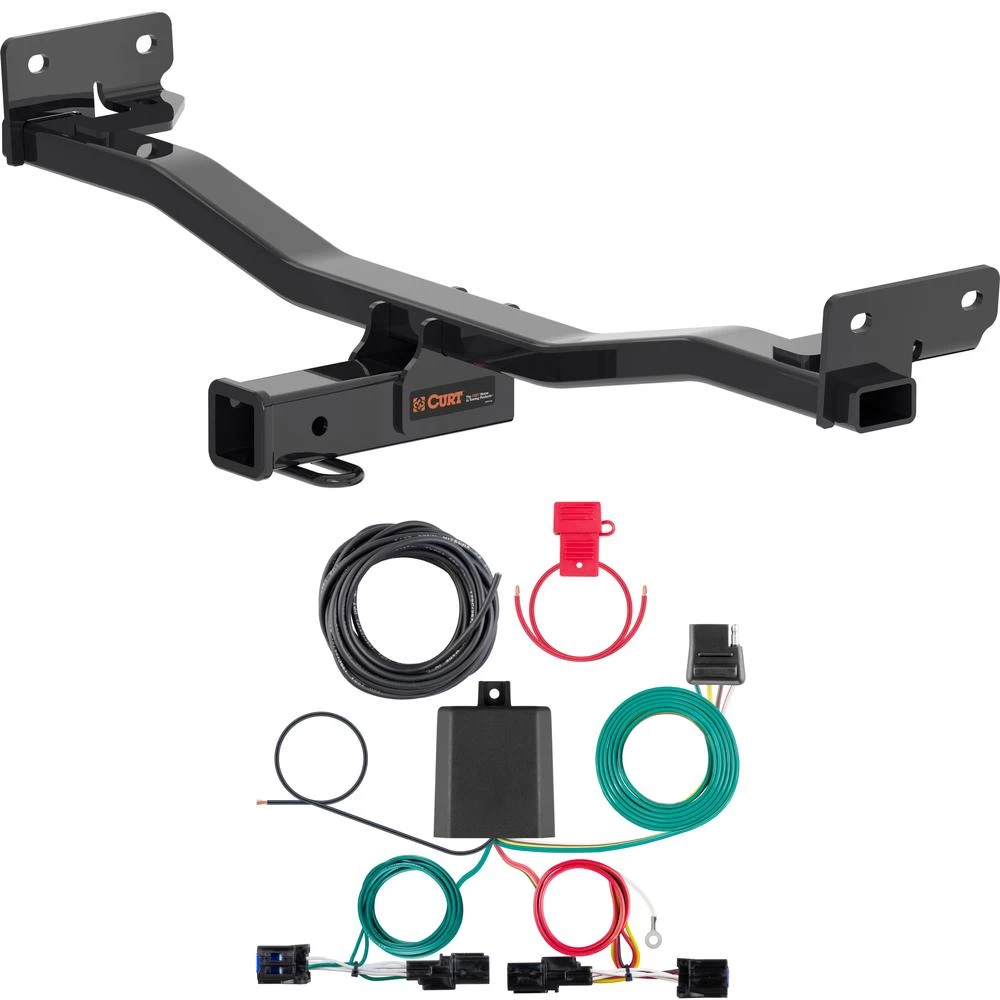

For 2023-2024 Kia Sportage Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13485 56474 2 inch Tow Receiver Install Notes
Installation Instructions for Hyundai Tucson, Kia Sportage
Part Numbers:
- 13485
Tools Required:
- Ratchet
- Torque wrench
- Socket (14mm, 17mm)
- Flathead screwdriver
- Wire brush
Step 1: Remove the underbody panel
- Use a flathead screwdriver to remove four (4) push fasteners.
- Use a 14mm socket to loosen three (3) nuts securing the underbody panel.
- Return the panel and fasteners to the vehicle owner.
Step 2: Install the hitch
- Raise the hitch into position.
- Loosely secure it using six (6) M10 bolts (#1) and six (6) conical-toothed washers (#2).
- Note: Lower the exhaust if needed to ease installation.
Step 3: Tighten hardware
- Torque all M10 bolts to 48 ft-lbs.
Hardware List:
- (6) Hex bolts, M10 x 1.25–35mm, CL 10.9 (#1)
- (6) Conical-toothed washers, 7/16” (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 3,500 lbs.
- Tongue Weight (TW): 525 lbs.
- Torque Specification: 48 ft-lbs.
Installation Instructions for Vehicle
Part Numbers:
- 13485
Tools Required:
- Ratchet
- Torque wrench
- Socket (14mm, 17mm)
- Flathead screwdriver
- Wire brush
Step-by-Step Instructions:
Step 1: Remove the underbody panel
- Use a flathead screwdriver to remove four (4) push fasteners.
- Use a 14mm socket to loosen three (3) nuts securing the underbody panel.
- Return the panel and fasteners to the vehicle owner.
Step 2: Install the hitch
- Raise the hitch into position.
- Loosely secure it using six (6) M10 bolts (#1) and six (6) conical-toothed washers (#2).
- Note: Lower the exhaust if needed to ease installation.
Step 3: Tighten hardware
- Torque all M10 bolts to 48 ft-lbs.
Hardware List:
- (6) Hex bolts, M10 x 1.25–35mm, CL 10.9 (#1)
- (6) Conical-toothed washers, 7/16” (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 3,500 lbs.
- Tongue Weight (TW): 525 lbs.
- Torque Specification: 48 ft-lbs.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.

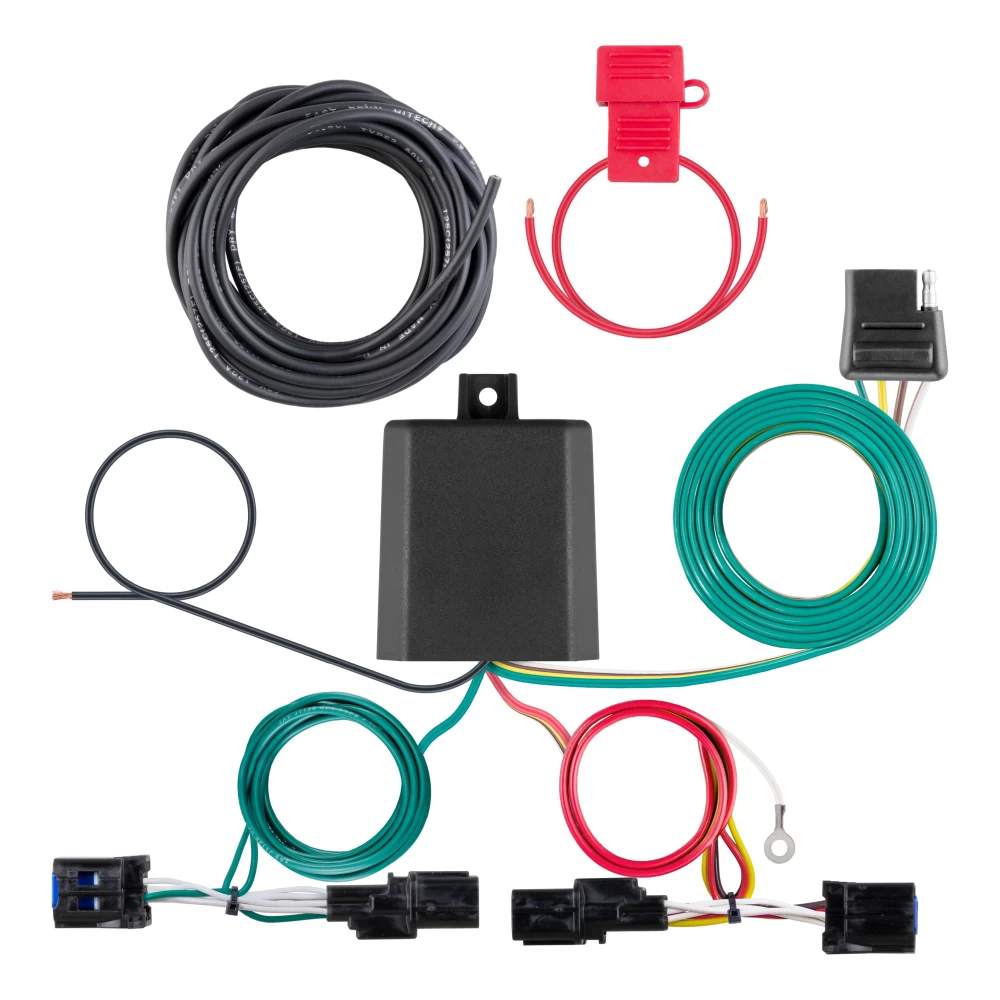

Installation Instructions for Kia Sorento and Sportage with LED Taillights
Part Numbers:
- 56474
Wiring Access Location:
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
Tools Required:
- Ratchet
- Socket, 10mm
- Panel trim removal tool
- Flathead screwdriver
- Wire cutter
- Wire stripper
- Wire crimper
- Electrical tape
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Locate the vehicle's battery in the engine compartment on the driver side.
- Disconnect the negative terminal of the battery to prevent accidental electrical contact. Secure the cable away from the battery during the installation.
-
Remove Taillight Trim and Fasteners:
- Open the rear hatch and use a panel trim removal tool to remove the taillight trim covers.
- Use a 10mm socket to remove the two bolts securing each taillight.
- Carefully pull the taillights straight back to detach them. Avoid damaging alignment tabs. Disconnect the taillight wiring connectors and set the taillights aside.
-
Fishwire the Wiring Harness:
- Starting on the driver side, use a fish wire to route the wiring harness from the taillight cavity to the rear bumper.
- Repeat the process on the passenger side, ensuring the fish wire does not snag on any internal components.
-
Install Driver-Side Wiring:
- Attach the yellow wire from the custom wiring harness to the driver-side taillight wiring connectors.
- Secure all connections and ensure locking tabs are fully engaged.
-
Install Passenger-Side Wiring:
- Route the green wire along the rear bumper to the passenger-side taillight cavity. Secure it with cable ties.
- Attach the green wire from the custom wiring harness to the passenger-side taillight wiring connectors.
- Repeat the connection process as completed on the driver side.
-
Ground the Wiring Harness:
- Locate a suitable grounding point, such as an existing screw or bolt in the vehicle frame.
- If no existing point is available, drill a 3/32" pilot hole in a clean, rust-free area.
- Secure the white ground wire using the provided ring terminal and ground screw.
-
Mount the Converter Box:
- Locate a flat, clean surface near the driver-side taillight cavity.
- Use the provided double-sided tape to adhere the converter box securely in place.
-
Route and Connect the Power Wire:
- Route the black power wire from the converter box to the vehicle's battery, avoiding sharp edges, moving parts, and hot components.
- Pass the power wire through the firewall using an existing grommet or a newly installed one.
- Connect the power wire to the positive terminal of the battery, ensuring a fuse holder with a 10-amp fuse is installed (install the fuse after completing all other steps).
-
Secure and Test the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle near the hitch receiver.
- Secure any excess wiring with cable ties and attach the provided dust cover to protect the connector.
- Test the wiring harness using a test light, 4-flat tester, or a functioning trailer to confirm proper operation.
-
Reassemble and Finalize:
- Reinstall the taillights, trim panels, and any other components removed during the installation.
- Reconnect the negative terminal of the battery and ensure all components are securely fastened.
Hardware List:
- Ring terminal
- Ground screw
- Cable ties
- Double-sided tape
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Safety Notes:
- Do not exceed the product or vehicle load ratings.
- Ensure the power wire is fuse-protected (10 amps max).
- Regularly inspect all wiring and connections for wear or damage.
Specifications:
- Powered converter designed for 12-volt negative ground systems.
- Compliance: SAE J684 standards.
Maintenance:
- Periodically inspect all wiring and connections to ensure they remain secure and functional.
Installation Instructions
Part Numbers:
- 56474
Wiring Access Location:
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
Tools Required:
- Ratchet
- Socket, 10mm
- Panel trim removal tool
- Flathead screwdriver
- Wire cutter
- Wire stripper
- Wire crimper
- Electrical tape
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Locate the vehicle's battery in the engine compartment on the driver side.
- Disconnect the negative terminal of the battery to prevent accidental electrical contact. Secure the cable away from the battery during the installation.
-
Remove Taillight Trim and Fasteners:
- Open the rear hatch and use a panel trim removal tool to remove the taillight trim covers.
- Use a 10mm socket to remove the two bolts securing each taillight.
- Carefully pull the taillights straight back to detach them. Avoid damaging alignment tabs. Disconnect the taillight wiring connectors and set the taillights aside.
-
Fishwire the Wiring Harness:
- Starting on the driver side, use a fish wire to route the wiring harness from the taillight cavity to the rear bumper.
- Repeat the process on the passenger side, ensuring the fish wire does not snag on any internal components.
-
Install Driver-Side Wiring:
- Attach the yellow wire from the custom wiring harness to the driver-side taillight wiring connectors.
- Secure all connections and ensure locking tabs are fully engaged.
-
Install Passenger-Side Wiring:
- Route the green wire along the rear bumper to the passenger-side taillight cavity. Secure it with cable ties.
- Attach the green wire from the custom wiring harness to the passenger-side taillight wiring connectors.
- Repeat the connection process as completed on the driver side.
-
Ground the Wiring Harness:
- Locate a suitable grounding point, such as an existing screw or bolt in the vehicle frame.
- If no existing point is available, drill a 3/32" pilot hole in a clean, rust-free area.
- Secure the white ground wire using the provided ring terminal and ground screw.
-
Mount the Converter Box:
- Locate a flat, clean surface near the driver-side taillight cavity.
- Use the provided double-sided tape to adhere the converter box securely in place.
-
Route and Connect the Power Wire:
- Route the black power wire from the converter box to the vehicle's battery, avoiding sharp edges, moving parts, and hot components.
- Pass the power wire through the firewall using an existing grommet or a newly installed one.
- Connect the power wire to the positive terminal of the battery, ensuring a fuse holder with a 10-amp fuse is installed (install the fuse after completing all other steps).
-
Secure and Test the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle near the hitch receiver.
- Secure any excess wiring with cable ties and attach the provided dust cover to protect the connector.
- Test the wiring harness using a test light, 4-flat tester, or a functioning trailer to confirm proper operation.
-
Reassemble and Finalize:
- Reinstall the taillights, trim panels, and any other components removed during the installation.
- Reconnect the negative terminal of the battery and ensure all components are securely fastened.
Hardware List:
- Ring terminal
- Ground screw
- Cable ties
- Double-sided tape
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Safety Notes:
- Do not exceed the product or vehicle load ratings.
- Ensure the power wire is fuse-protected (10 amps max).
- Regularly inspect all wiring and connections for wear or damage.
Specifications:
- Powered converter designed for 12-volt negative ground systems.
- Compliance: SAE J684 standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Maintenance:
- Periodically inspect all wiring and connections to ensure they remain secure and functional.
