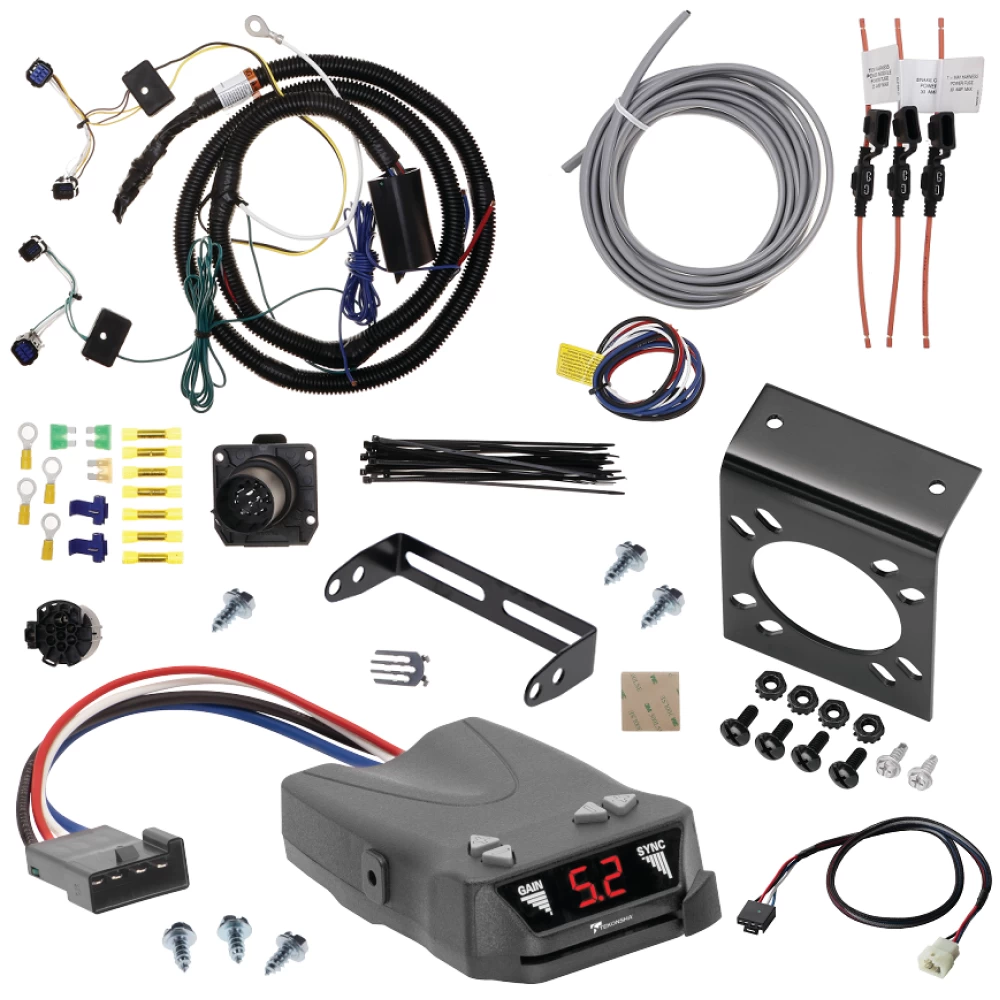

For 23-25 KIA Telluride w/ LED Taillights 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Brakeman IV Brake Controller + Plug & Play Adapter By Tekonsha
Model: 22134 20212 8507120 3081-P-468334This Bundle Fits The Following Vehicles:
2023-2024 KIA Telluride
This Bundle Includes the Following Parts:
- 7-Way RV Wiring
- Tekonsha Brakeman IV Brake Control
- Plug & Play BC Adapter
List of fitment years:
2023, 2024
Tow Harness, 7-Way Complete Kit Manufactured by: Tekonsha
No other product is designed to specifically deliver everything needed for a fully functional 7-Way, INCLUDING a brake control plug. No more piecing together products. These kits are custom made and will REDUCE the installation time of installing a fully functional 7-Way.
Key Features:
- Allows for fully functional 7-Way (Tail Lights, Left/Right turn, Brake, Reverse, Electric Brakes and 12 Volt +)
- Short circuit and overload protection on all circuits including reverse
- Mates with standard U.S. trailer 7-Way connectors
- Provides Plug and Play connector to mate with all Tekonsha brake controls
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
Key Features:
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
Brakeman® IV Time-Delay Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha
The Tekonsha Brakeman IV digital brake control is designed to handle from one to four braking axles and includes a digital display. The digital display indicates the amount of voltage power being delivered to the brakes and assists in accurately adjusting the trailer brakes for city or highway driving. Separate adjustment controls (Output & Sync) allow for not only the different weights (Output) of trailers, but also the speed of activation (Sync) depending on your driving style.
Key Features:
- Small compact design
- Easy push button adjustment for output and sync
- Plug and play feature allows quick and easy connection
- Digital Display output setting, sync setting, brake overload or short connection
- Advanced internal circuit protection
- No leveling required
- Mounts in any direction
- For use on 12 volt negative ground systems only
Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Towing and trailering requires a lot of equipment, and sometimes that equipment requires adapters to make it fit just right. Thankfully, Tekonsha® has a complete line of adapters – or harnesses - to fit whatever brake controller you may choose. These Plug & Play adapters are designed with a plug-in installation on both ends, making it simple to install a brake controller into a factory under-dash connector. And considering that many of the vehicles today are pre-wired with a brake controller connector under the dash, selecting a Tekonsha Plug & Play adapter makes wiring easy and trouble free.
There’s no cutting or splicing needed! Just select the custom two-plug adapter to fit your vehicle, then plug the Tekonsha Plug & Play adapter into your vehicle’s under-dash connector and the other end into your brake controller. In no time, you’ll be on the road. Life’s a Journey. Stop Often.
Key Features:
- Provides Plug and Play connector to mate with all HZN brake controllers
- Features a factory connector on one end and a brake control connector on the other
- Eliminates the need for cutting or splicing of wires
- Positive locking connector stays connected when plug in tightly
- Reduces possible short circuits
$378 99 $422.30 10% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$422.30 $378 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Reese Towpower
- Model: 22134 20212 8507120 3081-P-468334
- Includes: Tow Custom Harness, Mounting Bracket, Brakeman IV Time-Delay Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
-
Fitment CodesTEKPPBCP344 23-25 KIA Telluride w/ LED Taillights
Compatibility Chart
| Year Range | Make | Model | Style | Fitment Code |
|---|
