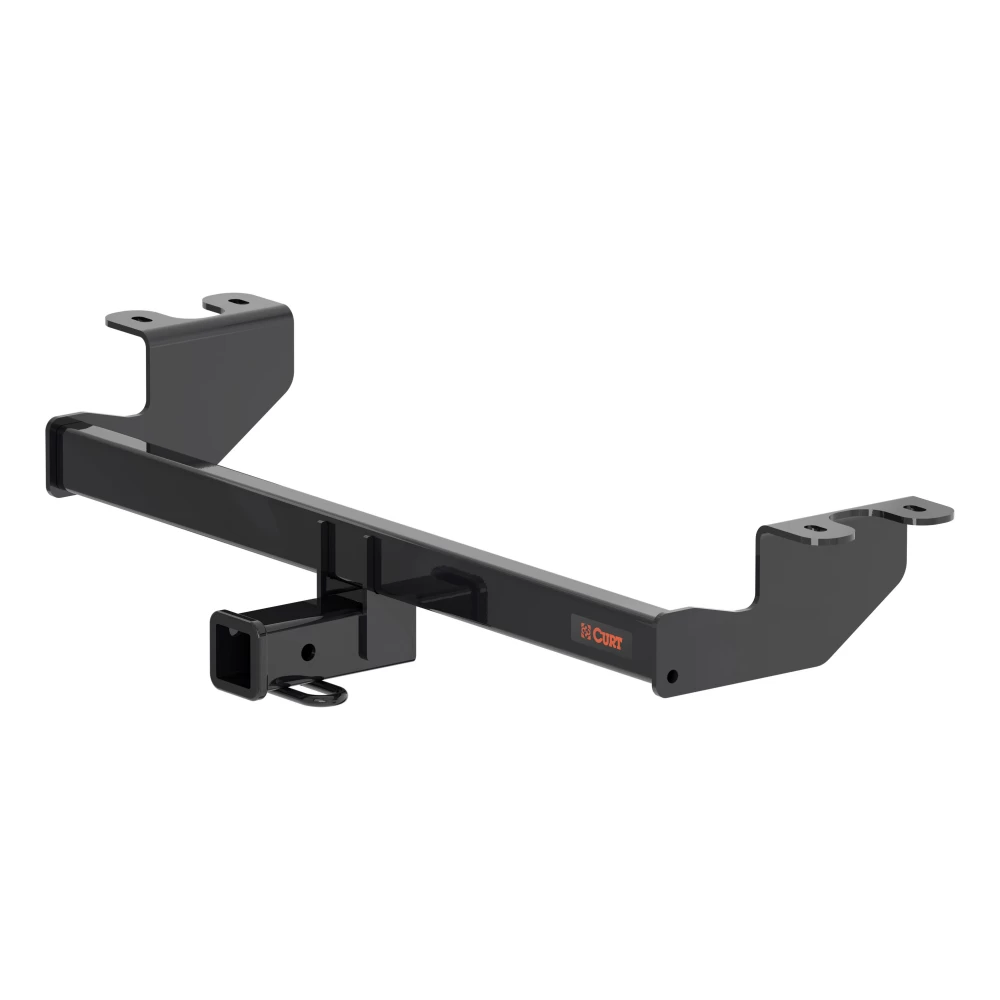

For 2023‑2024 Nissan ARIYA Trailer Hitch Fits All Models Curt 13588 2 inch Tow Receiver
Model: 13588-CH3050This Trailer Tow Hitch Fits The Following Vehicles:
2023 - 2024 Nissan ARIYA All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Drilling Required)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2023, 2024
Class 3 Trailer Hitch, 2" Receiver (Drilling Required)
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Nissan Ariya (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 1,500 lbs GTW and 150 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- No bullet points available.
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$204 70 $318.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$318.95 $204 70
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13588-CH3050
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2023-2024 Nissan ARIYA Trailer Hitch Fits All Models Curt 13588 2 inch Tow Receiver Install Notes
Installation Instructions for Nissan Ariya
Part Numbers:
- 13588
Tools Required:
- Ratchet
- Torque wrench
- Socket (10mm, 19mm)
- Socket extension (3")
- Rotary tool
- Tape measure
- Tape
- Flathead screwdriver
Step 1: Remove the underbody panel
- Remove the underbody panel from the rear of the vehicle by taking out eleven (11) push fasteners and three (3) nuts using a 10mm socket with a 3" extension.
Step 2: Trim the bumper cover
- Trim the bumper cover using the provided trim diagram as reference.
Step 3: Install the hitch
- Raise the hitch into position, gently pulling down on the bumper cover to allow the hitch to slide into place.
- Secure the hitch using M12 hex bolts (#2) and conical-toothed washers (#3).
- Torque the M12 hardware to 86 ft-lbs.
- Reinstall the underbody panel removed in Step 1.
Hardware List:
- (1) Trailer hitch (#1)
- (4) Hex bolts, M12 (#2)
- (4) Conical-toothed washers, 1/2” (#3)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 1,500 lbs.
- Tongue Weight (TW): 150 lbs.
- Torque Specification: 86 ft-lbs.
Installation Instructions
Part Numbers:
- 13588
Tools Required:
- Ratchet
- Torque wrench
- Socket (10mm, 19mm)
- Socket extension (3")
- Rotary tool
- Tape measure
- Tape
- Flathead screwdriver
Step-by-Step Instructions:
Step 1: Remove the underbody panel
- Remove the underbody panel from the rear of the vehicle by taking out eleven (11) push fasteners and three (3) nuts using a 10mm socket with a 3" extension.
Step 2: Trim the bumper cover
- Trim the bumper cover using the provided trim diagram as reference.
Step 3: Install the hitch
- Raise the hitch into position, gently pulling down on the bumper cover to allow the hitch to slide into place.
- Secure the hitch using M12 hex bolts (#2) and conical-toothed washers (#3).
- Torque the M12 hardware to 86 ft-lbs.
- Reinstall the underbody panel removed in Step 1.
Hardware List:
- (1) Trailer hitch (#1)
- (4) Hex bolts, M12 (#2)
- (4) Conical-toothed washers, 1/2” (#3)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 1,500 lbs.
- Tongue Weight (TW): 150 lbs.
- Torque Specification: 86 ft-lbs.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product comes with a limited warranty of [X] years. Coverage includes defects in materials and workmanship under normal use. For complete warranty instructions, please download the full installation PDF.
