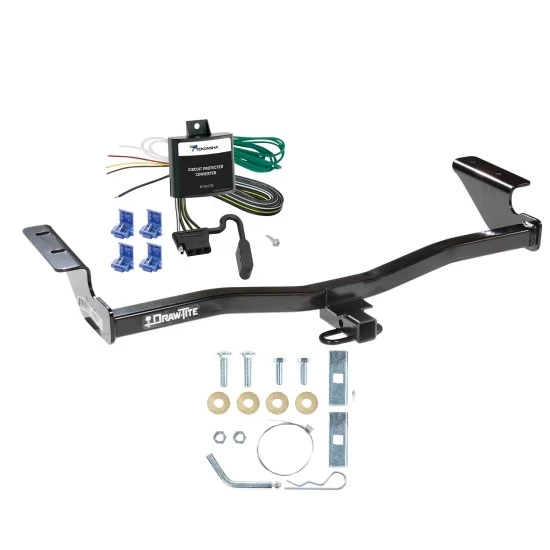

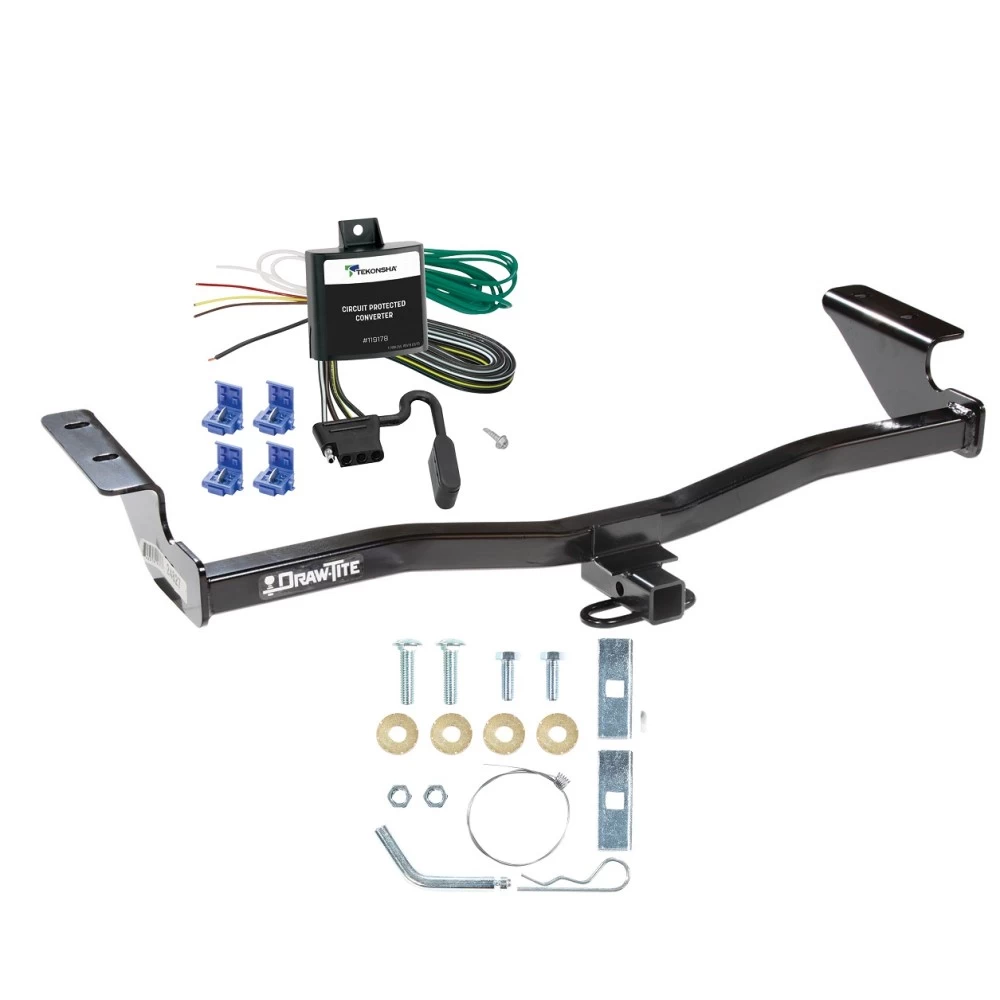

Trailer Tow Hitch For 05‑06 Scion tC Trailer Hitch Tow Receiver w/ Wiring Harness Kit
Model: 24827 119178Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2006 Scion, tC, All Styles
Trailer Hitch Specs:
| Part Number | 24827 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | 0 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 119178 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 05 06 2005 2006
$175 78 $230.46 24% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$230.46 $175 78
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $43.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24827 119178
- Includes: Class 1 Trailer Tow Hitch, Taillight Converter with Integrated Circuit Protection
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2005 - 2006 Scion, tC, All Styles
Trailer Hitch Specs:
| Part Number | 24827 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | 0 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 119178 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 05 06 2005 2006
Get Expert Help
Trailer Tow Hitch For 05-06 Scion tC Trailer Hitch Tow Receiver w/ Wiring Harness Kit Install Notes
Installation Instructions for Scion tC
Part Numbers:
- 24827
- 60213
- 77199
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 17mm, 11/16”
- Drill Bits: 3/8”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Tie-Down Brackets (if present):
- Detach the tie-down brackets from the vehicle frame rail.
- Return the brackets and bolts to the vehicle owner.
-
Remove Plastic Rivets:
- Remove the two plastic rivets securing the fascia tabs to the vehicle.
- Use a screwdriver to remove the center of each rivet.
-
Enlarge Access Holes:
- Enlarge the access holes in the passenger-side frame rail only to accommodate the spacer. Refer to Figure 2 for guidance.
-
Fishwire Carriage Bolts and Spacers:
- Insert the pull wire through the enlarged hole, attach a spacer and carriage bolt, and feed them one at a time into the frame rail. Leave the pull wire attached.
-
Paint Exposed Metal:
- Apply paint to any exposed metal surfaces to prevent corrosion.
-
Position Hitch:
- Raise the hitch into position.
- Feed the pull wires through the adjacent holes in the hitch, remove the pull wires, and install conical washers and nuts finger-tight only.
- Ensure fasteners are not pushed back into the frame rail.
-
Center and Secure Hitch:
- Verify the hitch is centered on the vehicle.
- Torque all fasteners to the specified values:
- M10 CL8.8 bolts: 59 Lb.-Ft. (80 N*M)
- 7/16”-14 GR5 bolts: 50 Lb.-Ft. (68 N*M)
-
Reinstall Plastic Rivets:
- Replace the plastic rivets removed from the fascia tabs in Step 2.
Hardware List:
- (2) Carriage Bolts: 7/16”-14 x 1.75” GR5
- (2) Hex Nuts: 7/16”-14
- (2) Spacers
- (2) Hex Bolts: M10 x 1.25 x 30mm CL8.8
- (4) Conical Washers: 7/16”
- (2) Pull Wires: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Do not exceed the manufacturer’s recommended towing capacity.
Installation Instructions
Part Numbers:
- 24827
- 60213
- 77199
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 17mm, 11/16”
- Drill Bits: 3/8”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Tie-Down Brackets (if present):
- Detach the tie-down brackets from the vehicle frame rail.
- Return the brackets and bolts to the vehicle owner.
-
Remove Plastic Rivets:
- Remove the two plastic rivets securing the fascia tabs to the vehicle.
- Use a screwdriver to remove the center of each rivet.
-
Enlarge Access Holes:
- Enlarge the access holes in the passenger-side frame rail only to accommodate the spacer. Refer to Figure 2 for guidance.
-
Fishwire Carriage Bolts and Spacers:
- Insert the pull wire through the enlarged hole, attach a spacer and carriage bolt, and feed them one at a time into the frame rail. Leave the pull wire attached.
-
Paint Exposed Metal:
- Apply paint to any exposed metal surfaces to prevent corrosion.
-
Position Hitch:
- Raise the hitch into position.
- Feed the pull wires through the adjacent holes in the hitch, remove the pull wires, and install conical washers and nuts finger-tight only.
- Ensure fasteners are not pushed back into the frame rail.
-
Center and Secure Hitch:
- Verify the hitch is centered on the vehicle.
- Torque all fasteners to the specified values:
- M10 CL8.8 bolts: 59 Lb.-Ft. (80 N*M)
- 7/16”-14 GR5 bolts: 50 Lb.-Ft. (68 N*M)
-
Reinstall Plastic Rivets:
- Replace the plastic rivets removed from the fascia tabs in Step 2.
Hardware List:
- (2) Carriage Bolts: 7/16”-14 x 1.75” GR5
- (2) Hex Nuts: 7/16”-14
- (2) Spacers
- (2) Hex Bolts: M10 x 1.25 x 30mm CL8.8
- (4) Conical Washers: 7/16”
- (2) Pull Wires: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Do not exceed the manufacturer’s recommended towing capacity.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
People Also Bought
