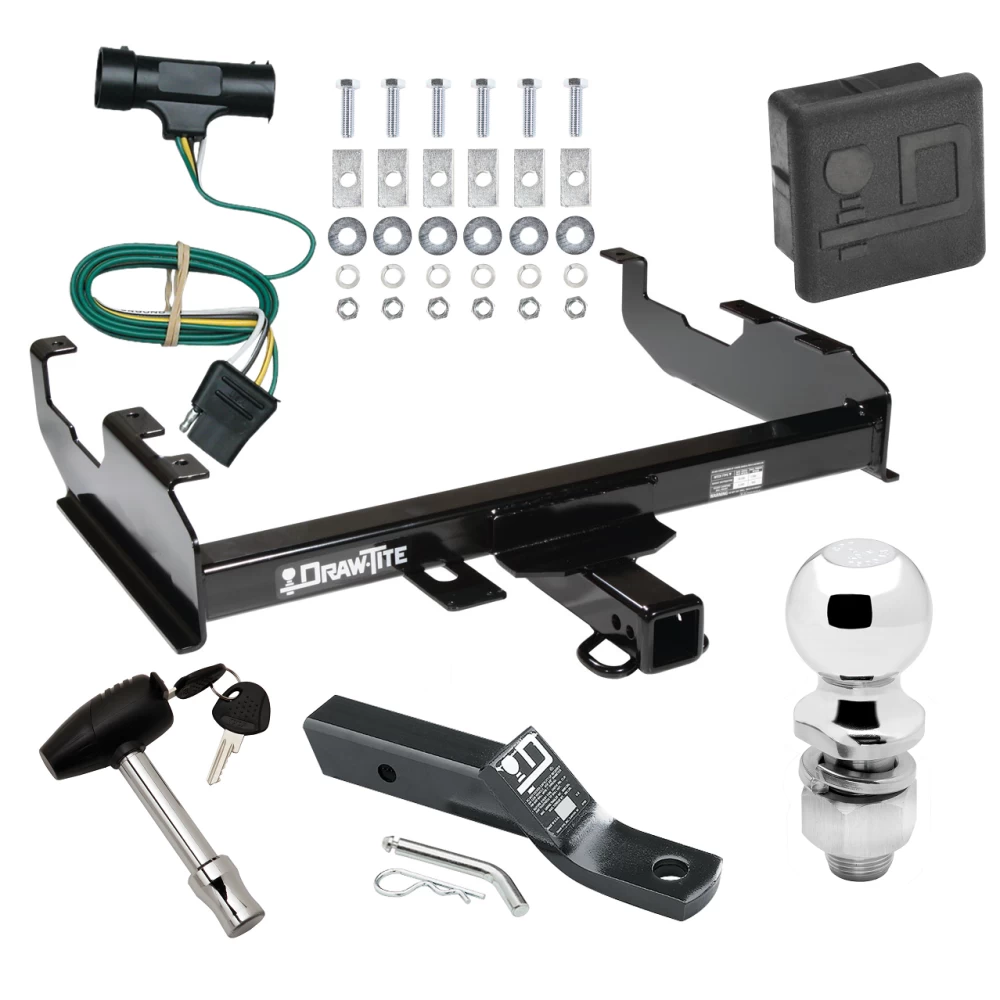

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 73-84 Chevy C/K 67-84 GMC C/K w/ 8' Bed Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chevrolet, Ford, and GMC Pickup Trucks
Part Numbers:
- 41001
- 37087
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Use torque wrench for all fasteners)
Specifications:
- Weight Distributing:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
- Weight Carrying:
- Max Trailer Weight: 6,000 lbs
- Max Tongue Weight: 600 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Disconnect Exhaust Pipes (Dual Exhaust Models Only):
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-
Position Receiver:
- Position the receiver on the vehicle as shown, ensuring the receiver is centered.
- In some cases, it may align with existing holes in the frame. Remove any undercoating from the attachment surfaces.
-
Drill Holes:
- Use the receiver as a template to drill any remaining holes in the bottom of the frame rails with a 1/2" drill bit.
-
Install Fasteners:
- Install all fasteners as shown, placing blocks inside the vehicle frame.
- Tighten 1/2" Grade 5 fasteners to 75 lb-ft.
-
Reconnect Exhaust:
- Reconnect the exhaust pipes to the clamp.
-
Relocate Spare Tire:
- To retain under-box tire storage, the spare tire carrier must be relocated and/or modified.
Notes:
- For 1981 and Later Chevrolet & GMC with Step Bumpers:
- Remove support brackets to fit the hitch.
- Retain the brackets for reinstallation if the hitch is removed. Step bumpers should not be used for towing with these brackets removed.
Optional Accessories:
- J-Pin: Locking stabilizing pin (order separately).
Safety Notes:
- Ensure all fasteners are properly tightened to specified torque values.
- Inspect the hitch and fasteners regularly.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Do not cut or modify attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York and V.E.S.C. Regulation V-5.
Additional Notes:
- Check all hitch fasteners and ball mount connections before each use.
- Ensure proper alignment and secure attachment of all components.
Installation Instructions for Pickup Trucks
Part Numbers:
- 41001
- 37087
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Use torque wrench for all fasteners)
Specifications:
- Weight Distributing:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
- Weight Carrying:
- Max Trailer Weight: 6,000 lbs
- Max Tongue Weight: 600 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Disconnect Exhaust Pipes (Dual Exhaust Models Only):
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-
Position Receiver:
- Position the receiver on the vehicle as shown, ensuring the receiver is centered.
- In some cases, it may align with existing holes in the frame. Remove any undercoating from the attachment surfaces.
-
Drill Holes:
- Use the receiver as a template to drill any remaining holes in the bottom of the frame rails with a 1/2" drill bit.
-
Install Fasteners:
- Install all fasteners as shown, placing blocks inside the vehicle frame.
- Tighten 1/2" Grade 5 fasteners to 75 lb-ft.
-
Reconnect Exhaust:
- Reconnect the exhaust pipes to the clamp.
-
Relocate Spare Tire:
- To retain under-box tire storage, the spare tire carrier must be relocated and/or modified.
Notes:
- For 1981 and Later Pickup Trucks with Step Bumpers:
- Remove support brackets to fit the hitch.
- Retain the brackets for reinstallation if the hitch is removed. Step bumpers should not be used for towing with these brackets removed.
Optional Accessories:
- J-Pin: Locking stabilizing pin (order separately).
Safety Notes:
- Ensure all fasteners are properly tightened to specified torque values.
- Inspect the hitch and fasteners regularly.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Do not cut or modify attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York and V.E.S.C. Regulation V-5.
Additional Notes:
- Check all hitch fasteners and ball mount connections before each use.
- Ensure proper alignment and secure attachment of all components.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution: Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. circuit rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. Circuit Rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
