Product Details
- Brand: Draw-Tite
- Model: 41001 118311

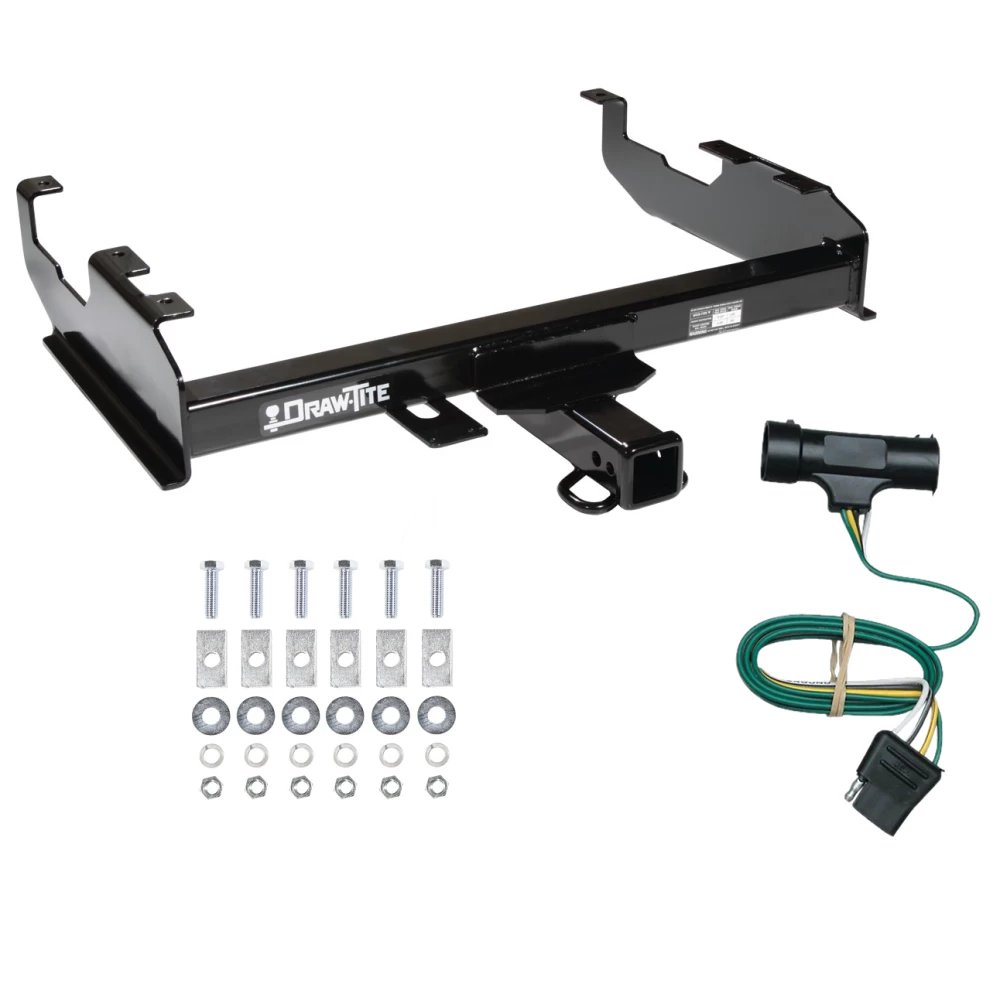

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 73-84 Chevy C/K 67-84 GMC C/K w/ 8' Bed w/ Wiring Harness Kit Install Notes
Installation Instructions for Chevrolet, Ford, and GMC Pickup Trucks
Part Numbers:
- 41001
- 37087
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Use torque wrench for all fasteners)
Specifications:
- Weight Distributing:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
- Weight Carrying:
- Max Trailer Weight: 6,000 lbs
- Max Tongue Weight: 600 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Disconnect Exhaust Pipes (Dual Exhaust Models Only):
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-

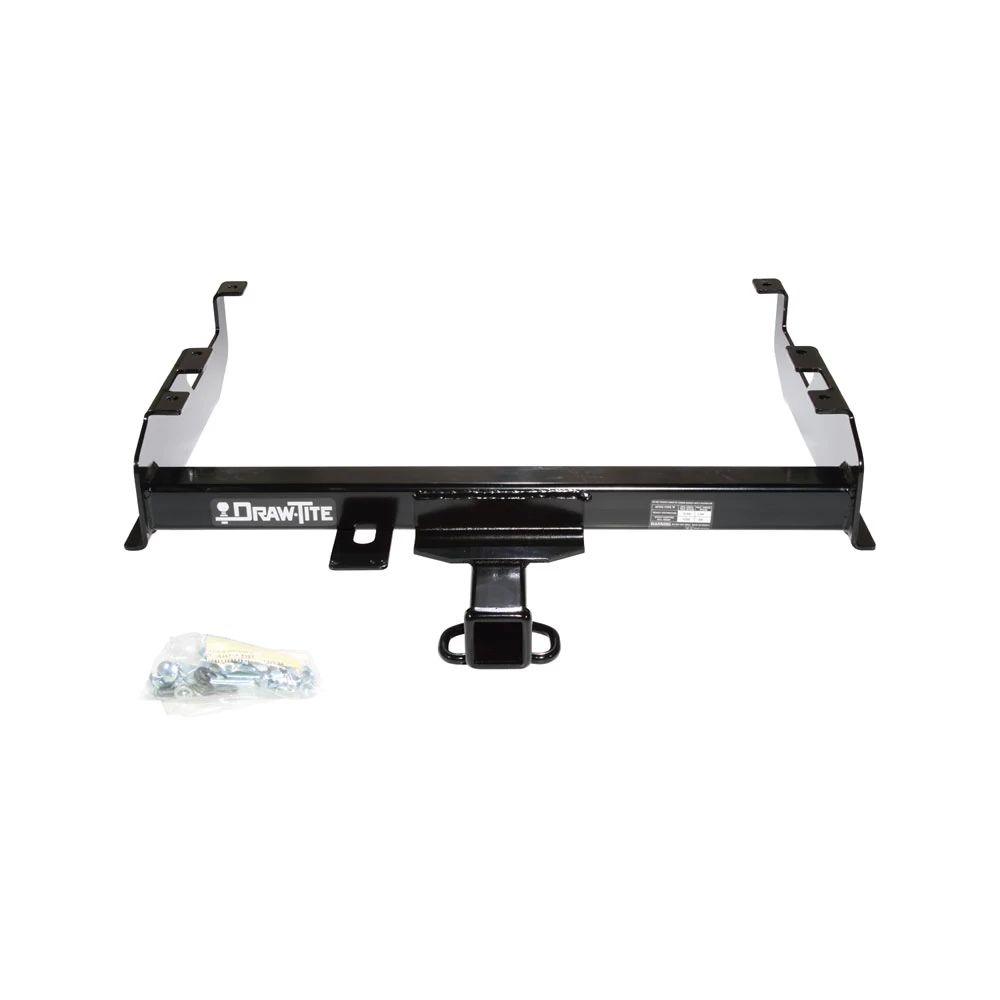

Position Receiver:
- Position the receiver on the vehicle as shown, ensuring the receiver is centered.
- In some cases, it may align with existing holes in the frame. Remove any undercoating from the attachment surfaces.
-
Drill Holes:
- Use the receiver as a template to drill any remaining holes in the bottom of the frame rails with a 1/2" drill bit.
-

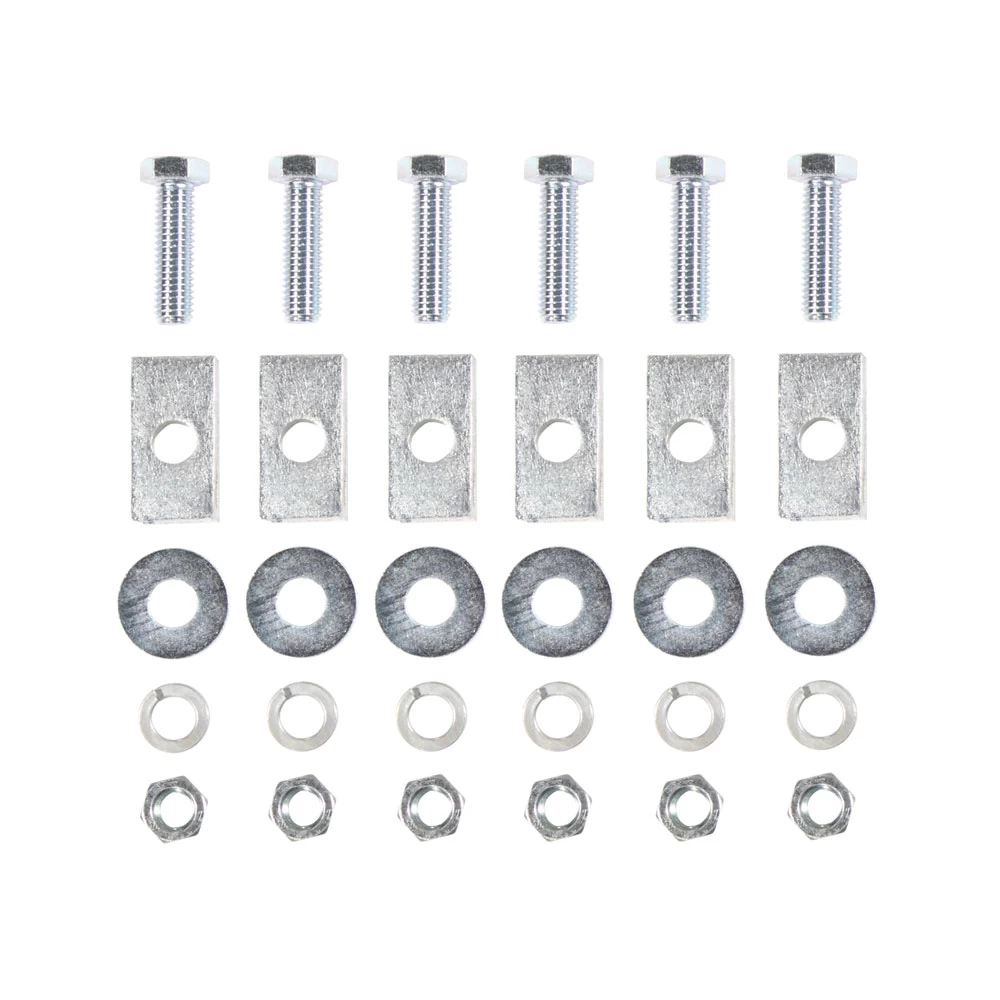

Install Fasteners:
- Install all fasteners as shown, placing blocks inside the vehicle frame.
- Tighten 1/2" Grade 5 fasteners to 75 lb-ft.
-
Reconnect Exhaust:
- Reconnect the exhaust pipes to the clamp.
-
Relocate Spare Tire:
- To retain under-box tire storage, the spare tire carrier must be relocated and/or modified.
Notes:
- For 1981 and Later Chevrolet & GMC with Step Bumpers:
- Remove support brackets to fit the hitch.
- Retain the brackets for reinstallation if the hitch is removed. Step bumpers should not be used for towing with these brackets removed.
Optional Accessories:
- J-Pin: Locking stabilizing pin (order separately).
Safety Notes:
- Ensure all fasteners are properly tightened to specified torque values.
- Inspect the hitch and fasteners regularly.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Do not cut or modify attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York and V.E.S.C. Regulation V-5.
Additional Notes:
- Check all hitch fasteners and ball mount connections before each use.
- Ensure proper alignment and secure attachment of all components.
Installation Instructions for Pickup Trucks
Part Numbers:
- 41001
- 37087
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Use torque wrench for all fasteners)
Specifications:
- Weight Distributing:
- Max Trailer Weight: 10,000 lbs
- Max Tongue Weight: 1,000 lbs
- Weight Carrying:
- Max Trailer Weight: 6,000 lbs
- Max Tongue Weight: 600 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire and carrier from the vehicle.
-
Disconnect Exhaust Pipes (Dual Exhaust Models Only):
- Disconnect the clamp and drop the exhaust pipes on dual exhaust models.
-
Position Receiver:
- Position the receiver on the vehicle as shown, ensuring the receiver is centered.
- In some cases, it may align with existing holes in the frame. Remove any undercoating from the attachment surfaces.
-
Drill Holes:
- Use the receiver as a template to drill any remaining holes in the bottom of the frame rails with a 1/2" drill bit.
-
Install Fasteners:
- Install all fasteners as shown, placing blocks inside the vehicle frame.
- Tighten 1/2" Grade 5 fasteners to 75 lb-ft.
-
Reconnect Exhaust:
- Reconnect the exhaust pipes to the clamp.
-
Relocate Spare Tire:
- To retain under-box tire storage, the spare tire carrier must be relocated and/or modified.
Notes:
- For 1981 and Later Pickup Trucks with Step Bumpers:
- Remove support brackets to fit the hitch.
- Retain the brackets for reinstallation if the hitch is removed. Step bumpers should not be used for towing with these brackets removed.
Optional Accessories:
- J-Pin: Locking stabilizing pin (order separately).
Safety Notes:
- Ensure all fasteners are properly tightened to specified torque values.
- Inspect the hitch and fasteners regularly.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Do not cut or modify attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York and V.E.S.C. Regulation V-5.
Additional Notes:
- Check all hitch fasteners and ball mount connections before each use.
- Ensure proper alignment and secure attachment of all components.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution: Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. circuit rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118311
Tools Required:
- Drill (3/32” Drill Bit)
- Screwdriver
- Test Probe
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Vehicle’s Tail Light Wiring Harness:
- Find the wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Disconnect the Wiring Harness:
- Carefully separate the harness connectors, ensuring not to break the locking tabs.
- Check and clean the mating surfaces of the connectors if necessary.
-
Install the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Do not drill into the vehicle floor or bed. Verify the surface behind before drilling to avoid damage.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle’s crossmember or another mounting point using electrical tape or tie straps (not supplied).
-
Test the Installation:
- Verify the installation with a test light or trailer.
Specifications:
- Max. Circuit Rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are complete for proper operation.
- Always wear safety glasses and follow safety precautions during installation.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
